What Is EBSD Electron Backscatter Diffraction?
Electron Backscatter Diffraction (EBSD) is a highly advanced materials analysis technique used to study a wide range of materials, including metals, ceramics, and semiconductors. EBSD analysis is performed using scanning electron microscopy and is used to analyze materials at the microscale. EBSD analysis provides valuable insights into materials and is used for various purposes, such as materials development, quality assurance, and failure analysis.
Applications and Benefits of EBSD Electron Backscatter Diffraction Testing
Scope
EBSD is used to analyze crystallographic microstructures by collecting and analyzing electron backscatter diffraction patterns formed when electrons are diffracted from the polished surface of a specimen in a scanning electron microscope.
EBSD analysis evaluates:
- Grain orientation mapping and crystallographic texture analysis of polycrystalline materials
- Grain boundary character distribution, including low and high-angle boundary identification
- Phase identification and discrimination across multi-phase metallic and ceramic material systems
- Residual strain and deformation mapping within material microstructures
- Recrystallization fraction, grain size distribution, and microstructural homogeneity assessment
Applications
- Metals and alloys, including steel, aluminum, titanium, nickel superalloys, and copper systems
- Ceramic, semiconductor, and thin film materials requiring crystallographic characterization
- Welded, deformed, and heat-treated material microstructural assessment
- Failure analysis investigations requiring grain boundary and crystallographic root cause evaluation
- Academic and industrial research programs requiring advanced microstructural characterization data
Benefits
- Provides high-resolution crystallographic and microstructural data unavailable through conventional microscopy
- Supports material development, process optimization
- Identifies crystallographic failure mechanisms in support of root cause failure analysis
- Delivers traceable, quantitative microstructural data
- Reduces material development risk by providing detailed microstructural intelligence early in the design cycle

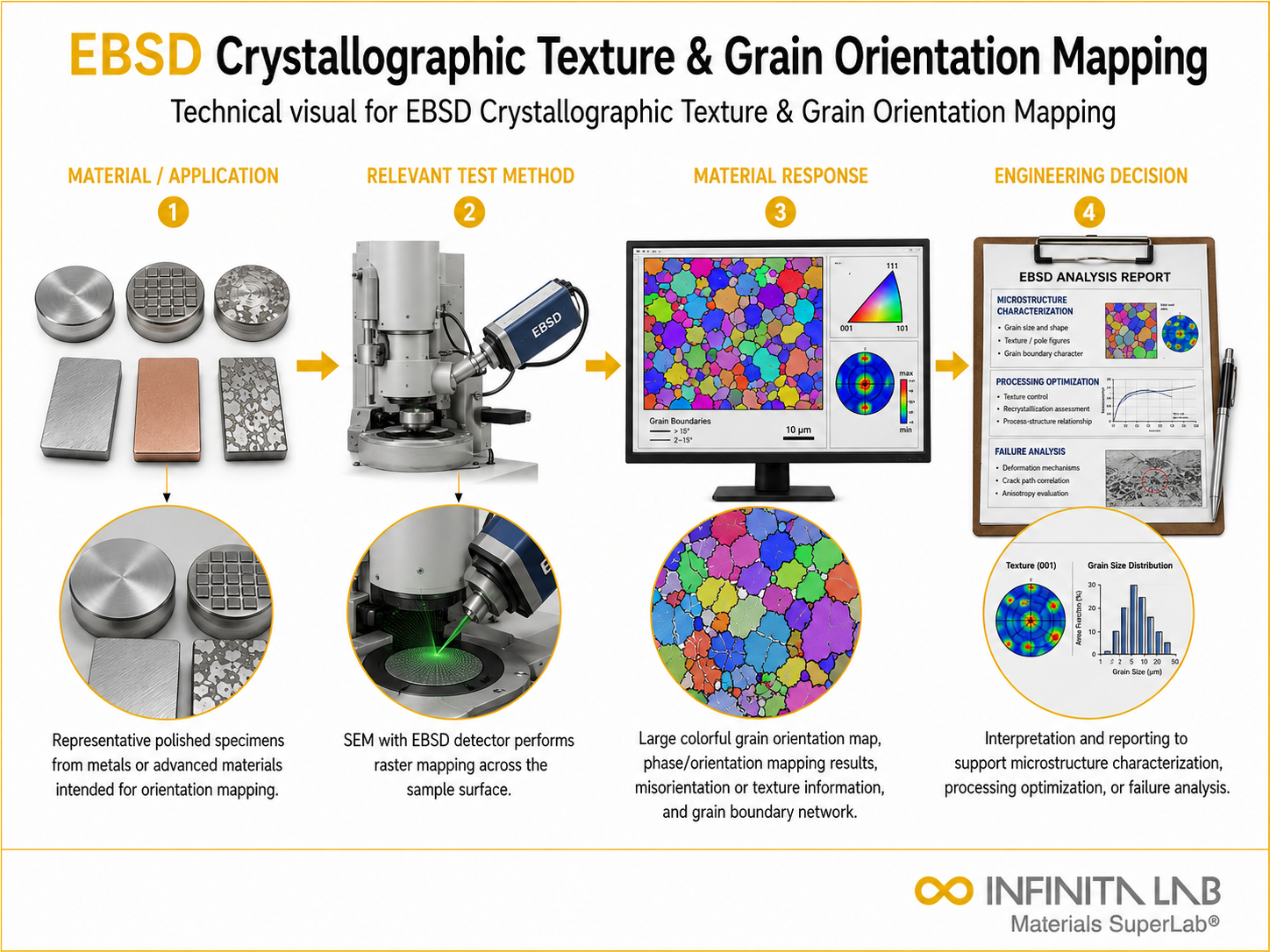

Our Testing Procedure
Sample Preparation
Specimens sectioned, mounted, and polished to high-quality surface finish for EBSD pattern acquisition.
1SEM & EBSD Setup
Specimen loaded into SEM, tilted to acquisition angle, and detector configured for optimal pattern quality.
2Data Acquisition
Electron beam rastered across analysis area collecting and indexing diffraction patterns at each point.
3Data Analysis & Reporting
EBSD datasets processed to generate orientation maps, pole figures, and microstructural statistics.
4Test parameters and requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Metals, alloys, ceramics, semiconductors, thin films, and polycrystalline materials |
| Analysis Technique | Electron backscatter diffraction pattern collection and indexing within SEM |
| Spatial Resolution | Sub-micron crystallographic orientation mapping capability |
| Measured Parameters | Grain orientation, texture, phase distribution, grain boundary character, residual strain |
| Measured Outputs | Orientation maps, pole figures, grain boundary maps, phase maps, microstructural statistics |
- Field emission scanning electron microscope with EBSD detector system
- Automated pattern acquisition and indexing software
- Specimen preparation equipment, including grinding, polishing, and electropolishing systems
- Colloidal silica and OPS final polishing consumables
- Specialist EBSD analysis and post-processing software
- Data reporting and visualization system
Equipment and Instrumentation Used for Testing
What You Receive: Test Report, Data, and Certification
- EBSD orientation and phase maps with defined analysis area and step size documentation
- Pole figures and inverse pole figures for crystallographic texture characterization
- Grain boundary character distribution maps and quantitative boundary statistics
- Grain size distribution, recrystallization fraction, and microstructural homogeneity data
- Comprehensive EBSD analysis report
EBSD Electron Backscatter Diffraction FAQs
EBSD is a technique that utilizes SEM for materials characterization. In EBSD, the electron beam is scanned across a tilted crystalline sample, and diffracted electrons at each point form a pattern, which can be detected and then analyzed using dedicated hardware and software.
Electron Backscatter Diffraction (EBSD) has a resolution ranging from 50 nm to several microns, depending upon sample quality and setup. A spatial resolution of about 1 micron should be possible for routine applications.
EBSD is significant in material science as the information obtained from this technique includes degree of orientation, phase identification, grain boundary characterization, and defect analysis, which are essential for understanding material properties.
EBSD analyzes various crystalline materials, including metals, ceramics, rocks, semiconductors, and ice, to gain insights into their microstructure and crystallography.
EBSD requires sample preparation, as mechanical grinding or polishing can distort the surface crystal lattices. Moreover, insulators may demand conductive coatings, affecting their precision analysis.
Electron Backscatter Diffraction (EBSD) analysis uses a scanning electron microscope (SEM) to examine the crystal structure and orientation of a material. A polished specimen is tilted, and the electron beam generates diffraction patterns that are captured and indexed by software. The results reveal grain orientation, phase distribution, grain boundaries, and crystallographic texture.
An EBSD sample stage positions and tilts a specimen inside a scanning electron microscope to optimize diffraction pattern collection. It maintains the required geometry and allows precise movement across the sample surface for mapping. The term “Type A” may refer to a specific stage design or equipment configuration, so its exact function depends on the instrument model.
EBSD post-processing involves cleaning and analyzing indexed diffraction data to improve interpretation. Software can filter unreliable measurements, reconstruct grains, calculate grain sizes and boundary misorientations, and generate orientation and phase maps. The processed results help evaluate material texture, deformation, and microstructural characteristics.
