What Is ASTM D6055 Unitized Load Shipping Case Handling?
ASTM D6055, Standard Test Methods for Mechanical Handling of Unitized Loads and Large Shipping Cases and Crates, is a Committee D10 packaging standard maintained under Subcommittee D10.21. It defines how to evaluate whether a shipping unit and its contents can endure normal handling by standard mechanical handling equipment. The current active edition is D6055-96(2019). It isn’t a single procedure. It’s a family of six test methods, each tied to a specific handling device: Method A covers fork truck handling, Method B the spade lift test, Method C the clamp handling test, Method D the push-pull handling test for loads on slip-sheets, Method E the grabhook test, and Method F sling tests using wire rope, cable, or woven fiber slings. Each method subjects the shipping unit to the repeated handling actions and contact stresses its associated equipment would impose in distribution. Think of forks entering and lifting a base, hydraulic clamp arms applying side compression, or slings pressing against the load during a lift. The standard applies to unitized loads, large cases, and crates. It excludes individual drums and palletized drums. It assesses load integrity, stability, and suitability for mechanical handling; exposes design deficiencies in a package or unitizing scheme; and helps predict the damage patterns likely to occur in real distribution systems. The methods concentrate on interaction with handling equipment rather than free fall or vibration, so D6055 is typically used alongside companion Committee D10 standards for drop, impact, vibration, and compression testing when a complete distribution-hazard evaluation is needed. Results are generally judged by whether the shipping unit, its unitizing materials, and its contents remain intact and stable after the prescribed handling. The parties commissioning the test agree on the specific acceptance criteria.
Applications and Benefits of ASTM D6055 Unitized Load Shipping Case Handling Testing
Scope
ASTM D6055 evaluates packaged goods performance under mechanical handling conditions. It helps determine the durability and integrity of shipping units during distribution.
The test evaluates:
- Six test methods, designated A through F, cover the mechanical handling of unitized loads and large shipping cases and crates.
- The aim is to test the integrity of the shipping unit and the ability of its contents to endure normal handling with standard mechanical handling equipment.
- Method A addresses fork truck handling and examines whether the shipping unit can withstand repeated handling by lift trucks.
- Spade lift handling (Method B) evaluates whether the handling flap of a case or shipping unit can hold up to repeated lifting.
- Method C is the clamp test. It evaluates resistance to repeated hydraulic squeeze compression combined with lifting.
- Push-pull handling, Method D, looks at whether a unitized load on a slip-sheet can withstand repeated pushing and pulling.
- For Method E, grabhook lifting, the question is how well the shipping unit resists the horizontal pressures grabhooks apply.
- Method F covers sling lifting with wire rope, cable, or woven fiber slings, and it evaluates resistance to sling compression on the load.
- Individual drums and palletized drums are explicitly excluded from scope.
- ASTM Committee D10 on Packaging publishes the standard, and it’s currently active as D6055-96(2019).
Applications
- Qualifying palletized and unitized loads for lift truck handling during warehousing and outbound shipping.
- Large export cases and crates that get lifted by spade, grab hook, or sling attachments.
- Verifying that cartons and unitizing materials on a load can tolerate hydraulic clamp handling without crushing or shifting.
- Slip-sheet unit loads moved by push-pull attachments instead of pallets.
- Comparing alternative package designs, bracing, strapping, or unitizing schemes for handling durability.
- Distribution packaging programs that require documented handling performance for a given shipping unit.
Benefits
- Identifies design deficiencies in cases, crates, and unitized loads before they reach actual distribution channels.
- It helps predict the types of damage handling equipment is likely to cause in real distribution systems.
- Engineers can pick the handling method that matches the equipment actually used along the supply chain.
- You get a repeatable, documented basis for comparing package or unit load designs.
- Supports packaging optimization by showing whether protection is insufficient or unnecessarily heavy.
- Complements drop, vibration, and compression testing for a more complete view of distribution hazards.

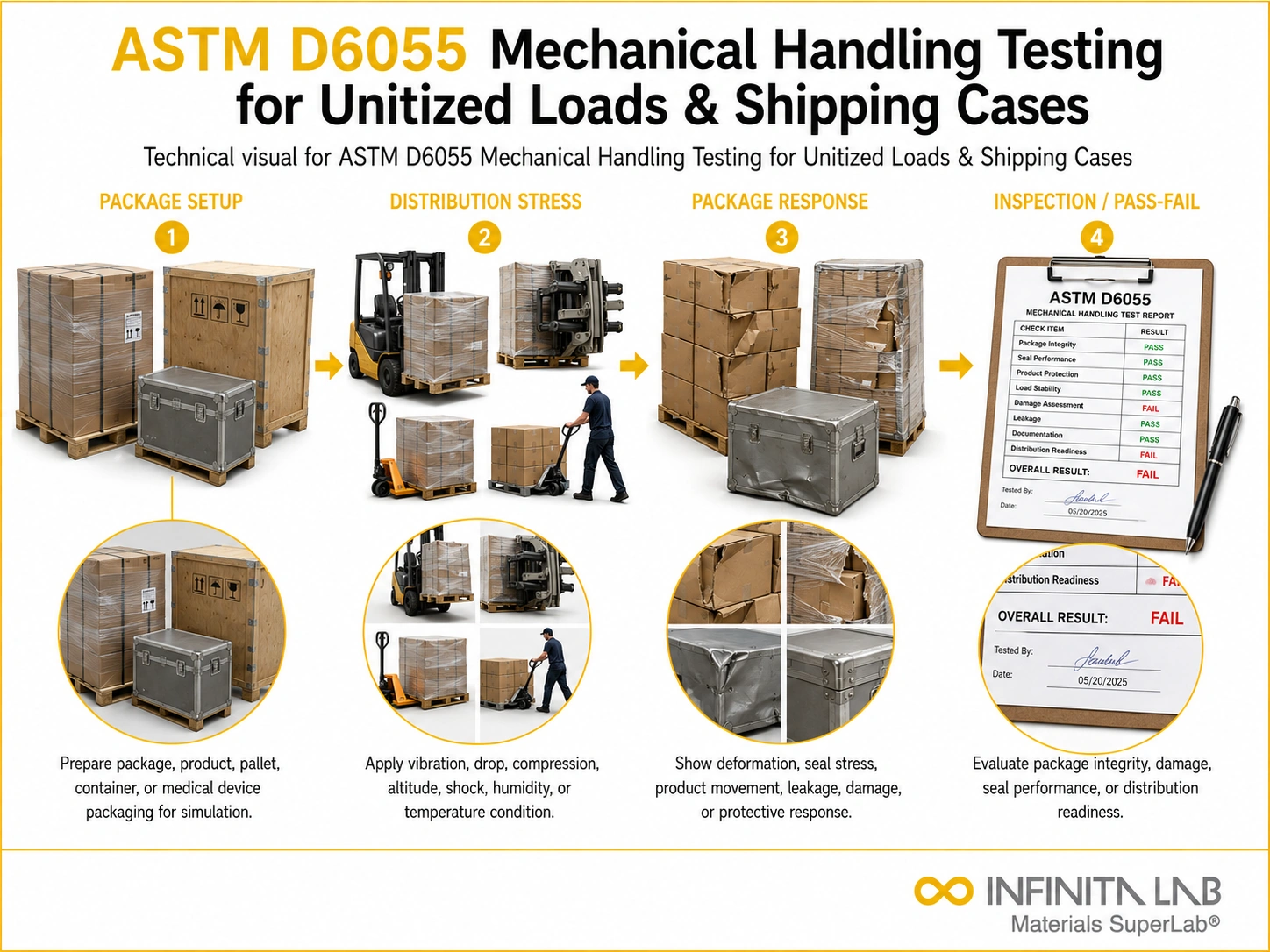

Our ASTM D6055 Testing Procedure
Sample Preparation
Packaged units are prepared as per shipping configuration.
1Mechanical Handling Simulation
Loads are subjected to handling actions such as lifting, dropping, or tilting.
2Impact and Drop Testing
Packages are exposed to controlled drops or impacts.
3Data Recording & Evaluation
Damage and performance are assessed against ASTM requirements.
4ASTM D6055 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Packaged goods, shipping cases, crates |
| Test Methods | Drop, impact, and handling simulation |
| Load Type | Unitized or individual packages |
| Test Conditions | Simulated transportation and handling environment |
| Measured Outputs | Damage level, structural integrity, load stability |
- Fork Truck (Lift Truck) – Supplies the lifting, transport, and lowering actions used in Method A fork truck handling.
- Spade Lift Attachment – Lifts the shipping unit by its handling flap, which shows how well the flap resists repeated lifting in Method B.
- Hydraulic Clamp Attachment – Applies repeated side compression and lifting to the shipping unit in Method C.
- Push-Pull Slip-Sheet Attachment – Pushes and pulls unitized loads on slip-sheets so Method D can evaluate handling durability.
- Grabhooks – Engage the shipping unit to lift it, imposing horizontal pressures in Method E.
- Wire Rope, Cable, and Woven Fiber Slings – Lift the shipping unit and put sling compression on the load in Method F.
- Measuring and Documentation Tools – Record dimensions, condition, and photographic evidence of the shipping unit before and after handling.
Equipment and Instrumentation Used for ASTM D6055 Testing
What You Receive: Test Report, Data, and Certification
- A report naming the ASTM D6055 edition and the specific test method or methods (A through F) performed.
- Specimen description: the unitized load or case configuration, contents, and unitizing materials.
- Documentation of the handling equipment and attachments used for each test method.
- What was seen during and after handling, whether load shifting, container deformation, unitizing failure, or content damage.
- Photographs and notes that support the findings and point out any design deficiencies.
- A conclusion on the shipping unit’s suitability for mechanical handling, based on the criteria agreed with the client.
ASTM D6055 Unitized Load Shipping Case Handling FAQs
ASTM D6055 is a standard test method used to evaluate the ability of shipping containers, crates, and unitized loads to withstand mechanical handling stresses during transportation, storage, and distribution processes.
ASTM D6055 helps ensure packaging durability by simulating real handling conditions, reducing product damage, improving safety, and ensuring goods reach their destination without loss or structural failure.
ASTM D6055 includes drop, impact, compression, and handling simulation tests such as forklift operations to assess packaging performance under various real-world distribution and handling conditions.
Unitized loads are multiple items grouped together, typically on pallets and secured with wrapping or strapping, allowing them to be handled as a single unit during transportation and storage.
Results are evaluated based on packaging integrity, product condition, and extent of damage after testing, determining whether the packaging meets required performance and safety standards.
