ASTM D3419 In-Line Screw Injection Molding Process Testing
This ASTM D 3419 standard practice outlines specific steps for creating test specimens for in-line screw-injection moulding using thermosetting materials. It creates procedures to guarantee the consistent and reliable manufacture of test specimens, permitting reliable and accurate testing in the area of thermosetting materials.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM D3419 evaluates the injection molding characteristics of thermoplastic materials using an in-line screw injection molding machine. The test assesses processability, molding behavior, and material performance under controlled molding conditions.
This method is widely used in plastic manufacturing and product development. It helps determine how materials behave during injection molding and ensures consistent quality in molded components.
Scope, Applications, and Benefits
Scope
ASTM D3419 assesses thermoplastic materials by evaluating their behavior during injection molding using an in-line screw system. The test provides insight into processing characteristics and molded part quality.
The test evaluates:
- Injection molding performance of thermoplastics
- Flow and filling behavior in molds
- Stability during molding cycles
- Surface quality of molded parts
- Suitability for manufacturing applications
Applications
- Injection molded plastic components
- Automotive and industrial parts
- Consumer plastic products
- Packaging components
- Engineering thermoplastics
- Quality control in plastic processing
Benefits
- Provides realistic processing evaluation
- Supports optimization of molding parameters
- Ensures consistency in molded product quality
- Helps detect processing issues
- Enables comparison of material performance

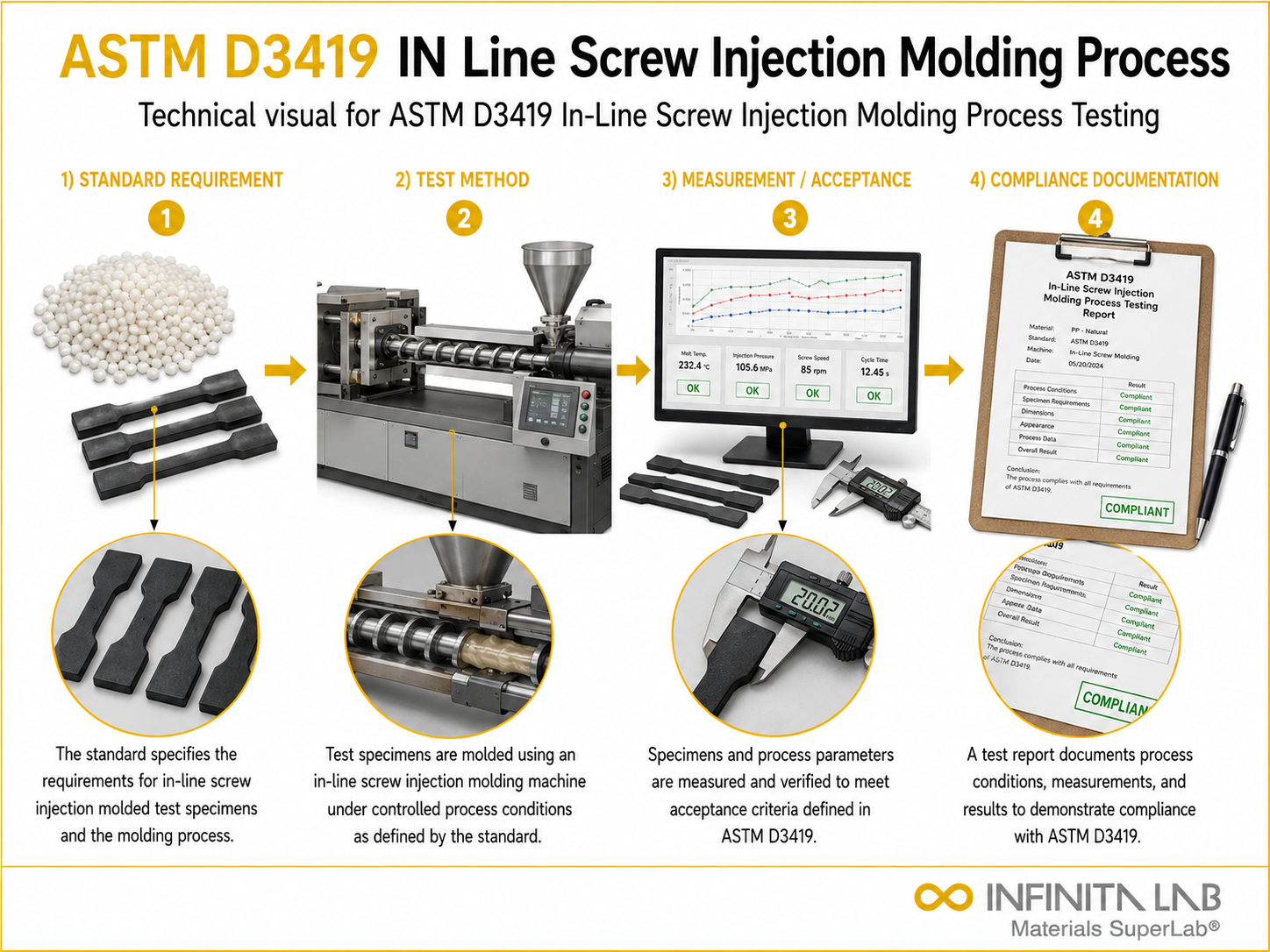

Test Process
Sample Preparation
Thermoplastic material is prepared and loaded into the machine.
1Machine Setup
Injection molding parameters are set as per test requirements.
2Injection Process
Material is injected into the mold using an in-line screw system.
3Data Recording & Evaluation
Molded parts are evaluated for quality and processing behavior.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Thermoplastic polymers |
| Barrel Temperature | ~180°C to 300°C |
| Injection Pressure | ~50 MPa to 150 MPa |
| Screw Speed | ~20 rpm to 120 rpm |
| Cycle Time | ~10 seconds to 60 seconds |
| Measured Outputs | Moldability, surface quality, flow behavior |
Instrumentation Used for Testing
- In-line screw injection molding machine
- Temperature control system
- Pressure monitoring system
- Mold cavity setup
- Sample preparation tools
- Data acquisition system
Results and Deliverables
- Injection molding performance evaluation
- Flow and filling behavior analysis
- Molded part quality assessment
- Processing parameter insights
- Test condition summary
- ASTM compliance report
Why Choose Infinita Lab for <Service- Name>?
Infinita Lab is a trusted USA-based testing laboratory offering <Service- Name> testing services across an extensive network of accredited facilities across the USA.
Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
ASTM D3419 evaluates processability of thermoplastics using in-line screw-injection molding. It assesses molding behavior under controlled conditions, helping determine material performance, flow characteristics, and suitability for injection molding applications.
Key parameters include melt temperature, injection pressure, screw speed, mold temperature, and cycle time. Controlled processing conditions ensure accurate evaluation of material behavior during injection molding operations.
The test measures molded part quality, flow characteristics, and processing consistency. Results indicate suitability of thermoplastic materials for injection molding and their performance under specified manufacturing conditions.
ASTM D3419 applies to thermoplastic materials such as polyethylene, polypropylene, and engineering plastics used in injection molding for automotive, consumer, and industrial applications.
ASTM D3419 results depend on machine setup and processing conditions. It may not fully represent all industrial molding environments, requiring correlation with actual production processes for accurate performance evaluation.
