What Is ASTM B49 Copper Rod Electrical?
ASTM B49, Standard Specification for Copper Rod for Electrical Purposes, governs the copper rod drawing stock used as the starting material for electrical wire and cable manufacturing. Rather than defining a single instrumental test, the specification sets out a coordinated package of chemical, physical, and electrical requirements that copper rod producers have to satisfy before that rod is released for wire drawing. Covered material includes electrolytic tough-pitch (ETP), oxygen-free, and fire-refined high-conductivity copper rod, generally supplied in diameters from 1/4 in. to 1-3/8 in. (6.4 to 35 mm).
Confirming conformance isn’t a matter of checking one number – it takes a full suite of verifications. Labs analyse chemical composition to confirm trace-element limits on impurities like tellurium, selenium, bismuth, antimony, lead, and oxygen. They measure electrical resistivity and conductivity, commonly referencing ASTM B193, to confirm the rod hits its minimum percent-IACS conductivity rating in the annealed condition. For oxygen-free grades, they also evaluate hydrogen-embrittlement susceptibility and surface cuprous-oxide content, typically referencing methods such as ASTM B577, and round things out with tensile, elongation, dimensional, and surface-quality inspection. Together, these checks confirm the rod will draw cleanly into wire – without breaking, without surface defects, and without giving up the conductivity electrical applications demand.
Since copper rod produced under ASTM B49 becomes the feedstock for finished conductors governed by downstream wire specifications such as ASTM B1, B2, and B3, getting this qualification right protects every later stage of wire and cable production. Infinita Lab connects rod producers, wire drawers, and cable manufacturers with accredited partner laboratories equipped to run the full ASTM B49 verification suite, coordinating sampling, testing, and reporting through a single point of contact so conformance data arrives on schedule and in a form procurement and engineering teams can actually use.
Applications and Benefits of ASTM B49 Copper Rod Electrical Testing
Scope
- Sets chemical composition limits for copper rod drawing stock made from electrolytic tough-pitch, oxygen-free, and fire-refined high-conductivity copper.
- Applies to rod intended for further fabrication into wire and other electrical conductors – not to finished wire itself.
- Rod is generally supplied in diameters from 1/4 in. to 1-3/8 in. (6.4 to 35 mm).
- Defines the minimum electrical conductivity, expressed as per cent IACS, that the rod must achieve in the annealed condition.
- Resistivity verification, consistent with methods such as ASTM B193, confirms those conductivity claims.
- Oxygen-free grades also need embrittlement and surface cuprous-oxide evaluation, consistent with methods such as ASTM B577.
- Tensile strength and elongation requirements confirm the rod can withstand the mechanical demands of drawing.
- Rod surfaces must be free of defects, though minor blemishes that don’t interfere with the intended application are permitted.
- Cross-references companion copper standards – ASTM B5, B115, B170, and B224 – for refinery shape and classification requirements.
- Provides the compositional and conductivity baseline that downstream finished-wire specifications, such as ASTM B1, B2, and B3, build on.
Applications
- Qualifying copper rod supplied to wire-drawing mills before it’s converted into building wire, magnet wire, or bare and coated conductors.
- Verifying incoming rod lots for cable manufacturers producing power, control, and communications cable.
- Supporting quality assurance programs at copper refiners and continuous-cast rod producers.
- Confirming conductivity and composition for rod destined for motor, generator, and transformer winding wire.
- Validating rod used in overhead and underground power transmission and distribution conductors.
- Supporting supplier qualification and periodic requalification audits between rod producers and their wire-drawing customers.
- Helping procurement teams resolve conformance disputes when incoming rod is suspected of falling outside specification.
Benefits
- Confirms the rod will draw into wire without breaking or generating excessive scrap during processing.
- Protects downstream conductivity performance by verifying rod purity and IACS rating before drawing even begins.
- Cuts the risk of costly rework or rejected finished-wire lots that trace back to out-of-specification rod.
- Gives you objective, third-party documentation to support supplier qualification and customer conformance requirements.
- Flags oxygen-free grade embrittlement issues before the rod ever reaches production.
- Strengthens traceability across the copper supply chain, from refined cathode through rod to finished conductor.

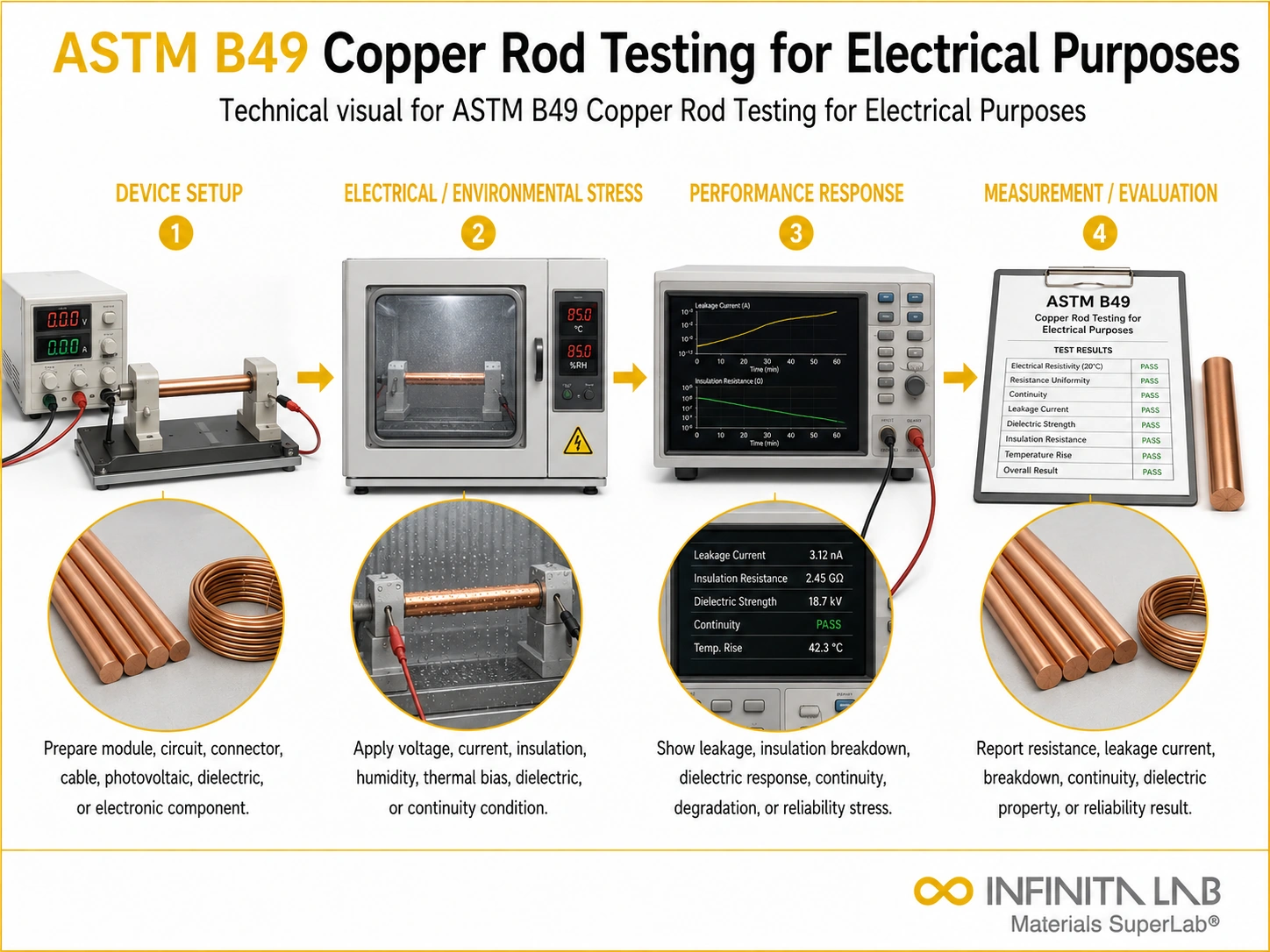

Our ASTM B49 Testing Procedure
Sample Selection and Conditioning
At least two samples are taken from the suspected rod coil and conditioned at 850 °C ± 25 °C before testing.
1Tensile Strength Testing
Tensile testing is performed to determine the mechanical strength of the copper rod.
2Surface Oxide Evaluation
The oxide layer present on the rod surface is examined and assessed to evaluate surface quality and conformity.
3Electrical Performance Assessment
Electrical resistivity is measured, and conductivity is determined directly or calculated from resistivity.
4ASTM B49 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Principle | Mechanical testing and electrical conductivity evaluation |
| Conditioning Temperature | 850 °C ± 25 °C |
| Measured Properties | Tensile strength, resistivity, conductivity, surface oxide thickness |
| Output Units | % IACS conductivity, resistivity (µΩ·cm), tensile strength (MPa), oxide thickness (µm) |
- Resistivity bridge / micro-ohmmeter – measures electrical resistivity on prepared rod specimens so conductivity can be calculated.
- Eddy-current conductivity meter – gives a fast, non-destructive percent-IACS reading on rod stock.
- Optical emission spectrometer (OES) – quantifies trace-element content against grade-specific composition limits.
- Universal tensile testing machine – pulls specimens to determine tensile strength and per cent elongation.
- Controlled-atmosphere embrittlement test furnace – heats oxygen-free copper specimens under controlled conditions to assess hydrogen-embrittlement susceptibility.
- Electrolytic reduction test setup – determines surface cuprous-oxide thickness on oxygen-free copper samples.
- Precision micrometres and callipers – verify rod diameter, roundness, and dimensional tolerances.
Equipment and Instrumentation Used for ASTM B49 Testing
What You Receive: Test Report, Data, and Certification
- A conformance report spelling out whether the sampled rod lot meets ASTM B49’s chemical, electrical, and mechanical requirements.
- Full chemical composition data for each controlled element, referenced against the declared copper grade’s limits.
- Measured resistivity and calculated percent-IACS conductivity values for the annealed rod condition.
- Embrittlement and surface cuprous-oxide results for oxygen-free copper submissions, where applicable.
- Tensile strength and elongation results, plus dimensional and surface inspection findings.
- Documentation formatted and ready for supplier qualification files, customer submittals, and internal quality records.
ASTM B49 Copper Rod Electrical FAQs
ASTM B49 testing establishes detailed requirements for copper rod used in electrical applications, including chemical composition, electrical conductivity, mechanical properties, surface finish, and dimensional tolerances, to be suitable for continuous wire drawing for high-performance electrical conductors and power cables.
ASTM B49 has specifications for various grades, primarily for UNS C11000 (ETP - Electrolytic Tough Pitch Copper) and UNS C10100/C10200 (Oxygen-Free Copper). ETP copper is the standard grade for general electrical applications, and the Oxygen-Free grades are used in high-vacuum applications or when hydrogen embrittlement is a problem in brazing or welding.
In ETP Copper (C11000), the oxygen level is usually kept between 100 and 650 ppm. This is a very important level, as insufficient oxygen will not allow the sequestering of impurities, while excessive oxygen will cause too much cuprous oxide, resulting in "breaks" during fine-wire drawing
Electrical conductivity is an important property because it directly affects the efficiency of copper in conducting electric current with less energy loss. High electrical conductivity helps in reducing resistive heating, increasing energy efficiency, and meeting performance standards for electrical wiring and power transmission.
Quality depends on raw material purity, casting and rolling processes, surface condition, oxygen content, and proper handling during manufacturing.
ASTM B49 specifies requirements for copper rod used for electrical conductors, including chemical composition, quality, and applicable performance requirements.
