What Is 4d STEM?
4D STEM (Four-Dimensional Scanning Transmission Electron Microscopy) is an advanced characterization technique used to analyze the structural and crystallographic properties of materials at the nanoscale. The method records a diffraction pattern at every scan position of a focused electron beam, generating a four-dimensional dataset (2D real space + 2D reciprocal space).
This technique is widely used in materials science, nanotechnology, and semiconductor research to map strain, crystal orientation, phase distribution, and defects with high spatial resolution. 4D STEM enables detailed analysis of material structure beyond conventional electron microscopy.
Applications and Benefits of 4d STEM Testing
Scope
4D STEM evaluates nanoscale structural and crystallographic properties by capturing diffraction information across a scanned area. The method enables quantitative mapping of strain, orientation, and defects in advanced materials.
4D STEM evaluates:
- Crystal structure and orientation mapping
- Strain and lattice distortion at the nanoscale
- Phase identification and distribution
- Defects, dislocations, and grain boundaries
- Electron diffraction behavior across scanned regions
Applications
- Semiconductor and microelectronics analysis
- Nanomaterials and advanced materials research
- Thin films and coatings
- Crystalline and polycrystalline materials
- Battery and energy materials
- Failure analysis and defect characterization
Benefits
- Provides high-resolution structural and diffraction data
- Enables simultaneous imaging and diffraction analysis
- Supports quantitative strain and orientation mapping
- Helps identify nanoscale defects and phase variations
- Enhances material characterization accuracy

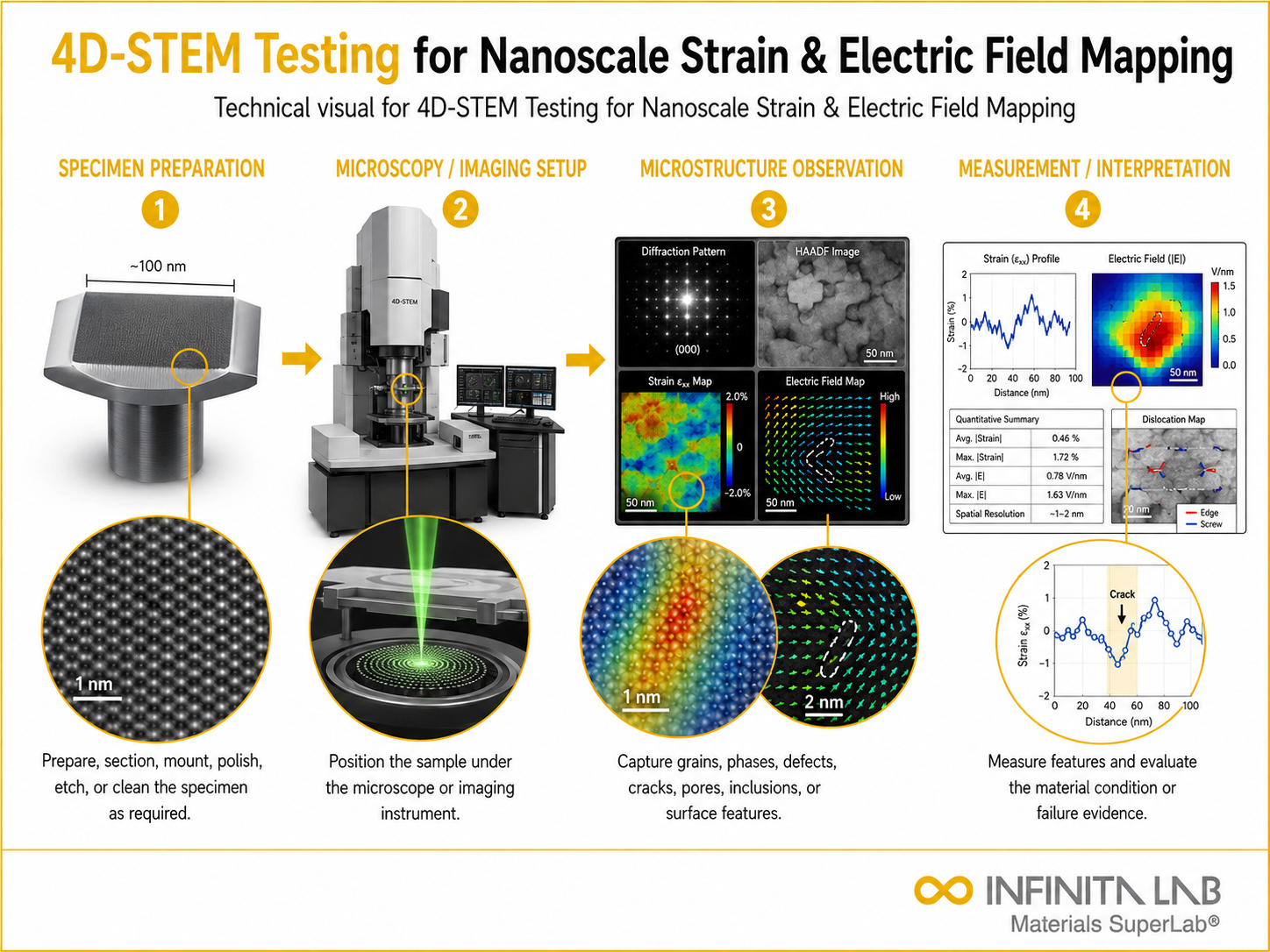

Our Testing Procedure
Sample Preparation
Thin specimens (electron-transparent, typically <100 nm thick) are prepared using techniques such as FIB or mechanical polishing.
1Beam Scanning
A focused electron beam is scanned across the sample in a raster pattern.
2Diffraction Data Collection
A diffraction pattern is recorded at each scan position using a fast pixelated detector.
3Data Recording & Evaluation
The 4D dataset is analyzed to extract structural, strain, and orientation information.
4Test parameters and requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Nanomaterials, semiconductors, metals, ceramics |
| Acceleration Voltage | 80 kV to 300 kV |
| Spatial Resolution | ~0.1 nm to 1 nm |
| Sample Thickness | <50–100 nm |
| Detector Type | Pixelated electron detector |
| Measured Outputs | Diffraction patterns, strain maps, orientation maps |
- Scanning Transmission Electron Microscope (STEM)
- Pixelated electron detector (fast camera)
- Focused ion beam (FIB) for sample preparation
- Sample holder and stage system
- Data acquisition and processing software
- Vacuum system
Equipment and Instrumentation Used for Testing
What You Receive: Test Report, Data, and Certification
- 4D diffraction datasets
- Crystal orientation maps
- Strain and lattice distortion analysis
- Phase and defect characterization
- High-resolution imaging data
- ASTM compliance report
4d STEM FAQs
4D STEM includes probe size, scan step size, detector geometry, convergence angle, accelerating voltage, and diffraction pattern collection, enabling mapping of local crystal structure, strain, and orientation at nanoscale resolution.
4D STEM produces diffraction patterns at each scan position, generating datasets used to analyze strain, crystal orientation, phase distribution, and defects across materials.
4D STEM is commonly applied to semiconductors, nanomaterials, metals, ceramics, and advanced materials used in electronics, energy, and research applications.
4D STEM requires a scanning transmission electron microscope equipped with fast pixelated detectors, high-resolution electron optics, and advanced data acquisition systems.
4D STEM generates large datasets requiring advanced processing, and results may be influenced by sample preparation, beam damage, and instrument calibration affecting measurement accuracy.
