Portable Telebrineller Hardness Tester: How It Works & Field Applications
What Is the Telebrineller Hardness Test?
The Telebrineller hardness test is a portable field method for measuring Brinell hardness of metal components without requiring laboratory-based equipment. It belongs to the comparative hardness testing family—the Brinell indentation on the test piece is compared directly to an indentation made simultaneously in a reference bar of known hardness, eliminating the need for a calibrated load frame.
This makes the Telebrineller an ideal tool for large, heavy, or immovable metal components—structural steel members, large forgings, pressure vessels, mill rolls, shafts, and castings—where laboratory hardness testing is impractical. The test is widely used across the heavy manufacturing, structural steel, and metals processing industries.

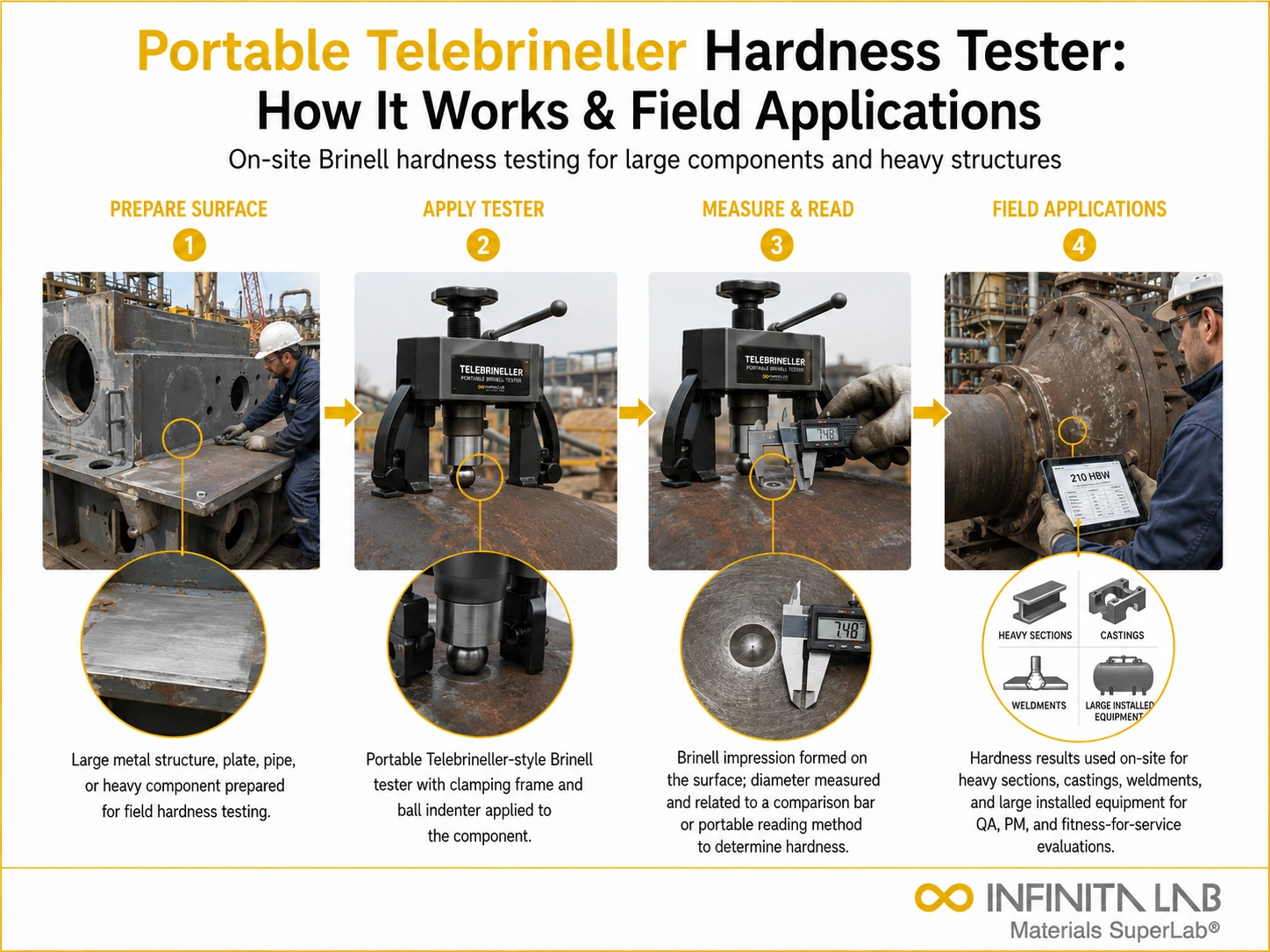

Principle of Operation
The Comparison Principle
A hardened steel ball is pressed simultaneously between the test piece and a reference bar (of certified Brinell hardness, typically 200–220 HBW) using a defined force applied by a spring-loaded hammer or C-clamp mechanism. The same ball load is applied to both the test piece and the reference bar, producing two indentations.
The Brinell hardness of the test piece is calculated from the ratio of indentation diameters using the relationship:
HB(test) = HB(reference) × (d_reference² / d_test²)
Where d_reference and d_test are the diameters of the indentations in the reference bar and test piece, respectively.
Indentation Measurement
Indentation diameters are measured using a calibrated optical microscope or portable magnifying scale. The Telebrineller kit includes a measuring scope with a calibrated reticle.
ASTM Standard for Telebrineller Testing
ASTM E110 covers the use of portable hardness testing methods, including comparative methods such as the Telebrineller. ASTM A370 also references portable hardness methods for structural steel testing.
Advantages of the Portable Telebrineller
Feature | Benefit |
No electrical power required | Field use without a power supply |
No load calibration required | Spring force provides a consistent load |
Tests large, heavy components | No size limitation |
Simple operation | Minimal operator training |
Low equipment cost | Economical for field inspection |
Brinell-correlated results | Direct comparison to standard hardness data |
Limitations and Accuracy
The Telebrineller is inherently less precise than a laboratory Brinell tester. Typical accuracy is ±5–15% of the true Brinell hardness, depending on surface condition, operator technique, and reference bar quality. For precise hardness determination, laboratory testing (ASTM E10 Brinell, ASTM E18 Rockwell) remains the standard.
Key sources of error include:
- Surface roughness and scale on the test piece
- Poor parallelism between test and reference surfaces
- Variation in spring force application
- Indentation diameter measurement error
Applications
The Telebrineller is routinely used for:
- Field verification of steel plate and structural member hardness
- Incoming inspection of large forgings, castings, and rolled products
- Post-weld heat treatment verification of hardness requirements
- Mill and plant floor quality checks on large components
Conclusion
The Telebrineller hardness test is a practical and efficient solution for measuring Brinell hardness in field conditions where traditional laboratory testing is not feasible. Using a comparative method with a reference bar, it enables quick hardness evaluation of large or immovable metal components. While less precise than standard lab methods, it provides sufficiently accurate results for on-site inspection, quality checks, and verification tasks—making it a valuable tool in heavy industry and structural applications.
Why Choose Infinita Lab for Hardness Testing?
Infinita Lab offers portable and laboratory Brinell hardness testing services across its nationwide accredited laboratory network. Our team provides field testing support, laboratory Brinell testing per ASTM E10, and Rockwell testing per ASTM E18 for comprehensive hardness characterisation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
How accurate is the Telebrineller compared to a laboratory Brinell test? The Telebrineller typically achieves accuracy within ±5–15% of the true Brinell hardness under good conditions. Laboratory Brinell testing per ASTM E10 with a calibrated testing machine achieves accuracy within ±2–3%. For critical applications, laboratory testing is preferred for final acceptance.
What materials can be tested with the Telebrineller? The Telebrineller is suitable for ferrous metals (steels, cast irons) and some non-ferrous metals with Brinell hardness in the range of approximately 80–400 HBW. Very hard materials may not produce measurable indentations with the standard load.
What surface preparation is required for Telebrineller testing? The test surface should be flat, smooth, and free of scale, paint, or loose material in the test area. Light grinding or filing of the test area improves result reliability. ASTM E110 specifies surface preparation requirements.
Can the Telebrineller be used for hardness testing of welds? Yes. The Telebrineller is commonly used for field verification of post-weld heat treatment (PWHT) hardness requirements on large weldments where laboratory testing is not feasible. However, the weld surface should be dressed smooth for reliable results.
What is the relationship between Brinell hardness (HBW) and tensile strength? For carbon and low-alloy steels, tensile strength (MPa) ≈ 3.45 × HBW. This empirical relationship (from ASTM A370 and various references) allows hardness measurements to estimate tensile strength for quality verification without performing destructive tensile tests.
