Eliminating Human Error in Brinell Hardness Tests with Automated Tools
What Is the Brinell Hardness Test?
The Brinell hardness test is one of the oldest and most widely applied hardness measurement methods for metals, particularly for castings, forgings, hot-rolled bar, and non-ferrous alloys with coarse microstructures. It indents the test surface with a tungsten carbide ball under a defined load, then measures the diameter of the resulting indentation to calculate the Brinell Hardness Number (HBW). Governed by ASTM E10 and ISO 6506, the Brinell test is the preferred method in the steel, automotive, forging, and heavy manufacturing industries for its large indentation area that averages microstructural heterogeneity.
The Human Error Problem in Traditional Brinell Testing
Manual Optical Measurement Limitations
In traditional Brinell testing, the indentation diameter is measured using a calibrated optical microscope with a micrometer eyepiece. This process is inherently subjective — the analyst must identify and measure indentation edges that may be blurred by material pile-up, surface irregularities, or lighting conditions. Interlaboratory studies have demonstrated standard deviations of 5–10 HBW units from the same indentation when measured by different analysts, which is unacceptable for tight material specifications.
Repeatability and Reproducibility Issues
Manual Brinell measurement repeatability (same analyst, same indentation) is typically ±2–3 HBW, while reproducibility (between laboratories) can exceed ±10 HBW. For materials with specifications of ±20–30 HBW, this represents a significant fraction of the allowable tolerance band, creating pass/fail ambiguity.

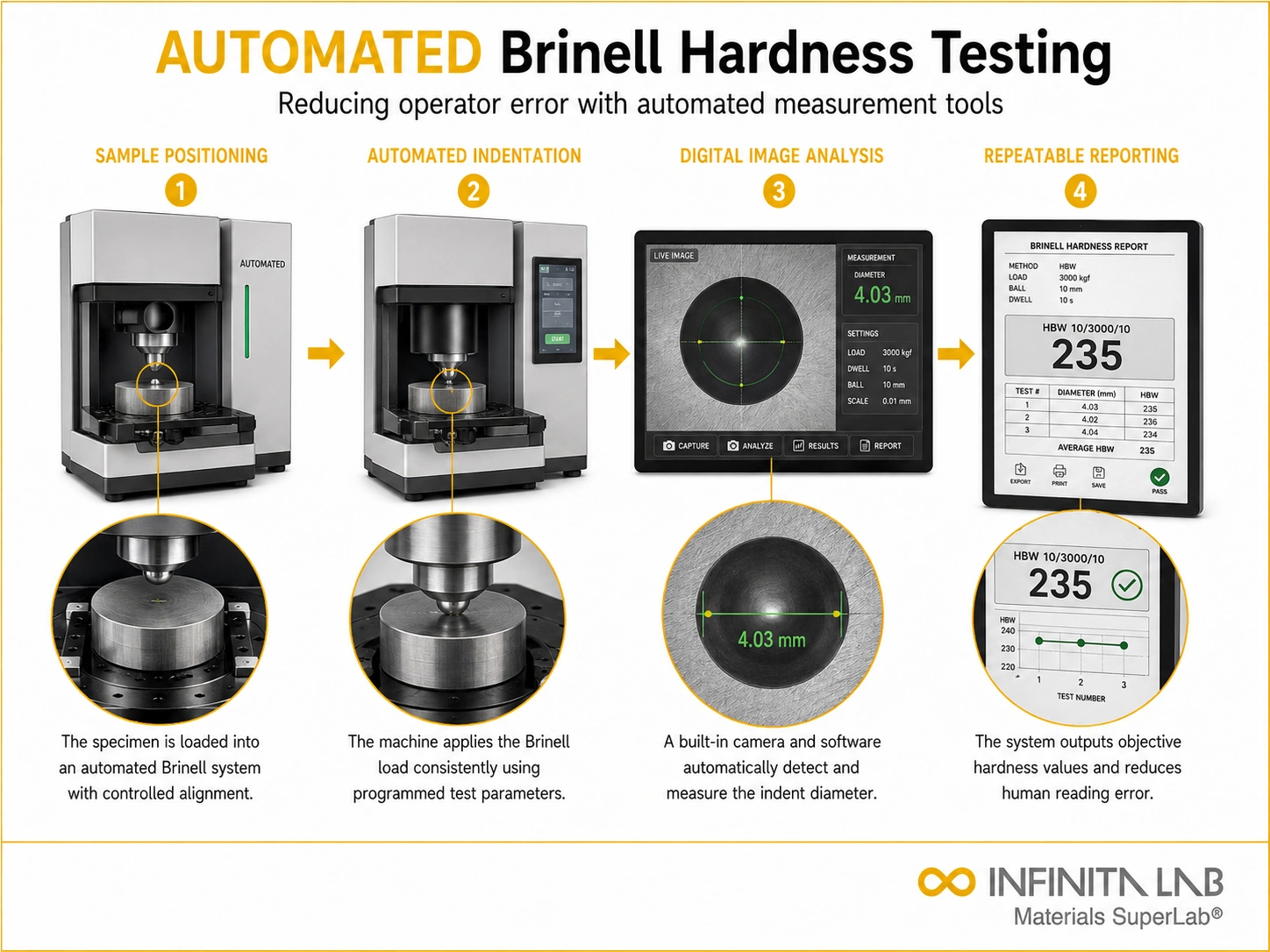

Automated Brinell Hardness Testing Systems
Machine Vision Indentation Measurement
Modern automated Brinell systems replace human optical measurement with calibrated digital cameras, high-resolution LED illumination, and image analysis algorithms. The system captures a digital image of the indentation, automatically detects the indentation boundary using gradient-based edge detection, measures the diameter in multiple directions, and calculates HBW — all without analyst subjectivity. Measurement repeatability improves to ±0.5–1 HBW.
Automated Specimen Positioning
Robotic or motorized XY stages automatically position specimens at programmed test coordinates, enabling grid-pattern hardness mapping and fully automated multi-point testing sequences. This eliminates manual positioning errors and dramatically increases throughput for production verification of forgings, plates, and castings.
Integrated Load Cell and Force Verification
Closed-loop load control with NIST-traceable force calibration ensures that applied loads meet ASTM E10 requirements to within ±1% throughout the test cycle. Automated systems log every test parameter — load, dwell time, ball identity, and measured diameter — creating complete, auditable test records for ISO 9001 and IATF 16949 quality systems.
Standards Governing Automated Brinell Testing
- ASTM E10: Standard Test Method for Brinell Hardness of Metallic Materials
- ISO 6506-1: Brinell hardness test — Part 1: Test method
- ISO 6506-2: Verification and calibration of testing machines
- ASTM E110: Indentation Hardness of Metallic Materials by Portable Hardness Testers
Industry Applications
Steel mills use automated Brinell systems to verify 100% hardness of rolled bar, hot-rolled plate, and quenched-and-tempered structural steel before shipment. Forging houses qualify each forging lot using automated multi-point Brinell mapping to verify heat treatment uniformity. Automotive casting facilities screen cylinder blocks, crankshafts, and knuckles for compliance with hardness specifications before machining. Aerospace suppliers use automated systems to generate documented hardness records for AS9100 and NADCAP compliance.
Conclusion
Automated Brinell Hardness Testing systems significantly enhance accuracy and consistency by eliminating human error in measurement and interpretation. By integrating advanced imaging, load control, and digital analysis, these systems ensure precise indentation readings and repeatable results. This automation improves testing efficiency, reduces operator dependency, and supports reliable quality control, making it highly valuable in modern manufacturing and metallurgical applications.
Why Choose Infinita Lab for Brinell Hardness Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types, including automated Brinell testing with documented traceability. You’re not limited by geography or methodology — Infinita Lab connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
Why is the Brinell test preferred over Rockwell or Vickers for castings and forgings? The large Brinell indentation (2–7 mm in diameter), averaged across multiple grains, inclusions, and microstructural constituents, provides a representative hardness value for heterogeneous materials such as cast iron, aluminum alloys, and large-grain forgings. Rockwell and Vickers indentations are too small to reliably average this heterogeneity.
How much does automated Brinell testing improve measurement accuracy? Automated digital image analysis improves measurement repeatability from ±2–3 HBW (manual optical) to ±0.5–1 HBW, reducing measurement uncertainty by 70–80% and eliminating analyst-to-analyst variability entirely.
What ASTM standard governs the Brinell hardness test? ASTM E10 is the primary US standard. It specifies ball sizes (1–10 mm), test loads (1–3,000 kgf), surface preparation requirements, indentation spacing rules, and the HBW calculation formula.
Can automated Brinell systems be integrated into production lines? Yes. Inline automated Brinell systems are available with robotic part handling, conveyor integration, and real-time SPC data output. These systems enable 100% inspection of high-volume forged and cast components without removing parts from the production flow.
What is the difference between HBW and the older HBS designation? HBW specifies a tungsten carbide ball indenter (required by current ASTM E10 and ISO 6506 standards). The older HBS designation used a hardened steel ball, which deforms at hardnesses above 450 HBS and is no longer recommended. Modern Brinell hardness is always reported as HBW.
