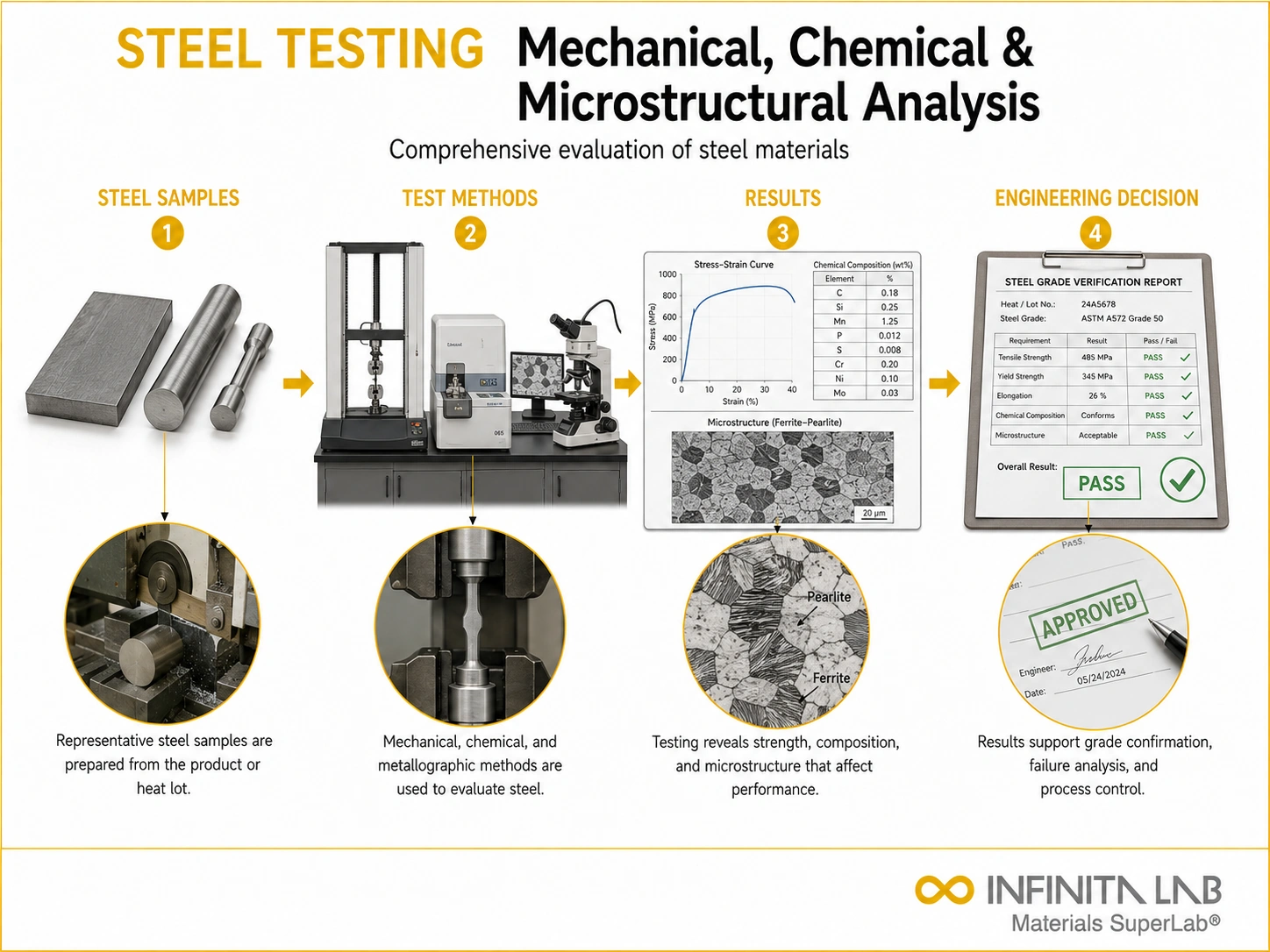

Material Testing for Steel: Mechanical, Chemical & Microstructural Analysis
Full suite steel material testing including tensile and Charpy impact per ASTM A370The Importance of Steel Material Testing
Steel is the world’s most widely used structural material, underpinning the construction, automotive, shipbuilding, energy, and aerospace industries. The mechanical, chemical, and microstructural properties of steel vary enormously across grades — from mild low-carbon steels to high-strength martensitic steels and austenitic stainless grades — making material testing essential for safe application, regulatory compliance, and failure prevention.
Steel material testing verifies that production lots meet specified mechanical property minima, chemical composition limits, and dimensional tolerances defined in ASTM, EN, ISO, JIS, and customer-specific standards.
Key Mechanical Tests for Steel
Tensile Testing (ASTM E8/E8M, ISO 6892-1)
Tensile testing is the foundational mechanical test for steel, measuring ultimate tensile strength (UTS), yield strength (0.2% proof stress), elongation at fracture, and reduction of area. These properties directly define the safety factors used in structural design. Testing is performed on machined specimens at prescribed displacement rates using calibrated universal testing machines.
Hardness Testing
Hardness correlates with tensile strength and wear resistance and is the fastest, lowest-cost mechanical test:
- Brinell (ASTM E10): For castings, forgings, and rolled bar — 10 mm tungsten carbide ball, 3,000 kgf load
- Rockwell (ASTM E18): For finished components and heat-treated parts
- Vickers (ASTM E92): For case-hardened layers, thin sections, and weld HAZ characterization
Charpy Impact Testing (ASTM E23, ISO 148-1)
Charpy V-notch impact testing measures toughness — the ability to absorb energy during fracture. It is mandated for structural steels used in low-temperature applications (pressure vessels, offshore platforms, Arctic pipelines) to verify that the ductile-brittle transition temperature is adequate. Testing is performed at defined temperatures from −196°C to ambient.
Bend Testing (ASTM E290)
Guided bend testing verifies ductility and freedom from internal defects. It is mandatory to qualify structural plates, pipes, and welded joints per ASME IX and AWS D1.1.
Chemical Composition Analysis
Steel chemistry controls mechanical properties through alloying: carbon and manganese for strength; chromium and nickel for corrosion resistance; molybdenum and vanadium for elevated temperature strength; niobium and titanium for grain refinement. Chemical analysis by OES (optical emission spectrometry) or ICP-OES provides heat certification data per ASTM A751. Carbon and sulfur are quantified by combustion analysis (ASTM E1019).
Non-Destructive Testing of Steel
Magnetic particle testing (ASTM E1444) detects surface cracks in ferromagnetic steels. Ultrasonic testing (ASTM E114) evaluates the internal integrity of heavy plate and forgings. Eddy current testing screens bar and tube products for surface seams and cracks. Radiographic testing qualifies weld quality in pressure-retaining components.
Conclusion
Material testing for steel is essential to evaluate its mechanical, chemical, and structural properties to ensure performance, safety, and durability in real-world applications. Through a combination of standardized tests, it verifies strength, hardness, composition, and resistance to wear or corrosion. This comprehensive assessment supports quality control, regulatory compliance, and optimal material selection across construction, automotive, and industrial sectors.
Why Choose Infinita Lab for Steel Material Testing?
With Infinita Lab, you are guaranteed a Nationwide Network of Accredited Laboratories, the best consultants from around the world, convenient sample pick-up and delivery, and fast turnaround time. Whether validating a new product, de-risking a prototype, or navigating complex compliance requirements, our specialists guide the process with rigor and clarity.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the most important mechanical test for structural steel? Tensile testing per ASTM E8/E8M is the most fundamental — it measures yield strength, tensile strength, and elongation, which are the basis for all structural design calculations and mill certification requirements.
What is the difference between yield strength and tensile strength in steel? Yield strength is the stress at which steel begins to deform permanently (plastic deformation onset), typically defined at 0.2% offset. Tensile strength (UTS) is the maximum stress sustained before fracture. The yield-to-tensile-strength ratio (yield ratio) is important in seismic design applications.
Why is Charpy impact testing required for low-temperature applications? Steel undergoes a ductile-to-brittle transition as temperature decreases. Below the ductile-brittle transition temperature (DBTT), steel fractures in a brittle, low-energy mode with catastrophic potential. Charpy testing at the minimum design temperature verifies that adequate toughness (absorbed energy ≥ minimum specified value) is maintained.
How are steel grades identified and certified? Steel grades are identified by their chemical composition and minimum mechanical property requirements, defined in standards such as ASTM A36, A572, A516, A240, and EN 10025. Mill test reports (MTRs) certify that a specific heat and lot meet all specified requirements through heat analysis and product analysis testing.
What is PMI (Positive Material Identification) and when is it used? PMI uses portable XRF or OES analyzers to verify alloy composition in the field without laboratory preparation. It is mandated for high-alloy components in petrochemical, power generation, and nuclear applications to prevent incorrect material installation-a leading cause of in-service failures.
