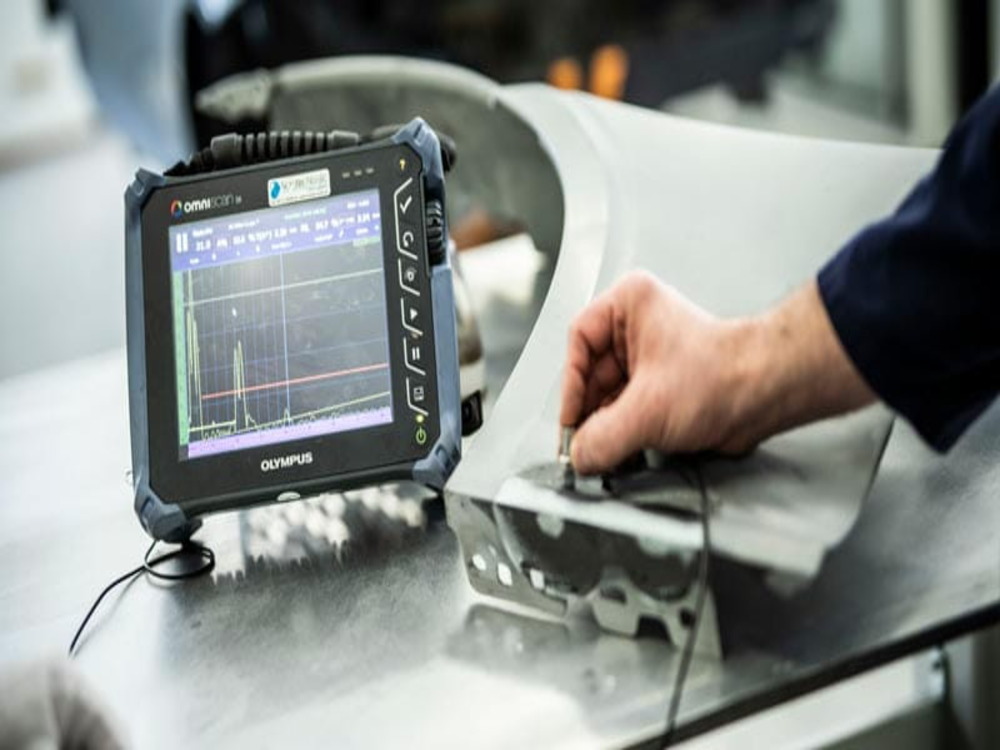

Ultrasonic Testing of Welds for Flaw Detection

What is Ultrasonic Testing of Welds?

Ultrasonic testing (UT) is a commonly utilized method for non-destructive testing that uses high-frequency sound waves to identify imperfections and flaws in materials. In the welding sector, ultrasonic testing is crucial in the quality control procedure. It identifies any imperfections or flaws in welds that could compromise the weld’s strength, integrity, and safety.
The emission of high-frequency sound waves into the material being tested is done using a transducer in ultrasonic testing. As the sound waves pass through the material, they will encounter a boundary between two different materials or a flaw in the material. When this happens, some of the sound wave’s energy is reflected back to the transducer. The ultrasonic testing equipment can then detect the presence, size, and location of any flaws or defects in the weld by measuring the time it takes for the reflected sound waves to return to the transducer and their amplitude and frequency.

How it can be used for different types of welds

Ultrasonic testing can be performed on different types of welds, including butt welds, fillet welds, and groove welds. The testing can be performed during or after the welding process, depending on the application’s specific requirements. The orientation of the testing can also be varied, including transverse, longitudinal, and oblique. Several types of flaws can occur in welds, including cracks, porosity, incomplete fusion, and lack of sidewall or root fusion. Ultrasonic testing can detect these flaws and defects, and the results can be analyzed to determine their severity and impact on the strength and durability of the weld.
