How Wind & Rain Testing Affect Materials Performance: Methods & Standards
Wind-driven rain testing per ASTM E331 evaluating material penetration resistanceWhy Wind and Rain Testing Matters
In the natural outdoor environment, wind-driven rain is one of the most relentless and penetrating stressors on materials, joints, and assemblies. Rain alone tests water resistance; wind alone tests structural integrity. But wind-driven rain — water driven at high velocity and pressure against surfaces, joints, seams, windows, facades, and roofing systems — creates combined loading conditions that expose weaknesses invisible to either stress applied separately.
Wind and rain testing in the laboratory simulates these combined dynamic conditions to validate the weathering resistance, water infiltration resistance, and structural integrity of building products, vehicle components, aerospace structures, outdoor electronics, and any product intended for long-term outdoor service.
Mechanisms by Which Wind and Rain Degrade Materials
Water infiltration at joints and seams: Wind pressure drives water into gaps, joints, sealant interfaces, and fastener penetrations — causing moisture ingress, corrosion, freeze-thaw damage, and biological growth within assemblies.
Erosion and abrasion: High-velocity water droplets and airborne particulates entrained by wind erode soft surfaces — including paint films, polymer coatings, anodized aluminum, and soft stone.
Hydrostatic and dynamic pressure loading: Wind-driven rain creates fluctuating pressure differentials across facades, roofing, and glazing — cyclically loading sealants, joints, and structural panels in ways that static water soak tests cannot replicate.
Freeze-thaw combined with water infiltration: Water driven into porous or jointed materials by wind pressure then freezes — generating expansive forces that crack masonry, delaminate coatings, and force open sealed joints.
UV and moisture combined degradation: Wind-driven rain accelerates the removal of protective surface films, accelerates hydrolysis of UV-degraded polymer surfaces, and introduces cyclic wetting/drying that amplifies weathering rate compared to either exposure alone.
Key Wind and Rain Testing Standards
ASTM E1105 — Water Penetration of Installed Exterior Windows, Curtain Walls, and Doors
One of the most important standards for building envelope performance — using a calibrated water spray rack to apply water at a defined rate (2.0 psf = 204 L/m²/h or project-specified rate) to the exterior face of installed window, curtain wall, or door assemblies under static air pressure differential. Any water appearing on the interior indicates a failure of the water penetration resistance.
This field-equivalency test is widely used for product compliance certification and for forensic investigation of building-envelope water-leakage problems.
ASTM E547 — Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Cyclic Static Air Pressure Differential
Similar to E1105 but applies cyclic (oscillating) pressure differentials while maintaining the water spray — simulating the fluctuating wind pressures of real storm conditions rather than steady-state pressure.
ASTM D3963 — Wind-Driven Rain Resistance of Windows and Doors
Evaluates water infiltration resistance under simulated wind-driven rain conditions using a wind machine to generate high-velocity airflow across a water spray — creating rain angles and impact velocities representative of severe storm conditions.
MIL-STD-810 Method 514.8 (Vibration) and Method 506.6 (Rain)
Military qualification standard for equipment exposed to windblown rain — defining rainfall intensity (40 mm/h), wind speed (up to 18 m/s), and test duration for verifying rain exclusion and drainage performance of military systems and equipment.
IEC 60529 / IP66 and IP67 Dust and Water Ingress Testing
The international ingress protection (IP) standard defines test conditions for water-jet (IPX5, IPX6) and temporary immersion (IPX7) resistance — used for electronics, outdoor equipment, and consumer product water-resistance qualification.
ISO 20653 / SAE J1455 — Automotive Underhood Robustness
Automotive components exposed to underhood water spray and pressure washing conditions — testing for water entry and corrosion initiation.

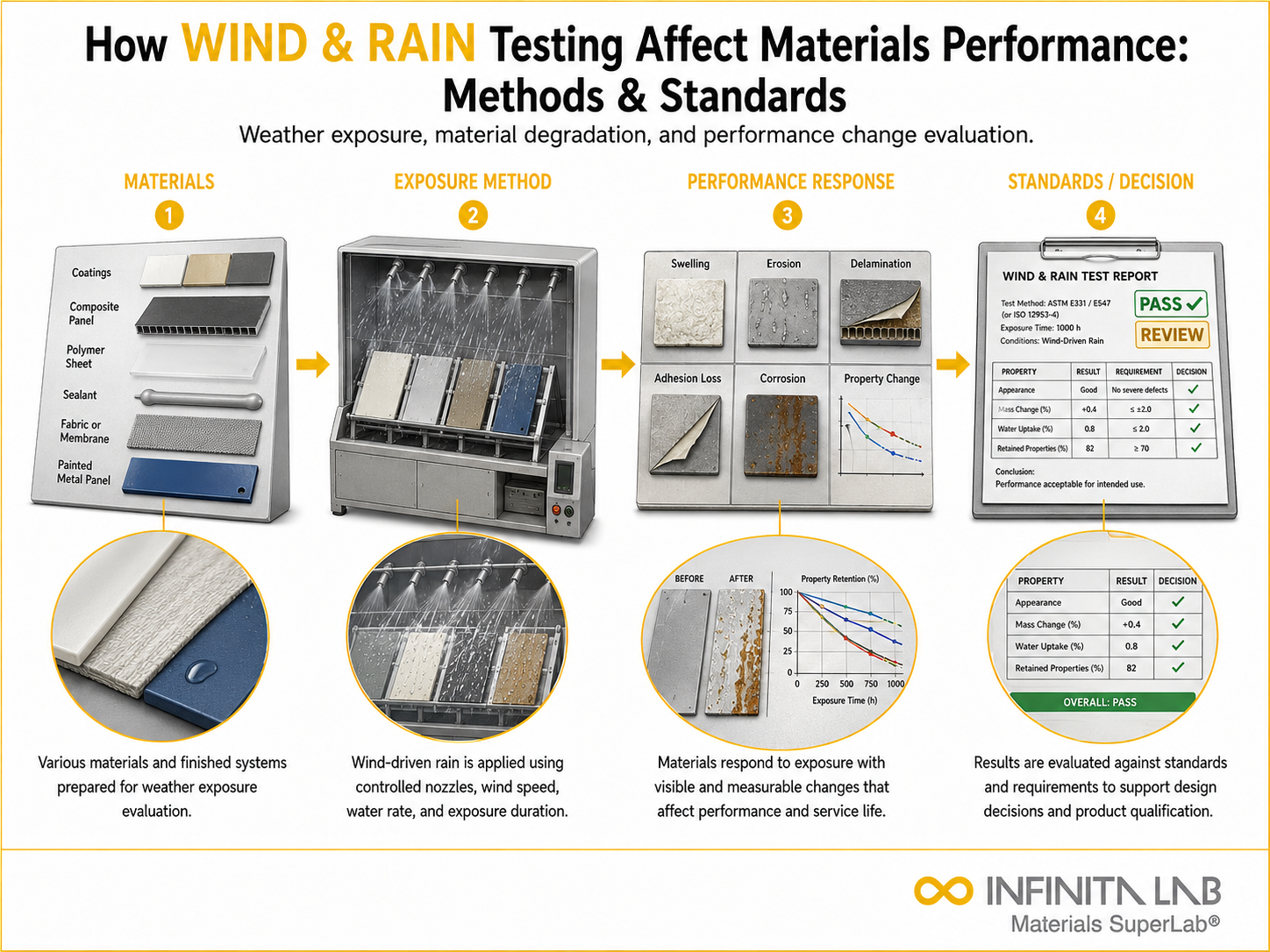

Laboratory Simulation of Wind-Driven Rain
Wind and rain test facilities combine:
Water delivery systems: Calibrated spray nozzles delivering defined water application rates (typically 50–400 L/m²/h) at defined droplet sizes to simulate rainfall intensity.
Wind generation: Fans or air compressors creating wind speeds from 10 m/s (light wind) to 50+ m/s (hurricane simulation) — driving water against the test specimen at angles ranging from horizontal (worst case for vertical surfaces) to the specified wind-rain angle.
Pressure boxes: Enclosures sealed to the indoor face of wall assemblies that maintain positive or negative air pressure differentials — simulating the wind pressure difference that drives water through joints and penetrations.
Environmental controls: Chamber temperature and humidity control — enabling combined wind/rain/freeze-thaw and wind/rain/UV cycling protocols.
Materials and Products Tested
Building Products: Windows, curtain walls, doors, roofing systems, siding, and facade cladding systems — tested for water infiltration resistance under wind-driven rain per ASTM E1105, E547, AAMA 501, and code-required performance levels.
Automotive: Body panel joints, door seals, sunroof seals, and under-hood components — tested against OEM wind tunnel rain tests and FMVSS requirements for water exclusion and drainage performance.
Defense and Aerospace: Equipment enclosures, avionics boxes, and outdoor sensor systems — tested per MIL-STD-810 Method 506.6 for rain exclusion and drainage.
Electronics: Outdoor enclosures, streetlighting, and consumer electronics — tested per IP66/IP67 for water jet and immersion resistance, qualifying protection against heavy rain and hosing.
Renewable Energy: Photovoltaic module backsheets, junction boxes, and connector systems — wind-driven rain testing per IEC 61215 and IEC 61730 for long-term field reliability.
Conclusion
Wind and rain testing — incorporating standards such as ASTM E1105, ASTM E547, ASTM D3963, MIL-STD-810 Method 506.6, and IEC 60529 — provides a comprehensive evaluation of water-infiltration resistance, structural integrity, and durability under combined environmental loading conditions. These methods simulate real-world storm scenarios to identify weaknesses in joints, seals, and materials across building systems, automotive components, electronics, and aerospace applications. Selecting the appropriate testing protocols based on product type, exposure conditions, and performance requirements is essential to ensure long-term reliability, safety, and compliance — making testing strategy as important as the performance results themselves.
Why Choose Infinita Lab for Wind and Rain Testing?
Infinita Lab offers comprehensive wind and rain resistance testing services — ASTM E1105, E547, D3963, MIL-STD-810 Method 506.6, and IP ingress protection testing — across its network of 2,000+ accredited labs in the USA. Our advanced equipment and expert professionals deliver highly accurate and prompt results, helping businesses validate product performance and achieve specification compliance for outdoor and harsh-environment applications.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
What is the standard water application rate in ASTM E1105 wind-driven rain testing? ASTM E1105 specifies a water application rate of 2.04 L/(m²·min) (equivalent to approximately 2.0 US gallons per hour per square foot) delivered uniformly by a calibrated spray rack — combined with a static air pressure differential across the specimen to drive water into potential infiltration paths.
What does IP66 protection mean for electronics exposed to wind-driven rain? IP66 (per IEC 60529) indicates protection against powerful water jets from any direction — simulating heavy wind-driven rain and high-pressure hosing. An IP66-rated enclosure must prevent water ingress under 100 L/min water flow from a 12.5 mm nozzle at 2.5–3 bar pressure for 3 minutes. IP67 adds 30-minute immersion at 1 meter depth.
How does cyclic pressure differential testing (ASTM E547) differ from static testing (ASTM E1105)? ASTM E1105 applies a constant (static) air pressure differential while spraying water — simulating steady-state wind conditions. ASTM E547 cycles the pressure between zero and the specified positive pressure — simulating the dynamic pressure fluctuations of real wind gusts, which are more effective at driving water through joints and sealants than steady-state pressure alone.
What failure modes are revealed by wind and rain testing? Common failure modes include: water infiltration through sealant joint defects or inadequate joint geometry, weep hole blockage preventing drainage, seal compression loss allowing air gap infiltration, fastener penetration leakage, and surface erosion of coatings from high-velocity droplet impact.
What ASTM standards apply to wind and rain testing of building envelope components? Key standards include ASTM E1105 (installed window/curtain wall water penetration), ASTM E547 (cyclic pressure water penetration), ASTM E330 (structural performance under wind pressure), AAMA 501 (curtain wall testing methods), and ASTM E283 (air infiltration testing) — used together as a comprehensive building facade performance test sequence.
