What Is Electrospinning? Process, Nanofibers & Industrial Applications
Introduction to Electrospinning in NDT Contexts

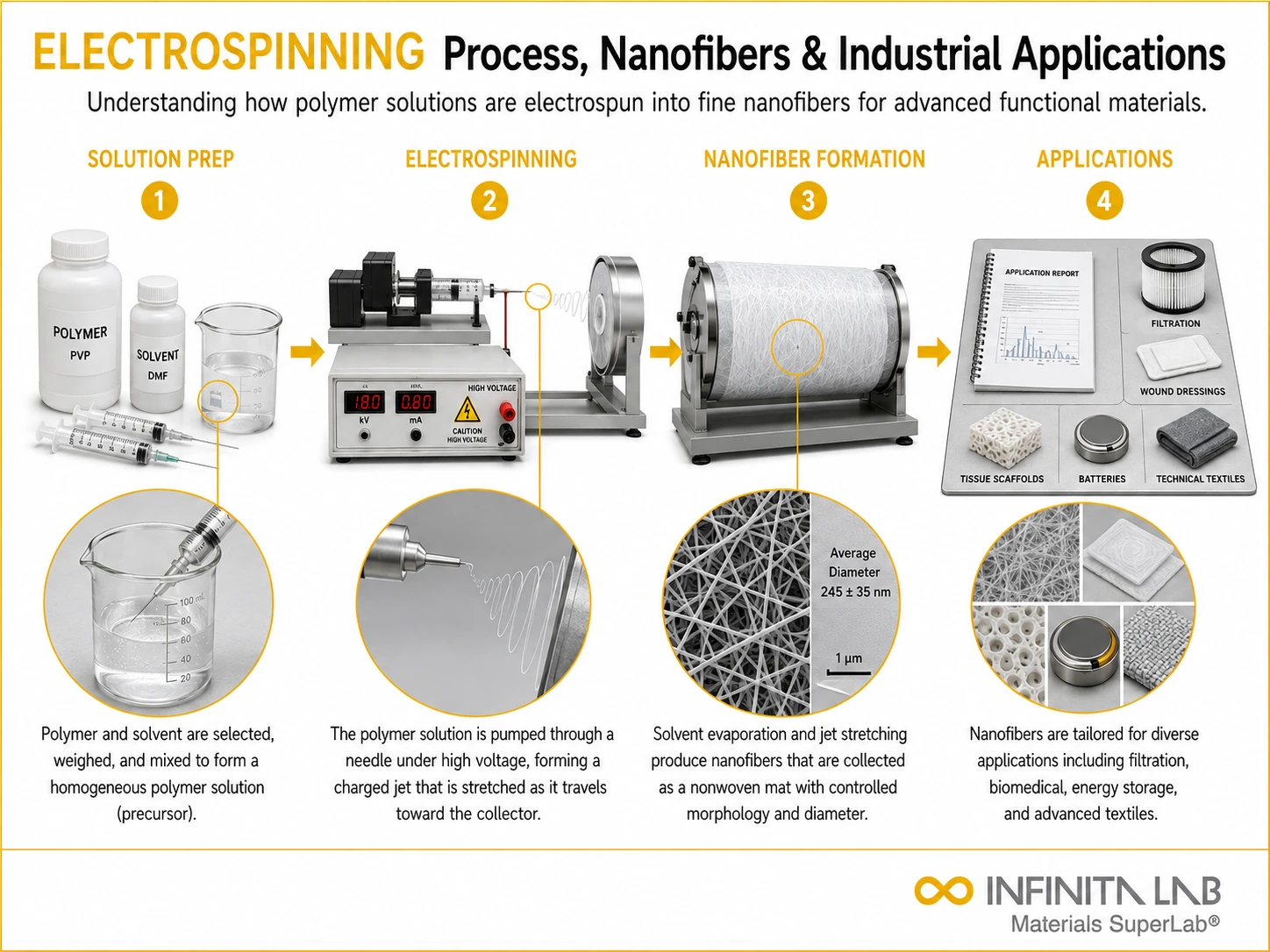

Electrospinning is a versatile nanofabrication process that uses electrostatic forces to produce continuous polymer fibres with diameters ranging from nanometres to micrometres. While electrospinning is primarily a manufacturing process (described in Blog 49 of Series 2 in its fabrication context), it has significant relevance in the non-destructive testing, structural health monitoring, and advanced functional materials field — particularly for producing sensing nanofibre networks embedded in composite structures and for developing high-sensitivity filtration media and sensor films used in environmental testing.
Electrospun Nanofibre Sensors for Structural Health Monitoring
Piezoresistive Nanofibre Networks
Electrospun fibres incorporating conductive nanofillers — carbon nanotubes, graphene, carbon black, or silver nanowires — form percolation networks whose electrical resistance changes predictably with mechanical strain. These piezoresistive nanofibre mats can be integrated between composite plies as embedded strain sensors — providing distributed strain mapping without the point-measurement limitations of conventional foil gauges.
The advantages over conventional strain gauges include: complete surface coverage rather than single-point measurement; compatibility with autoclave composite cure cycles; and negligible structural perturbation from the ultra-thin fibre mat.
Electrospun Damage Detection Sensors
Specific polymer compositions (PAN, PVDF) produce electrospun fibres with piezoelectric properties — generating electrical charge upon mechanical deformation. Embedded piezoelectric nanofibre networks detect dynamic strain events (impact, crack propagation, vibration) as electrical signals — forming a self-sensing structural health monitoring (SHM) system that detects damage initiation and progression in real time without external sensor installations.
Electrospun Filtration Media for NDT Inspection Environments
High-efficiency electrospun nanofibre filter media are used in cleanroom and NDT inspection environments:
- Cleanroom HEPA filtration: Electrospun PVDF, PA, and PTFE nanofibre layers provide sub-100 nm particle capture efficiency with lower pressure drop than conventional HEPA media
- Liquid filtration for NDT chemicals: Electrospun membranes filter penetrant fluids (dye penetrant testing), developer solutions, and cleaning agents in NDT inspection lines — maintaining fluid cleanliness and extending bath life
- Protective respirator filters: Nanofibre filter layers in N95/FFP2 respirators worn by NDT inspectors working with penetrant chemicals and dust provide improved filtration at reduced breathing resistance
Electrospun Materials in Non-Destructive Evaluation Research
Research programmes are developing electrospun sensor arrays for:
- Acoustic emission sensor arrays: PVDF nanofibre sheets as distributed AE sensors — detecting crack growth signals over large structural areas
- Corrosion detection films: pH-sensitive electrospun polymer films that visually indicate local pH changes caused by active corrosion beneath coatings
- Microwave sensor substrates: Electrospun high-dielectric-constant nanofibre mats as substrates for microwave patch antennas used in surface crack detection
Material Characterisation of Electrospun Fibres for NDT Applications
The performance of the electrospun NDT sensor and filtration materials is characterised by:
- SEM morphological analysis: Fibre diameter distribution, fibre uniformity, and bead-free morphology verification
- Tensile testing: Young’s modulus and tensile strength of electrospun mats per ASTM D882
- Electrical conductivity measurement: Four-point probe sheet resistance of conductive nanofibre mats
- Filtration efficiency testing: Per NIOSH 42 CFR 84 or EN 149 for respiratory protection applications
Conclusion
Electrospinning extends beyond fabrication into the realm of non-destructive testing and structural health monitoring by enabling the development of advanced nanofibre-based sensing and filtration systems. Through tailored material design, electrospun fibres can function as embedded strain sensors, piezoelectric damage detectors, and high-efficiency filtration media — enhancing detection sensitivity and environmental control in NDT applications. This integration of nanotechnology with inspection and monitoring systems represents a significant advancement in real-time diagnostics, contributing to improved safety, reliability, and performance of engineered structures.
Why Choose Infinita Lab for Electrospun Material Characterisation?
Infinita Lab provides SEM morphological analysis, mechanical testing, and electrical property measurement for electrospun nanofibre materials through our nationwide accredited materials characterisation laboratory network.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
How are electrospun nanofibre sensors embedded in composite structures during fabrication? Electrospun sensor mats are placed between prepreg plies during composite lay-up — positioned at the most structurally important interfaces (mid-plane, ply drops, impact-susceptible surfaces). The mat thickness (typically 5–50 µm) minimally perturbs the laminate structure. Electrical lead-outs are routed to connectors at the laminate edge before cure.
What polymers are most commonly used for electrospun NDT sensor applications? PVDF (polyvinylidene fluoride) is the most widely used polymer for electrospun piezoelectric sensors due to its well-characterised piezoelectric response. PAN (polyacrylonitrile) is used as a precursor for carbon nanofibre strain sensors after carbonisation. PEDOT:PSS-blended polymers produce conductive fibres for piezoresistive sensing.
How does electrospun nanofibre filtration differ from conventional melt-blown filtration media? Electrospun fibres are typically 100–500 nm diameter — much finer than melt-blown fibres (1–10 µm). The finer fibre diameter intercepts smaller particles at equivalent basis weight, providing higher filtration efficiency or lower pressure drop than melt-blown media. Electrospun layers are typically used as a fine filtration layer on top of a melt-blown support substrate.
What is the electrical conductivity range achievable in carbon nanotube-loaded electrospun fibres? CNT-loaded electrospun fibres at percolation threshold loading (typically 3–10 wt% MWCNT) achieve sheet resistances of 10³–10⁶ Ω/□ — the static dissipative range. At higher CNT loadings (10–20 wt%), sheet resistances below 10³ Ω/□ are achievable — suitable for electromagnetic shielding and grounding applications.
Can electrospun piezoelectric sensors replace conventional PZT sensors for structural health monitoring? Electrospun PVDF sensors offer lower acoustic impedance (better coupling to polymer composites), distributed coverage, and minimal structural perturbation compared to bonded PZT wafers. For passive structural health monitoring (detecting AE events), electrospun sensors are competitive. For active generation of guided ultrasonic waves (pitch-catch SHM), PZT sensors currently provide higher actuation force and are preferred.
