Vibration Package Integrity Testing: What It Is & How It Works
What Is Vibration Package Integrity Testing?

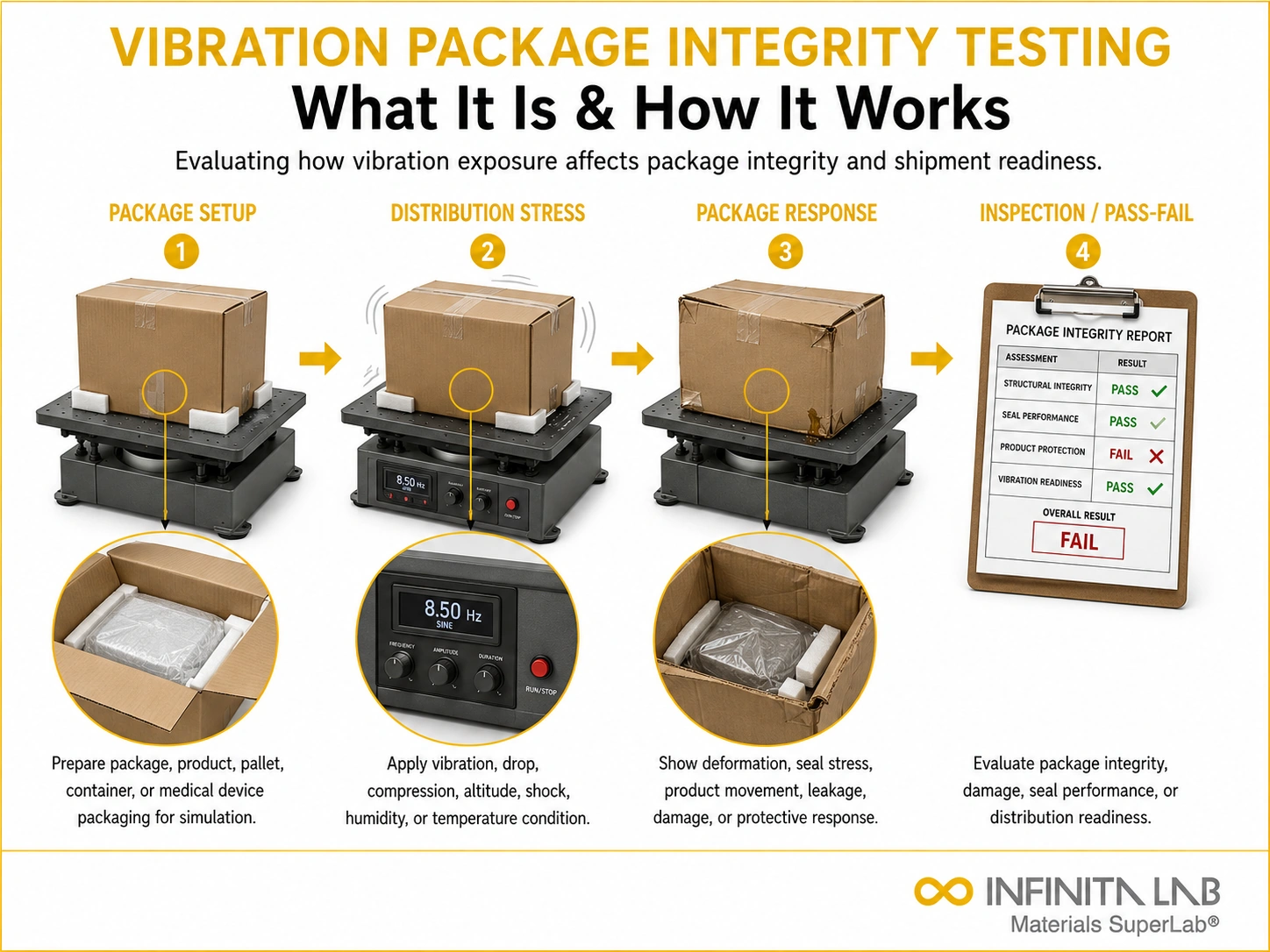

Vibration package integrity testing evaluates a packaged product’s ability to withstand the vibrational stresses encountered during transportation by road, rail, air, and sea. It subjects packaged units to controlled vibration profiles — simulating the frequency content, amplitude, and duration of vibration experienced on real distribution vehicles — and verifies that the package protects its contents from vibration-induced fatigue, material failure, and functional damage.
Vibration is one of the most pervasive and damaging physical hazards in the transportation environment — causing resonance-driven amplification of container and product oscillation that can damage contents through fatigue, fretting, and impact with packaging materials.
The Physics of Vibration-Induced Package Damage
Resonance
Every packaged product system has one or more natural resonant frequencies determined by the mass of the contents and the spring stiffness of the cushioning, suspension, and packaging structure. When the frequency of transportation-induced vibration matches a natural frequency of the package-product system, resonance amplifies the vibration amplitude — potentially by 5–20× relative to the input vibration. Prolonged resonant excitation causes progressive fatigue damage to fragile components.
Relative Motion Damage
Within the package, contents rub against interior packaging elements, dunnage, and each other. Relative motion due to vibration causes abrasive wear of surfaces (fretting), finish damage, and fatigue cracking at stress-concentration features.
Repetitive Shock
Vibration at resonance can cause the product to repeatedly separate from its cushioning or mounting points — generating repetitive shock pulses that accumulate fatigue damage, even when peak individual shock levels are below the product’s damage threshold.
Vibration Test Standards for Package Integrity
ASTM D999 — Vibration Testing of Shipping Containers
ASTM D999 defines three vibration test methods:
- Method A (Repetitive shock): The package is subjected to sinusoidal vibration sweeping from ~2 to 100 Hz while supported on a vibration table, generating repetitive shocks against the table surface at resonance
- Method B (Resonance dwell): Resonant frequencies of the packaged system are identified by vibration sweep, then the package is dwelt at each resonant frequency for defined durations to accumulate fatigue damage
- Method C (Random vibration, optional): Broadband random vibration per ASTM D4728 power spectral density (PSD) profiles
ASTM D4728 — Random Vibration Testing of Shipping Containers
Random vibration testing uses a PSD spectrum that represents the statistical distribution of vibration energy across all frequencies present during transport. This is more representative of real road vibration than single-frequency sinusoidal testing. Standard PSDs for different transport modes (truck, air cargo, rail) are defined by ISTA and ASTM standards.
ISTA Series Vibration Tests
ISTA test series (2A, 3A, 3H, 6-Amazon) includes both fixed-displacement and random-vibration test elements. ISTA 3A random vibration uses PSD profiles representing truck, rail, and air transport environments at Levels I and II for 60 minutes per axis (three axes).
IEC 60068-2-64 — Random Vibration for Electronics
IEC 60068-2-64 defines random vibration test methods and PSD profiles for electronic and electrotechnical product qualification — relevant for packaged electronics subjected to transportation vibration.
Evaluation After Vibration Testing
Post-test evaluation includes:
- Product functionality test: Does the product still perform to specification?
- Visual inspection: Is there visible damage to the product or packaging?
- Packaging integrity inspection: Has cushioning compressed, shifted, or failed?
- Package containment: Has the package maintained containment of all contents?
Industrial Applications
Consumer electronics manufacturers — laptops, monitors, smartphones — test packages per ISTA 3A or Amazon APASS before product launch to ensure devices arrive undamaged. Industrial equipment manufacturers test packages for vibration-sensitive instrumentation and components in accordance with ASTM D4728. Automotive component suppliers test packaged parts for vibration damage during transit to assembly plants.
Conclusion
Vibration package integrity testing is essential for ensuring that packaged products can withstand the dynamic stresses encountered throughout the transportation cycle. By simulating real-world vibration conditions and identifying risks such as resonance, fatigue, and internal movement, it verifies that packaging systems effectively protect product functionality and physical integrity. Through standardised methods such as ASTM and ISTA protocols, manufacturers can optimise packaging design, reduce damage rates, and ensure safe, reliable delivery — making vibration testing a critical component of modern distribution validation.
Why Choose Infinita Lab for Vibration Package Integrity Testing?
Infinita Lab provides ASTM D999, ASTM D4728, ISTA, and custom vibration package integrity testing through our nationwide accredited packaging and vibration testing laboratory network, supporting product launch qualification and packaging optimisation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the difference between sinusoidal and random vibration testing for packaging? Sinusoidal testing applies a single frequency at a time — sweeping through a frequency range or dwelling at resonance. Random vibration simultaneously applies all frequencies within a defined PSD spectrum — more accurately representing real road transportation vibration, which contains energy at many frequencies simultaneously. Random vibration is generally preferred for distribution simulation testing.
How are resonant frequencies identified during ASTM D999 vibration testing? Resonant frequencies are identified during a low-level vibration sweep by monitoring the vibration response of the package top surface. At resonance, the response amplitude peaks significantly above the input level — indicated by a transmissibility ratio >1. The resonant frequencies identified during the sweep are then used for dwell testing in ASTM D999 Method B.
What is a Power Spectral Density (PSD) in random vibration testing? PSD describes the distribution of vibration energy (g²/Hz) across the frequency range. It is the statistical characterisation of random vibration — specifying the mean square acceleration per unit frequency bandwidth at each frequency. PSD profiles for truck, air, and rail transport environments are defined in ISTA and ASTM standards based on field measurements of actual distribution vibration.
Can vibration testing be performed in all three axes simultaneously? Standard vibration testing is performed one axis at a time (vertical, longitudinal, lateral). Tri-axial vibration testing machines that simultaneously apply vibration in all three axes are available but not yet standard practice in most ISTA or ASTM protocols. Some advanced package qualification programmes include multi-axial testing for more comprehensive simulation.
What packaging materials provide best protection against vibration damage? Polyurethane foam, polyethylene foam, and expanded polypropylene (EPP) foam provide effective vibration isolation through their energy-absorbing (damping) and spring (elastic) properties. Optimal cushioning design uses the cushioning material's CFD (Compression Force Deflection) data to limit the transmitted acceleration to below the product's fragility threshold at the expected drop and vibration amplitudes.
