Ultrasonic Techniques & Equipment for Residual Stress Measurement
Steel tower corrosion assessment using NDT and coating evaluation per NACE standardsWhat Is Residual Stress?
Residual stresses are internal stresses that exist in a component in the absence of externally applied loads. They arise from manufacturing processes — welding, machining, heat treatment, forming, grinding, and shot peening — as well as from service loading and thermal cycling. Residual stresses are superimposed on service stresses and can either accelerate failure (tensile residual stress + applied tensile stress) or retard it (compressive residual stress opposing applied tensile stress).
Accurate measurement of residual stress is essential for structural integrity assessment, fatigue life prediction, and manufacturing process optimisation in the aerospace, automotive, power generation, and rail transport industries.

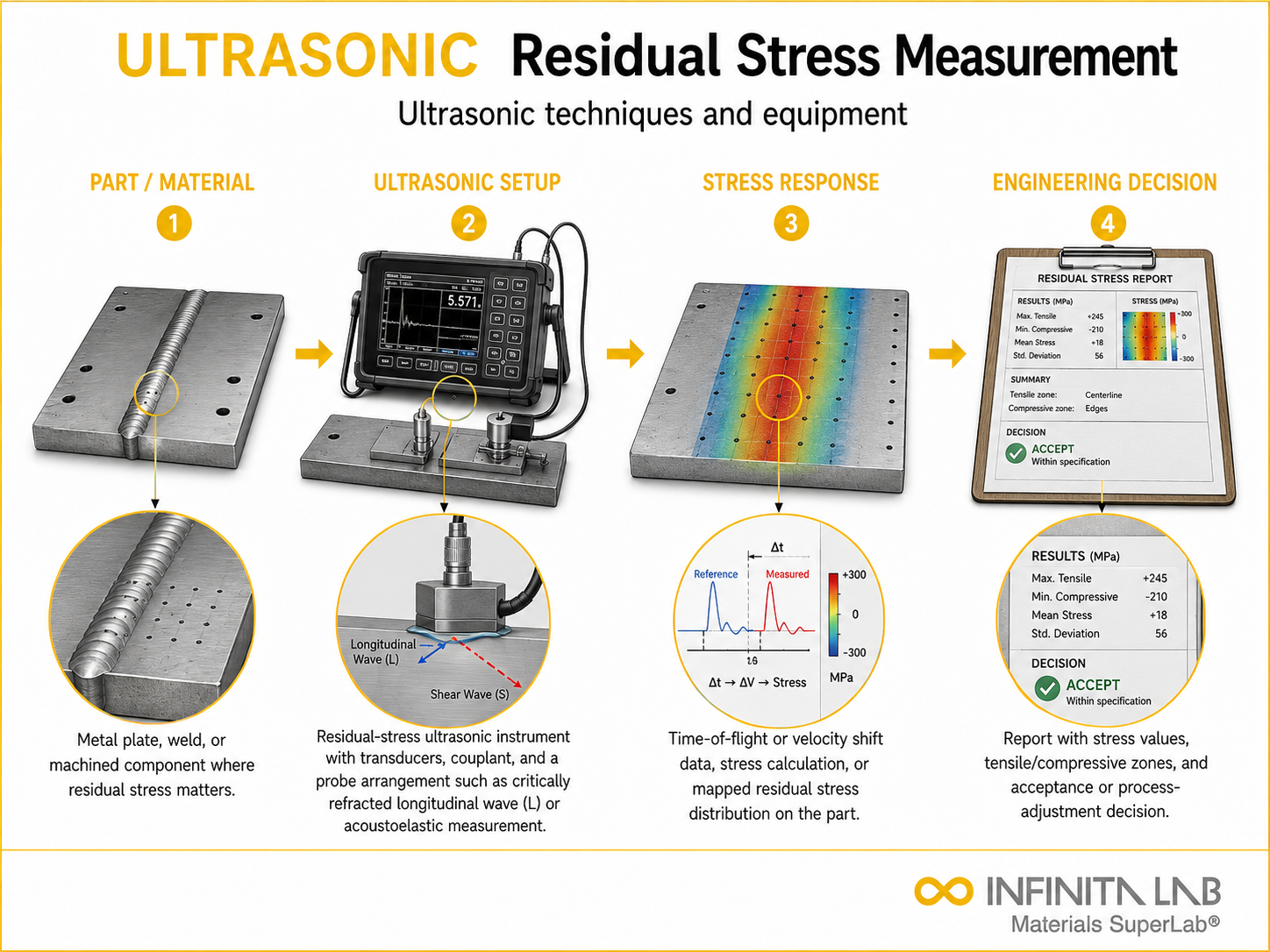

Ultrasonic Methods for Residual Stress Measurement
Ultrasonic residual stress measurement exploits the acousto-elastic effect — the dependence of ultrasonic wave velocity on the stress state in the material. Since the speed of sound in a stressed solid changes proportionally to the applied or residual stress, precise velocity measurements can be used to determine the stress magnitude.
Critically Refracted Longitudinal (LCR) Waves
LCR waves are longitudinal waves that travel along the surface of the component at the longitudinal-wave critical refraction angle, probing a thin subsurface layer (typically 1–3 mm deep, depending on frequency). The travel time between the transmitter and receiver transducers on the surface is measured with nanosecond precision; changes in travel time are related to the in-plane stress state through the material’s acoustoelastic constant.
LCR wave measurement is the most widely used ultrasonic residual stress method because it is non-destructive, portable, and applicable to welds, rails, structural steel, and large components in the field. It measures biaxial surface and near-surface stress over relatively large averaging areas.
Shear Horizontal Wave (SH Wave) Polarisation Method
The velocity of horizontally polarised shear waves depends on the stress state in the propagation plane. By comparing wave speeds for different polarisation directions, biaxial stress components can be separated, enabling the determination of the principal stress and maximum shear stress.
Ultrasonic Time-of-Flight Diffraction (TOFD)
While primarily used for flaw sizing, TOFD time-of-flight measurements are sensitive to changes in sound velocity from residual stress — enabling combined defect detection and residual stress estimation in weld zones.
Equipment for Ultrasonic Residual Stress Measurement
Dedicated ultrasonic residual stress measurement systems include:
- Tone-burst ultrasonic equipment: High-frequency burst generation (1–5 MHz) with precise time-of-flight measurement capability (sub-nanosecond resolution)
- Phased array probe systems: Multi-element probes for LCR wave generation and reception with electronic steering capability
- Digital signal processing units: Real-time averaging, FFT analysis, and cross-correlation algorithms for sub-nanosecond time difference measurement
- Calibration fixtures: Uniaxially loaded tensile specimens used to determine material-specific acousto-elastic constants
Comparison with Other Residual Stress Methods
| Method | Type | Depth | Spatial Resolution | Portability |
| Ultrasonic (LCR) | Non-destructive | ~1–3 mm | ~10 mm | Fully portable |
| X-ray diffraction | Non-destructive | <0.1 mm | ~1 mm | Portable |
| Neutron diffraction | Non-destructive | Through-thickness | ~5 mm | Facility-based |
| Hole drilling | Destructive | ~2 mm | ~3 mm | Portable |
| Contour method | Destructive | Through-thickness | ~1 mm | Laboratory |
Industrial Applications
In the rail industry, LCR wave measurement monitors residual stress in welded rail joints — a primary cause of rail fracture due to rolling contact fatigue. In the aerospace industry, residual stress mapping of weld repair zones and machined surfaces verifies that compressive residual stress from shot peening or laser shock peening is maintained. In heavy manufacturing, the effectiveness of post-weld heat treatment is verified by comparing pre- and post-treatment residual stress maps.
Conclusion
Residual stress — arising from manufacturing processes and service conditions — plays a critical role in determining the structural integrity, fatigue life, and performance of engineering components. Ultrasonic methods such as LCR wave analysis, along with complementary techniques like X-ray diffraction and hole drilling, provide effective means to evaluate these stresses non-destructively or semi-destructively. Understanding and accurately measuring residual stress enables engineers to optimise manufacturing processes, validate treatments such as heat treatment or shot peening, and prevent premature failure. Selecting the appropriate measurement technique based on required depth, resolution, and application is essential, making the evaluation strategy as important as the stress data itself.
Why Choose Infinita Lab for Residual Stress Measurement?
Infinita Lab provides ultrasonic LCR wave residual stress measurement, X-ray diffraction stress analysis, and hole-drilling residual stress testing through our nationwide, accredited non-destructive and materials testing laboratory network.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the acousto-elastic effect and how does it enable ultrasonic residual stress measurement? The acousto-elastic effect is the dependence of ultrasonic wave velocity on the stress state in a solid — analogous to the photoelastic effect for light in transparent materials. Tensile stress increases ultrasonic velocity in the stress direction; compressive stress decreases it. By measuring precise velocity changes, residual stress can be calculated using the material's acousto-elastic constant. What is the acousto-elastic effect and how does it enable ultrasonic residual stress measurement? The acousto-elastic effect is the dependence of ultrasonic wave velocity on the stress state in a solid — analogous to the photoelastic effect for light in transparent materials. Tensile stress increases ultrasonic velocity in the stress direction; compressive stress decreases it. By measuring precise velocity changes, residual stress can be calculated using the material's acousto-elastic constant.
What depth does LCR wave measurement probe for residual stress? LCR waves propagate at a depth approximately equal to one wavelength below the surface — typically 1–3 mm for 1–5 MHz frequencies on steel. The depth can be changed by adjusting transducer frequency (higher frequency = shallower penetration). This near-surface sensitivity captures the residually stressed layer of most practical engineering importance.
How is the acousto-elastic constant determined for a specific material? The acousto-elastic constant is determined by measuring LCR wave velocity in a calibration specimen (the same material, same processing condition) at multiple known uniaxial stress levels applied by a tensile testing machine. The slope of the velocity-stress relationship gives the acousto-elastic constant used to convert measured velocity changes to stress values in unknown components.
Can ultrasonic residual stress measurement distinguish between tensile and compressive residual stress? Yes. Tensile residual stress increases ultrasonic velocity relative to the stress-free reference; compressive residual stress decreases velocity. The sign of the velocity change relative to the unstressed reference material directly indicates whether the residual stress is tensile (positive) or compressive (negative).
What is the major limitation of ultrasonic residual stress measurement compared to X-ray diffraction? The main limitation is spatial averaging — LCR waves average stress over a volume approximately equal to the probe footprint (typically 10 mm × 10 mm), making it insensitive to sharp stress gradients. X-ray diffraction achieves ~1 mm spatial resolution. Additionally, ultrasonic measurement requires the acousto-elastic constant of the specific material, which must be measured separately and varies with microstructure, texture, and prior deformation history.
