Ultrasonic Contact Impedance (UCI) Hardness Tester: How It Works & Applications
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat Is a UCI Hardness Tester?

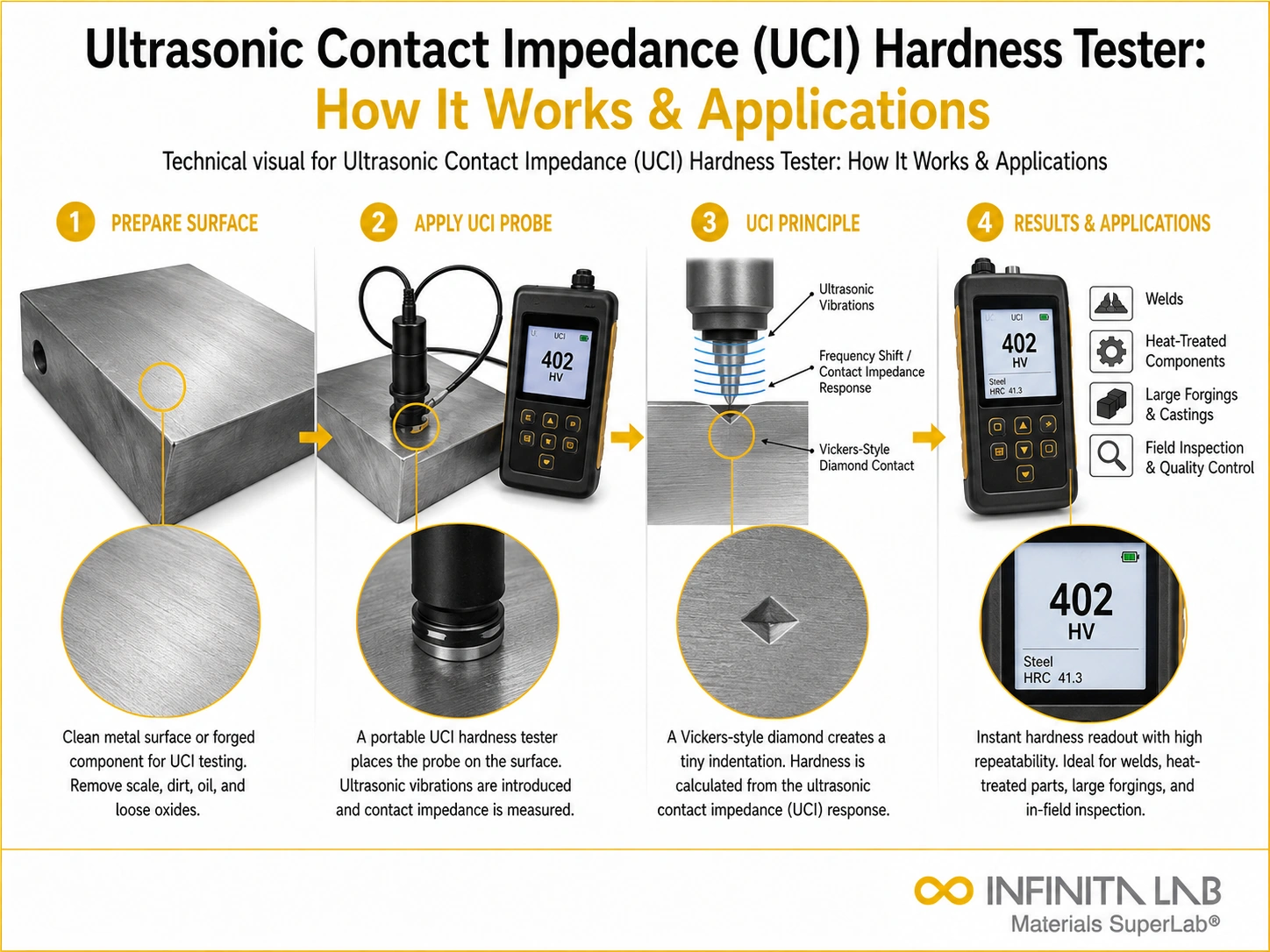

An Ultrasonic Contact Impedance (UCI) hardness tester is a portable, non-destructive hardness measurement instrument that uses a Vickers diamond indenter vibrating at ultrasonic frequency to measure hardness without leaving a significant visible indentation. The UCI method determines Vickers hardness by measuring the change in the resonant frequency of an ultrasonically vibrating rod due to the elastic contact area between the Vickers diamond and the material surface.
UCI testers are widely used for in-situ, field, and production-floor hardness measurement of metallic components where conventional stationary hardness testers are impractical due to component size, weight, geometry, or inaccessibility.
Principle of UCI Hardness Measurement
The UCI probe consists of a metal rod with a Vickers diamond pyramid bonded to one end, which vibrates at its natural resonant frequency (approximately 70 kHz) when driven by a piezoelectric actuator. When the vibrating diamond is pressed against the test surface under a defined static load, the contact area between the diamond and the material changes the mechanical boundary condition at the tip, shifting the rod’s resonant frequency.
The frequency shift (Δf) is directly related to the elastic contact area between the diamond and the surface. Harder materials produce smaller contact areas and smaller frequency shifts; softer materials produce larger contact areas and larger frequency shifts. The UCI instrument converts Δf to Vickers hardness (HV) using the relationship between contact area and indentation depth in the Vickers geometry.
UCI hardness closely correlates with static Vickers microhardness per ASTM E384 but leaves a much smaller indentation, making it essentially non-destructive for most metallic components.
UCI vs. Conventional Hardness Methods
Feature | UCI Tester | Stationary Vickers (ASTM E384) | Rebound (Leeb) |
Portability | Fully portable | Stationary lab instrument | Portable |
Indentation size | Micro (~10–50 µm) | Micro (load-dependent) | None (rebound) |
Test force | 1–50 N | 0.01–1000 gf | Impact (~11 N) |
Surface roughness sensitivity | High | High | Low |
Thin section capability | Yes | Yes | Limited |
Coating measurement | Yes (with care) | Yes | No |
Advantages of UCI Testing
Non-destructive: The micro-scale indentation is invisible to the naked eye on most surfaces, preserving component appearance and allowing testing of finished surfaces.
Portable and versatile: UCI probes attach to handheld instruments — testing is possible on installed components, large structures, weld zones, and surfaces inaccessible to stationary testers.
Accurate on thin sections and coatings: UCI can measure the hardness of thin case-hardened layers (>0.1 mm), coatings, and weld heat-affected zones, where the small indentation avoids substrate influence.
Wide hardness range: UCI covers approximately 20–1600 HV, equivalent to the full Vickers scale.
Case depth profiling: UCI can profile hardness from the surface into the core of case-hardened components by sequential measurements at polished cross-section steps — faster than conventional microhardness profiling.
Industrial Applications
In the aerospace industry, UCI testing verified the hardness of the repair weld on aircraft structures without destructive specimen preparation. In the power generation industry, UCI measures the hardness of steam turbine blades and pressure-vessel welds in situ during outage inspections. In automotive manufacturing, UCI is used on the production floor to spot-check the hardness of heat-treated gears and shafts between stationary hardness tester calibrations.
Limitations of UCI Testing
UCI is sensitive to surface roughness — rough, unmachined surfaces give variable results. Test results depend on the elastic modulus of the material — materials that differ significantly from standard steel (e.g., titanium, copper alloys) require material-specific calibration curves. Thin coatings (<0.1 mm) may give composite readings influenced by the substrate.
Conclusion
Ultrasonic Contact Impedance (UCI) hardness testing — based on the relationship between ultrasonic frequency shift and the Vickers indentation contact area — provides a portable, non-destructive, and highly versatile method for measuring the hardness of metallic materials. It enables accurate in-situ evaluation of thin sections, coatings, weld zones, and heat-treated components where conventional methods may be impractical. While sensitive to surface condition and material properties, proper calibration and test setup ensure reliable results. Selecting UCI testing for appropriate applications enhances efficiency, preserves component integrity, and supports rapid quality control — making method selection as important as the measurement outcome itself.
