Stress Optical Coefficient: Definition, Measurement & Applications
Infinita Lab utilizes advanced photoelasticity to calculate the stress optical coefficient, ensuring structural integrity in transparent materials.The stress optical coefficient (SOC), also known as the photoelastic constant or Brewster constant, quantifies how mechanical stress changes the refractive index of a transparent material. When a transparent material is stressed, it becomes birefringent—light polarised along different axes travels at different speeds, creating optical path differences proportional to the applied stress. SOC is a critical design parameter for optical components, display substrates, fibre optics, and precision lenses, where stress-induced birefringence degrades optical performance. For companies seeking stress optical coefficient testing at a USA-based testing lab, Infinita Lab provides comprehensive optical and mechanical characterisation through its accredited network of over 2,000 partner labs.
What SOC Measures
SOC is defined as the change in refractive index difference (Δn) per unit stress (σ), expressed in Brewsters (10⁻¹² Pa⁻¹) or nm/cm/MPa. A low SOC means the material maintains optical isotropy under stress—desirable for precision optics, display glass, and optical fibre. A high SOC is useful for photoelastic stress analysis, where stress visualisation is the objective.

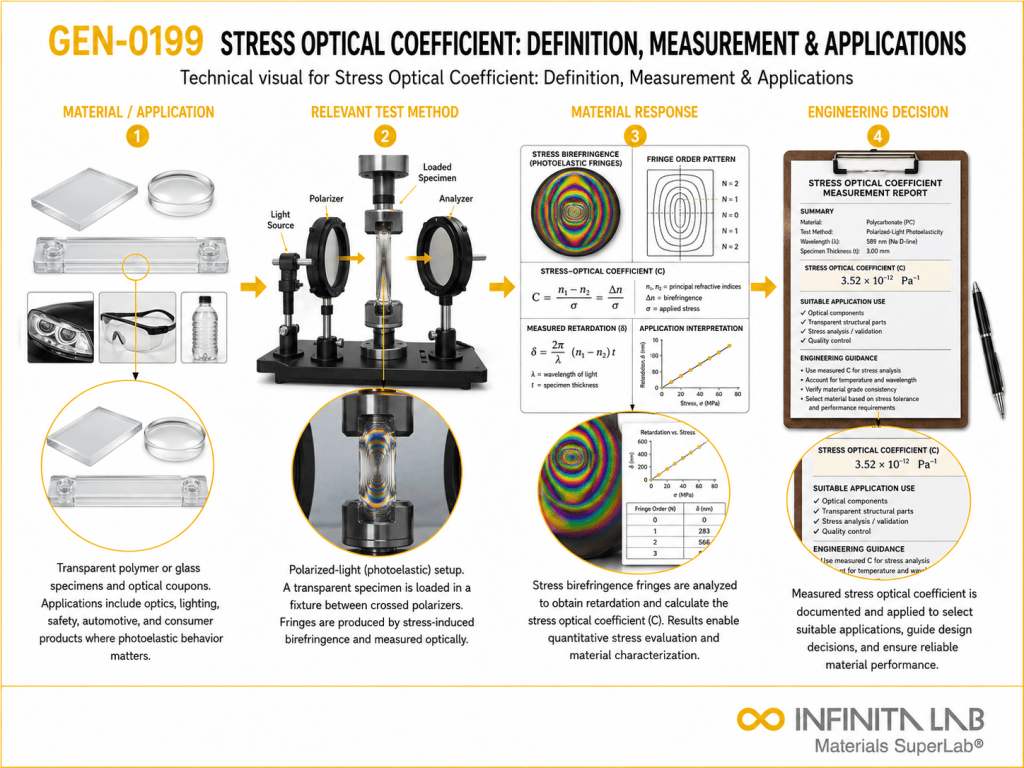

Measurement Methods
ASTM C770 – Photoelastic Constant of Glass
ASTM C770 measures the stress optical coefficient of glass by applying a known compressive or tensile load to a specimen and measuring the resulting optical retardation using a polarimeter or compensator. This is the primary standard for optical glass characterisation.
ASTM D4093 – Photoelastic Properties of Plastics
ASTM D4093 covers photoelastic measurement of transparent plastics, including polycarbonate, PMMA, and polystyrene. Specimens are loaded in controlled tension or compression while birefringence is measured with polarised light.
Industry Applications
SOC data is critical for optical glass selection for lenses and prisms, display cover glass and substrate design for the electronics industry, optical fibre manufacturing (low-birefringence fibre), automotive windshield and HUD glass specifications, injection-molded optical components (lenses, light guides), and photoelastic stress analysis of transparent models.
Why Choose Infinita Lab for Optical Testing?
Infinita Lab is a leading provider of Optical Testing and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the stress optical coefficient? SOC quantifies how much a material’s refractive index changes per unit of applied stress. It determines stress-induced birefringence, which affects optical clarity, image quality, and light polarization in transparent materials.
What ASTM standards measure SOC? ASTM C770 covers the measurement of the glass photoelastic constant. ASTM D4093 covers photoelastic properties of transparent plastics. Both use polarized light techniques to measure stress-induced birefringence.
Why is low SOC important for display glass? Display glass substrates experience thermal and mechanical stresses during manufacturing and use. Low SOC minimizes stress-induced birefringence that causes colour distortion and contrast degradation in LCD and OLED displays.
What materials have low stress optical coefficients? Certain optical glasses (Schott N-BK7 variants), cyclic olefin polymers (COP/COC), and specialty display glasses are engineered for low SOC. Standard soda-lime glass has moderate SOC; polycarbonate has relatively high SOC.
How is SOC related to photoelastic stress analysis? Photoelastic analysis uses materials with known, high SOC to visualize stress distributions in models. The fringe patterns observed under polarized light are directly proportional to stress through the SOC, enabling quantitative stress mapping.
