What Is Soldering Testing?
Soldering testing encompasses a range of material and process evaluation methods used to verify the quality, reliability, and integrity of solder joints, solder alloys, fluxes, and solderable surface finishes. In electronics and electrical engineering, solder joints are the fundamental interconnections that electrically and mechanically bond components to substrates. Their reliability under thermal, mechanical, and environmental stresses is critical to the operational lifetime of electronic assemblies.
Why Soldering Testing Is Essential
Modern electronics operate in increasingly demanding thermal environments — from consumer devices experiencing thousands of power cycles to automotive and aerospace electronics exposed to extreme temperature ranges. The transition from tin-lead (SnPb) to lead-free solder alloys under RoHS regulations has introduced new soldering challenges, including higher reflow temperatures, increased susceptibility to tin whisker growth, and different thermal fatigue behaviour.
Comprehensive soldering testing enables manufacturers to:
- Qualify new solder alloys and flux formulations
- Verify solder joint reliability under thermal cycling and vibration
- Detect process defects such as cold joints, bridging, and insufficient wetting
- Comply with IPC, JEDEC, and MIL standards for electronics assembly

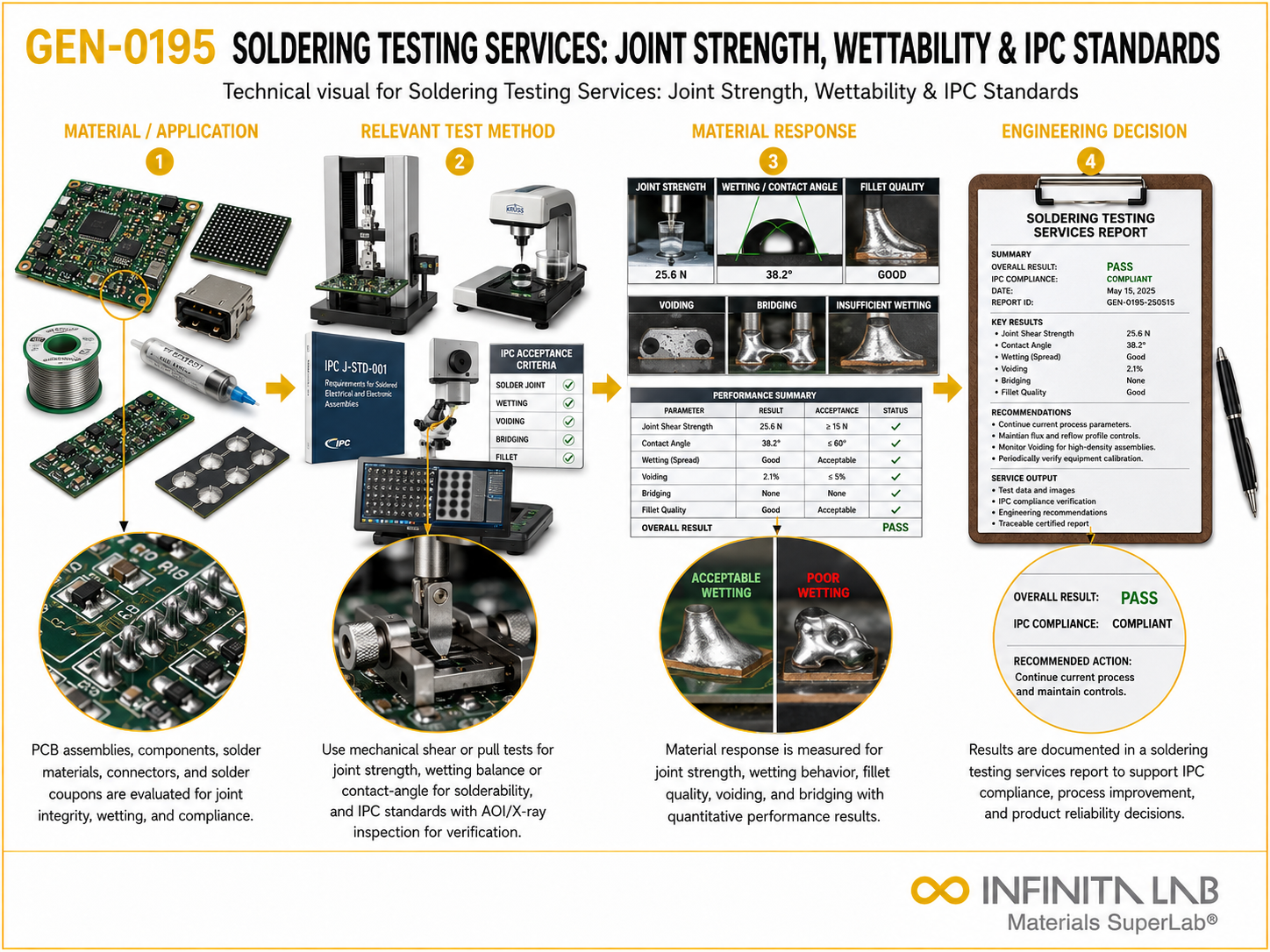

Key Soldering Testing Methods
Solderability Testing
Solderability testing evaluates the ability of a component lead or PCB pad to be wetted by molten solder. Standard methods include the wetting balance test (IPC J-STD-003, IEC 60068-2-69) and the dip-and-look method, which measure wetting time, wetting force, and percentage coverage.
Thermal Cycling / Thermal Fatigue Testing
Thermal cycling tests (IEC 60068-2-14, JEDEC JESD22-A104) subject solder joints to repeated temperature excursions between extremes (e.g., −40°C to +125°C) to assess fatigue life and failure modes in lead-free solder alloys.
Vibration Testing
Random and sinusoidal vibration testing evaluates solder joint resistance to mechanical fatigue induced by transportation and operational vibration environments. Tests are performed per IPC-9701, MIL-STD-810, and automotive LV 124 standards.
Cross-Section Metallography
Solder joint cross-sections are prepared and examined metallographically to reveal intermetallic compound (IMC) thickness, void content, grain structure, and defects, including cold joints, voids, and cracking.
Pull and Shear Testing
Ball shear testing (JEDEC JESD22-B117) and wire bond pull testing measure the mechanical strength of solder balls and bond interconnects. Results confirm that joint strength meets minimum reliability thresholds.
Tin Whisker Testing
Tin whisker growth testing (JEDEC JESD201) evaluates the propensity of tin-rich lead-free finishes to grow metallic whiskers that can cause electrical short circuits. Tests involve temperature and humidity conditioning followed by optical and SEM inspection.
Industry Applications
In the electronics industry, soldering testing is mandatory for printed circuit board assembly qualification. Automotive electronics require testing to AEC-Q100 and OEM-specific standards for harsh-environment reliability. Aerospace and defence electronics must meet MIL-STD-883 soldering reliability requirements.
Conclusion
Soldering testing is a critical aspect of electronics manufacturing, ensuring that solder joints provide reliable electrical and mechanical connections throughout a product’s lifecycle. By combining methods such as solderability assessment, thermal cycling, vibration testing, and metallographic analysis, manufacturers can identify defects, validate materials, and ensure compliance with industry standards. This comprehensive evaluation is essential for maintaining performance, safety, and durability in increasingly demanding electronic applications.
Why Choose Infinita Lab for Soldering Testing?
Infinita Lab offers comprehensive soldering testing services, including solderability, thermal cycling, vibration, metallographic cross-section, and whisker growth testing through our nationwide network of accredited laboratories. Our experts support electronics manufacturers from process development through to final qualification.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is soldering testing? Soldering testing refers to the evaluation of solder joints, materials, and processes to ensure reliable electrical and mechanical connections in electronic assemblies.
Why is soldering testing important? It ensures long-term reliability of electronic devices by detecting defects and validating performance under thermal and mechanical stresses.
What is solderability testing? It measures how well molten solder wets component leads or PCB pads, indicating the quality of surface finishes.
What is thermal cycling in solder testing? It involves repeatedly exposing solder joints to temperature extremes to assess fatigue life and failure mechanisms.
What defects can soldering tests detect? Common defects include cold joints, voids, cracks, bridging, poor wetting, and intermetallic issues.
