How Solar Cell Efficiency Advances Are Driven by Material Science & Testing
Artificial synaptic memory material testing showing memristive switching behavior characterizationThe Evolution of Solar Cell Efficiency
Solar photovoltaic efficiency — the fraction of incident solar energy converted to electrical energy — has risen dramatically over the past two decades. Laboratory cell efficiencies have advanced from under 20% for silicon to certified records above 47% for multi-junction concentrator cells. Commercial module efficiencies have risen from 12–14% (2000) to 20–24% for premium silicon modules today. Understanding the materials science, engineering innovations, and testing methods behind these advances is essential for photovoltaic engineers, materials scientists, and product qualification teams across the solar energy industry.
Key Technology Advances Driving Improved Efficiency
Monocrystalline Silicon: PERC, TOPCon, and HJT
Standard monocrystalline silicon solar cells reached a practical efficiency ceiling around 20% due to fundamental carrier recombination losses. Three technology platforms have pushed silicon cell efficiencies significantly higher:
PERC (Passivated Emitter and Rear Cell): Adds a dielectric passivation layer on the rear surface — reducing rear surface recombination velocity and reflecting unabsorbed photons back into the silicon for a second absorption pass. PERC cells achieve 22–23% efficiency, now the global mainstream.
TOPCon (Tunnel Oxide Passivated Contact): A thin tunnel oxide layer between the silicon bulk and the doped poly-silicon contact eliminates majority carrier recombination at the contact — achieving 24–25% cell efficiency in mass production.
HJT (Heterojunction Technology): Combines thin amorphous silicon passivation layers on both surfaces of a crystalline silicon wafer — achieving bifacial efficiency >25% with ultra-thin cells (150 µm). Silicon heterojunction cells also exhibit exceptional temperature coefficients — losing less efficiency at elevated operating temperatures.
Perovskite Solar Cells
Hybrid organic-inorganic perovskites (general formula ABX₃, where A = methylammonium or formamidinium, B = Pb, X = I, Br, Cl) have emerged as the most rapidly advancing photovoltaic technology. Single-junction perovskite cells have reached >26% efficiency in laboratory conditions — approaching the silicon Auger limit. Their advantages include:
- Direct bandgap with high absorption coefficient — very thin active layers (500 nm vs. 180 µm for silicon)
- Tunable bandgap by halide composition — enabling multi-junction pairing with silicon
- Solution and vapor-phase processability — potentially lower manufacturing cost than silicon wafering
Perovskite-silicon tandem cells are now exceeding 33% efficiency — a certified world record that surpasses the practical efficiency limit of any single-junction cell — by combining perovskite (wide bandgap ~1.7 eV) with silicon (1.1 eV) to absorb complementary portions of the solar spectrum.

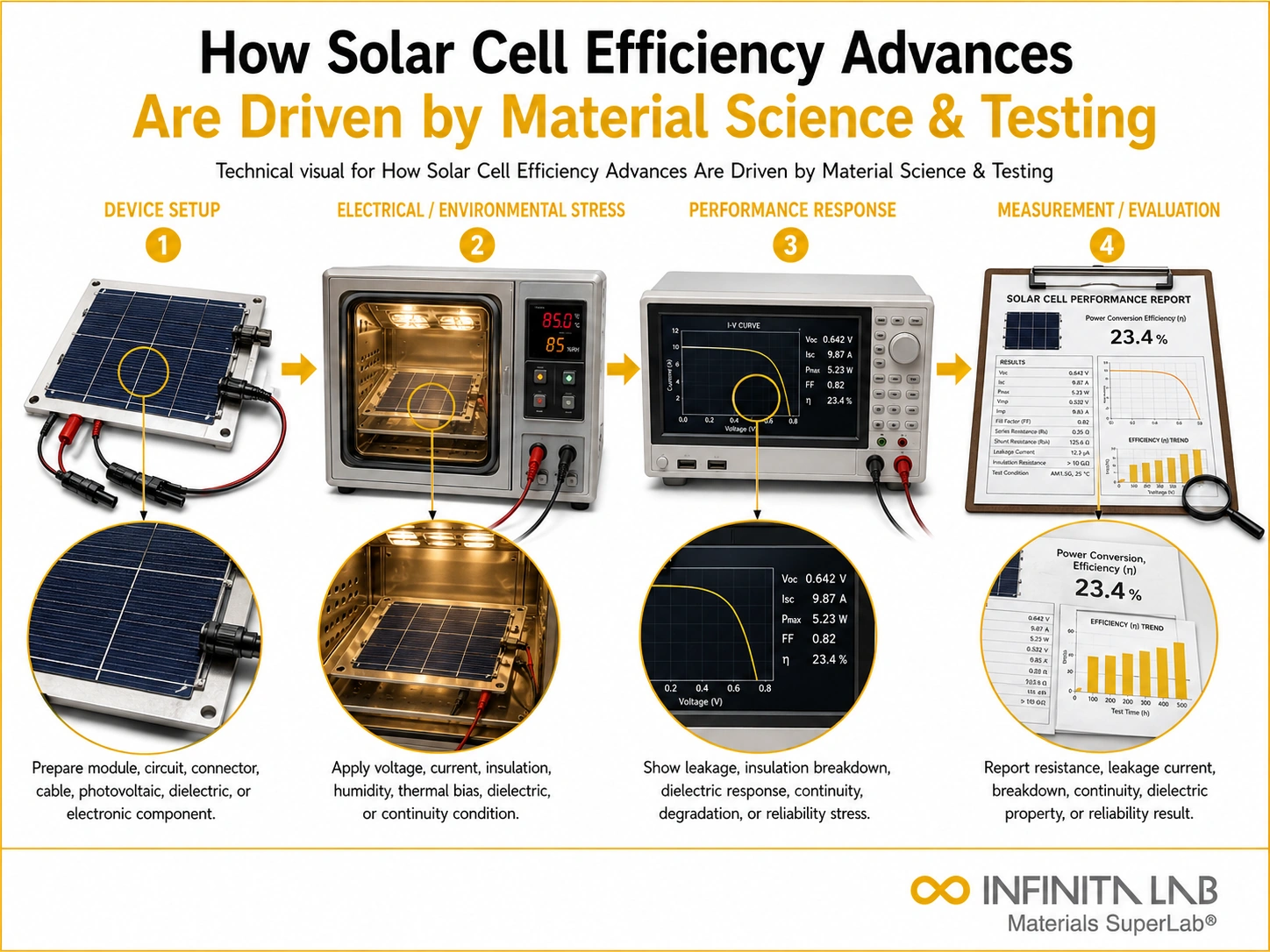

Testing Methods for Solar Cell Efficiency and Reliability
Electrical Performance Testing
- I-V curve measurement under AM1.5G standard test conditions (STC): 1,000 W/m², 25°C, air mass 1.5 global solar spectrum — the universal efficiency comparison condition per IEC 60904-3
- External quantum efficiency (EQE): Measures current generation efficiency wavelength by wavelength — identifying optical and recombination loss mechanisms
Reliability and Durability Testing
- Damp heat (IEC 61215): 85°C/85% RH for 1,000 hours — accelerates moisture-induced delamination and corrosion of metallization
- Thermal cycling (IEC 61215): 200 cycles from −40°C to +85°C — reveals solder joint and interconnect fatigue
- UV preconditioning (IEC 61215): Accelerated UV degradation of encapsulants and backsheets
- Potential-induced degradation (PID) testing (IEC 62804): High-voltage bias testing to detect Na+ ion migration-driven efficiency loss in system-level deployments
Material Characterization of PV Materials
| Technique | Information Obtained |
| SEM/EDS | Grain structure; metallization quality; delamination |
| EL (electroluminescence) imaging | Active area uniformity; crack and defect mapping |
| PL (photoluminescence) imaging | Carrier lifetime mapping; passivation quality |
| XRF | Metallization composition; front contact paste quality |
| DSC/TGA | Encapsulant (EVA, POE) cure state and thermal stability |
Conclusion
The efficiency improvements in solar cells over the past decade represent a triumph of materials science — systematic reduction of every optical, recombination, and resistive loss mechanism through better passivation, improved contacts, new semiconductor absorber systems, and multi-junction architectures. Testing keeps pace with these advances — providing the electrical performance verification, long-term durability qualification, and material characterization data that bring laboratory records to commercial reality.
Why Choose Infinita Lab for Solar Cell and Photovoltaic Material Testing?
Infinita Lab is a trusted USA-based testing laboratory offering photovoltaic material testing and comprehensive energy technology testing services across an extensive network of accredited facilities. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the STC (Standard Test Condition) and why is it used for all solar cell efficiency comparison? STC defines 1,000 W/m² irradiance at AM1.5G spectrum and 25°C cell temperature — conditions chosen to be representative of solar noon in a temperate climate. All commercially published efficiency values are measured under STC for universal comparability across manufacturers, locations, and technologies. Real-world conditions differ from STC — modules typically operate at 40–65°C, reducing actual output below STC-rated values.
What is the theoretical efficiency limit for single-junction silicon solar cells? The Shockley-Queisser limit for a single-junction silicon cell (bandgap 1.12 eV) under AM1.5G illumination is approximately 33.7%. High-quality silicon cells (SunPower, LONGi) have achieved >26% certified efficiency in laboratory conditions — approaching within 7 percentage points of the theoretical limit. The remaining gap is driven by surface recombination, resistive losses, and optical reflection.
What is potential-induced degradation (PID) in solar modules and how is it prevented? PID occurs when high DC system voltages drive sodium ions from the glass into the silicon cell's anti-reflection coating and passivation layers — reducing shunting resistance and degrading module power output by up to 30%. PID is mitigated by using PID-resistant encapsulants and cell coatings, grounding the negative terminal of the string, and operating with maximum positive string-to-ground voltage. IEC 62804 tests for PID susceptibility.
How do perovskite-silicon tandem cells exceed the single-junction efficiency limit? A single-junction cell converts photons above its bandgap but cannot capture photons below it (thermalization loss). A tandem cell stacks two junctions with different bandgaps — the wide-bandgap perovskite top cell absorbs high-energy photons while transmitting lower-energy photons to the silicon bottom cell. By dividing the solar spectrum between two cells, tandem cells eliminate much of the thermalization loss — enabling efficiencies above the 33.7% single-junction limit.
What durability tests must solar modules pass for IEC 61215 certification? IEC 61215 (the primary international crystalline silicon module qualification standard) requires: 200 thermal cycles (−40 to +85°C), 10 humidity-freeze cycles, 1,000 hours damp heat (85°C/85% RH), UV preconditioning (15 kWh/m²), mechanical load testing (2,400 Pa), hail impact (25 mm ice balls at 23 m/s), and twist testing — with maximum allowable power degradation of 5% per individual test and 8% cumulative after the full sequence.
