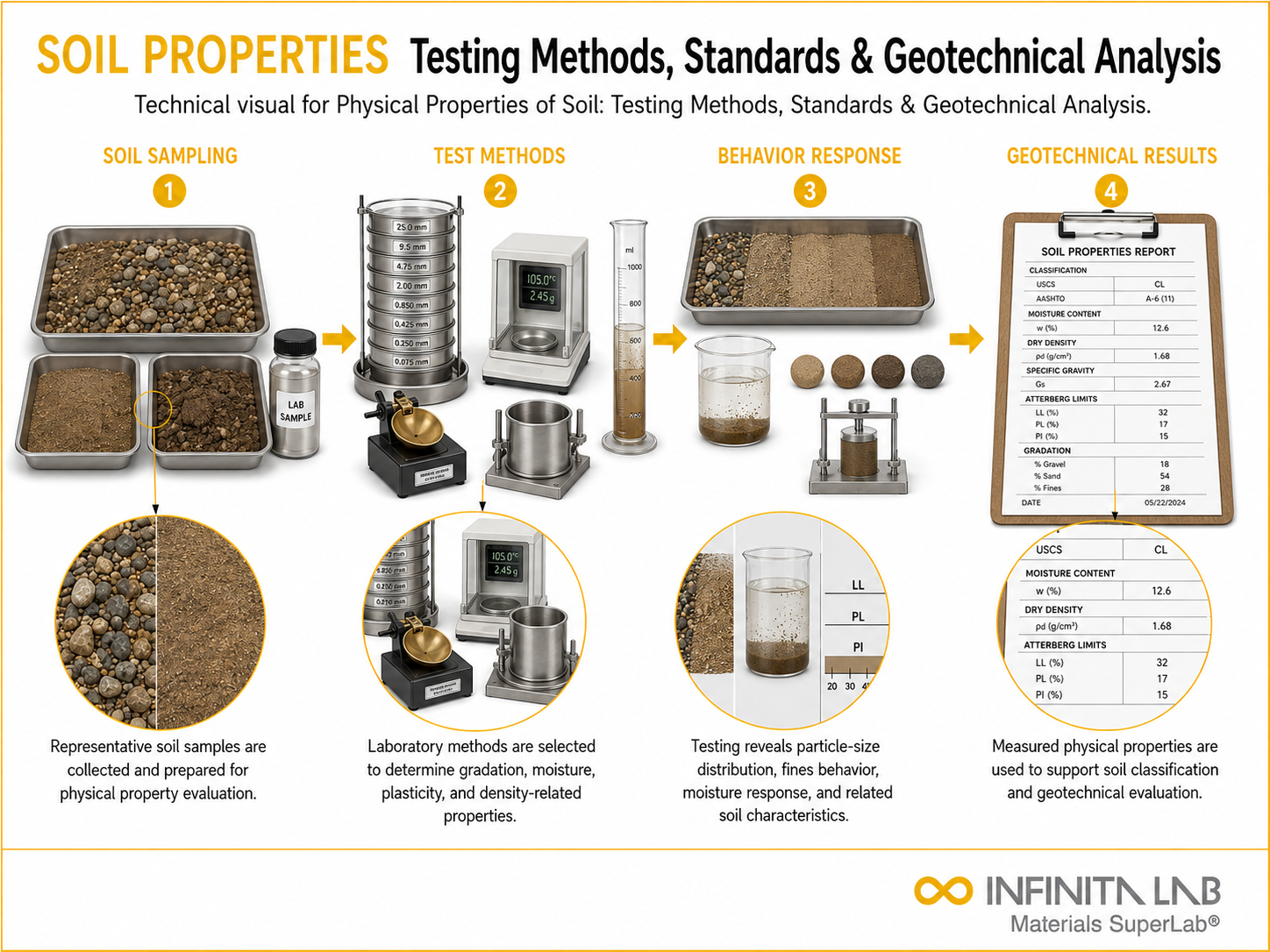

Physical Properties of Soil: Testing Methods, Standards & Geotechnical Analysis

Introduction to Soil Physical Properties

Soil is not a simple, uniform material — it is a complex, multi-phase system comprising mineral particles, organic matter, water, and air. Its physical properties govern its behaviour as a foundation material, a construction medium, an agricultural substrate, and an environmental barrier. Understanding and accurately measuring soil physical properties is fundamental to geotechnical engineering, environmental science, and civil infrastructure development.

Key Physical Properties of Soil

Particle Size Distribution (Gradation)

Particle size distribution — determined by sieve analysis for coarse-grained soils and hydrometer analysis for fine-grained soils — is the most fundamental descriptor of soil character. It determines soil classification under systems such as USCS (Unified Soil Classification System) and AASHTO, and predicts hydraulic conductivity, compaction behaviour, and load-bearing capacity.

Atterberg Limits

For fine-grained soils (silts and clays), the Atterberg Limits — Liquid Limit (LL), Plastic Limit (PL), and Plasticity Index (PI) — describe the moisture content boundaries between liquid, plastic, semi-solid, and solid states. These indices are critical for assessing swell potential, consolidation behaviour, and suitability for use as liner or fill material.

Specific Gravity

Specific gravity (Gs) is the ratio of soil solid particle density to water density. It is a constant for most mineral soils (~2.65–2.72 for quartz) and is used in calculating void ratio, degree of saturation, and theoretical maximum density.

Bulk Density and Dry Density

Bulk density (total mass per unit volume) and dry density (mass of solids per unit volume) describe how tightly soil particles are packed. Dry density is the primary quality indicator for compacted earthworks — measured against a Proctor compaction standard.

Compaction (Proctor Test)

Standard and Modified Proctor compaction tests (ASTM D698 and D1557) determine the optimum moisture content and maximum dry density achievable for a soil under defined compaction energy. These parameters govern compaction specifications for road subbase, embankments, and structural fills.

Hydraulic Conductivity (Permeability)

Hydraulic conductivity (k) governs the rate at which water flows through soil. It is determined by constant-head or falling-head permeability tests for coarse and fine soils, respectively. Permeability controls drainage, consolidation rate, and contaminant transport.

Consolidation

Consolidation testing (ASTM D2435) measures how fine-grained, compressible soils reduce in volume over time under sustained load, predicting settlement magnitude and rate for foundations on clay and silt deposits.

Shear Strength

Shear strength — determined by direct shear, triaxial compression, or vane shear tests — defines soil resistance to sliding failure. It governs slope stability, bearing capacity, and lateral earth pressure on retaining structures.

Applications of Soil Physical Property Testing

Soil characterisation supports foundation design, pavement design, slope stability analysis, dam safety assessment, landfill liner design, and contaminated land remediation. Regulatory compliance for environmental projects often mandates specific ASTM or AASHTO test methods.

Conclusion

Understanding soil physical properties is essential for predicting and controlling the behaviour of soil in engineering and environmental applications. Parameters such as particle size distribution, Atterberg limits, density, compaction, permeability, consolidation, and shear strength provide the foundation for safe and efficient design in construction, infrastructure, and land development. Accurate testing and characterisation ensure reliable performance, minimise risks such as settlement or failure, and support compliance with industry standards.
