Density of Sandwich Core Materials: Testing Methods & ASTM C271

In sandwich composite design, every structural decision begins with the core material’s density. Core density is the single property that most directly governs the fundamental tradeoff between structural performance and weight. This tradeoff defines the value proposition of sandwich construction in the composites & lightweight engineering industry. Understanding how core density relates to mechanical properties and how it is accurately measured is essential for any engineer designing, specifying, or testing sandwich structures.

Why Core Density Is the Master Property

The genius of sandwich construction is that by separating two stiff, strong face sheets with a thick, lightweight core, designers achieve bending stiffness and strength far exceeding that of solid laminates of equivalent weight. The core’s primary structural role is to maintain the distance between face sheets — transferring transverse shear loads between them without adding significant weight.

Core density governs this relationship fundamentally:

Higher-density cores provide higher mechanical properties — greater shear, compressive, and tensile strengths — but add more weight per unit volume, reducing the weight efficiency of the sandwich panel.

Lower-density cores minimize weight but limit the achievable structural properties — below certain density thresholds, cores cannot transfer the shear and compressive loads required by the design.

The optimal core density for a specific application is the lowest density that provides adequate mechanical properties, balancing weight minimization with structural adequacy.

Standard Test Methods for Core Density

ASTM C271 — Density of Sandwich Core Materials

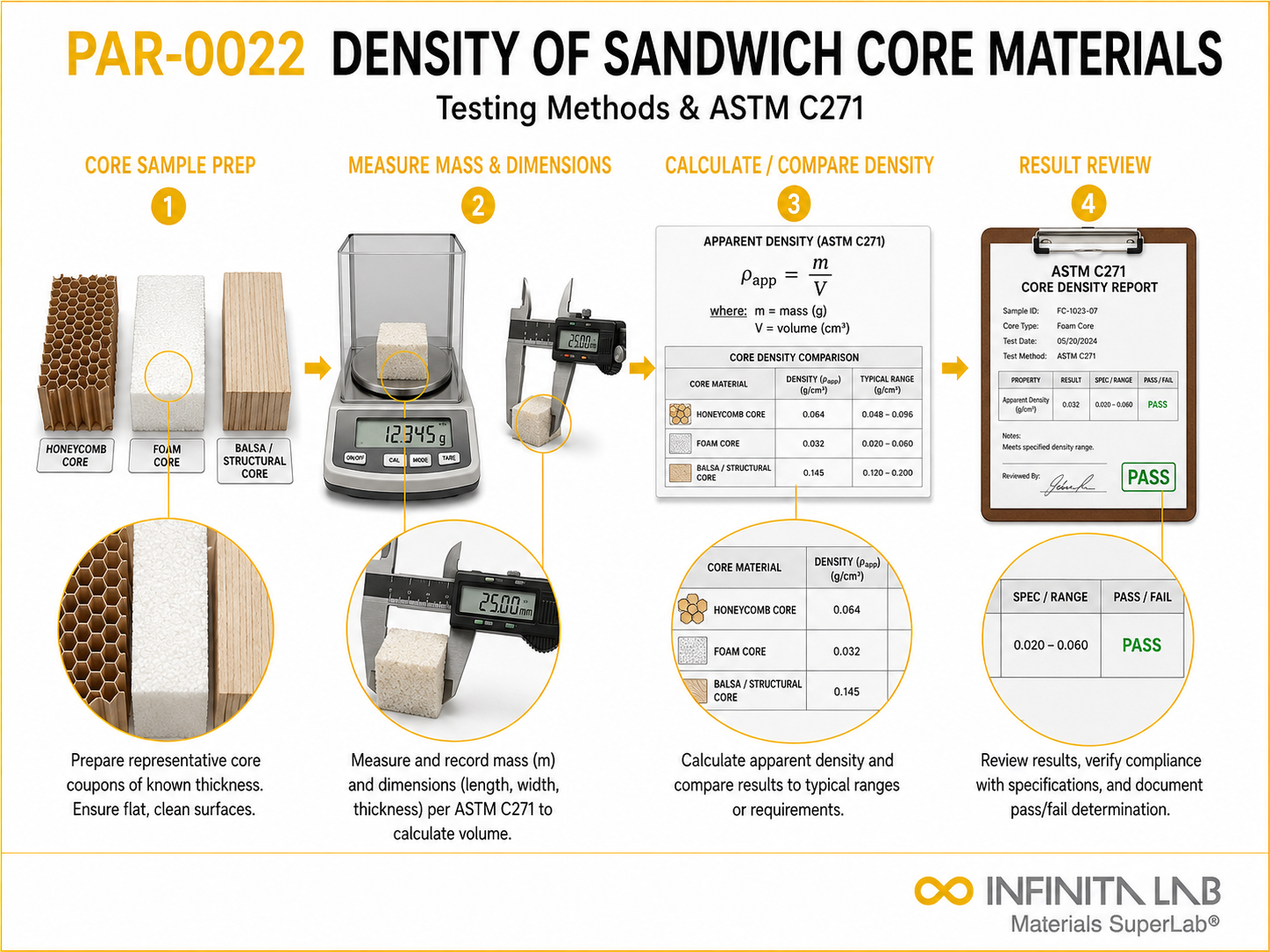

ASTM C271 is the primary standard for determining ore material density. The method uses simple geometric measurement and weighing:

1. A flat-faced core specimen of defined minimum dimensions (at least 150mm × 150mm, or per material specification) is prepared with parallel, flat, clean faces
2. The specimen dimensions are measured at multiple locations using calibrated calipers or a micrometer — length, width, and thickness measurements are averaged to calculate volume.
3. The specimen mass is measured on an analytical balance
4. Density is calculated: ρ = mass/volume (kg/m³ or lb/ft³)

For anisotropic cellular cores (honeycombs), the direction of density measurement must be specified — density calculated from specimen dimensions may differ slightly from density calculated from known cell geometry and material density due to cell wall alignment and measurement uncertainties.

ASTM D792 — Density of Plastics by Displacement

For isotropic foam cores where complex cell geometry makes direct dimensional measurement uncertain, the ASTM D792 liquid displacement method provides an alternative — measuring the specimen volume from the displaced fluid volume in a calibrated container. This method is particularly useful for irregular specimen shapes and for verifying density values derived from dimensional measurements.

ISO 845 — Rigid Cellular Plastics: Density Determination

ISO 845 is the international equivalent of ASTM C271 for rigid cellular plastic foam cores — specifying specimen size requirements, measurement procedures, and reporting in SI units. Widely referenced in European aerospace, marine, and wind energy specifications.

Core Materials and Their Density Ranges

Honeycomb Cores

Honeycomb cores — hexagonal cell arrays of paper, aluminum foil, Nomex (aramid fiber), fiberglass, or carbon fiber — provide exceptional stiffness-to-density ratios along the core axis (direction perpendicular to the cell walls):

• Aluminum honeycomb (5052 or 5056 alloy): 16–130 kg/m³ (1.0–8.1 lb/ft³)
• Nomex honeycomb: 29–192 kg/m³ (1.8–12 lb/ft³) — standard aerospace grade
• Fiberglass honeycomb: 32–288 kg/m³ (2–18 lb/ft³)
• Carbon fiber honeycomb: 32–192 kg/m³ (2–12 lb/ft³) — highest specific stiffness

Honeycomb density can be expressed as apparent density (mass per unit total volume, including cell void space) or material density (density of the cell wall material itself). ASTM C271 measures apparent density, which is the structurally relevant value for sandwich design calculations.

Structural Foam Cores

Closed-cell and open-cell structural foams offer isotropic or quasi-isotropic mechanical properties at densities spanning a wide range:

• Polyurethane foam (PU): 30–400 kg/m³ — most economical; widely used in marine and industrial applications
• PVC foam (Divinycell, Airex C70): 40–300 kg/m³ — the dominant marine and wind energy foam core; excellent fatigue resistance
• SAN foam (Corecell, Airex T92): 60–200 kg/m³ — superior fatigue performance; preferred for marine structural applications
• Polymethacrylimide (Rohacell): 31–200 kg/m³ — highest temperature resistance among foams; preferred for aerospace autoclave processing
• Balsa wood: 100–250 kg/m³ — natural cellular material; excellent compressive strength-to-weight; used in wind turbine blades and marine applications

Syntactic Foam Cores

Syntactic foams — hollow glass or polymer microspheres dispersed in a resin matrix — provide high compressive strength with controllable density:

• Density range: 300–900 kg/m³
• Applications: deep-sea flotation, pressure-tolerant sandwich structures, casting compounds

Density-Property Relationships

For most cellular core materials, mechanical properties scale with density approximately as power-law relationships (Gibson-Ashby cellular solid model):

Shear modulus: G ∝ ρ², Shear strength: τ ∝ ρ^1.5, Compressive modulus: E ∝ ρ² ,Compressive strength: σ ∝ ρ^1.5

These relationships demonstrate that mechanical properties improve rapidly with increasing density — doubling the core density more than doubles the shear strength and modulus. Material selection charts (Ashby plots) of shear strength versus density enable visualization of the performance boundaries for different core material families.

Conclusion

Core density is the master variable in sandwich composite design — governing the fundamental tradeoff between structural performance and weight efficiency that defines the value of sandwich construction. Accurate density measurement per ASTM C271, D792, and ISO 845, combined with Gibson-Ashby power-law scaling relationships, provides engineers with a quantitative foundation for selecting the lowest-density core that meets shear, compressive, and fatigue requirements across honeycomb, structural foam, and syntactic core material families.

Why Choose Infinita Lab for Density Testing of Sandwich Core Materials?

Infinita Lab provides sandwich core density testing per ASTM C271 and ISO 845 — combined with comprehensive core mechanical property testing (shear strength and modulus per ASTM C273, compressive strength per ASTM C365, tensile strength per ASTM C297) — serving the composites & lightweight engineering industry with complete core material qualification, incoming inspection, and comparative performance evaluation across foam, honeycomb, balsa, and syntactic foam core materials. Contact Infinita Lab at infinitalab.com to discuss sandwich core density and mechanical testing for your composite program.
