Rubber Materials for Safe & Long-Lasting EV Batteries: Testing Guide

The global transition to electric mobility is driving intense innovation in every component of the electric vehicle (EV) system — from power electronics and drivetrains to, increasingly, the battery systems that define EV performance, safety, and longevity. While lithium-ion chemistry has dominated EV battery development for the past two decades, researchers and engineers are now exploring rubber-based and elastomeric materials as key enablers of next-generation battery technologies that are safer, more durable, and potentially more cost-effective.

This blog explores the chemical properties of rubber materials that make them promising candidates for EV battery applications — and how rigorous material testing is essential to validating their performance.

The Case for Rubber in EV Battery Systems

Conventional lithium-ion batteries, while energy-dense and mature in design, carry inherent risks. They contain flammable liquid electrolytes that can ignite if the battery is mechanically damaged, thermally abused, or incorrectly charged — a phenomenon known as thermal runaway. As EV adoption scales globally, the safety demands on battery systems are intensifying.

Rubber-based solid-state and semi-solid-state electrolytes are among the alternatives gaining serious attention in the research community. These materials offer the potential to replace flammable liquid electrolytes with mechanically compliant, chemically stable solid phases — retaining ionic conductivity while eliminating the fire risk associated with liquid organic solvents.

Beyond electrolytes, rubber compounds serve critical functional roles throughout the battery system:

• Cell gaskets and seals — preventing electrolyte leakage and moisture ingress
• Thermal management pads and interfaces — managing heat flow between cells and thermal regulation systems
• Vibration isolators and dampers — protecting cells from road-induced mechanical stress
• Battery enclosure seals — protecting battery packs from environmental contamination

Key Chemical Properties of Rubber Materials in EV Battery Applications

Chemical Resistance

Rubber components in EV batteries are continuously exposed to battery electrolytes, coolant fluids, thermal interface materials, and atmospheric moisture. The rubber compound must resist swelling, hardening, softening, and degradation when exposed to these media. Testing under ASTM D471 (Effect of Liquids on Rubber Properties) quantifies dimensional change, hardness change, tensile strength retention, and mass change after controlled liquid immersion.

Thermal Stability

EV battery systems operate across wide temperature ranges — from cold-weather starts below -20°C to peak operating temperatures above 60°C, with localized hotspots reaching higher still. Rubber compounds must maintain their sealing, damping, and insulating functions across this entire range without embrittlement, creep, or compression set failure. Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) characterize thermal stability and decomposition behavior.

Electrochemical Compatibility

For rubber materials used as solid electrolytes or as separator components in direct contact with active electrode materials, electrochemical stability is a critical property. The rubber must not oxidize, reduce, or react with electrode materials at the operating potentials of the cell. Electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) are used to assess electrochemical compatibility.

Ionic Conductivity (for Electrolyte Applications)

Rubber-based solid electrolytes must achieve sufficient ionic conductivity to support practical charge and discharge rates. Researchers are exploring segmented polyurethane rubbers, fluoroelastomers, and silicone-based composites incorporating lithium salt fillers to achieve target conductivity values. EIS and four-point probe measurements quantify ionic transport properties.

Mechanical Compliance and Compression Set

Rubber seals and gaskets must maintain sealing force over the battery’s service life — which may span 10 to 15 years and hundreds of thousands of thermal cycles. Compression set testing per ASTM D395 quantifies the permanent deformation rubber compounds undergo under sustained compressive load at elevated temperature, directly predicting long-term sealing reliability.

Flame Retardancy

EV battery enclosures must comply with stringent flammability regulations. Rubber compounds used in proximity to battery cells are formulated with flame retardant additives and must pass limiting oxygen index (LOI) testing and UL 94 flammability classification requirements.

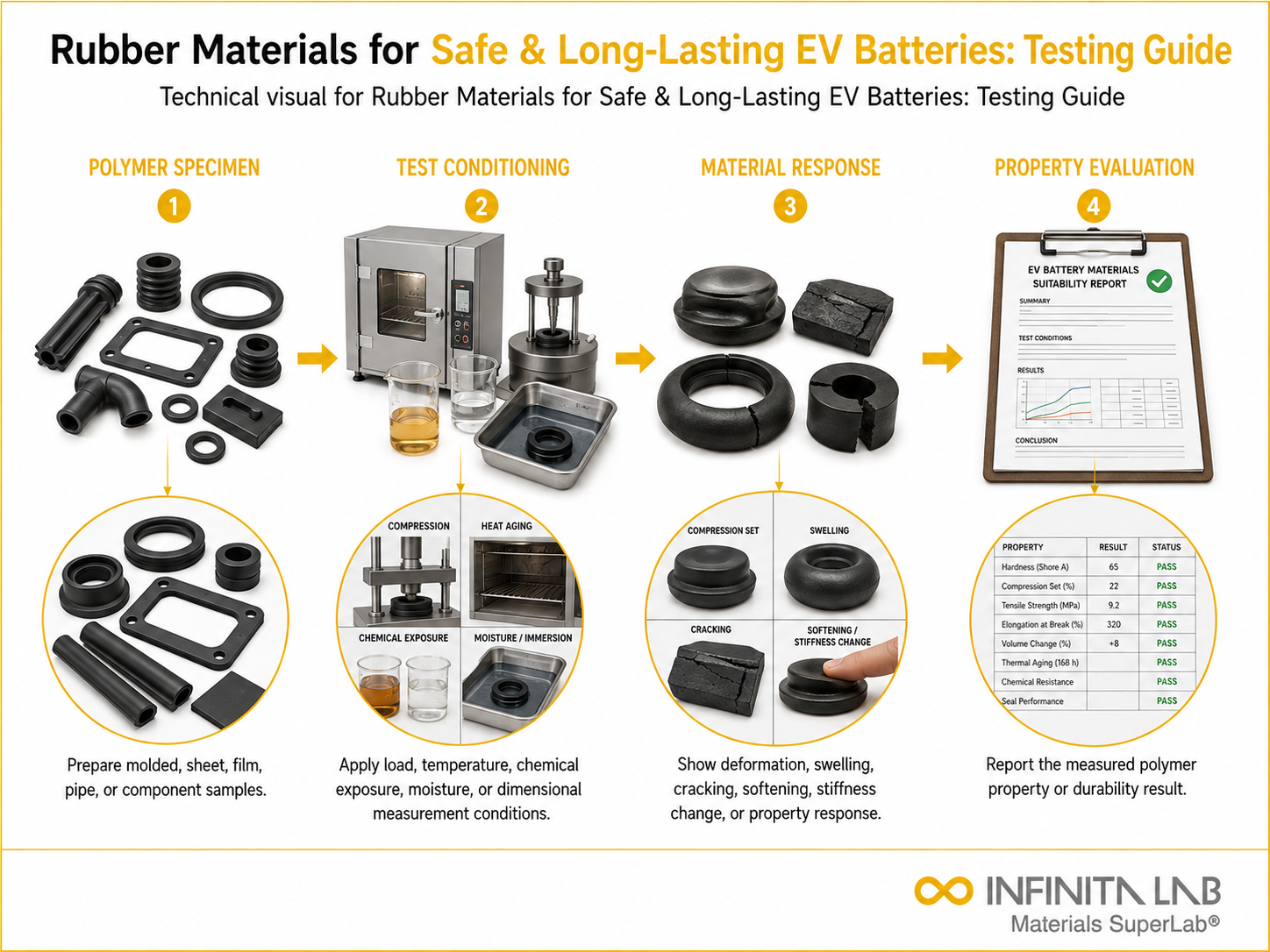

Material Testing Services for EV Battery Rubber Components

The performance and safety of rubber materials in EV battery systems can only be guaranteed through rigorous, standardized testing. Infinita Lab provides comprehensive material testing services for rubber compounds used in EV battery applications, including:

• ASTM D471 — Effect of Liquids (electrolyte and coolant resistance)
• ASTM D395 — Compression Set
• ASTM D412 — Tensile Strength and Elongation
• TGA and DSC — Thermal stability and decomposition analysis
• Shore A/D hardness — Hardness characterization before and after aging
• EIS — Electrochemical impedance for electrolyte compatibility
• Flammability testing — LOI, UL 94, and oxygen index

Infinita Lab: Your Partner for EV Battery Material Testing

Infinita Lab supports EV battery development programs with a full suite of rubber material testing services. Our nationwide network of 2,000+ accredited partner laboratories ensures fast, accurate, and cost-effective testing at every stage of development — from initial material screening through final component qualification and regulatory submission.
