Residual Strain Measurements in Plastics | Infinita LabResidual strain in plastics—the internal deformation locked into a part during manufacturing processes such as injection molding, extrusion, and thermoforming—is a major contributor to dimensional instability, warpage, environmental stress cracking, and premature failure. Measuring residual strain enables manufacturers to optimise processing parameters, predict service behaviour, and prevent field failures. For manufacturers seeking residual strain testing at a US-based testing lab, Infinita Lab provides comprehensive polymer characterisation through its accredited laboratory network.
What Causes Residual Strain in Plastics
Residual strain arises from molecular orientation (polymer chains aligned by flow during molding), differential cooling (surface solidifying before core), crystallisation gradients (non-uniform crystallinity through the thickness), and post-mold relaxation (viscoelastic recovery after ejection). Injection-molded parts are most susceptible due to the high pressures and rapid cooling involved.

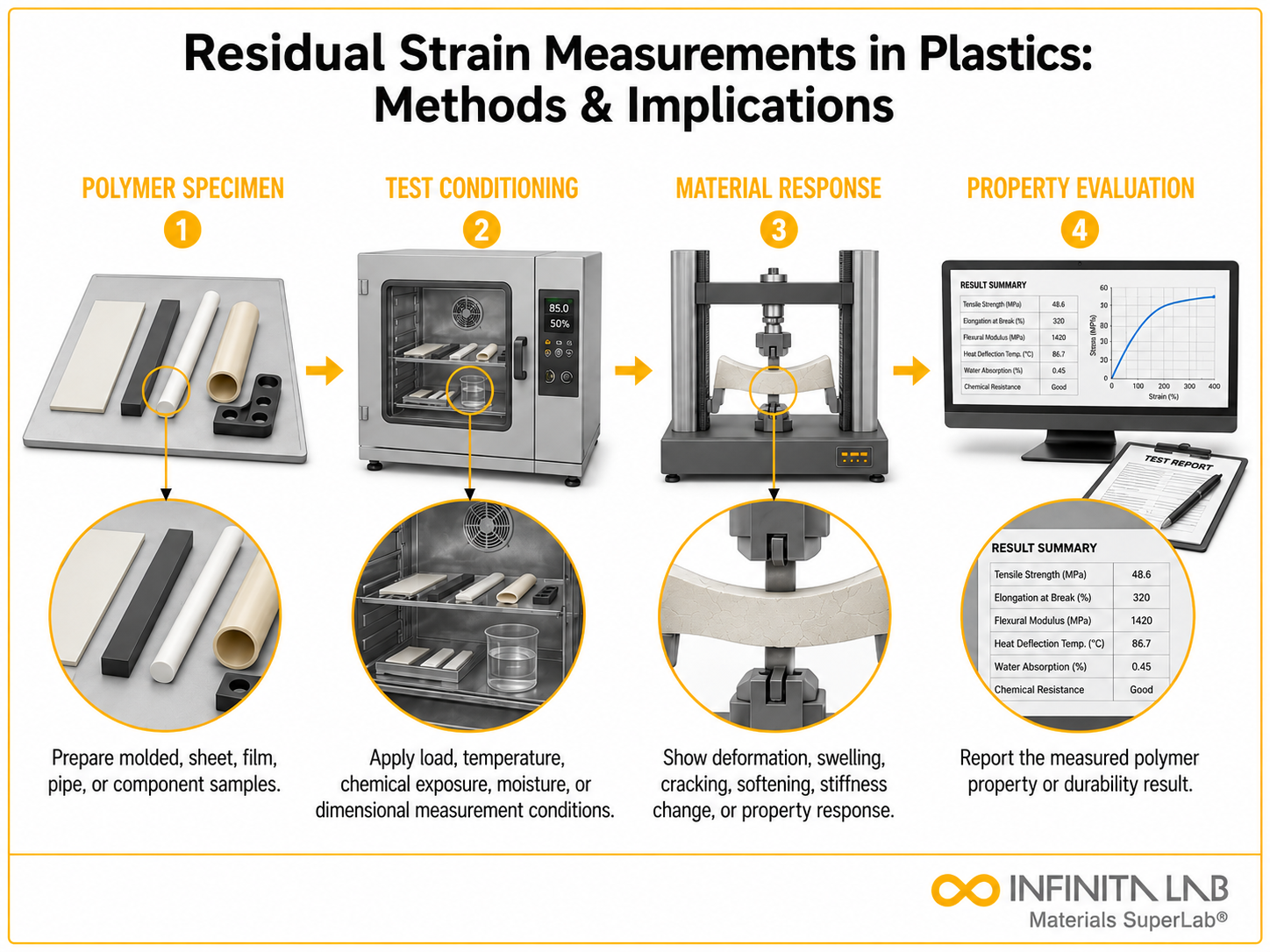

Measurement Methods
Solvent Stress Cracking Observation
Exposing a molded part to a specific solvent (e.g., glacial acetic acid for polycarbonate, ethanol/water mixtures for polyethene) reveals regions of high residual stress via surface crazing patterns. This is a rapid, qualitative screening method per ASTM D1939.
Photo elastic Analysis
Transparent and translucent plastics (polycarbonate, PMMA, polystyrene) can be examined under polarised light to visualise residual stress patterns as colour fringes. Photo elastic stress analysis per ASTM D4093 provides quantitative mapping of stress magnitudes.
Layer Removal Method
Successive material removal from one surface while measuring curvature changes enables calculation of the through-thickness residual stress profile. This destructive method provides quantitative data on stress distributions.
Strain Gauge and Hole-Drilling
Adapted from metal residual stress methods, hole-drilling with strain gauges (ASTM E837 adapted) can measure near-surface residual stresses in thick plastic parts and composite structures.
Industry Applications
Residual strain measurement supports injection mold optimization to reduce warpage, ESC failure prevention in chemical-contact applications, optical product quality (birefringence reduction), medical device dimensional compliance, and automotive interior part quality in the plastics industry.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for Plastics Testing and enjoy major benefits like end-to-end testing management, faster turnaround, and reduced administrative burden. Gain confidence in accurate results and reduced stress in vendor coordination. Enhance your reputation for product reliability and innovation. Engineers and R&D managers can focus on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is residual strain in plastics? Residual strain is the internal deformation locked into a plastic part from molecular orientation, differential cooling, and crystallization gradients during manufacturing. It creates internal stresses that affect dimensional stability and durability.
How is residual strain measured in transparent plastics? Photo elastic analysis under polarized light (ASTM D4093) reveals stress patterns as colour fringes in transparent plastics like polycarbonate and PMMA, providing quantitative residual stress maps.
What is solvent stress cracking testing? Exposing a part to a specific solvent causes surface crazing in high-stress regions, providing a rapid qualitative map of residual stress distribution. It identifies problematic areas prone to environmental stress cracking in service.
How do processing conditions affect residual strain? Higher injection pressure, faster fill speed, lower mold temperature, and shorter cooling time all increase residual strain. Optimizing these parameters—often guided by residual strain measurement—reduces warpage and stress-related failures.
Why is residual strain important for medical device plastics? Medical devices require tight dimensional tolerances and resistance to chemical sterilization. Residual strain causes dimensional changes over time and increases susceptibility to environmental stress cracking from sterilant chemicals.
