Pressure Calibration: Methods, Standards & Traceable Measurement Services
What Is Pressure Calibration?
Pressure calibration is the process of comparing the output of a pressure-measuring instrument — gauge, transducer, transmitter, or manometer — against a reference standard of known, traceable accuracy under defined conditions, and documenting the difference (error) between the instrument’s output and the reference. Where the error exceeds acceptable limits, calibration includes adjustment (trimming) of the instrument or documentation of the correction factor to be applied to measurements.
Pressure calibration maintains the metrological integrity of pressure measurements throughout manufacturing, testing, and process monitoring systems — a fundamental requirement of ISO/IEC 17025, ISO 9001, IATF 16949, GMP, and virtually every quality management framework in the aerospace, process industry, hydraulic systems, and instrumentation sectors.
Why Pressure Calibration Is Critical
Pressure measurements govern safety-critical decisions and process quality in virtually every industry:
- Process manufacturing: Incorrect pressure readings cause over- or under-pressurized reactors, pipelines, and vessels — creating safety and product quality risks
- Material testing: Pressure measurements in hydraulic testing machines, autoclave systems, and pressure vessels directly affect test result accuracy
- Medical and laboratory: Autoclave sterilization pressure must be accurate for sterility assurance; laboratory pressure gauges used in gas systems affect reaction conditions
- Aerospace: Flight test pressure instrumentation must be calibrated to NIST-traceable standards for data validity
Types of Pressure References Used in Calibration
Deadweight Testers (Primary Standard)
The most accurate pressure calibration reference — known masses are applied to a calibrated piston-cylinder assembly, generating a precisely known pressure through Pascal’s law (P = F/A). Deadweight testers achieve uncertainties of ±0.005–0.025% of reading across the full pressure range — traceable to NIST mass and length standards.
Digital Pressure Calibrators
High-accuracy portable calibrators with internal silicon or quartz resonator pressure transducers — typically ±0.025–0.1% of full scale. Used for field calibration of process transmitters and pressure gauges where deadweight tester portability is impractical.
Precision Pressure Gauges (Reference Gauges)
High-accuracy Bourdon-tube or digital gauges with NIST-traceable calibration certificates — used as transfer standards for workshop calibration of working gauges. Accuracy class 0.1–0.25% (ASME B40.100).

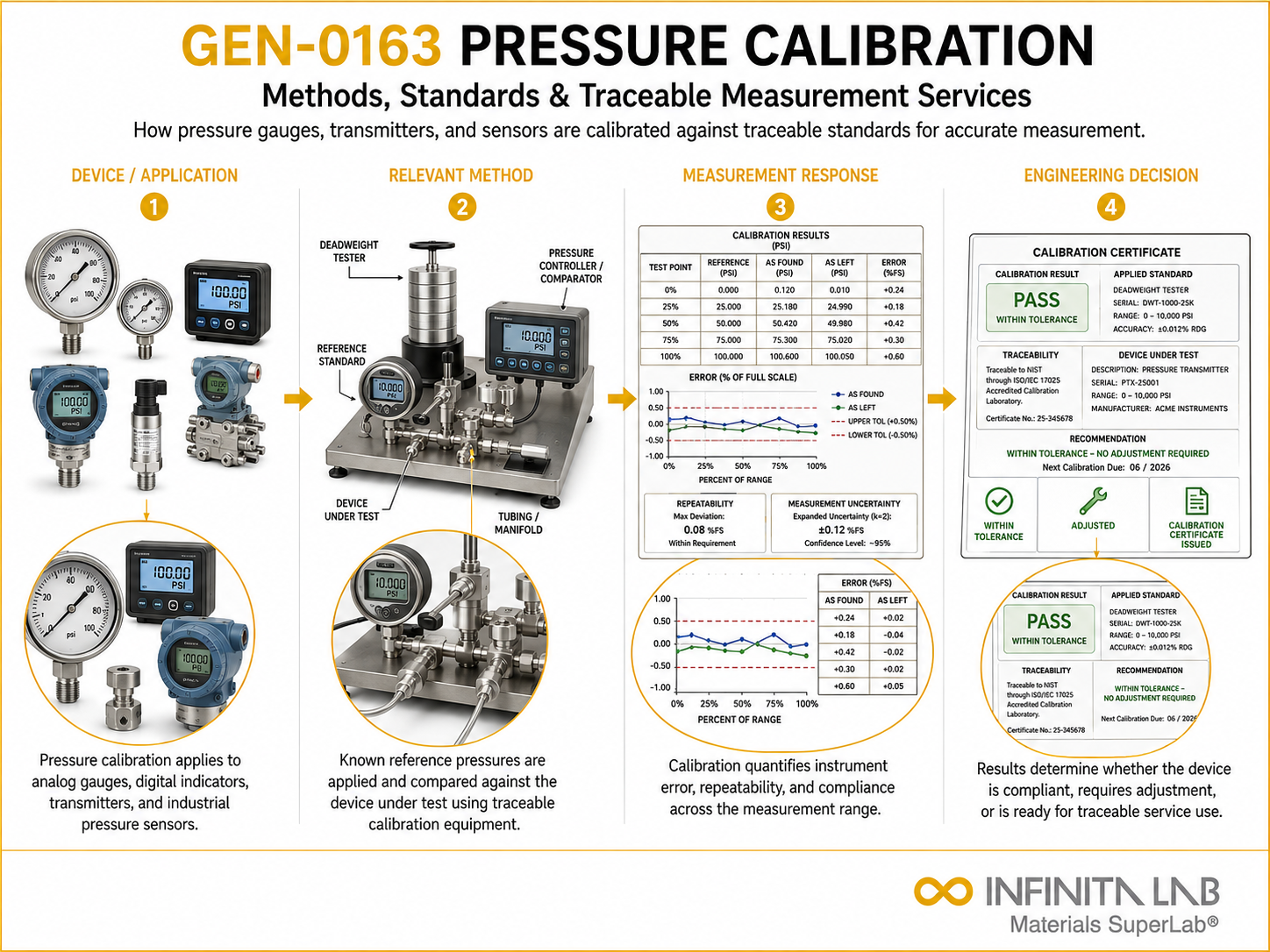

Pressure Calibration Procedure
- Equipment selection: Reference standard with accuracy at least 4:1 better than the instrument under test (calibration uncertainty budget)
- Environmental stabilization: Allow equipment to thermally equilibrate at calibration temperature (typically 23°C ± 2°C)
- Zero and span check: Verify zero output at atmospheric pressure (for gauge pressure instruments)
- Multi-point calibration: Apply at least 5 pressure points spanning 10–90% of the instrument’s full scale — ascending and descending to detect hysteresis
- Error calculation: Compare instrument output to reference at each point — calculate maximum error, hysteresis, and repeatability
- Adjustment if required: Adjust zero and span if errors exceed acceptable limits; document as-found and as-left readings
- Calibration certificate: Document all results, uncertainties, environmental conditions, and next calibration due date
Pressure Calibration Standards
| Standard | Scope |
| ASME B40.100 | Pressure gauges and gauge attachments |
| ASTM E74 | Calibration of force-measuring instruments |
| ISO 6789 | Calibration of torque tools (pressure-sensing type) |
| EURAMET cg-17 | Guidelines for pressure calibration uncertainties |
| ISO/IEC 17025 | General requirements for calibration laboratory competence |
Conclusion
Pressure calibration is the metrological foundation of every pressure measurement’s credibility — transforming an instrument readout from a number into a defensible, traceable measurement. For organizations whose processes, products, or test results depend on accurate pressure data, regular calibration to documented, NIST-traceable standards is not optional; it is the minimum standard of measurement practice required by quality systems, regulatory bodies, and engineering responsibility.
Why Choose Infinita Lab for Pressure Calibration Services?
Infinita Lab is a leading provider of pressure calibration and instrumentation testing services. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective calibration solutions — with comprehensive project management, confidentiality assurance, and a Single Point of Contact model.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the calibration ratio (4:1 rule) for pressure calibration? The 4:1 rule requires the reference standard's measurement uncertainty to be at least 4 times smaller than the acceptable tolerance of the instrument under test. This ensures the reference contributes minimal uncertainty to the calibration — preserving confidence that the instrument truly meets or fails its specification.
How frequently should pressure gauges be calibrated? Calibration frequency depends on use intensity, criticality, and stability history. Process gauges are typically calibrated annually; gauges used in safety-critical applications (pressure vessel protection) may require semi-annual calibration. ISO/IEC 17025-accredited labs must define calibration intervals based on instrument stability data rather than arbitrary schedules.
What is the difference between gauge pressure, absolute pressure, and differential pressure calibration? Gauge pressure is measured relative to atmospheric pressure (zero = atmosphere). Absolute pressure is measured relative to perfect vacuum (zero = vacuum). Differential pressure measures the difference between two process pressures. Each type requires different calibration references and zero-point procedures — calibration documentation must specify the measurement type.
What is NIST traceability in pressure calibration? NIST traceability means the reference standard's calibration is linked through an unbroken chain of comparisons to NIST primary pressure standards (deadweight testers calibrated to NIST mass and dimensional standards). This chain ensures measurements are consistent with the national measurement system and internationally recognized.
Can pressure transmitters be calibrated without removing them from the process? Yes — in-situ calibration using portable pressure calibrators is common for process transmitters. A reference pressure source is connected to the transmitter's process port and the output (4–20 mA or digital) is compared to the applied reference pressure across the calibration range. This approach reduces production disruption and eliminates reinstallation errors.
