Precession Electron Diffraction (PED): Advanced Crystal Structure Analysis

What Is Precession Electron Diffraction?

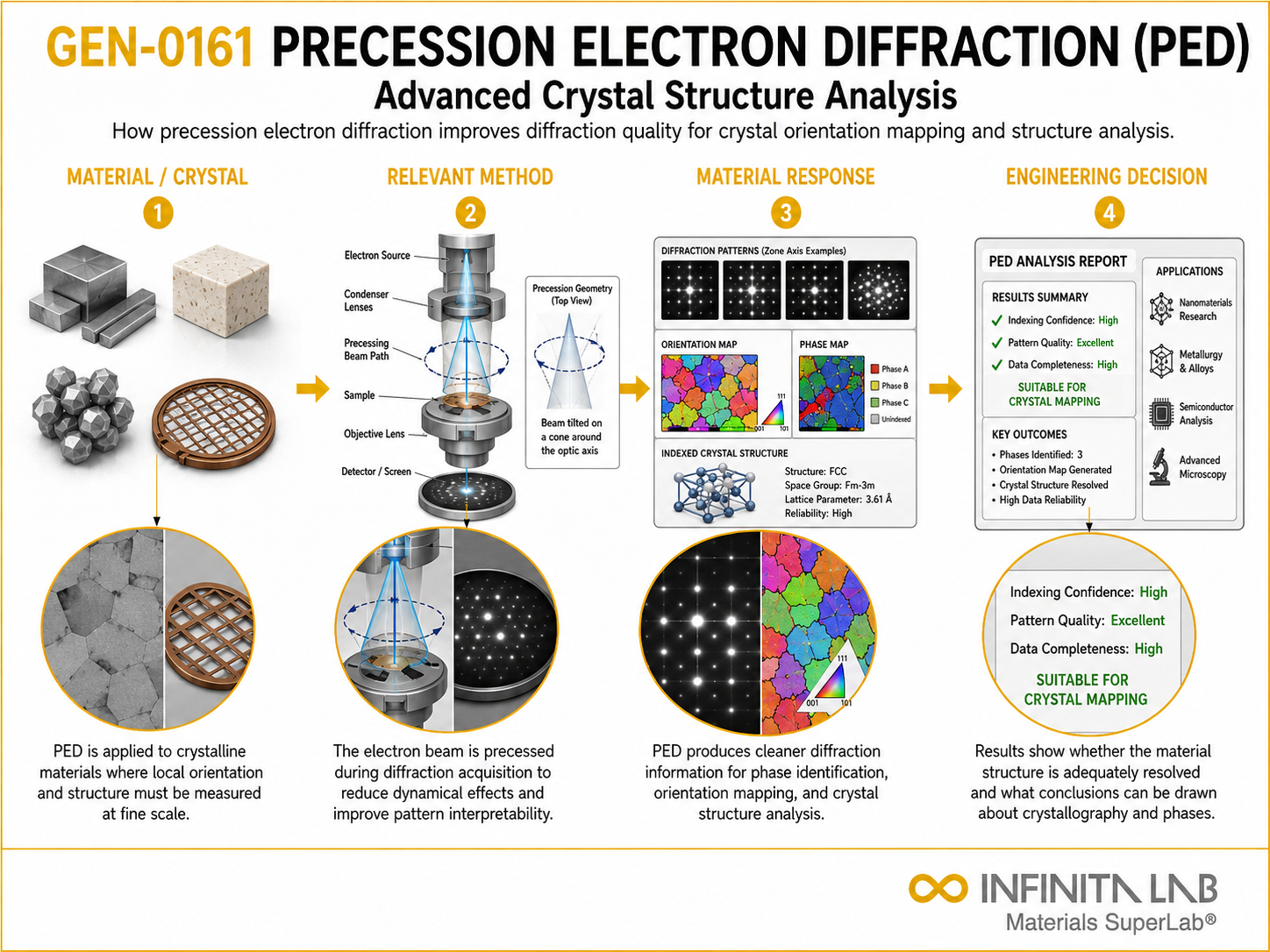

Precession Electron Diffraction (PED) is an advanced transmission electron microscopy (TEM) technique that applies a conical precession motion to the primary electron beam — rotating it around the optical axis during diffraction pattern acquisition. This precession reduces the contribution of dynamical diffraction effects (multiple scattering), producing nearly kinematical (single-scattering) diffraction patterns that are more amenable to crystal structure determination and phase identification than conventional selected-area electron diffraction (SAED).

PED is particularly powerful for nanoscale crystallographic analysis — enabling phase mapping, orientation mapping (automated crystal orientation mapping, ACOM), and ab initio crystal structure determination from volumes as small as a few nanometers in diameter, far beyond the capabilities of bulk X-ray diffraction techniques.

Why PED Is Needed: The Problem of Dynamical Diffraction

In conventional electron diffraction, the strong interaction between electrons and matter causes multiple scattering events — electrons diffracted once are re-diffracted multiple times before leaving the specimen (dynamical diffraction). This makes conventional electron diffraction patterns difficult to interpret quantitatively for structure determination because the measured intensities do not simply reflect the structure factors they would in kinematical (single-scatter) theory.

By precessing the beam through a hollow cone at angles of 1–3°, PED averages many orientations simultaneously — dramatically reducing the dynamical contributions and producing spot intensities that are far more kinematical in character, enabling the application of direct methods and Patterson function analysis for crystal structure solution.

Key Capabilities of PED

Automated Crystal Orientation Mapping (ACOM/EBSD-equivalent for TEM)

PED is the basis of automated orientation and phase mapping in TEM — the technique is commercialized as NanoMEGAS ASTAR. A fine electron beam scans across a region of interest while PED patterns are collected at each pixel. These patterns are compared to a template library of calculated diffraction patterns, assigning crystal orientation and phase to each pixel — producing orientation maps with spatial resolution of 2–10 nm (compared to ~20–100 nm for SEM-EBSD).

Applications include grain boundary mapping in nanocrystalline metals, retained austenite distribution in ultra-high-strength steels, phase identification in multiphase alloys, and crystallographic texture analysis at the nanoscale.

Ab Initio Crystal Structure Determination

PED enables the determination of unknown crystal structures from nanosized crystals or domains that cannot be grown to single-crystal size for conventional single-crystal X-ray diffraction. This capability has enabled a structured solution of:

• Pharmaceutical co-crystals and polymorphs too small for SCXRD
• Novel intermetallic phases in alloys
• Nanostructured catalyst phases
• Thin film phases synthesized on substrates

Phase Identification and Discrimination

In complex multiphase alloys and ceramics, TEM-PED provides nanometer-scale phase identification — distinguishing phases with similar compositions but different crystal structures (e.g., austenite vs. martensite, M₂₃C₆ vs. M₆C carbides) that cannot be resolved by SEM-EDS or bulk XRD.

PED vs. Conventional Electron Diffraction

Industries and Applications

• Semiconductor: Phase identification of gate dielectrics and barrier layers at advanced technology nodes
• Aerospace alloys: Grain boundary phase mapping and carbide distribution in Ni superalloys
• Steel: Retained austenite quantification and martensite substructure characterization
• Catalysts: Phase determination of active catalyst particles below 5 nm
• Battery materials: Characterization of cathode and electrolyte interface phases

Conclusion

Precession Electron Diffraction bridges the gap between conventional TEM diffraction and quantitative crystallography at the nanoscale — providing phase discrimination, orientation mapping, and structure-determination capabilities that no other technique at equivalent spatial resolution can achieve. For materials scientists working with nanostructured, multiphase, or novel crystalline materials, PED is an increasingly essential characterization tool.
