Polymer Hardness Testing: Shore A, Shore D & Rockwell Methods Explained
What Is Polymer Hardness Testing?
Polymer hardness testing measures a polymeric material’s resistance to indentation, scratching, or surface deformation under applied force. Hardness is a surface mechanical property that correlates with wear resistance, scratch resistance, stiffness, and load-bearing capability — providing a rapid, non-destructive indicator of material quality and suitability for intended applications.
Because polymers span an enormous range of mechanical behavior — from soft silicone elastomers to rigid high-performance engineering plastics — no single hardness method covers the full spectrum. Selecting the correct hardness method and scale for a given polymer type is itself an important materials engineering decision, critical across the automotive, medical device, consumer product, and industrial rubber industries.
Why Polymer Hardness Testing Matters
Hardness testing serves multiple critical functions in polymer quality management:
- Material selection: Comparing hardness data enables selection of the right polymer grade for scratch-sensitive or load-bearing applications
- Production monitoring: Regular hardness testing during production detects batch-to-batch variation in compound formulation, filler loading, or cure state
- Quality acceptance: Supplier qualification programs specify hardness ranges that incoming materials must meet before use in production
- Failure investigation: Anomalous hardness in failed components can reveal undercure, incorrect formulation, or material degradation

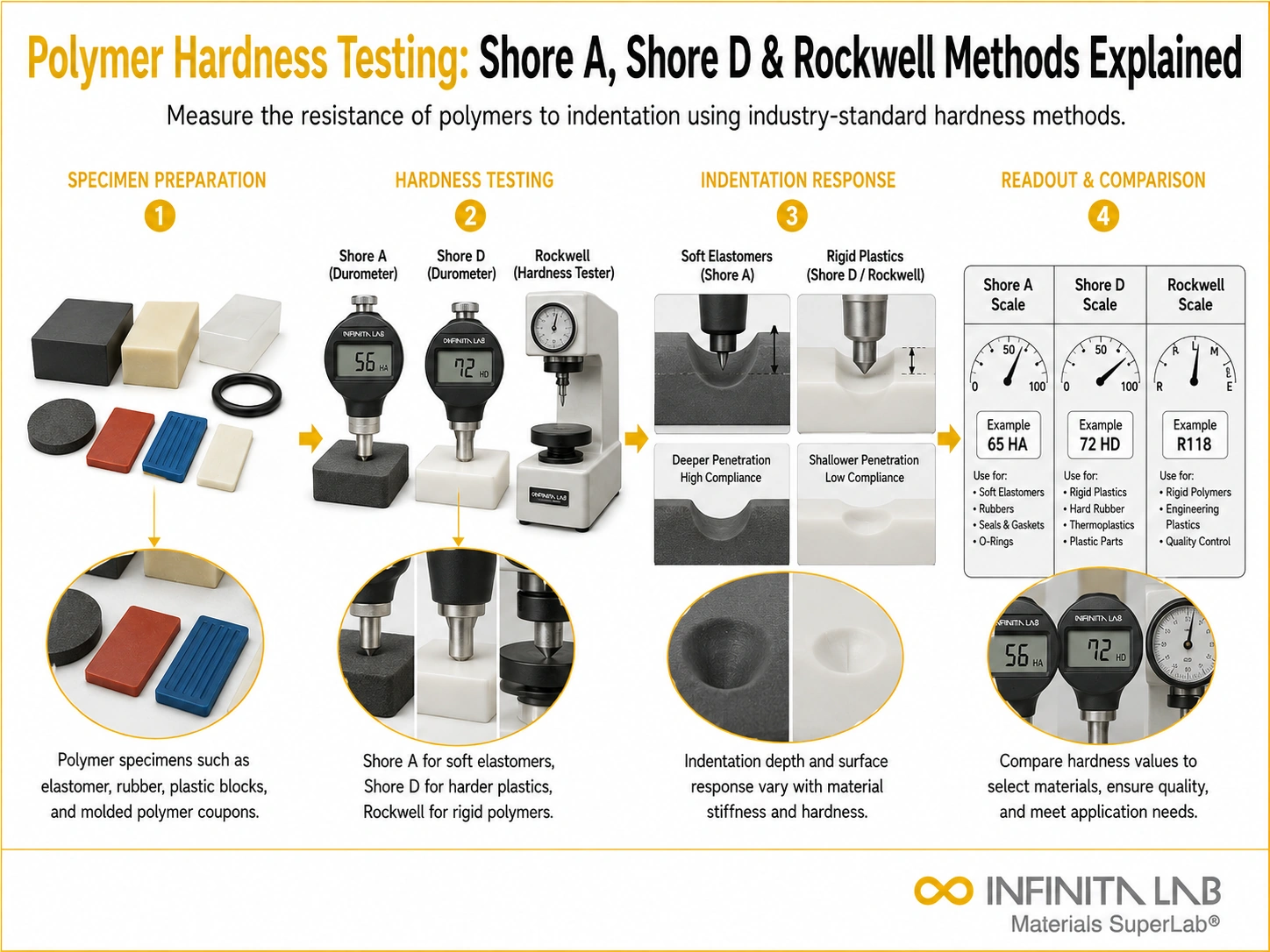

Primary Hardness Testing Methods for Polymers
Shore Durometer Hardness (ASTM D2240)
The most widely used hardness method for rubbers and flexible polymers. A spring-loaded indenter (needle or truncated cone) is pressed into the material surface, and the depth of penetration is read on a 0–100 scale, where 0 is complete penetration, and 100 is no penetration.
Shore A: Truncated cone indenter, 822 g spring force — for soft rubbers, elastomers, flexible plastics, and silicones (10–90 Shore A range)
Shore D: Sharp conical indenter, 44.5 N force — for hard rubbers, semi-rigid and rigid plastics (30–90 Shore D range)
Testing requirement: The durometer must be pressed firmly and evenly onto the flat specimen (minimum 6 mm thick) and the reading taken immediately (instantaneous) or after a defined hold time (15 seconds for Shore A per ASTM D2240). Instantaneous and held readings differ significantly — the applicable method must be specified.
Rockwell Hardness (ASTM D785)
Used for rigid and semi-rigid plastics. A steel ball indenter is applied under a minor pre-load, then a major load is applied, and the resulting permanent indentation depth is measured after load removal. Three Rockwell scales are commonly used for plastics:
- Rockwell R (15 mm ball, 60 kg): Softer engineering plastics — PP, PE, ABS
- Rockwell M (6.35 mm ball, 100 kg): Medium-hard plastics — PC, nylon
- Rockwell E (3.175 mm ball, 100 kg): Hard plastics — acetal, rigid thermosets
Vickers Microhardness (ASTM E384)
Applied to hard polymers and polymer composites where precise, localized hardness measurement is required. A diamond pyramidal indenter is pressed at a defined load, and the diagonal length of the residual impression is measured optically. Microhardness testing characterizes individual phases, filler particles, and surface-modified layers in polymer composites.
Barcol Hardness (ASTM D2583)
A portable spring-loaded indenter method specifically for rigid fiberglass-reinforced plastics and composite laminates. Widely used for on-site cure verification of composite structures — correlating with the degree of cure in thermoset resins.
Hardness Values for Common Polymers
Polymer | Shore A | Shore D | Rockwell |
Silicone rubber | 20–80 | — | — |
Natural rubber (NR) | 40–90 | — | — |
EPDM | 40–80 | — | — |
Polypropylene (PP) | — | 60–75 | R 80–102 |
ABS | — | 65–80 | R 100–115 |
Polycarbonate (PC) | — | 75–85 | M 70–75 |
PTFE | — | 50–65 | R 58 |
PEEK | — | 85–90 | M 99 |
Rigid PVC | — | 65–80 | R 110–120 |
Conclusion
Polymer hardness testing is a versatile, rapid, and economical quality tool — providing actionable data on surface mechanical performance across the full range of polymeric materials. Choosing the right hardness method — Shore A/D for elastomers, Rockwell for engineering plastics, Barcol for composites — ensures that hardness data is meaningful, reproducible, and directly applicable to material specification and quality control decisions.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for polymer hardness testing with major benefits: end-to-end testing management, faster turnaround, and reduced administrative burden; confidence in accurate results and reduced stress in vendor coordination; enhanced reputation for product reliability and innovation; and engineers and R&D managers focused on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between Shore A and Shore D hardness? Shore A uses a blunt truncated cone indenter with lighter spring force — suited for soft rubbers and elastomers (10–90 A range). Shore D uses a sharp cone with greater force — suited for harder polymers and rigid plastics. Materials testing above 90 Shore A should be measured on the Shore D scale instead.
Why must Shore hardness readings be taken immediately after indenter contact? Polymers exhibit viscoelastic creep — the indenter continues to penetrate after initial contact as polymer chains relax under load. Instantaneous readings reflect peak stiffness; held readings (15 seconds) reflect time-dependent compliance. Both are valid but must not be compared — the test duration must always be specified.
What Rockwell scale is most commonly used for engineering plastics? Rockwell R is the most commonly reported scale for commodity and engineering thermoplastics. Rockwell M is used for harder plastics like polycarbonate and acetal. The scale must be matched to the material — wrong scale selection produces inaccurate results and prevents comparison with published datasheet values.
Can hardness testing detect undercure in thermoset polymers? Yes. Barcol hardness (ASTM D2583) is the standard on-site method for verifying cure of fiberglass-reinforced composites. Under-cured thermosets have measurably lower hardness than fully cured material — providing a rapid, non-destructive go/no-go quality check during composite structure fabrication.
Is there a correlation between Shore hardness and tensile modulus for rubbers? An approximate empirical correlation exists between Shore A hardness and low-strain tensile modulus for unfilled elastomers — higher Shore A corresponds to higher modulus. However, the relationship varies with polymer type, filler content, and crosslink density. Hardness is a convenient screening tool; tensile testing per ASTM D412 provides definitive modulus data.
