Planetary Environmental Simulators: How Materials Are Tested for Space Conditions

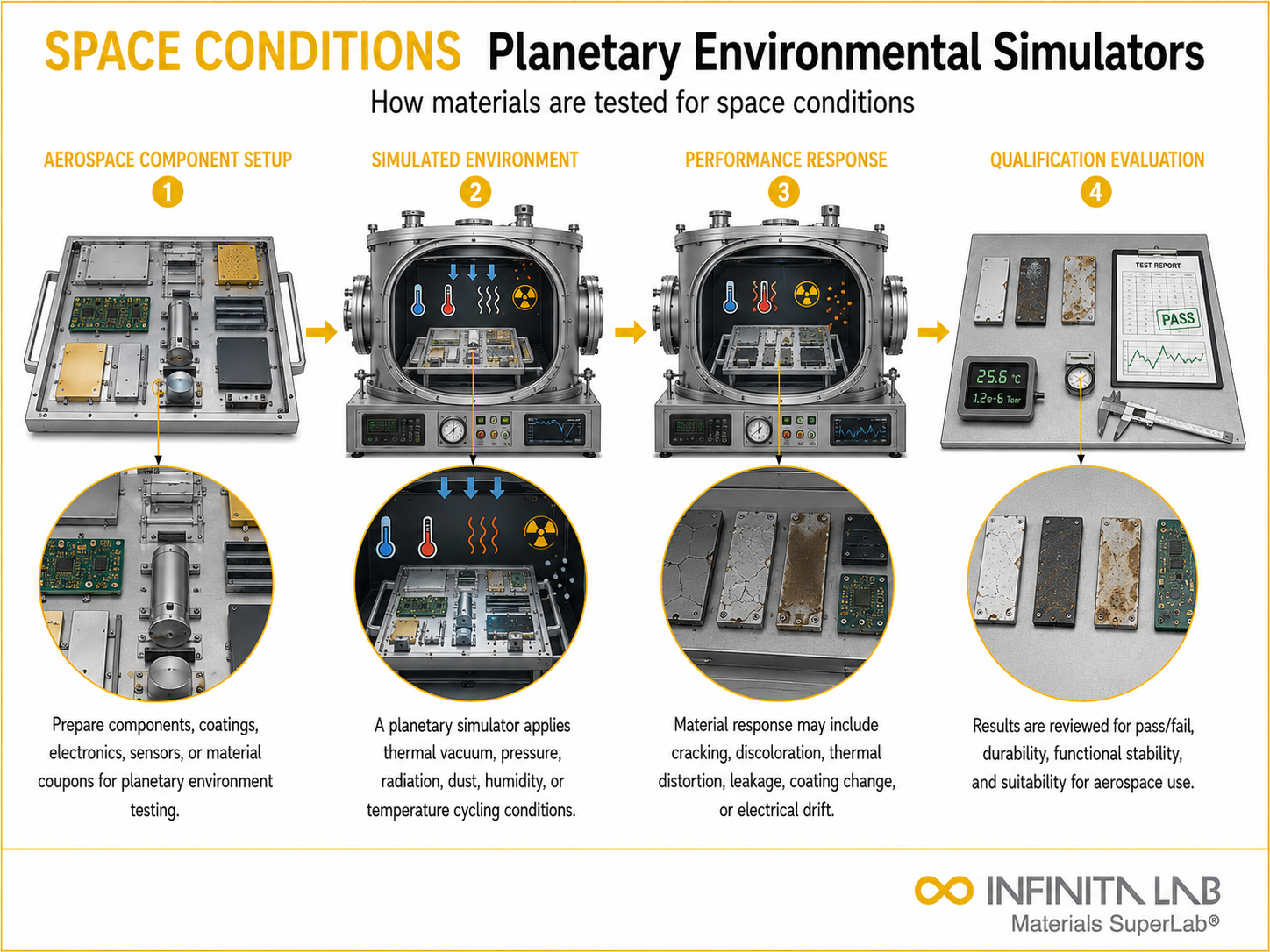

Planetary environmental simulator testing material samples under vacuum and extreme temperatureWhat Is a Planetary Environmental Simulator?
A planetary environmental simulator is a specialized test chamber that replicates the atmospheric, thermal, radiation, and surface conditions of planets and space environments — enabling testing of materials, instruments, and subsystems under conditions that would be impossible to access experimentally without the simulator. These chambers are used to qualify spacecraft components, validate planetary science instruments, and characterize material behavior under the extreme and exotic conditions of planetary surfaces and deep space.
As the space exploration and satellite technology industries continue to expand — with active or planned missions to the Moon, Mars, Europa, Titan, and beyond — planetary environmental simulation has become an indispensable tool for materials qualification and mission assurance.
Simulated Environmental Parameters
Temperature
Planetary surface temperatures span an enormous range:
- Moon (lunar surface): −173°C (lunar night) to +127°C (equatorial day)
- Mars surface: −125°C (polar winter) to +20°C (equatorial summer)
- Europa (subsurface ocean candidate): −160°C to −220°C surface
- Venus surface: +465°C (runaway greenhouse effect)
Planetary simulators use liquid nitrogen cooling and resistive heating to achieve and cycle these temperature extremes — verifying material performance across the full operational range.
Atmospheric Composition and Pressure
- Mars atmosphere: 95% CO₂, ~0.6% N₂, 1.9% Ar — at only 0.6 kPa (0.6% of Earth’s atmosphere)
- Venus atmosphere: 96.5% CO₂ — at 9.2 MPa (92× Earth atmosphere)
- Titan atmosphere: 95% N₂, 5% CH₄ — at 146.7 kPa
Planetary simulators include gas-handling systems to create the correct atmospheric composition and pressure, enabling testing of seal integrity, outgassing, material chemical reactivity, and atmospheric-entry thermal response.
Radiation Environment
Space and planetary surface environments include:
- Vacuum UV (VUV) solar radiation — highly damaging to polymers and organic materials
- Solar wind protons and electrons — create surface charging and material sputtering
- Galactic cosmic rays (GCR) — deep penetrating radiation affecting electronics and biological materials
- Trapped radiation (Van Allen belts) — especially severe for spacecraft in LEO and MEO orbits
Materials Testing Applications
Thermal Cycling Fatigue
Repeated thermal cycling between planetary day and night temperatures induces thermal fatigue in bonded joints, coatings, and multi-material assemblies. Solar panel attachment structures, thermal control coatings, and structural composite joints are tested through thousands of thermal cycles to verify fatigue life.
Outgassing Characterization
Materials used in spacecraft and planetary landers must have extremely low outgassing rates in vacuum to avoid contaminating sensitive optical instruments and sensors. ASTM E595 (total mass loss and collected volatile condensable materials) is the standard test for spacecraft outgassing qualification.
Chemical Reactivity in Planetary Atmospheres
Mars regolith contains perchlorates and reactive oxygen species; Venus has extremely corrosive sulfuric acid aerosols. Materials planned for surface operations must be tested for chemical degradation under simulated planetary-surface conditions to verify their stability over expected mission durations.
Conclusion
Planetary environmental simulators bridge the gap between Earth-based materials laboratories and the extreme environments of space — providing the only practical means of verifying that materials and systems will survive and function through the conditions of planetary exploration missions. As ambitions expand toward crewed Mars missions, lunar surface habitats, and outer planet probe missions, the demand for validated planetary simulation testing continues to grow across the aerospace and space systems industries.
Why Choose Infinita Lab for Extreme Environment and Space Materials Testing?
With Infinita Lab (www.infinitalab.com), you are guaranteed a Nationwide Network of Accredited Laboratories spread across the USA, the best Consultants from around the world, Convenient Sample Pick-Up and Delivery, and Fast Turnaround Time. Our team understands the stakes and subtleties of every test — whether qualifying materials for extreme environments or navigating complex compliance requirements for aerospace programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What ASTM standard governs spacecraft material outgassing testing? ASTM E595 defines the standard test for total mass loss (TML) and collected volatile condensable materials (CVCM) from spacecraft materials in vacuum at 125°C. Typical acceptance criteria are TML <1.0% and CVCM <0.1% — ensuring materials do not contaminate sensitive optical sensors or thermal control surfaces.
Why is the Mars atmosphere so challenging for materials qualification? Mars combines extremely low pressure (0.6 kPa), a CO₂-dominated chemically reactive atmosphere, perchlorate-containing regolith, and temperatures cycling from −125°C to +20°C. This combination creates unique material degradation mechanisms — perchlorate reactivity, CO₂ corrosion, thermal fatigue — that cannot be evaluated with standard terrestrial environmental tests.
What materials are most vulnerable to VUV solar radiation in space? Organic polymers — adhesives, thermal control coatings, solar array coverglass coatings, and wire insulation — are most vulnerable to VUV degradation. Solar absorptance increases and thermal emittance decreases as organic chromophores are photodegraded, destabilizing spacecraft thermal balance. Inorganic materials (ceramics, metals, quartz) are far more resistant.
How is thermal vacuum testing different from standard thermal cycling? Thermal vacuum testing combines temperature cycling with high vacuum (< 10⁻⁵ Torr) — simulating the space environment where both temperature extremes and the absence of gas-phase heat transfer are simultaneously present. Standard thermal cycling at atmospheric pressure has convective heat transfer between hot and cold cycles that does not exist in space, making thermal vacuum testing more representative for spacecraft hardware.
Can planetary simulators test biological materials for astrobiology research? Yes. Planetary simulators designed for astrobiology studies combine Mars or Europa atmospheric simulation with UV irradiation and relevant temperature ranges to test the survival limits of extremophile organisms — relevant to planetary protection requirements and the search for life on other worlds. These specialized facilities support NASA astrobiology programs and are distinct from materials engineering simulators.
