Photosilane (Photosil) Surface Modification: Chemistry, Testing & Applications
XPS analysis confirming photosilane surface modification on substrate materialWhat Is Photosil?
Photosil is a photochemical surface functionalization technology that uses UV light to graft reactive silane or other functional groups onto the surfaces of glass, silica, polymers, and other inorganic substrates. By combining photochemical activation with silane chemistry, Photosil processes create highly controlled, covalently bonded surface layers — modifying wettability, adhesion, biocompatibility, refractive index, and chemical reactivity without bulk material processing or the thermal degradation risks associated with high-temperature surface treatments.
Photosil and related photochemical surface modification technologies are applied across optical components, microfluidics, biomedical devices, and the precision glass industry, where controlled nanoscale surface chemistry determines product functionality.
The Chemistry of Photosil Functionalization
Photosilylation Mechanism
Photosil functionalization typically proceeds in two stages:
- UV photocleavage: UV irradiation (typically 254 nm, from low-pressure Hg lamps) generates surface radicals or reactive sites on the substrate — activating silanol (Si-OH) groups on glass/silica surfaces or creating peroxide radicals on polymer surfaces
- Silane grafting: Reactive silane molecules (chlorosilanes, alkoxysilanes, or functional silanes) react with the activated surface sites, forming covalent Si-O-Si linkages — creating a self-assembled monolayer or brush layer of the desired functional group
Functional Groups Achievable by Photosil
Functional Group | Surface Property Modified |
-NH₂ (aminosilane) | Protein and antibody immobilization; amine reactivity |
-SH (mercaptosilane) | Thiol chemistry; nanoparticle attachment |
-COOH | Cell adhesion, biomolecule conjugation |
-F (fluorosilane) | Ultra-low surface energy; anti-fouling |
-CH₃ (methylsilane) | Hydrophobic surface; reduced adhesion |
-Vinyl/methacrylate | Further photopolymerization; coating adhesion |
Key Applications
Optical Coatings and Surfaces
Photosil treatments modify the surface energy and refractive index of optical glass surfaces — enabling precise control of anti-reflection behavior, improving adhesion of optically thin coatings, and creating index-matching surface layers for advanced optical assemblies. The photochemical approach allows selective patterning of optical surfaces using photomasks.
Microfluidics and Lab-on-Chip
PDMS and glass microfluidic channels require surface functionalization to control electroosmotic flow, prevent non-specific protein adsorption, and enable bioassay surface chemistry. Photosil treatments provide stable, reproducible channel surface chemistry without the complexity of bulk surface modification.
Biomedical Device Surfaces
Implant surfaces and diagnostic biosensor platforms benefit from aminosilane and carboxylate-Photosil functionalization, providing reactive attachment sites for protein, antibody, or cell-adhesion peptide immobilization. Photopatterned Photosil surfaces create spatially defined cell-adhesion zones for tissue-engineering scaffolds.
Adhesion Promotion for Coatings
Photosil pretreatment of glass, silicon, and polymer substrates dramatically improves adhesion of subsequently applied coatings — epoxies, silicone adhesives, UV-cure coatings — by creating a chemically reactive interface in place of a physisorbed primer layer.

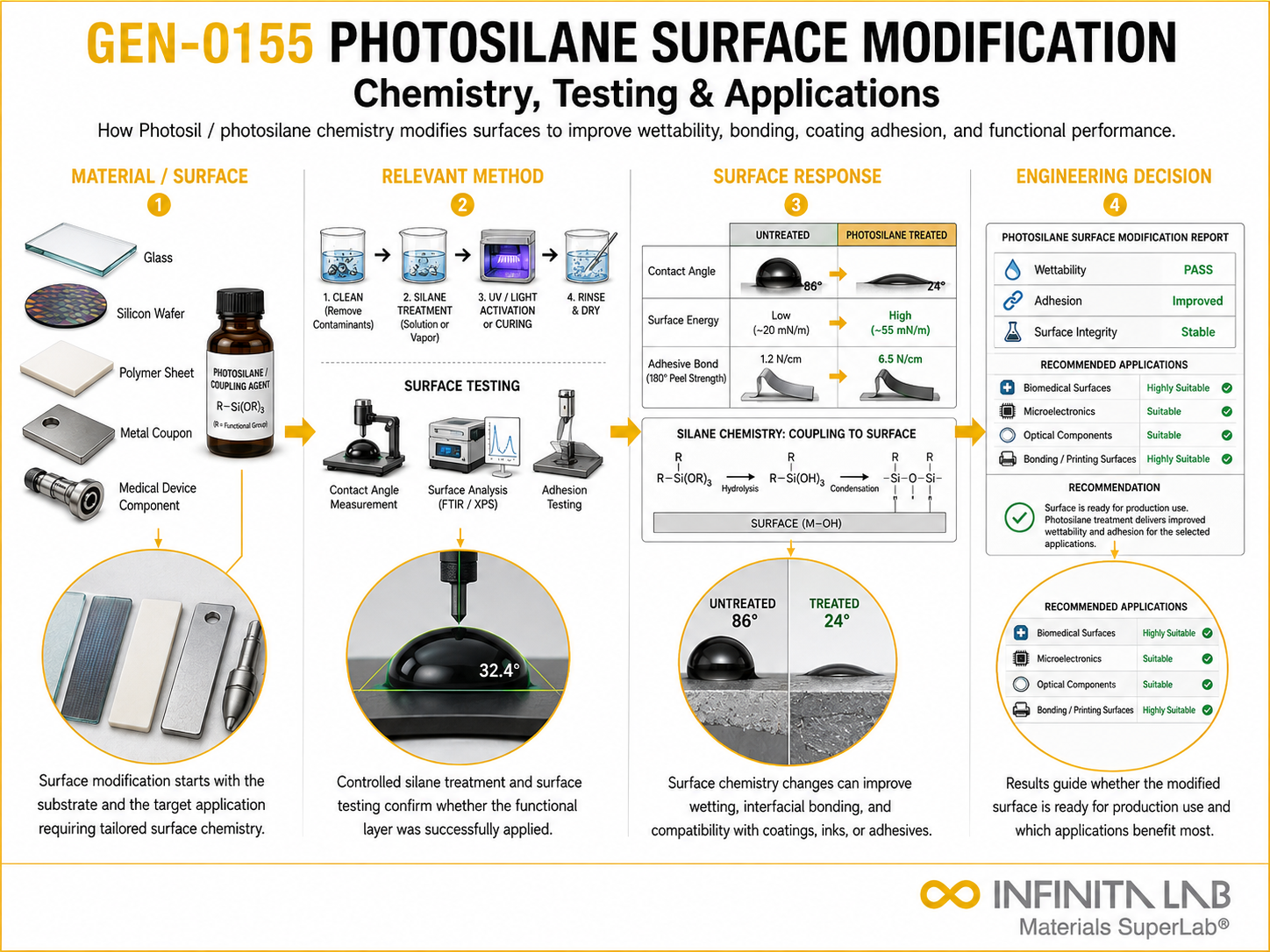

Characterization of Photosil-Treated Surfaces
Technique | Property Measured |
Contact angle goniometry | Surface energy, wettability change |
XPS (X-ray Photoelectron Spectroscopy) | Elemental composition; functional group confirmation |
ToF-SIMS | Molecular surface composition; silane layer identification |
Ellipsometry | Silane monolayer thickness (typically 0.5–5 nm) |
AFM | Surface topography; roughness change |
Conclusion
Photosil and photochemical surface functionalization represent a powerful, controllable route to precisely engineered surface chemistry — enabling the same substrate material to present dramatically different surface interactions depending on the specific silane chemistry applied. As optical, biomedical, and microfluidic devices demand increasingly sophisticated nanoscale surface engineering, photochemical functionalization technologies provide the spatial precision, chemical versatility, and process scalability that conventional thermal or wet-chemical surface treatments cannot match.
Why Choose Infinita Lab for Surface Analysis and Functionalization Testing?
Infinita Lab is a leading provider of surface analysis testing and streamlined material testing services. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions — including XPS, ToF-SIMS, ellipsometry, contact angle, and AFM surface characterization. Our SPOC model eliminates testing complexity and accelerates R&D processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the key advantage of photochemical over thermal silane functionalization? Photochemical functionalization uses UV light to selectively activate surface sites — enabling spatial patterning of surface chemistry using photomasks. Thermal silane deposition is uniform across the entire surface. For optical patterning, biosensor arrays, and selective cell adhesion zones, the spatial control of photochemical functionalization is the decisive advantage.
How stable are Photosil-functionalized surfaces in aqueous or humid environments? Covalently grafted silane monolayers on glass and silica are highly stable — the Si-O-Si bond is resistant to hydrolysis at neutral pH and moderate temperature. However, acidic or basic environments (pH <4 or >10) can hydrolyze surface siloxane bonds. Stability testing by XPS and contact angle measurement after defined aqueous exposure is recommended for critical applications.
What thickness does a Photosil silane monolayer achieve? A dense silane monolayer is typically 0.5–3 nm thick — measured by spectroscopic ellipsometry or XPS. This nanometric thickness allows complete surface chemistry modification with negligible impact on substrate dimensions, optical path length, or coating adhesion geometry.
Can Photosil functionalization be performed on polymer substrates? Yes. UV activation of polymer surfaces (PTFE, polyimide, PDMS, PE) creates reactive surface sites through photochemical chain scission or peroxide formation — enabling subsequent silane grafting. Oxygen plasma pretreatment of polymers is often combined with silane functionalization to maximize surface hydroxyl group density for stable silane attachment.
How is contact angle used to verify successful Photosil treatment? Water contact angle directly reflects surface energy — hydrophilic functional groups (−NH₂, −COOH, −OH) reduce contact angle toward <20°; hydrophobic groups (−CH₃, −CF₃) increase contact angle above 90°. Contact angle measurement before and after Photosil treatment is the fastest and most accessible confirmation of successful surface chemistry modification.
