Phase Transformations in Alloys: Mechanisms, Microstructure & Testing
What Are Phase Transformations in Alloys?
Phase transformations are changes in the crystal structure, composition, or physical state of a material driven by changes in temperature, pressure, or composition. In metallic alloys, phase transformations are the fundamental mechanism through which heat treatment processes — annealing, quenching, tempering, aging — produce the wide range of microstructures and mechanical properties that make alloys so versatile across the aerospace, automotive, tooling, and structural engineering industries.
Understanding the types, kinetics, and thermodynamics of phase transformations is essential for designing heat treatment processes, predicting microstructural evolution, and solving materials failures caused by unexpected or incomplete phase transformations.
Classification of Phase Transformations
By Thermodynamic Character
First-order transformations: Involve a discontinuous change in a first derivative of the Gibbs free energy (entropy, volume) — accompanied by a latent heat. Melting, solidification, and most solid-state crystal structure changes are first-order. These transformations exhibit nucleation and growth behavior.
Second-order (continuous) transformations: Involve continuous changes in material structure without latent heat — the order-disorder transformation in certain intermetallics and the magnetic transition (Curie temperature) are examples.
By Mechanism: Diffusional vs. Displacive
Diffusional (reconstructive) transformations: Require atomic diffusion — atoms migrate by thermally activated jumps. The new phase has a different crystal structure AND composition from the parent. These transformations are controlled by temperature, time, and diffusion kinetics. Examples: eutectoid pearlite formation in steel; precipitation of θ-CuAl₂ from Al-Cu solid solution.
Displacive (shear) transformations: Proceed by coordinated, cooperative atomic displacement without diffusion — atoms move militarily, maintaining near-neighbor relationships. The new phase has the same composition as the parent but a different crystal structure. These transformations can be extremely fast (nearly the speed of sound). The most important engineering example is the martensitic transformation.
Key Phase Transformations in Engineering Alloys
Martensitic Transformation (Steel)
When austenite (FCC, γ-iron with dissolved carbon) is rapidly quenched — cooling faster than the critical cooling rate — carbon atoms are trapped in the BCC iron lattice, creating a body-centered tetragonal (BCT) martensite with extremely high dislocation density and lattice distortion. This produces:
- Very high hardness (60–65 HRC for high-carbon martensite)
- Very high yield strength (>1400 MPa)
- Low toughness (requires tempering to restore ductility-toughness balance)
Bainitic Transformation
At intermediate cooling rates and temperatures (between pearlite and martensite), bainite forms — a mixed transformation product with both displacive and diffusional character. Upper bainite (600–400°C) consists of ferrite sheaves with inter-lath cementite; lower bainite (400–250°C) forms harder, tougher structures with fine intra-lath carbides. Modern AHSS (advanced high-strength steels) and ADI (austempered ductile iron) exploit the bainitic transformation to achieve exceptional strength-toughness combinations.
Precipitation Hardening (Age Hardening)
A two-stage diffusional transformation is used in aluminum (2xxx, 6xxx, 7xxx series), nickel superalloys (γ’ precipitation), and titanium alloys:
- Solution treatment: Heat to dissolve all precipitate-forming elements into a solid solution
- Quench: Rapidly cool to trap elements in a supersaturated solid solution
- Aging: Reheat to an intermediate temperature where controlled precipitation of coherent precipitates (GP zones → θ” → θ’) creates the strain field blocking that produces peak hardness
Eutectoid Transformation (Pearlite)
In the Fe-C system at 727°C (the eutectoid temperature), austenite of eutectoid composition (0.76 wt% C) transforms to pearlite — a lamellar mixture of ferrite (α, BCC) and cementite (Fe₃C). The interlamellar spacing decreases with faster cooling — finer pearlite is harder and stronger due to shorter dislocation mean free path.
Kinetics: Time-Temperature-Transformation (TTT) and Continuous Cooling Transformation (CCT) Diagrams
TTT diagrams map transformation start and finish times as functions of temperature for isothermal transformation. CCT diagrams map transformation start and finish temperatures as functions of the continuous cooling rate — a more directly applicable representation for industrial heat treatment processes. Both are essential tools for heat treatment process design and for predicting the microstructure produced by a specific cooling path.
Conclusion
Phase transformations are the levers that allow materials engineers to tune alloy properties across orders of magnitude — from soft, ductile annealed microstructures to hard, wear-resistant martensitic structures. Mastery of transformation thermodynamics, mechanisms, and kinetics is what separates empirical trial-and-error alloy processing from rational, predictable heat treatment design. Every steel specification, every aluminum temper designation, and every nickel superalloy processing window is rooted in the quantitative understanding of phase transformations.
Why Choose Infinita Lab for Phase Transformation and Metallurgical Testing?
Infinita Lab is a trusted USA-based testing laboratory offering comprehensive phase transformation analysis — including DSC, dilatometry, metallography, hardness profiling, and XRD phase identification — across an extensive network of accredited facilities. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between martensite and bainite in steel? Martensite forms by a purely displacive transformation on rapid quenching — extremely hard but brittle without tempering. Bainite forms at intermediate temperatures by a mixed diffusional-displacive mechanism — producing a range of hardness-toughness combinations depending on bainite temperature. Bainite generally has better toughness than as-quenched martensite at comparable hardness.
Why must martensite be tempered after quenching? As-quenched martensite is extremely hard but brittle — its high dislocation density and lattice distortion create catastrophic fracture risk under impact or stress concentration. Tempering at 150–650°C allows carbon redistribution and dislocation recovery, reducing hardness but dramatically increasing toughness and ductility for safe service performance.
What is the Ms temperature and why is it important? Ms (martensite start temperature) is the temperature at which martensitic transformation begins on cooling. It is composition-dependent — carbon and alloying elements (Mn, Cr, Mo, Ni) lower Ms significantly. If Ms is below ambient temperature, complete martensite transformation requires sub-zero cooling (cryogenic treatment), important for dimensional stability in precision tooling and bearing steels.

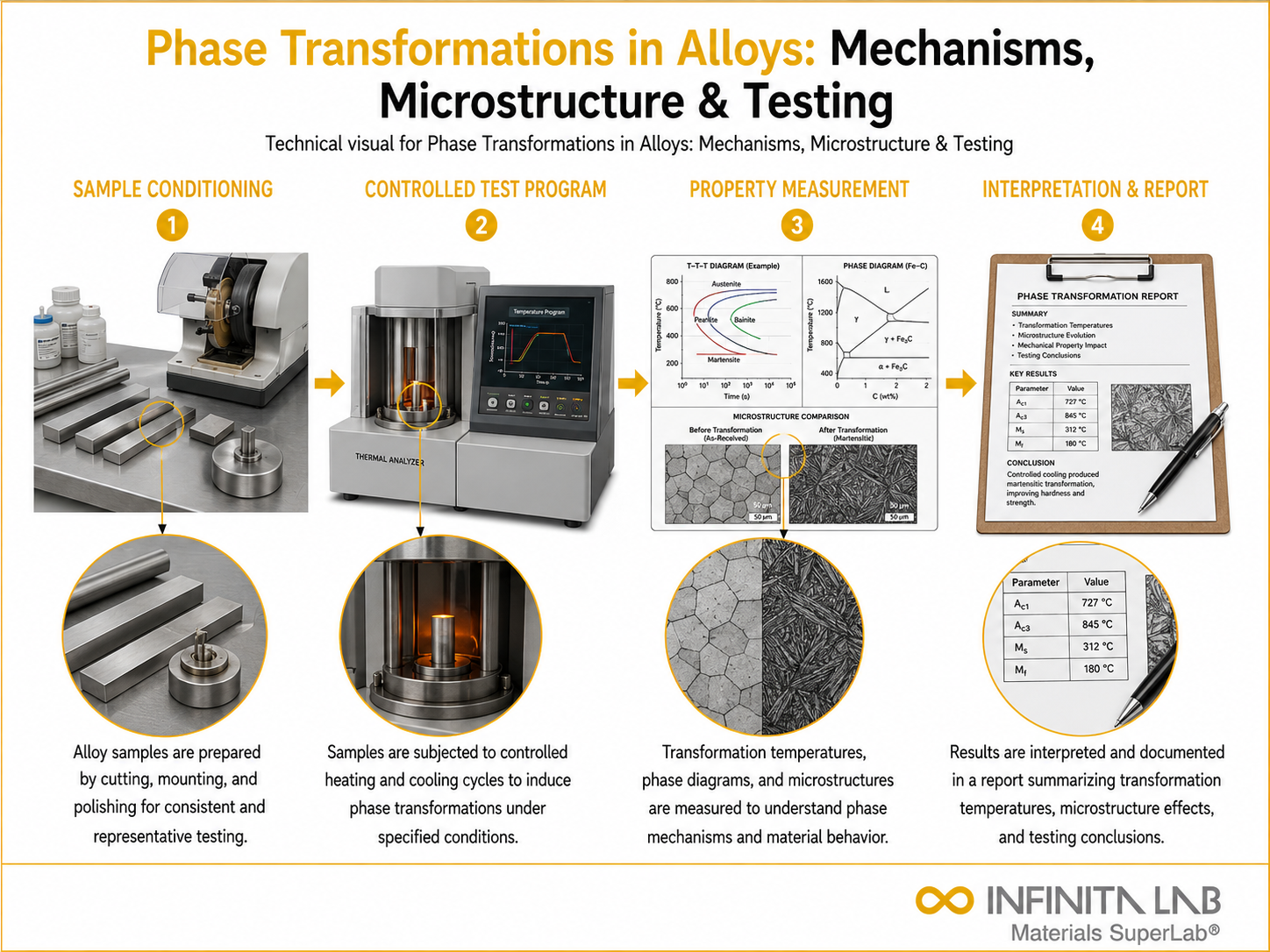

How is phase transformation behavior experimentally characterized? Phase transformations are characterized by DSC (thermal events — exotherms, endotherms at transformation temperatures), dilatometry (volume changes on cooling), metallographic examination of quenched specimens (microstructure at defined temperatures), and XRD (phase identification at each temperature or after thermal treatment). Together these methods construct TTT and CCT diagrams.
How do alloying elements affect the austenite-to-martensite transformation in steel? Carbon and most alloying elements (Mn, Cr, Mo, Ni, Si) stabilize austenite — lowering the Ms temperature and expanding the hardenability (critical quench rate reduction). Higher hardenability means martensite can form with slower quenching — reducing distortion and quench cracking in complex parts. Boron is uniquely effective at small concentrations (20–30 ppm) for increasing hardenability.
