Particle Distribution vs Dispersion in Thermal Adhesives: Key Differences

As electronic devices continue to shrink and power densities climb, thermal management has become one of the most critical engineering challenges in electronics design. Thermally conductive adhesives (TCAs) are integral to this effort — they bind heat-generating components to heat sinks and spreaders, provide electrical isolation where needed, and facilitate efficient heat transfer through conductive pathways formed by filler particles embedded in a polymer matrix. Two concepts are central to the performance of these materials: particle distribution and particle dispersion. While often used interchangeably, they describe fundamentally different phenomena — and optimizing both is essential for maximizing TCA performance and safety.

What Are Thermally Conductive Adhesives?

Thermally conductive adhesives are a subset of thermal interface materials (TIMs) packaged as binding agents — typically in paste or tape form. They contain high concentrations of thermally conductive filler materials, such as ceramics (alumina, boron nitride, aluminum nitride), metals (silver, copper), or inorganic particles, dispersed in a polymer base such as epoxy, silicone, or acrylic.

These adhesives serve dual functions: they bond components mechanically and provide thermal pathways that reduce thermal resistance between heat-generating components and their heat dissipation structures. Their performance is primarily defined by two metrics — thermal conductivity and contact resistance.

Particle Dispersion: What It Means

Particle dispersion refers to the size and separation of individual filler particles within the polymer matrix — specifically, how uniformly individual particles are separated from each other. Dispersion is a localized characteristic: it describes whether particles are clustered into aggregates or uniformly spread at the microscale level throughout the continuous polymer phase.

Poor dispersion results in agglomeration — where particles clump together, reducing the effective contact area between particles and the polymer, increasing local stress concentrations, and creating thermal resistance hotspots where heat cannot flow efficiently across aggregated particle clusters. Good dispersion ensures that individual particles are separated and surrounded by the polymer phase, maximizing the interfacial contact between the conductive filler and the surrounding matrix.

Achieving good dispersion requires careful processing — including controlled mixing, surface treatment of filler particles to improve compatibility with the polymer matrix, and in some cases, ultrasonic treatment or high-shear mixing.

Particle Distribution: What It Means

Particle distribution describes how particles are spatially arranged across the entire volume of the adhesive — the macroscopic, global arrangement of the filler phase relative to the polymer matrix as a whole. While dispersion focuses on local, microscale particle-to-particle relationships, distribution considers the overall spatial uniformity of particle concentration throughout the adhesive.

Ideal particle distribution means that filler concentration is homogeneous throughout the adhesive volume — every region of the material contains approximately the same concentration of thermally conductive particles, forming continuous conductive pathways in all directions. Non-uniform distribution creates regions of high and low filler concentration: regions with too few particles have poor thermal conductivity, while areas with excessive particle concentrations may develop mechanical brittleness, increased viscosity, and processing difficulties.

Why Both Matter for Thermal Performance

The thermal conductivity of a TCA is determined not just by the thermal properties of the filler particles themselves, but by how effectively those particles form percolation networks — interconnected conductive pathways through which heat can flow efficiently. Both dispersion and distribution directly influence percolation network formation:

• Poor dispersion creates local aggregates with high contact resistance between clusters, disrupting thermal pathways
• Poor distribution creates macroscopic zones of low filler content with high thermal resistance
• When both are optimized, particles are uniformly spaced and distributed, forming continuous, low-resistance thermal pathways through the adhesive layer

In addition to thermal performance, particle distribution and dispersion affect:

• Contact resistance — the degree to which the adhesive conforms to and fills microscale surface asperities on bonded surfaces
• Mechanical properties — uniformly distributed, well-dispersed fillers produce more consistent and predictable elastic modulus and shear strength
• Electrical properties — for electrically insulating TCAs, non-uniform distribution of conductive particles can create localized short-circuit paths
• Safety — agglomerated or non-uniformly distributed metallic particles can create unexpected electrical conduction paths in sensitive assemblies

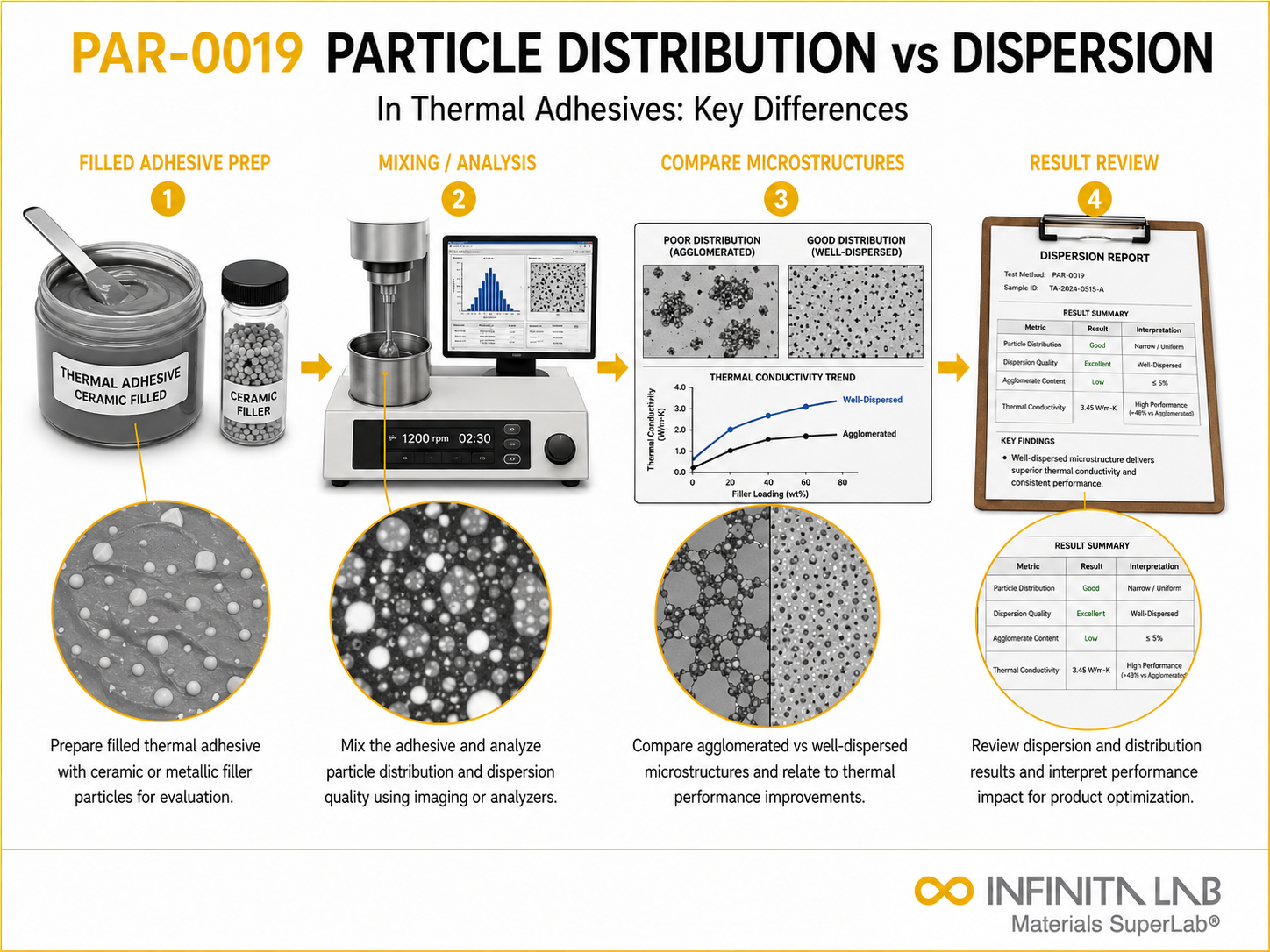

Testing and Characterization

Characterizing particle distribution and dispersion in TCAs requires a combination of analytical techniques:

Scanning Electron Microscopy (SEM) — provides high-resolution cross-sectional images of the adhesive, revealing particle morphology, aggregation state, and local distribution.

Energy-Dispersive X-ray Spectroscopy (EDS) — combined with SEM, enables elemental mapping to visualize the spatial distribution of filler materials across the adhesive cross-section.

Optical Microscopy — useful for rapid visual assessment of macroscopic distribution uniformity.

Thermal Conductivity Measurement — techniques such as the modified transient plane source (MTPS) method provide direct measurement of the adhesive’s bulk thermal conductivity, which reflects the quality of particle dispersion and distribution indirectly.

Particle Size Analysis — dynamic light scattering or laser diffraction characterizes the filler particle size distribution before and after processing.
