Products Tested Using Optical Methods: Techniques & Applications
The Role of Optical Testing in Quality Assurance
Optical testing methods — those that use light to measure, image, or characterize material and product properties — form a critical part of the quality assurance toolkit across virtually every manufacturing sector. Their key advantage is that they are often non-contact, non-destructive, fast, and capable of providing spatially resolved information across entire surfaces rather than at single points.
From transmittance measurement of optical glass to color consistency of automotive coatings, spectral reflectance of solar panels to surface roughness of precision machined components — optical methods provide the measurement data that governs product acceptance, process control, and failure analysis across the optics, electronics, automotive, life sciences, and advanced materials industries.

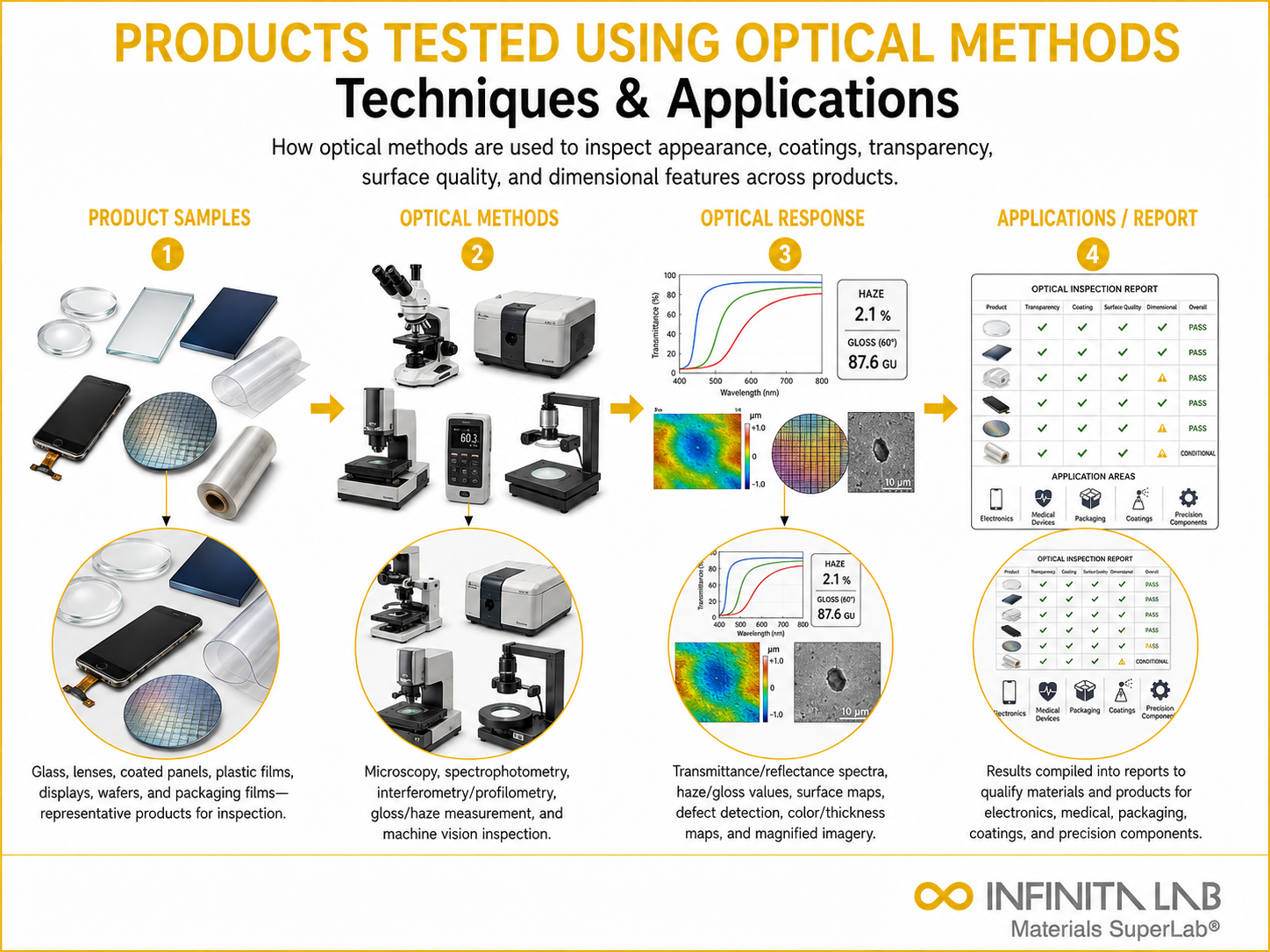

Categories of Products Tested Using Optical Methods
Optical and Photonic Components
Lenses, windows, mirrors, prisms, waveguides, beam splitters, and optical fibers are fundamentally characterized by optical properties — their commercial value and functionality are defined by:
- Transmittance: Must meet specified values (>99% for AR-coated laser optics; >90% for broadband windows)
- Wavefront error: Surface figure and transmitted wavefront measured by interferometry to λ/10 or better
- Reflectance: Anti-reflection coatings measured to <0.25% per surface; HR coatings to >99.9%
- Refractive index uniformity: Homogeneity inspection by interferometric methods for precision lens blanks
- Birefringence: Polarimetric inspection for stress-induced birefringence in optical glass
Display and Screen Technologies
LCD panels, OLED displays, LED backlights, and touchscreens are characterized by:
- Luminance uniformity: Imaging photometry reveals bright spots, dark zones, and backlight non-uniformity
- Color gamut and white point: CIE color coordinates measured by colorimetry to verify sRGB, DCI-P3, or AdobeRGB coverage
- Haze and clarity (ASTM D1003): For cover glass and protective films — low haze ensures sharp image transmission
- Reflectance of AR films: Anti-reflection coating performance measured spectrophotometrically
Coatings and Painted Surfaces
Automotive, industrial, and architectural coatings are qualified by optical appearance parameters:
- Gloss measurement (ASTM D523): 20°, 60°, and 85° glossmeters characterize specular reflectance relevant to perceived surface quality
- Color measurement (ASTM D2244): CIE L*a*b* color coordinates verify batch-to-batch color consistency to ΔE tolerances
- Haze and distinctness of image (DOI): Relevant to automotive topcoats where optical clarity of reflected images governs appearance grade
- Opacity/hiding power (ASTM D2805): Quantifies the ability of a paint to obscure the substrate
Pharmaceutical and Life Science Products
- UV-Vis spectrophotometry: Quantitative assay of active ingredients by absorbance at characteristic wavelengths
- Optical rotation: Confirms chiral compound identity — enantiomeric purity of pharmaceutical APIs
- Particle size and turbidity: Light scattering characterizes injectable suspension and emulsion quality
Semiconductor and Electronics
- Ellipsometry: Thin film thickness and optical constants of dielectric and semiconductor layers
- Photoluminescence (PL): Semiconductor defect characterization; LED efficiency screening
- Spectral reflectance: Wafer coating uniformity; end-point detection in CMP and etch processes
- Optical profilometry: Surface roughness and step height measurement of photoresist, metal, and dielectric films
Key Optical Test Methods and Standards
| Test | Standard | Property Measured |
| Transmittance / reflectance | ASTM E903, ISO 13468 | Optical efficiency |
| Color measurement | ASTM D2244, ISO 11664 | CIE L*a*b* coordinates |
| Gloss measurement | ASTM D523 | Specular reflectance |
| Haze and clarity | ASTM D1003 | Diffuse scattering |
| Refractive index | ASTM C1648 | n and k values |
| Surface flatness | ISO 10110-5 | λ-fraction deviation |
Conclusion
Optical testing methods provide a uniquely powerful set of measurement tools for product quality assurance — non-contact, non-destructive, quantitative, and often capable of characterizing entire surfaces rather than single points. As manufacturing tolerances continue to tighten and product aesthetics play an increasing role in consumer product differentiation, optical testing will only grow in importance as the measurement foundation of surface quality, optical performance, and appearance verification.
Why Choose Infinita Lab for Optical Testing Services?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types — including spectrophotometry, interferometry, ellipsometry, colorimetry, gloss measurement, and comprehensive optical characterization. We give clients unmatched flexibility, specialization, and scale — connecting you to the right optical testing capability every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between specular and diffuse reflectance measurement? Specular reflectance measures mirror-like reflection at the angle of incidence — relevant for glossy coatings, mirrors, and AR coatings. Diffuse reflectance captures light scattered in all directions from a matte or textured surface — used for color measurement of paints, pigmented materials, and non-specular surfaces using integrating sphere accessories.
How is optical profilometry used for semiconductor surface characterization? White light interferometry (WLI) optical profilometers generate areal surface height maps with sub-nanometer vertical resolution over fields from micrometers to millimeters — measuring thin film step heights, CMP surface roughness, and photoresist pattern profiles without contact that could damage delicate semiconductor structures.
What is distinctness of image (DOI) and why does it matter for automotive coatings? DOI quantifies how sharply objects are reflected in a coated surface — high DOI means reflections are crisp; low DOI means they appear fuzzy. Premium automotive clearcoats specify DOI values >80 (on a 0–100 scale) because consumers associate sharp reflections with premium paint quality. DOI is measured by wave-scan instruments that quantify long- and short-wave surface structure.
Why is refractive index uniformity important for precision optical components? Refractive index inhomogeneity in optical glass causes wavefront distortion — different rays passing through different parts of the lens accumulate different optical path lengths, degrading image quality. For laser and interferometric applications requiring λ/10 or better wavefront quality, glass homogeneity must be specified and verified by interferometric methods.
Can optical color measurement detect coating batch-to-batch variation that visual inspection misses? Yes. The human eye can detect ΔE color differences of approximately 1.0–3.0 CIE units depending on conditions. Spectrophotometric color measurement routinely achieves precision of ΔE < 0.1 — detecting subtle batch variations, formula drift, and process changes that are visually imperceptible but measurably real. Tighter ΔE acceptance limits catch variation before it accumulates to a visible level.
