The Value of Non-Destructive Evaluation in Failure Analysis
What Is Non-Destructive Evaluation in Failure Analysis?
Non-destructive evaluation (NDE) — also called non-destructive testing (NDT) — plays a uniquely valuable role in failure analysis by enabling inspection, characterisation, and mapping of defects, damage, and material anomalies without destroying the evidence preserved in the failed component. In failure analysis, the physical evidence of how and why failure occurred is irreplaceable — physical preparation and sectioning can destroy critical evidence if performed prematurely.
NDE methods are therefore the essential first steps in a systematic failure analysis investigation, guiding subsequent destructive sampling, sectioning, and analytical testing to the most informative locations in the failed component.
Why NDE Is the First Step in Failure Analysis
When a component fails — whether a structural bracket, a pressure vessel, a gear, or an electronic assembly — the failure site, fracture surface, and surrounding damage contain all the information needed to determine root cause. Improper or premature destructive preparation can:
- Destroy fracture surface topography that identifies failure mode (fatigue striations, stress corrosion branching, ductile dimples)
- Remove surface oxide or contamination layers that identify the corrosive environment
- Misplace the failure origin by introducing damage during cutting
- Eliminate the spatial context of multiple cracks or defect distributions
NDE preserves the component’s physical integrity while mapping the extent of damage, defect locations, and material anomalies to guide the entire investigation.
Key NDE Methods Used in Failure Analysis
Visual and Optical Inspection
Systematic visual examination — from the unaided eye through stereo-optical microscopy — documents overall damage morphology, fracture-surface appearance, corrosion patterns, surface marks, and deformation. It is the foundation of every failure analysis, establishing the macro-scale failure narrative before any further investigation.
Dye Penetrant Testing (DPT)
DPT reveals surface-breaking cracks, porosity, and cold shuts that are invisible to the naked eye by applying a penetrant liquid that seeps into surface discontinuities and is then drawn out by a developer. DPT provides sensitive detection of surface cracks in non-ferromagnetic materials, including aluminium, titanium, stainless steel, and polymers.
Magnetic Particle Inspection (MPI)
MPI detects surface and near-surface (up to ~3 mm deep) cracks in ferromagnetic materials by aligning magnetic particles at flux leakage sites over cracks in a magnetised component. MPI is faster and more sensitive for surface cracks in steel than DPT.
Radiographic Testing (RT)
X-ray or gamma-ray radiography images the internal structure of failed components — revealing casting porosity, weld defects, cracks, misalignment, loose debris, and component geometry — in a two-dimensional projection. CT (computed tomography) extends this to three-dimensional volumetric imaging, allowing virtual sectioning at any plane without physical cutting.
Ultrasonic Testing (UT)
UT maps internal crack networks, delaminations, corrosion thinning, and disbond areas in metallic and composite components. Pulse-echo and PAUT techniques provide quantitative data on defect location and size that guide subsequent sectioning.
Scanning Acoustic Microscopy (SAM)
SAM uses focused acoustic waves at 10–200 MHz to image internal interfaces in electronic packages, bonded assemblies, and coated components, with resolution approaching that of optical microscopy, detecting delaminations, voids, and cracks without opening the package
Thermography
Active infrared thermography (flash thermography, lock-in thermography) maps subsurface defects by detecting anomalies in heat flow through a component. It is particularly effective for detecting delaminations in composite panels and disbonds in adhesively bonded structures.

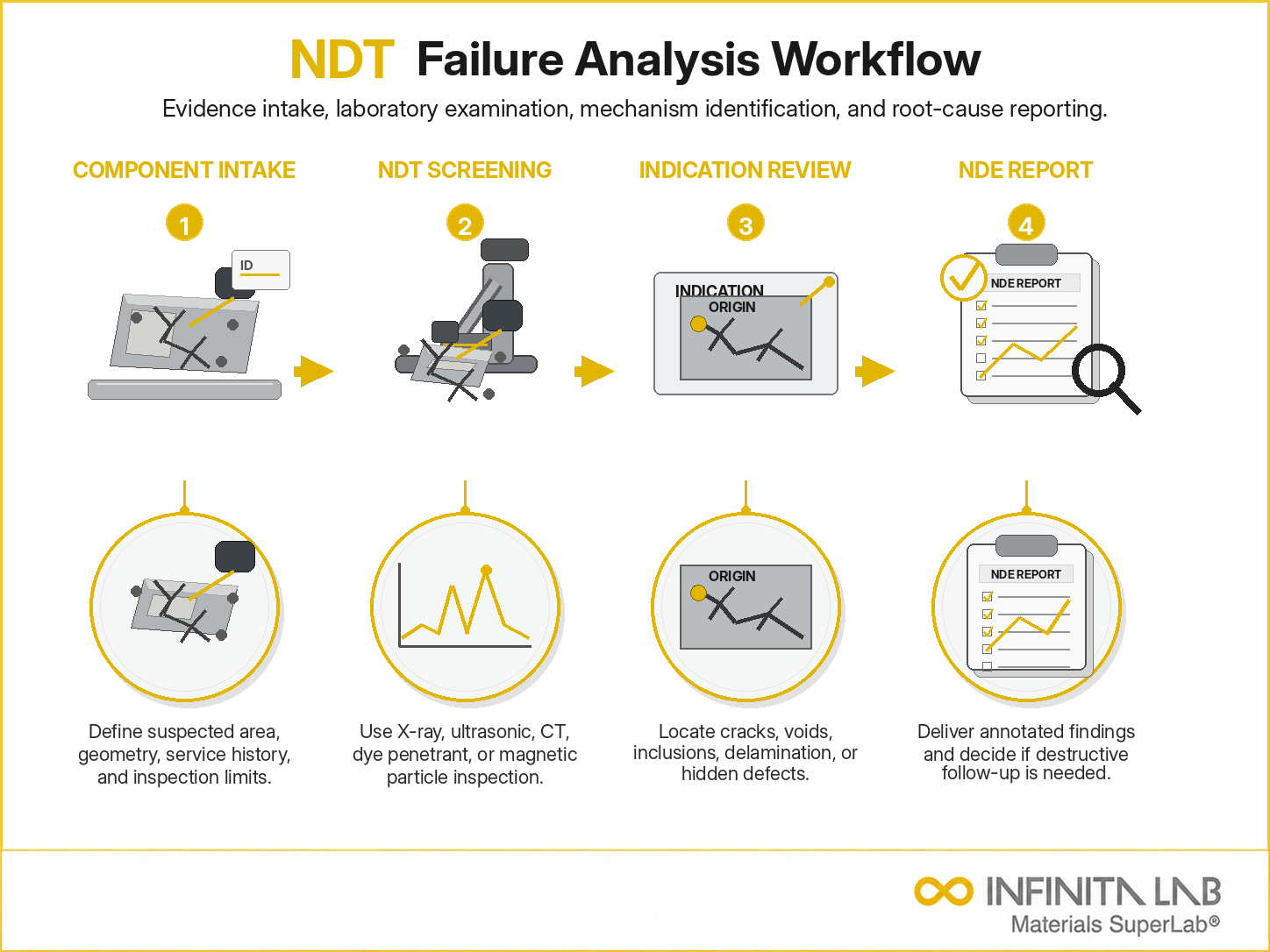

Integration of NDE with Destructive Failure Analysis
The NDE phase of failure analysis establishes a complete damage map — defect locations, orientations, depths, and extents — to plan and prioritise destructive sampling. Cross-sections are taken through the primary failure site and selected secondary cracks, ensuring that the most informative fracture surfaces and microstructural regions are preserved for SEM fractography, metallographic examination, and chemical analysis.
Industrial Applications
NDE-guided failure analysis is applied in every industry where component failure has safety, regulatory, or financial consequences — aerospace certification investigations, automotive recall root cause analysis, power plant component fitness-for-service assessment, and electronics reliability failure analysis.
Conclusion
Non-destructive evaluation (NDE) — utilizing methods such as visual inspection, dye penetrant testing (DPT), magnetic particle inspection (MPI), radiography (RT/CT), ultrasonic testing (UT), scanning acoustic microscopy (SAM), and thermography — provides critical insight into defect location, damage extent, and material integrity without compromising the failed component. These techniques guide targeted destructive analysis, preserve essential evidence, and enable accurate root cause determination across industries. Selecting the appropriate NDE methods based on material type, defect characteristics, and investigation objectives is essential to ensure reliable failure analysis outcomes — making inspection strategy as important as the analytical results themselves.
Why Choose Infinita Lab for NDE-Supported Failure Analysis?
Infinita Lab provides integrated NDE and failure analysis services — visual inspection, DPT, MPI, RT, UT, SAM, and thermography — coordinated through our nationwide network of 2,000+ accredited NDE and analytical laboratories, with Single Point of Contact management.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
Why should NDE always precede destructive sampling in failure analysis? NDE preserves the failed component's physical evidence — fracture morphology, crack networks, corrosion distribution — that is destroyed by cutting. NDE maps the full damage extent, identifying the primary failure site and secondary features to guide the most informative destructive sampling strategy.
What NDE method is best for detecting fatigue cracks in steel components? Magnetic particle inspection (MPI) is most sensitive for surface and near-surface fatigue cracks in ferromagnetic steel. For sub-surface cracks deeper than MPI's reach, pulse-echo UT or PAUT provides quantitative depth and length characterisation.
Can computed tomography (CT) replace conventional cross-sectioning in failure analysis? CT provides three-dimensional, non-destructive internal imaging at resolutions down to a few micrometres for small components. It can identify the primary failure site and plan optimal section planes, but cannot match the resolution of SEM fractography or metallographic examination for final failure mechanism confirmation.
What is the role of scanning acoustic microscopy in electronic component failure analysis? SAM images internal interfaces in IC packages, solder joints, and bonded assemblies without opening them, detecting delaminations, voids, and cracks that guide subsequent decapsulation and physical failure analysis to the correct defective location.
How are NDE findings documented in a failure analysis report? NDE findings are documented with calibrated photographic records, scan data outputs (C-scan maps, radiographic films, thermographic images), and annotated diagrams showing defect locations and dimensions. All NDE procedures and personnel certifications are referenced to applicable standards (ASNT, NAS 410, ASTM) in the report.
