Needleless Electrospinning: Process, Advantages & Industrial Scale-Up
Needleless Electrospinning | Process, Material Characterization, and Nanofiber ApplicationsNeedleless electrospinning is an advanced nanofiber production technique that generates ultrafine polymer fibers (50–500 nm in diameter) from a free liquid surface without a needle or capillary, enabling significantly higher production throughput than conventional needle-based electrospinning. This scalable technology produces nanofiber membranes for filtration, biomedical scaffolds, energy storage, and protective textiles. Material testing validates fiber morphology, mechanical properties, and functional performance. For companies seeking nanofiber characterization at a US-based testing lab, Infinita Lab provides comprehensive materials analysis through its accredited laboratory network.

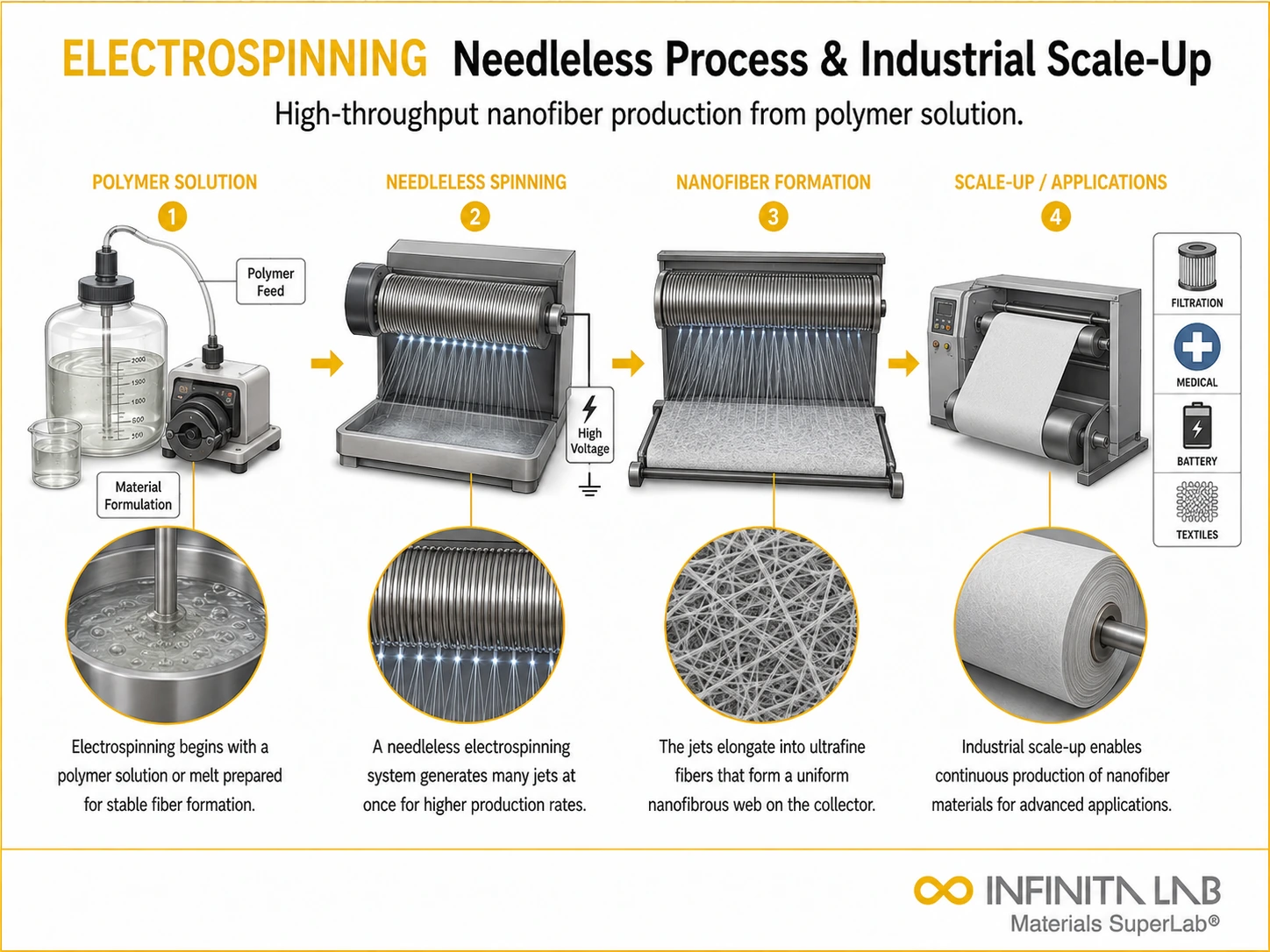

How Needleless Electrospinning Works
A rotating electrode (wire, cylinder, or disk) is partially immersed in a polymer solution bath. As the electrode rotates, a thin polymer film forms on its surface. A high-voltage electric field (20–80 kV) applied between the electrode and a grounded collector creates multiple Taylor cones simultaneously along the electrode surface, each producing a nanofiber jet. Thousands of jets form simultaneously, yielding production rates 10–100 times higher than those of single-needle electrospinning.
Key Advantages Over Needle Electrospinning
Dramatically higher throughput (grams to kilograms per hour vs. milligrams per hour), no needle clogging issues, uniform web deposition over large areas, simpler maintenance, and scalability to industrial roll-to-roll production make needleless systems commercially viable for manufacturing nanofiber products at scale.
Nanofiber Characterization Methods
SEM imaging measures fiber diameter distribution and morphology. Tensile testing per ASTM D882 evaluates the mechanical properties of the membrane. BET surface area analysis quantifies the high specific surface area. Pore size measurement characterizes filtration capability. FTIR confirms polymer composition, and TGA verifies thermal stability.
Applications
Needleless electrospun nanofibers serve as air and liquid filtration media, tissue engineering scaffolds, and wound dressings for the medical sector; battery separators and catalyst supports for energy applications; protective clothing and barrier textiles; and acoustic and thermal insulation materials.
Why Choose Infinita Lab for Advanced Materials Testing?
Infinita Lab is a trusted USA-based testing laboratory offering Advanced Materials Testing testing services across an extensive network of accredited facilities across the USA. Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is needleless electrospinning? Needleless electrospinning produces nanofibers from a free liquid surface using rotating electrodes under high voltage, generating thousands of fiber jets simultaneously for high-throughput nanofiber production.
How does it differ from needle electrospinning? Needle electrospinning uses a single capillary to produce a single jet at low throughput. Needleless systems generate thousands of jets simultaneously from a free surface, increasing production rate 10–100x.
What materials can be electrospun? PVA, nylon, PEO, PVDF, PCL, PLA, polyurethane, cellulose acetate, and many other polymers, when dissolved in appropriate solvents, can be electrospun into nanofibers for various applications.
How are nanofibers characterized? SEM (fiber diameter and morphology), tensile testing (mechanical strength), BET (surface area), porometry (pore size), FTIR (composition), and TGA (thermal stability) are standard methods for nanofiber characterization.
What are the main applications of electrospun nanofibers? Filtration (air, liquid, and face masks), biomedical (tissue scaffolds, wound dressings, and drug delivery), energy (battery separators and catalysts), protective textiles, and sensors are the primary application areas.
