Nanodiamonds as Sensors for Nanosized Objects: Physical Properties & Testing

Introduction to Nanodiamond Sensing

Among the most remarkable developments in modern nanotechnology is the emergence of nanodiamonds — nanometer-scale diamond particles — as ultraprecise quantum sensors capable of detecting physical, chemical, and biological quantities at the nanoscale. Their ability to function as sensors inside living cells, under ambient conditions, and without photobleaching has positioned them as a transformative tool across the biomedical, materials science, and quantum technology industries.

At the heart of nanodiamond sensing are nitrogen-vacancy (NV) centers — atomic-scale defects created when a nitrogen atom replaces a carbon atom adjacent to a vacancy in the diamond crystal lattice. These NV centers are extraordinarily sensitive quantum systems whose optical and magnetic properties respond measurably to their local environment — enabling detection of magnetic fields, temperature, electric fields, pH, and mechanical deformation at spatial resolutions below 100 nm.

The Physics of NV-Center Sensing

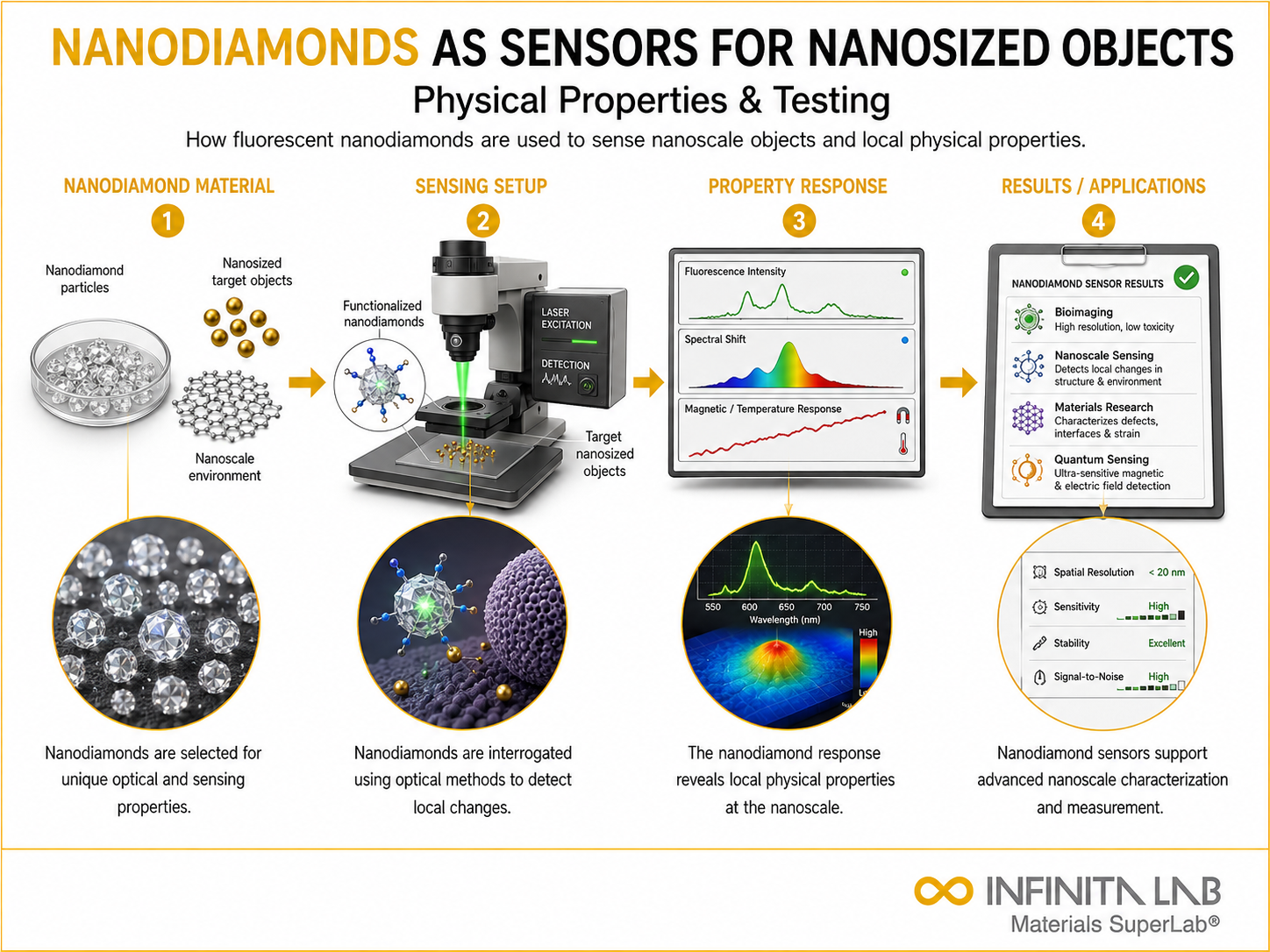

NV centers in nanodiamonds function as room-temperature quantum sensors. Their spin state can be initialized and read out optically — using a green laser to excite the NV center and measuring the resulting red fluorescence. The spin state is sensitive to local magnetic, electric, and thermal fields through well-characterized quantum mechanical interactions:

• Magnetic field sensing (magnetometry): NV spin transitions split in proportion to the local magnetic field (Zeeman effect), enabling detection of fields as small as nanotesla
• Temperature sensing (nanothermometry): The zero-field splitting of the NV spin resonance shifts by −74 kHz/°C, enabling temperature measurement with millikelvin precision
• Electric field sensing: Stark shifts in NV energy levels respond to local electric fields
• Strain and mechanical sensing: Diamond lattice strain directly shifts NV spin transition frequencies, enabling nanomechanical sensing

Key Applications of Nanodiamond Sensors

Intracellular Biological Sensing

Nanodiamonds can be internalized by living cells without toxicity — a critical advantage over many nanomaterials. Once inside cells, NV-center nanodiamonds can measure:

• Intracellular temperature: Mapping thermal gradients in single cells with nanoscale spatial resolution
• Free radical concentration: Measuring reactive oxygen species (ROS) — key markers of oxidative stress and disease
• Magnetic field from biomolecules: Detecting ferritin and other iron-containing proteins through their paramagnetic signatures
• Cellular mechanics: Sensing force generation in cytoskeletal networks and membrane tension

Nanoscale Thermometry

Traditional temperature measurement cannot resolve thermal gradients at the sub-micron scale relevant to cellular processes. NV-center nanodiamonds, delivered to specific intracellular locations, provide direct, calibration-free temperature readout — enabling studies of mitochondrial heat generation, laser-induced local heating, and metabolic activity mapping in single living cells.

Quantum Sensing for Material Characterization

Beyond biological systems, nanodiamond sensors enable nanoscale characterization of solid materials:

• Thin film stress mapping: NV centers detect residual stress distributions in semiconductor thin films
• Magnetic domain imaging: NV magnetometry maps magnetic domain structures in ferromagnetic materials with nanometer resolution
• Subsurface defect detection: Near-surface NV centers sense defects and dopant distributions in semiconductor devices

Hybrid Quantum Sensor Systems

Nanodiamonds functionalized and attached to mechanical structures — cantilevers, membranes, glass substrates — create hybrid quantum sensors capable of simultaneously measuring mechanical displacement, temperature, and magnetic field. These systems are being developed for next-generation nanoscale measurement platforms in research and industrial metrology.

Industries and Applications

Conclusion

Nanodiamonds with NV centers represent a genuine convergence of quantum physics and practical sensing — delivering capabilities that no conventional sensor can match at the nanoscale. Their biocompatibility, photostability, and sensitivity to multiple physical quantities simultaneously make them uniquely versatile. As fabrication techniques for NV-center nanodiamonds mature and optical readout systems become more accessible, nanodiamond sensing will increasingly transition from research laboratories into industrial metrology and biomedical diagnostics.
