Metal Quality Control Criteria: Standards, Testing & Acceptance Criteria

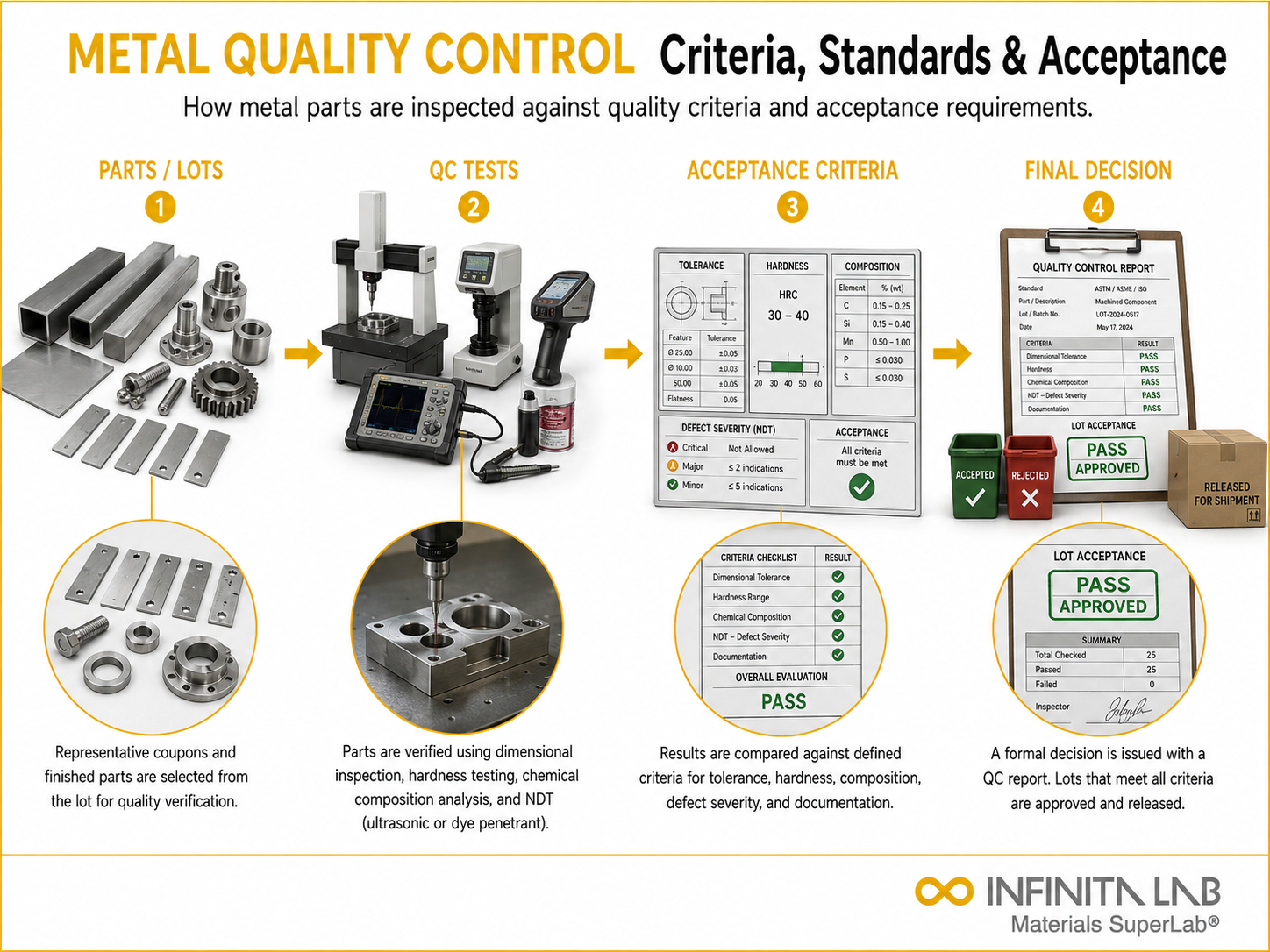

Metal quality control testing documentation aligned with ASTM acceptance criteriaWhy Quality Control Matters in Metals Testing
Metal components underpin the structural integrity of virtually every engineered system — from aircraft and vehicles to bridges, pressure vessels, and medical implants. A fastener of the wrong alloy, a weld with hidden porosity, a heat-treated shaft with incorrect hardness, or a casting with subsurface shrinkage can cause catastrophic failure with little or no warning.
Quality control in metals testing provides the systematic framework of incoming inspection, in-process monitoring, and final product verification that ensures every metal component meets its specified requirements — for chemistry, microstructure, mechanical properties, dimensional accuracy, and surface integrity — before it enters service.
Key Quality Control Criteria for Metals
Chemical Composition Verification
The most fundamental quality criterion — confirming the metal is the alloy it is claimed to be. Chemical composition is verified by:
- OES (Optical Emission Spectrometry): Full chemistry, including carbon — the production-floor standard for incoming metal verification
- XRF (X-Ray Fluorescence): Fast, non-destructive screening — handheld instruments used for PMI (Positive Material Identification) in field applications
- ICP-OES/MS: Laboratory-grade solution-based analysis for certification-level quantitative chemistry
Acceptance criteria are defined by the relevant material specification (ASTM A36, A516, B209, AMS 4928, etc.) — specifying allowable ranges for each alloying element.
Mechanical Properties Verification
Every structural metal must demonstrate that its mechanical properties meet specification requirements:
Tensile and Yield Strength (ASTM E8/E8M): The most important structural properties — confirming the metal has adequate strength for its design role.
Elongation and Reduction of Area: Ductility measures confirming the metal can deform before fracture — providing a warning before catastrophic failure.
Hardness (ASTM E10, E18, E92): The fastest, most economical routine QC test — used for incoming inspection, heat treatment verification, and process monitoring.
Impact Toughness (ASTM E23): Charpy CVN testing confirms adequate fracture toughness at service temperature — mandatory for structural steels used in cold environments.
Microstructural Quality (Metallographic Examination)
Optical metallography per ASTM E3 (specimen preparation), ASTM E407 (etching), and ASTM E112 (grain size) reveals the microstructural quality that determines mechanical performance:
- Grain size: Fine grain improves strength and toughness; coarse grain may indicate overheating during heat treatment
- Phase distribution: Correct phases present in appropriate proportions (martensite, ferrite, austenite, carbides)
- Non-metallic inclusions (ASTM E45): Oxide, sulfide, and silicate inclusions reduce ductility, fatigue life, and surface quality
- Decarburization (ASTM E1077): Carbon loss from the surface region reduces surface hardness and fatigue resistance
Dimensional and Surface Inspection
CMM (Coordinate Measuring Machine) Inspection: Verifies all critical dimensions and geometric tolerances against engineering drawings.
Surface Roughness (ASME B46.1, ISO 4288): Ra and Rz measurements confirm that the surface finish meets tribological, sealing, or fatigue requirements.
Visual and Dye Penetrant / Magnetic Particle Inspection (ASTM E165, E709): Surface and near-surface defect detection.
Non-Destructive Testing for Internal Quality
Ultrasonic Testing (ASTM A388, E164): Internal defect detection in forgings, castings, and plates — porosity, inclusions, cracks, and laminations.
Radiographic Testing (ASTM E94, E1742): Internal defect characterization in welds, castings, and additive-manufactured parts.
Quality Control Documentation and Traceability
Effective metals QC requires complete traceability from raw material through to finished product:
Material Test Reports (MTR/MTC): Mill certificates documenting heat chemistry and mechanical test results for each production heat or lot — the primary quality document for structural metals.
Test and Inspection Reports: Laboratory test reports with traceable instrument calibration records, test conditions, and certified analyst signatures.
Non-Conformance Management: Documented procedures for identifying, segregating, dispositioning (rework, accept under deviation, or reject), and reporting non-conforming materials.
Statistical Process Control (SPC): Tracking test results over time to identify trends and take corrective action before out-of-specification product is produced.
Industry Applications
Aerospace: NADCAP-required metals testing programs cover chemistry, mechanical properties, microstructure, and NDT for all flight-critical structural and engine metals.
Pressure Vessels and Piping: ASME Boiler and Pressure Vessel Code (BPVC) mandates comprehensive QC testing programs for all pressure-retaining materials and welds.
Automotive: IATF 16949 quality system requirements drive incoming material inspection, SPC-based process control, and final product mechanical property verification.
Defense: MIL-SPEC and ITAR-controlled defense hardware requires strict chemical, mechanical, and NDT quality control programs with full traceability.
Infrastructure: Bridge steel, rebar, and structural sections are tested per ASTM specifications at the mill and job site to confirm compliance with applicable structural codes.
Conclusion
Quality control in metals testing — spanning chemical composition verification, mechanical property testing, microstructural examination, dimensional inspection, and non-destructive evaluation across aerospace, pressure vessel, automotive, defense, and infrastructure applications — provides the systematic framework that ensures every metal component meets its specified requirements before entering service. Maintaining complete material traceability, calibrated instrumentation, and documented non-conformance management is what distinguishes a robust metals QC program from routine testing — making quality system rigor as essential to structural safety and regulatory compliance as any individual test method or acceptance criterion.
Why Choose Infinita Lab for Metals Quality Control Testing?
Infinita Lab is a leading provider of metals quality control testing services — chemistry verification, mechanical testing, metallography, hardness, and NDT — across its vast network of 2,000+ accredited partner labs in the United States. With access to over 10,000 test types and a Single Point of Contact (SPOC) model for streamlined coordination, Infinita Lab accelerates your quality assurance programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
What is a Material Test Report (MTR) and what information does it contain? An MTR (or Mill Test Certificate, MTC) is issued by a metal producer certifying the chemical composition and mechanical properties of a specific production heat or lot. It includes heat number, chemistry analysis results, mechanical test results (tensile, yield, elongation, impact if required), product form and dimensions, and applicable specification compliance declaration.
What is the difference between a certificate of compliance and a material test report? A certificate of compliance (CoC) is a declaration by the supplier that the material meets the specified requirements — without providing test data. An MTR provides the actual measured data demonstrating compliance. Most structural and safety-critical applications require an MTR rather than a CoC alone.
Why is hardness testing the most common QC test in metal manufacturing? Hardness testing is fast (seconds per measurement), inexpensive, leaves only a small indentation, can be performed on finished parts, and strongly correlates with tensile strength in steels. It is the most practical and economical routine QC test for monitoring heat treatment, alloy verification, and production consistency in metal manufacturing.
What is ASTM E45 and why is inclusion rating important? ASTM E45 provides standardized methods for rating the amount and type of non-metallic inclusions (oxides, sulfides, silicates, globular oxides) in steel using optical microscopy at defined magnification. Inclusions reduce fatigue life, ductility, and machinability — particularly in bearing steels, aerospace alloys, and high-integrity structural steels where low inclusion content is specified.
What role does SPC play in metals quality control? Statistical Process Control (SPC) monitors quality characteristics (chemistry, hardness, tensile strength, dimensional measurements) over time using control charts — detecting trends, shifts, and out-of-control conditions before non-conforming products are produced. SPC enables proactive quality management rather than reactive inspection — particularly important in high-volume metal production environments.
