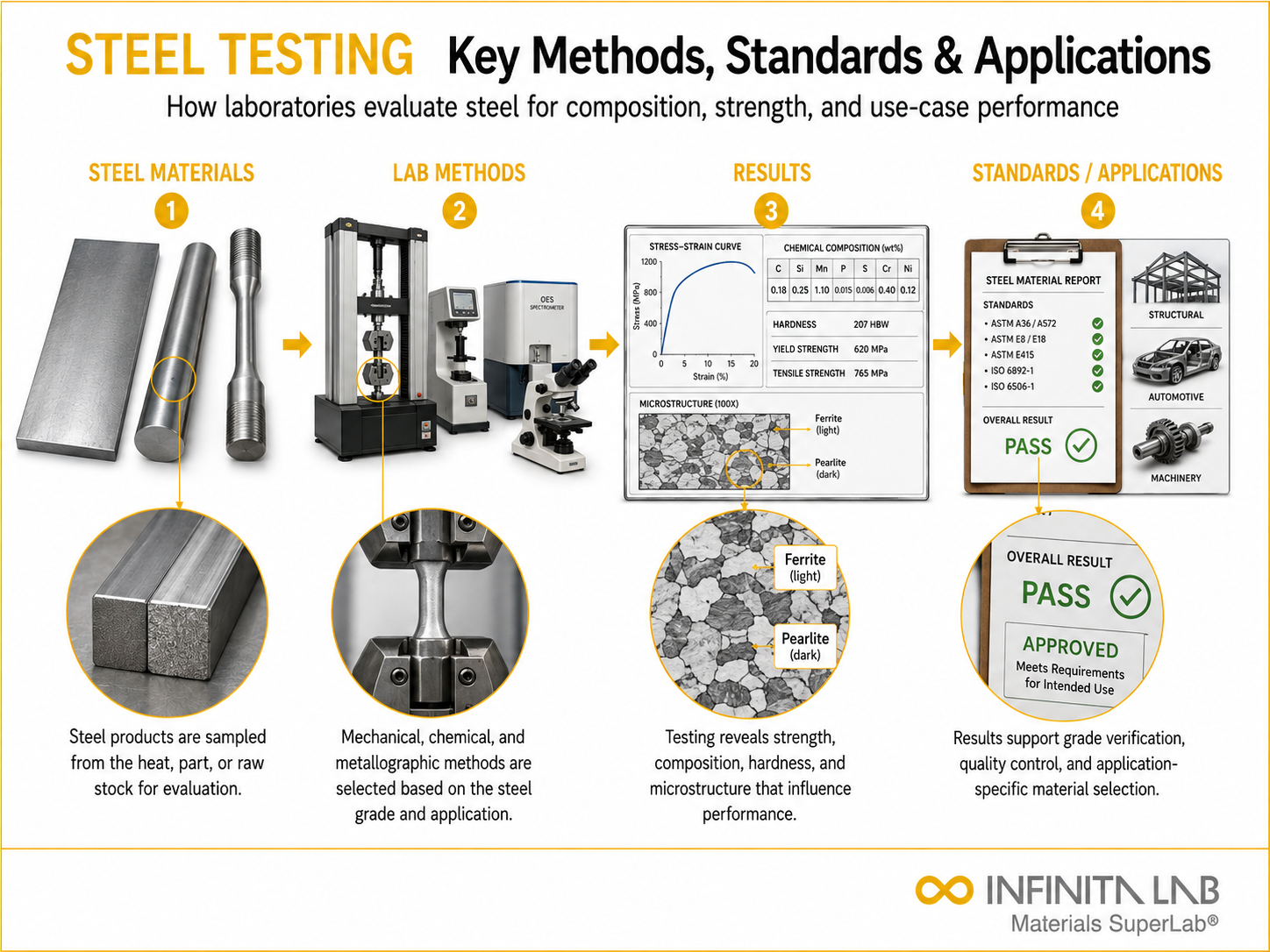

Material Testing for Steel: Key Methods, Standards & Applications
The Importance of Steel Testing
Steel is the world’s most widely used structural and engineering material, serving as the backbone of buildings, bridges, vehicles, pipelines, pressure vessels, ships, and machinery. Its versatility arises from the remarkable range of properties achievable through alloying and heat treatment—but realizing those properties in practice requires rigorous testing and quality assurance at every stage from steelmaking through final fabrication.
Material testing for steel provides objective, quantitative data that confirms the material meets its specification, supports safe design, and provides the documented evidence required by regulatory bodies, codes, and customers across the construction, automotive, oil and gas, aerospace, and heavy manufacturing industries.
Chemical Composition Testing
Chemical composition is the foundation of steel specification. Carbon, manganese, silicon, sulfur, phosphorus, and alloying elements (Cr, Mo, Ni, V, Nb, Ti) must all be within the ranges defined by the applicable standard (ASTM, EN, JIS, API).
Test Methods
- Optical Emission Spectrometry (OES): The primary production method; provides rapid multi-element analysis from a prepared flat surface. ASTM E415 covers OES for carbon and low-alloy steels.
- Combustion Analysis (ASTM E1019): Definitive method for carbon and sulfur determination.
- ICP-OES: For precise trace element and residual element analysis.
Mechanical Property Testing
Tensile Testing (ASTM E8 / ISO 6892-1)
The most fundamental mechanical test. Measures:
- Yield strength (Rp0.2 or ReH/ReL): The stress at which permanent deformation begins
- Ultimate tensile strength (UTS/Rm): Peak engineering stress
- Elongation (A): Ductility measure
- Reduction of area (Z): Ductility and notch toughness indicator
Test specimens are machined from defined locations and orientations in the steel product (longitudinal, transverse, through-thickness) to characterize directionality.
Hardness Testing
Brinell (ASTM E10), Rockwell (ASTM E18), and Vickers (ASTM E92) hardness tests are used for rapid, economical verification of heat treatment response and as a proxy for tensile strength. Hardness profiles (microhardness traverses) characterize case depth in carburized and nitrided steels.
Charpy Impact Testing (ASTM E23)
Measures toughness at specified test temperatures. Mandatory for pressure vessels (ASME), structural steel (ASTM A6), pipeline steel (API 5L), and offshore structural steel (EN 10225).
Fracture Toughness Testing (ASTM E399, E1820)
Measures the critical stress intensity factor (KIc) or J-integral at which a pre-existing crack will propagate. Required for fracture-critical applications in aerospace, nuclear, and high-pressure vessel design.
Metallurgical and Microstructural Testing
Grain Size Measurement (ASTM E112)
Fine-grained steels (ASTM grain size 5 or finer) provide better toughness and fatigue resistance. Grain size is specified in many structural, pressure vessel, and pipeline standards.
Inclusion Rating (ASTM E45)
Quantifies the type, size, and frequency of non-metallic inclusions (sulfides, oxides, silicates) in rolled steel. High inclusion content reduces transverse ductility and fatigue resistance.
Microstructural Examination
Optical metallography reveals martensite, bainite, ferrite-pearlite ratios, carbide distribution, decarburization depth, and seam/lap surface defects.
Non-Destructive Testing for Steel Products
- Ultrasonic testing (UT): Internal laminations, inclusions, and hydrogen-induced cracks in plate and heavy sections
- Magnetic particle testing (MT): Surface and near-surface cracks
- Radiography (RT): Weld internal defects
Why Choose Infinita Lab for Steel Material Testing?
Infinita Lab is a trusted USA-based testing laboratory offering comprehensive steel material testing—chemical analysis, mechanical testing, metallography, and NDT—across a nationwide network of accredited facilities. Our SPOC model and project management expertise deliver fast, reliable results for mill certification, fabrication inspection, and failure investigation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between yield strength and tensile strength in steel? Yield strength is the stress at which the steel begins to deform permanently (inelastic behavior begins). Tensile strength is the peak stress the steel can carry before necking and fracture. Engineering designs are typically based on yield strength (with a safety factor), since plastic deformation at yield strength already represents unacceptable structural behavior in most applications.
What ASTM standard covers tensile testing of steel? ASTM E8/E8M (Tension Testing of Metallic Materials) is the primary standard for metallic materials including steel. Product-specific standards (ASTM A370 for steel products; ASTM A615 for reinforcing bars) reference E8 methods and define additional specimen requirements and acceptance criteria.
How is the ASTM grain size number determined? ASTM E112 defines three methods: comparison (matching to ASTM grain size charts at 100× magnification), planimetric (counting grains per unit area), and intercept (counting grain boundary intersections per unit length). The result is expressed as an ASTM grain size number G, where finer grains have higher G numbers.
What is the significance of the Pcm or CE (carbon equivalent) value for steel? Carbon equivalent (CE = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15) and Pcm are empirical formulas that estimate weldability and susceptibility to hydrogen-induced cracking (HIC) in weld HAZs. Higher CE values indicate higher hardenability and increased HIC risk, requiring preheat and controlled heat input during welding.
What types of defects in steel can ultrasonic testing detect? UT detects internal volumetric defects including hydrogen-induced cracks (HIC/SOHIC), laminar tears, porosity, inclusions, pipe, and internal shrinkage in castings and forgings. It also measures wall thickness of pipe and plate. UT sensitivity depends on defect size, orientation, and acoustic impedance contrast with the surrounding steel.
