Heat Transfer Fluids: Thermal Properties, Testing Standards & Selection Guide

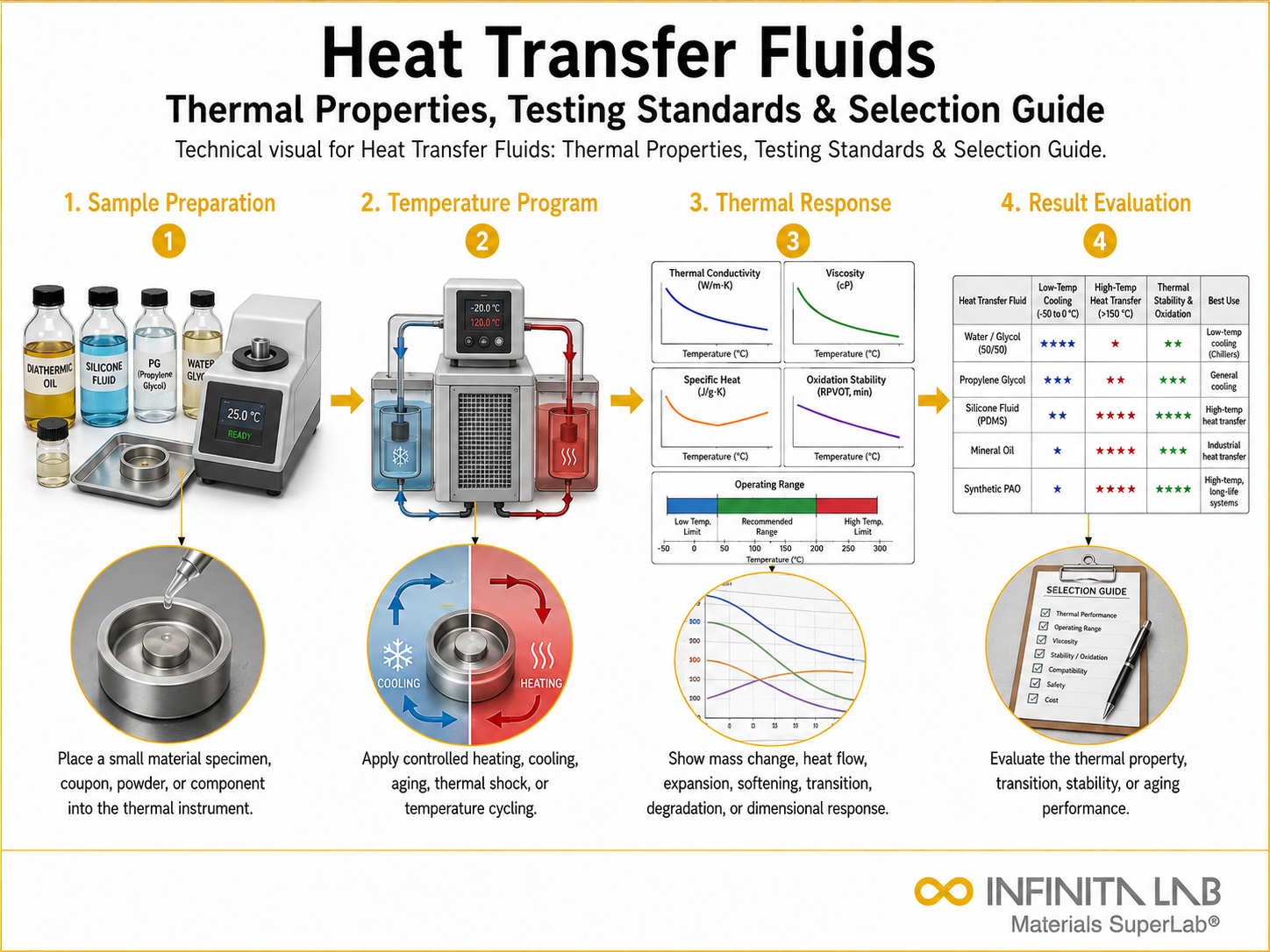

Thermal property testing of heat transfer fluid measuring conductivity and specific heat per ASTMWhat Are Heat Transfer Fluids?
Heat transfer fluids (HTFs) are liquid or gaseous media used to transport thermal energy between a heat source and a heat sink in industrial process heating, cooling, and energy systems. They are the working fluids in heat exchangers, solar thermal collectors, district heating networks, data center cooling systems, industrial chemical processes, and concentrated solar power (CSP) plants.
Unlike engine coolants (which primarily protect against freeze and corrosion in automotive cooling systems), industrial HTFs must maintain stable thermal and chemical properties across wide temperature ranges — from cryogenic cooling at -100°C to high-temperature process heating above 400°C — often for 5–20 years of continuous service.
Types of Heat Transfer Fluids
Water and Steam
The most widely used HTF globally has high specific heat capacity, excellent thermal conductivity, low cost, and is non-toxic. Limited to the 0–100°C range at atmospheric pressure; pressurized water and steam extend this to 370°C. Corrosion and scaling in water-based systems require careful management of treatment chemistry.
Glycol-Water Solutions
Ethylene glycol-water (30–50% EG) provides freeze protection down to -40°C while maintaining good heat transfer — used in building HVAC chillers, food-processing cooling, and secondary refrigerant systems. Testing covers freeze point, viscosity, corrosion inhibitor status, and glycol degradation products.
Synthetic Organic HTFs
Specialty organic compounds designed for high-temperature operation beyond water’s practical limit:
Diphenyl-diphenyl oxide (Dowtherm A / Therminol VP-1): Stable to 400°C — used in chemical processing, solar thermal, and pharmaceutical manufacturing.
Biphenyl/diphenyl ether eutectic (Therminol 59, Syltherm): High-temperature vapor-phase and liquid-phase HTFs for process industry applications.
Paraffinic and naphthenic mineral oils: Mid-range HTFs (up to 300°C) — widely used in plastics processing, asphalt production, and industrial heating.
Alkylated aromatics (Therminol 66, Marlotherm SH): Higher thermal stability than mineral oils — used in industrial heating to 340°C.
Molten Salts
Nitrate salt mixtures (60% NaNO₃ / 40% KNO₃ — “solar salt”) are stable from 220°C to 565°C — the dominant HTF for CSP thermal energy storage. Testing focuses on thermal stability, viscosity, corrosion of containment metals (carbon steel, stainless steel), and freeze-point monitoring.
Silicone Fluids
Wide temperature range (-65°C to 250°C), very low freeze point, chemically inert, low toxicity — used in laboratory temperature control, pharmaceutical processing, and specialized cooling applications. Higher cost than mineral or glycol-based HTFs.
Key HTF Testing Methods
Thermal Stability Testing
ASTM E2071 / ASTM E537: Evaluates the onset of thermal decomposition by DSC or TGA — determining the maximum safe use temperature and confirming the degradation mechanism of HTF at elevated temperatures.
Accelerated Thermal Aging (Sealed Tube Tests): HTF samples are sealed in glass or metal tubes containing representative surface materials and aged at elevated temperatures for defined periods, with monitoring of changes in flash point, viscosity, acid number, and decomposition product buildup that indicate thermal degradation.
Physical Property Testing
Viscosity (ASTM D445): Kinematic viscosity at defined temperatures — critical for system design, pump sizing, and heat transfer coefficient calculations. Viscosity increase over service life indicates polymerization or oxidative cross-linking degradation.
Flash Point (ASTM D92, D93): The minimum temperature at which HTF vapor ignites — a critical fire safety parameter. Flash point reduction over the service life indicates light-end accumulation due to fluid degradation or contamination.
Density (ASTM D4052): Measured by digital density meter — used for system inventory calculations and as a consistency check for fluid concentration.
Chemical and Degradation Testing
Acid Number / Total Acid Number (TAN) (ASTM D664): Measures the concentration of acidic degradation products — a key indicator of HTF degradation state and remaining service life. Increasing TAN indicates oxidation or thermal cracking of the HTF is occurring.
Water Content (Karl Fischer Titration, ASTM E1064): Water in HTF systems causes flashing, cavitation, increased corrosion, and reduced thermal stability. Water content monitoring is a critical maintenance parameter.
Corrosion Product Metals (ICP-OES, ASTM D5185 approach): Iron, copper, chromium levels in used HTF indicate corrosion activity within the system — trending over service intervals provides early warning of containment material degradation.
Deposit/Fouling Tendency: Coke deposits from thermally degraded organic HTF reduce heat transfer efficiency and increase fouling resistance in heat exchangers. Deposit tendency tests evaluate the rates of decomposition product formation.
Material Compatibility Testing
HTFs must be compatible with all wetted materials in the system — including carbon steel, stainless steel, copper alloys, aluminum, elastomeric seals, and polymer components. Material compatibility testing exposes candidate materials to the HTF at operating temperatures for defined immersion periods, measuring corrosion rates (mass loss per unit area per unit time) and changes in seal swell/hardness.
Industry Applications
Concentrated Solar Power (CSP): Molten salt and synthetic organic HTFs in parabolic trough and power tower CSP plants require thermal stability testing, corrosion monitoring, and impurity analysis to maintain 25+ year plant service life.
Chemical Processing: Steam-traced and hot-oil-heated reactors, distillation columns, and heat exchangers use synthetic organic HTFs — requiring regular condition monitoring to prevent runaway thermal degradation and maintain process safety.
Data Centers: Single-phase and two-phase immersion cooling systems for high-density server racks use dielectric HTFs (mineral oil, fluorocarbon fluids, synthetic esters) that are tested for thermal stability, dielectric strength, and compatibility with electronic components.
Plastics Processing: Mold temperature controllers using pressurized water or thermal oil require HTF quality monitoring to maintain heating/cooling uniformity and prevent system fouling
Conclusion
Heat transfer fluid (HTF) testing — incorporating standards such as ASTM E2071, ASTM D445, ASTM D664, ASTM D92/D93, and ASTM E1064 — provides a comprehensive evaluation of thermal stability, physical properties, chemical degradation, and material compatibility across industrial heating and cooling systems. These methods assess viscosity, flash point, acid formation, water contamination, and corrosion behavior under real operating conditions. Selecting the appropriate testing protocols based on fluid type, temperature range, and system requirements is essential to ensure efficient heat transfer, prevent system fouling or failure, and extend fluid service life — making testing strategy as critical as the performance results themselves.
Why Choose Infinita Lab for Heat Transfer Fluid Testing?
Infinita Lab offers comprehensive heat transfer fluid testing services — physical properties, thermal stability, acid number, water content, corrosion product metals, and material compatibility — across its nationwide network of 2,000+ accredited labs. Our advanced equipment and expert team deliver accurate, prompt results supporting HTF condition monitoring, new fluid qualification, and system maintenance programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
How is the maximum service temperature of a synthetic HTF determined? Maximum service temperature is determined by thermal stability testing — typically accelerated aging in sealed tubes at elevated temperatures combined with TGA/DSC analysis of fresh vs. aged samples. The maximum bulk temperature is typically set 30–50°C below the onset of significant decomposition as measured by ASTM E2071 or manufacturer aging data.
What does increasing acid number (TAN) indicate in used HTF? Increasing TAN indicates accumulation of acidic degradation products (organic acids, oxidation products) from fluid breakdown. High TAN is associated with increased corrosion of metal system components, polymer seal attack, and continued accelerated degradation. Action limits for TAN are specified by HTF manufacturers — typically requiring partial or complete fluid replacement when exceeded.
Why is flash point monitoring important for HTF safety? Flash point reduction in a used HTF indicates the presence of light volatile fractions — from thermal cracking of the base fluid or contamination. A reduced flash point increases fire risk at normal operating temperatures. Significant flash point reduction (>10°C below specification) typically triggers fluid replacement as a safety precaution.
What metals are typically monitored in used HTF condition analysis? Iron (from carbon steel and stainless steel), chromium (stainless steel), copper (brazed heat exchangers and copper alloy fittings), and aluminum (aluminum system components) are the primary metals monitored. Elevated levels indicate active corrosion within the system — trending over time identifies corroding components before catastrophic failure.
What ASTM standards apply to heat transfer fluid testing? Key standards include ASTM D445 (kinematic viscosity), ASTM D92/D93 (flash point), ASTM D664 (acid number), ASTM E1064 (water content by Karl Fischer), ASTM D4052 (density), and ASTM E2071 (thermal stability). ASTM D5185 principles are applied for metal content analysis by ICP.
