Failure Analysis Using Fluorescent Microthermal Imaging: Technique & Applications
What Is Fluorescent Microthermal Imaging?
Fluorescent Microthermal Imaging (FMI) is a specialized failure analysis technique that uses a temperature-sensitive fluorescent coating applied to a semiconductor device or electronic component surface to map thermal gradients and hotspots with micron-scale spatial resolution. By detecting local temperature anomalies — resistive heating at defect sites, leakage current concentrations, and short circuit locations — FMI enables precise, non-destructive localization of failure sites in integrated circuits, power devices, and electronic assemblies. It serves the electronics, semiconductor, aerospace, and defense industries as a frontline fault isolation tool that dramatically reduces the time required for subsequent destructive failure analysis.
Principles of Fluorescent Microthermal Imaging
Temperature-Sensitive Fluorescent Coatings
FMI coatings consist of fluorescent dye molecules (europium-based chelates or rhodamine derivatives) dissolved in a polymer binder, applied as a thin uniform layer over the device under test. The fluorescence intensity of these dyes is inversely proportional to temperature — hotter regions quench fluorescence more strongly, appearing darker in the fluorescence image. Spatial temperature resolution of 1–2 µm is achievable with high-NA microscope objectives.

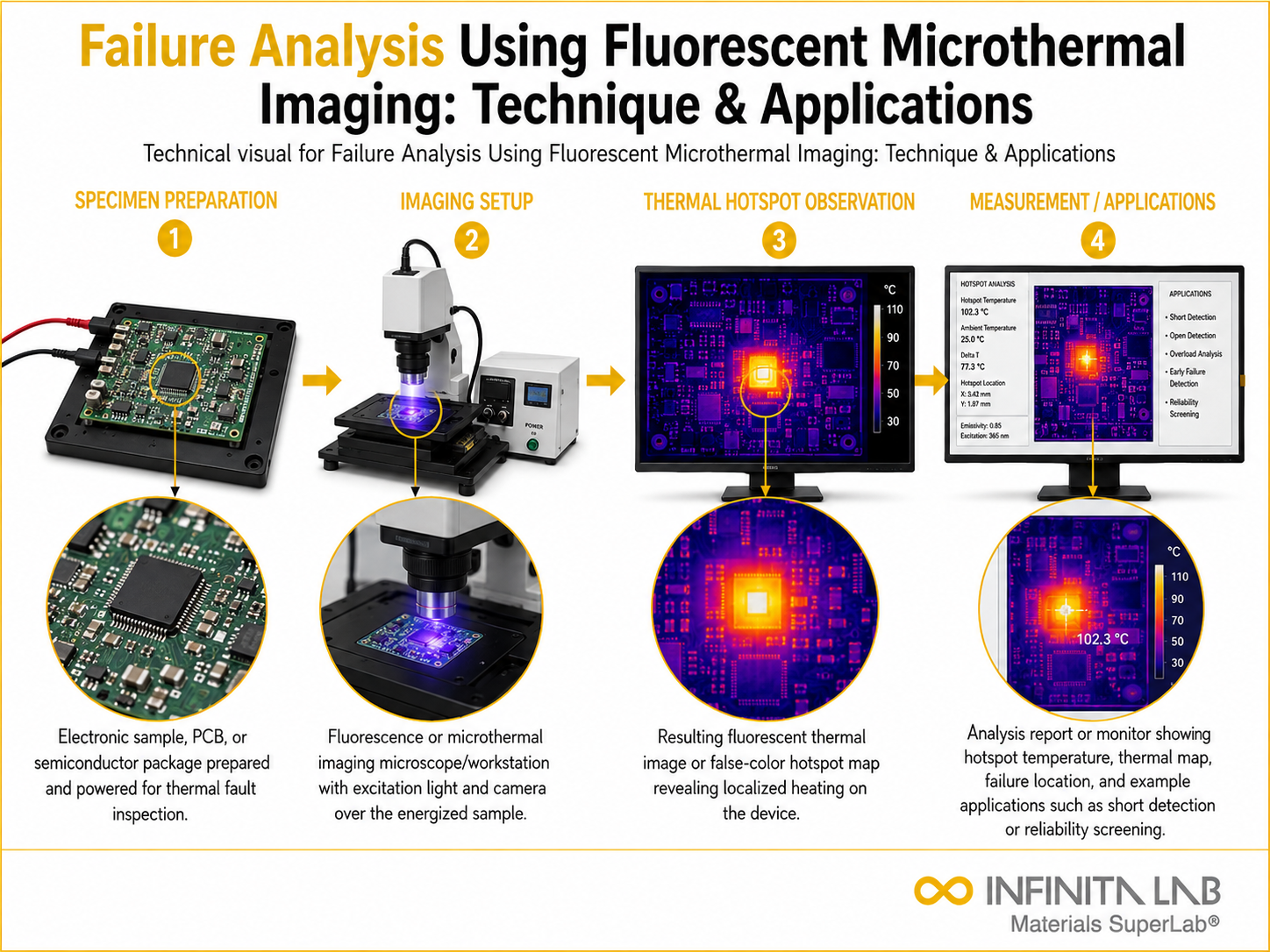

Image Acquisition and Processing
A UV lamp or laser excites the fluorescent coating while the device is biased at failure-triggering electrical conditions. A cooled CCD camera captures the fluorescence emission image. The thermal image is generated by comparing the biased device fluorescence map to a reference image taken at zero bias (no heating). Difference images reveal the precise location of anomalous heating with temperature sensitivity of 0.1–0.5°C.
Advantages Over Infrared Thermography
Infrared thermography (IRT) is limited in spatial resolution by diffraction at mid-IR wavelengths (3–5 µm focal plane array detectors) to approximately 5–20 µm resolution. FMI operates in the visible spectrum, achieving 1–3 µm spatial resolution with standard optical microscopes — sufficient to resolve individual transistors, vias, and metal lines at 100 nm technology nodes. This makes FMI uniquely capable of localizing defects in advanced node ICs where IRT resolution is inadequate.
Applications in Electronic Failure Analysis
Gate Oxide Defects and Leakage
Thin gate oxide defects — stress-induced leakage current (SILC) sites, hard breakdown locations — generate resistive heating detectable by FMI at sub-micron spatial resolution before the defect progresses to catastrophic electrical failure. This enables correlation of electrical leakage signatures with physical defect locations.
Interconnect Shorts and Resistive Vias
Metal-to-metal shorts between adjacent lines at advanced process nodes generate local heating detectable by FMI even when the electrical short resistance is too high to cause immediate functional failure. Resistive vias and contact plugs with elevated resistance generate characteristic local hotspots proportional to I²R dissipation.
ESD and Latch-Up Damage Sites
Electrostatic discharge (ESD) damage concentrates at protection circuit junctions and thin oxide regions, creating localized defect sites with anomalous leakage current. FMI localizes these sites precisely before cross-section preparation, ensuring the FIB mill targets the correct die location.
Conclusion
Failure analysis using fluorescent microthermal imaging is a powerful technique for detecting localized thermal variations associated with defects in electronic and micro-scale components. By visualizing heat signatures with high sensitivity, it enables precise identification of failure points such as leakage currents, short circuits, and material inconsistencies. This method enhances diagnostic accuracy, supports efficient troubleshooting, and improves product reliability, making it a valuable tool in advanced failure analysis and quality assurance.
Why Choose Infinita Lab for Fluorescent Microthermal Imaging and Failure Analysis?
Infinita Lab is a trusted USA-based testing laboratory offering fluorescent microthermal imaging and comprehensive semiconductor failure analysis services across an extensive network of accredited facilities, with fast turnaround and full project management.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is fluorescent microthermal imaging used for in failure analysis? Fluorescent microthermal imaging is used to detect localized temperature variations in electronic components. It helps identify defects such as leakage currents, short circuits, and hotspots that indicate potential failure points.
How does fluorescent microthermal imaging work? It uses temperature-sensitive fluorescent materials applied to a sample surface. When exposed to excitation light, these materials emit signals that change with temperature, allowing precise mapping of thermal variations.
Why is this method considered effective for micro-scale analysis? The technique provides high spatial resolution, enabling detection of very small thermal changes. This makes it ideal for analyzing microelectronic devices and identifying defects at a microscopic level.
How does this technique improve failure diagnosis? It allows precise localization of thermal anomalies, helping engineers quickly identify the root cause of failures. This reduces diagnostic time and improves the accuracy of failure investigations.
What are the advantages over traditional thermal imaging methods? It offers higher sensitivity and resolution compared to conventional thermal imaging. This enables detection of subtle temperature differences that may not be visible using standard infrared techniques.
