Machining Performance of Ferrous Metals: Testing, Factors & Material Properties

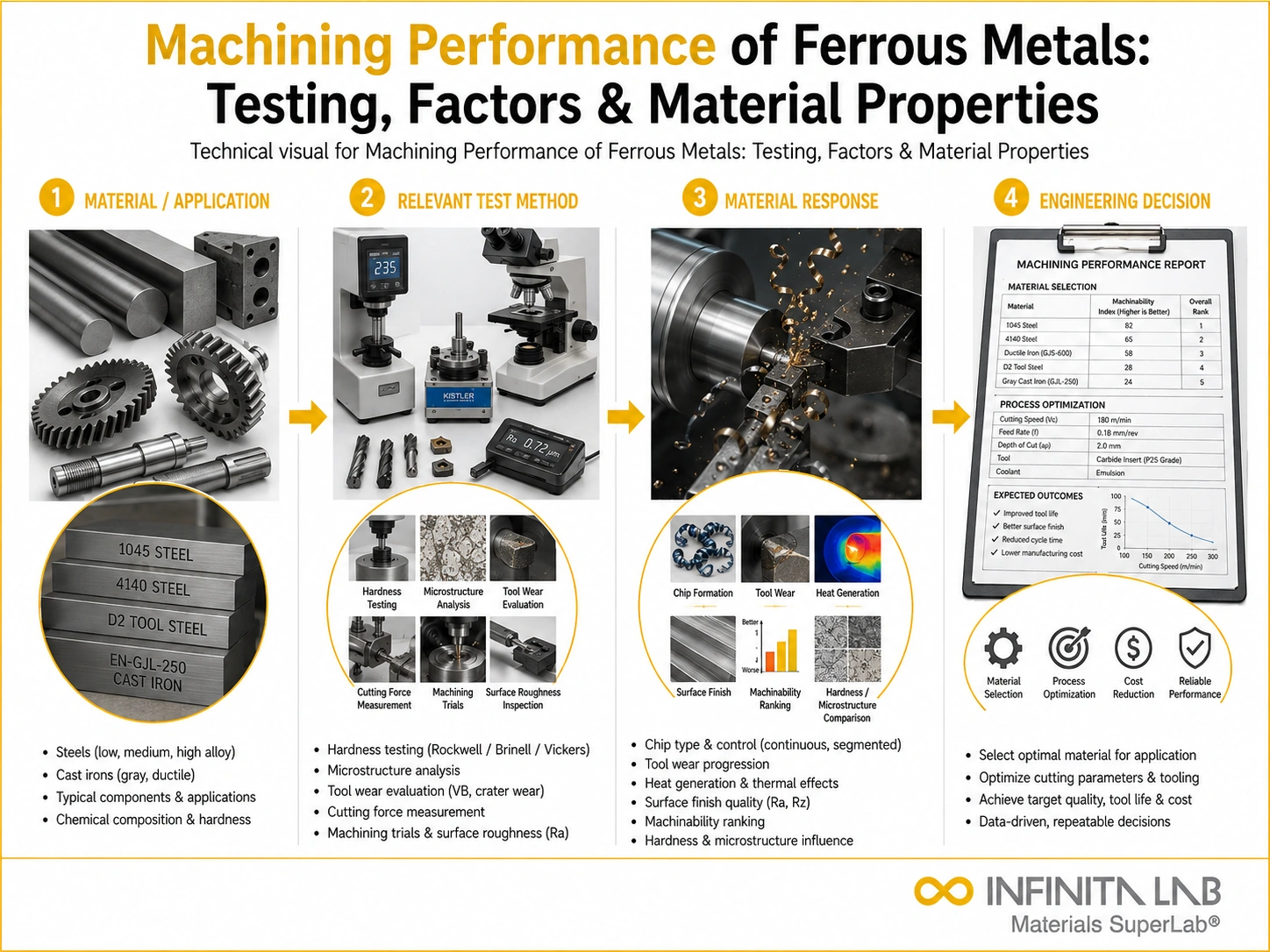

Ferrous metal machining performance evaluation including hardness and surface finish testingWhat Is Machinability?
Machinability refers to the ease with which a metal can be cut to produce an acceptable surface finish and dimensional accuracy while achieving acceptable tool life and removing chips efficiently. For ferrous metals—carbon steels, alloy steels, stainless steels, and cast irons—machinability is one of the most important practical properties in manufacturing.
Understanding and optimizing machinability reduces tooling costs, improves production rates, and ensures consistent part quality across the automotive, aerospace, industrial machinery, and precision engineering industries.
Factors Governing Machinability of Ferrous Metals
Chemical Composition
Carbon content is the single most influential compositional variable. Low-carbon steels (≤0.25% C) are soft and ductile, producing long, stringy chips that are difficult to break—challenging for automated machining. Medium-carbon steels (0.25–0.55% C) offer a good balance of strength and machinability. High-carbon steels are hard and abrasive, causing rapid tool wear.
Alloying elements affect machinability in complex ways:
- Sulfur: Added as free-machining additive (resulphurized steels: AISI 11xx, 12xx series). Sulfides act as internal chip breakers, dramatically improving chip breakability and surface finish.
- Lead: Historically added for machinability improvement; largely phased out due to toxicity (RoHS).
- Phosphorus: Improves surface finish in free-machining steels.
- Chromium, molybdenum, nickel: Increase strength and hardness, generally reducing machinability.
Microstructure and Heat Treatment
- Annealed steels (spheroidized microstructure) are generally easier to machine than quenched-and-tempered steels of the same composition.
- Ferrite-pearlite microstructure is typical of as-rolled medium-carbon steels—good machinability.
- Martensite is very hard and difficult to machine; components are typically rough-machined before hardening.
- Cast iron: Gray cast iron contains graphite flakes that act as chip breakers, giving it excellent machinability. Ductile (nodular) iron is harder to machine than gray iron.
Hardness
Machinability generally decreases as hardness increases. The practical upper limit for turning operations with carbide tools is approximately 45 HRC; harder materials typically require grinding or hard turning with CBN tooling.
Machinability Test Methods
Turning Test (ASTM E618, ISO 3685)
A standardized turning test measures tool life (VB flank wear criterion, typically 0.3 mm) at defined cutting conditions. The cutting speed at which the tool achieves a defined life (T) is reported as the Taylor tool life velocity (V_T).
Drill Test
Measures drill force, torque, and drill life under standardized conditions. More sensitive to work-hardening behavior and chip evacuation than turning tests.
Relative Machinability Index
AISI B1112 resulphurized steel is assigned a machinability index of 100%. Other steels are rated relative to this benchmark. For example, AISI 1045 (medium carbon) has a machinability index of approximately 55–65%.
Improving Machinability
- Material selection: Choose free-machining grades (11xx, 12xx series) where part strength requirements permit
- Heat treatment: Anneal or normalize to optimize microstructure before machining
- Cutting fluid selection: Appropriate cutting fluids reduce temperature, tool wear, and built-up edge formation
- Tool geometry and coating: Optimized rake angles and TiAlN-coated carbide tools improve tool life on difficult-to-machine steels
Why Choose Infinita Lab for Machinability Testing?
Infinita Lab offers machinability testing and comprehensive mechanical and metallurgical characterization of ferrous metals. Our accredited laboratory network provides Taylor tool life testing, hardness profiling, microstructural analysis, and chemical composition verification to support material selection and manufacturing process optimization.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the machinability index and how is it used? The machinability index (or relative machinability rating) expresses the machinability of a steel relative to AISI B1112 free-machining steel (rated 100%). A higher index indicates better machinability (easier to machine, longer tool life). It is used as a quick comparative reference during material selection, not as a precise engineering parameter.
Why do re-sulphurized steels have better machinability? Sulfur forms manganese sulfide (MnS) inclusions in the microstructure. MnS inclusions are soft and act as internal chip breakers, promoting short, easily evacuated chips. They also reduce tool-workpiece friction, improving surface finish and tool life. The tradeoff is reduced transverse toughness and fatigue strength.
What is built-up edge (BUE) and how does it affect machining? BUE is a deposit of workpiece material that adheres to the cutting tool edge under the high temperature and pressure of the cutting zone. BUE is most common when machining soft, ductile low-carbon steels. It periodically fractures and deposits fragments on the machined surface, causing poor surface finish. Increasing cutting speed above the BUE formation range eliminates BUE.
How does stainless steel differ from carbon steel in machinability? Austenitic stainless steels (304, 316) are significantly harder to machine than carbon steels of equivalent hardness because they work-harden rapidly, have low thermal conductivity (causing tool overheating), and are ductile (producing long, stringy chips). Free-machining grades (303, 416) with sulfur additions improve machinability considerably.
What is the Taylor tool life equation? The Taylor tool life equation is: V × T^n = C, where V is cutting speed (m/min), T is tool life (min), n is the Taylor exponent (typically 0.2–0.4 for carbide tools on steel), and C is a material-tool constant. The equation is used to optimize cutting speed for a target tool life and to predict tool change intervals.
