What Is Electron Energy Loss Spectroscopy (EELS)? Principles & Applications
Introduction to EELS
Electron Energy-Loss Spectroscopy (EELS) is an analytical technique performed in a Transmission Electron Microscope (TEM) or a Scanning Transmission Electron Microscope (STEM) that measures the energy lost by electrons as they interact with a thin specimen. When the primary electron beam passes through the specimen, electrons lose characteristic amounts of energy through inelastic interactions with specimen atoms — phonon excitation, plasmon excitation, and inner-shell ionisation. The energy distribution of transmitted electrons, measured by an electron spectrometer, provides information on elemental composition, chemical bonding state, and electronic structure at atomic spatial resolution.
Principle of EELS

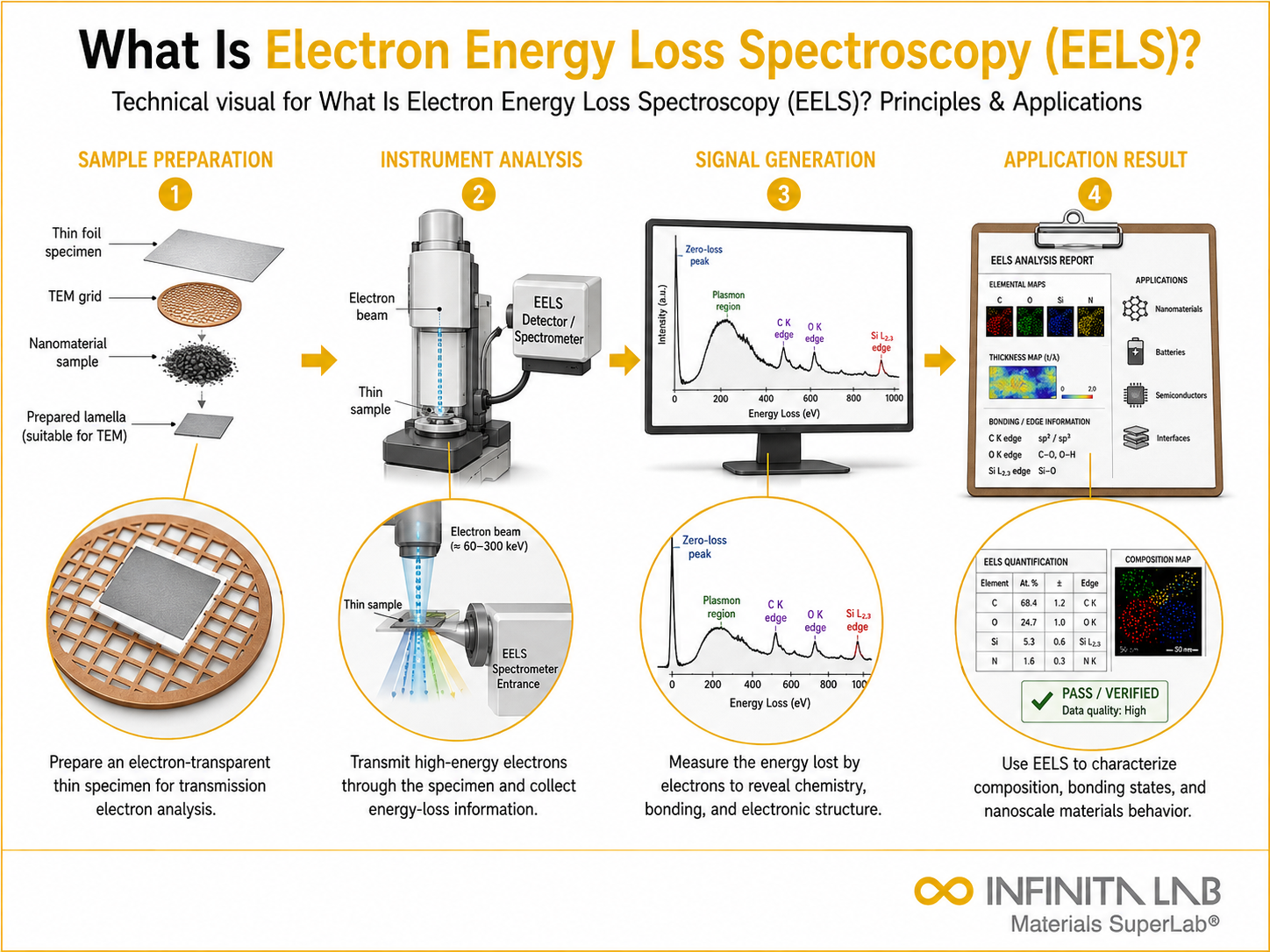

The incident electron beam in a TEM has a precisely defined energy (typically 60–300 keV). After passing through the specimen, electrons have a distribution of energies — most are unaffected (zero-loss peak), some have lost small amounts of energy to collective electron oscillations (plasmon peaks at 5–30 eV energy loss), and others have lost larger amounts equal to the binding energies of specific atomic electron shells (core-loss edges at 10–3000 eV energy loss). The EELS spectrum records the intensity of transmitted electrons as a function of energy loss.
EELS Spectrum Regions
Zero-Loss Peak (ZLP)
The most intense feature — electrons that passed through without significant energy exchange. ZLP width characterises the spectrometer’s energy resolution (0.05–0.5 eV for modern aberration-corrected instruments with monochromators).
Low-Loss Region (0–50 eV)
Plasmon peaks and interband transitions — provides electronic structure, bandgap, and dielectric function information. Useful for semiconducting material characterisation.
Core-Loss Region (50–3000 eV)
Ionisation edges at element-specific binding energies — provides elemental identification and quantification. Fine structure (ELNES — energy-loss near-edge structure and EXELFS) characterises chemical bonding and coordination geometry — analogous to XAS (X-ray absorption spectroscopy) but at nanometre spatial resolution.
Key Capabilities of EELS
Elemental analysis at atomic resolution: EELS combined with STEM HAADF imaging maps the elemental composition of individual atomic columns in crystal structures — surpassing the lateral resolution of EDS for light elements. Light-element sensitivity: EELS excels at detecting light elements (Li, Be, B, C, N, O) that produce very weak X-ray signals in EDS but show clear ionisation edges in EELS. This makes EELS indispensable for battery electrode and solid electrolyte characterisation where Li, B, O concentration profiles are needed. Chemical bonding information: ELNES fine structure reveals the oxidation state, bonding coordination, and electronic hybridisation of elements — distinguishing sp² vs. sp³ carbon, Fe²⁺ vs. Fe³⁺, or TiO₂ vs. Ti₂O₃.
Industrial Applications
Semiconductor and Display Technology
EELS characterises the gate oxide stoichiometry (SiO₂ vs. HfO₂ in high-k gate dielectrics), interface bonding in transistor gate stacks, and defect states at the channel-dielectric interface — all critical for transistor threshold voltage and reliability analysis in advanced semiconductor nodes.
Battery Materials Research
EELS maps lithium distribution and oxidation-state changes in cathode materials (LiCoO₂, NMC, LFP) across different states of charge — revealing the charge/discharge heterogeneity responsible for capacity fade. EELS is the only technique capable of imaging lithium at nanometre spatial resolution in solid-state battery interfaces.
Aerospace Composites and Ceramics
EELS characterises grain boundary chemistry in structural ceramics — identifying segregated impurity elements and bonding phases that govern grain boundary strength and creep resistance.
Corrosion Science
EELS maps the oxide layer composition and Fe²⁺/Fe³⁺ oxidation-state gradients across passive films and corrosion product layers — enabling mechanistic understanding of corrosion initiation and passive film breakdown.
Conclusion
Electron Energy Loss Spectroscopy (EELS) is a powerful analytical technique that enables atomic-scale characterisation of elemental composition, electronic structure, and chemical bonding within materials. By analysing energy losses of transmitted electrons in a TEM or STEM, EELS provides unparalleled sensitivity — especially for light elements — along with detailed insight into oxidation states and local atomic environments. Its ability to deliver nanoscale-to-atomic-resolution information makes it indispensable in advanced fields such as semiconductor development, battery research, and materials science, where precise understanding of structure–property relationships is critical.
Why Choose Infinita Lab for EELS and TEM Analysis?
Infinita Lab provides EELS analysis, STEM imaging, and FIB-TEM sample preparation through our nationwide accredited electron microscopy laboratory network, supporting semiconductor failure analysis, battery materials research, and advanced ceramics characterisation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the primary purpose of EELS analysis? The primary purpose of Electron Energy Loss Spectroscopy (EELS) is to determine a material’s elemental composition, chemical bonding, and electronic structure at nanometer or atomic resolution. It helps identify which elements are present and how they are bonded, providing insight into the chemical and electronic properties of materials.
What sample requirements are needed for EELS testing? Samples must be electron transparent, typically less than 100 nm thick, to allow electrons to pass through. The sample surface should be smooth, clean, and well-prepared using FIB milling, ion polishing, or ultramicrotomy. Non-conductive materials may need a thin conductive coating to prevent charging.
What information can EELS provide that other techniques cannot? EELS provides chemical bonding and oxidation state information at very high spatial resolution. It also provides insights into bandgap, dielectric properties, and plasmon resonances, which are not easily measurable using EDS or other surface analysis techniques, such as XPS.
What is the typical spatial and energy resolution of EELS? Spatial resolution: Down to sub-nanometer or atomic scale when combined with STEM. Energy resolution: Typically 0.5–1.0 eV, and can be improved to ≤0.1 eV with monochromated electron sources.
Can EELS map elements at atomic resolution? Yes. With aberration-corrected STEM instruments, EELS spectrum imaging (spectrum image, SI) produces elemental composition maps at atomic column resolution — mapping individual atomic columns of different elements in epitaxial interfaces, superlattices, and precipitates. This capability is essential for atomic-scale understanding of interface chemistry in semiconductor and ceramic materials.
