Compressive Strength Testing of Advanced Ceramics: Methods & ASTM Standards
What Is Compressive Strength Testing of Advanced Ceramics?
Compressive strength testing of advanced ceramics determines the maximum compressive stress a ceramic material can sustain before catastrophic failure. Unlike metals, which fail by plastic yielding and ductile fracture under compression, ceramics fail abruptly by cracking — initiating at pores, inclusions, or microstructural defects — making accurate compressive strength characterisation critical for structural ceramic design.
Advanced ceramics — including alumina (Al₂O₃), silicon carbide (SiC), silicon nitride (Si₃N₄), zirconia (ZrO₂), and boron carbide (B₄C) — are increasingly used in aerospace, defence, electronics, cutting tools, and biomedical implants where their exceptional hardness, wear resistance, and thermal stability are required.
Standards for Ceramic Compressive Strength Testing
ASTM C1424
ASTM C1424 — Standard Test Method for Monotonic Compressive Strength of Advanced Ceramics at Ambient Temperature — is the primary US standard. It specifies specimen geometry, loading rate, parallelism requirements, and data analysis procedures for cylindrical and prismatic ceramic specimens.
ISO 17565
ISO 17565 defines equivalent procedures for ceramic compressive strength testing using cylindrical specimens under uniaxial compression.
Challenges Unique to Ceramic Compressive Testing
End Constraint Effects
In ceramic compression testing, friction between the specimen ends and the loading platens introduces a lateral constraint that elevates the apparent compressive strength above the true uniaxial value. ASTM C1424 addresses this through requirements for specimen aspect ratio, end flatness and parallelism, and the use of compliant pad materials or special fixtures to minimise friction effects.
Specimen Geometry and Preparation
Ceramic specimens must be machined to tight dimensional tolerances — end flatness within 0.005 mm, parallelism within 0.01 mm, and surface finish requirements — to ensure uniform stress distribution. Machining-induced surface damage and residual stresses can initiate premature fracture; diamond grinding is the required material removal method.
Brittle Fracture Scatter
Ceramic compressive (and tensile) strength data exhibit significant statistical scatter due to the stochastic nature of flaw populations. Weibull statistical analysis is used to characterise the strength distribution and determine characteristic strength and Weibull modulus — essential parameters for probabilistic structural design.

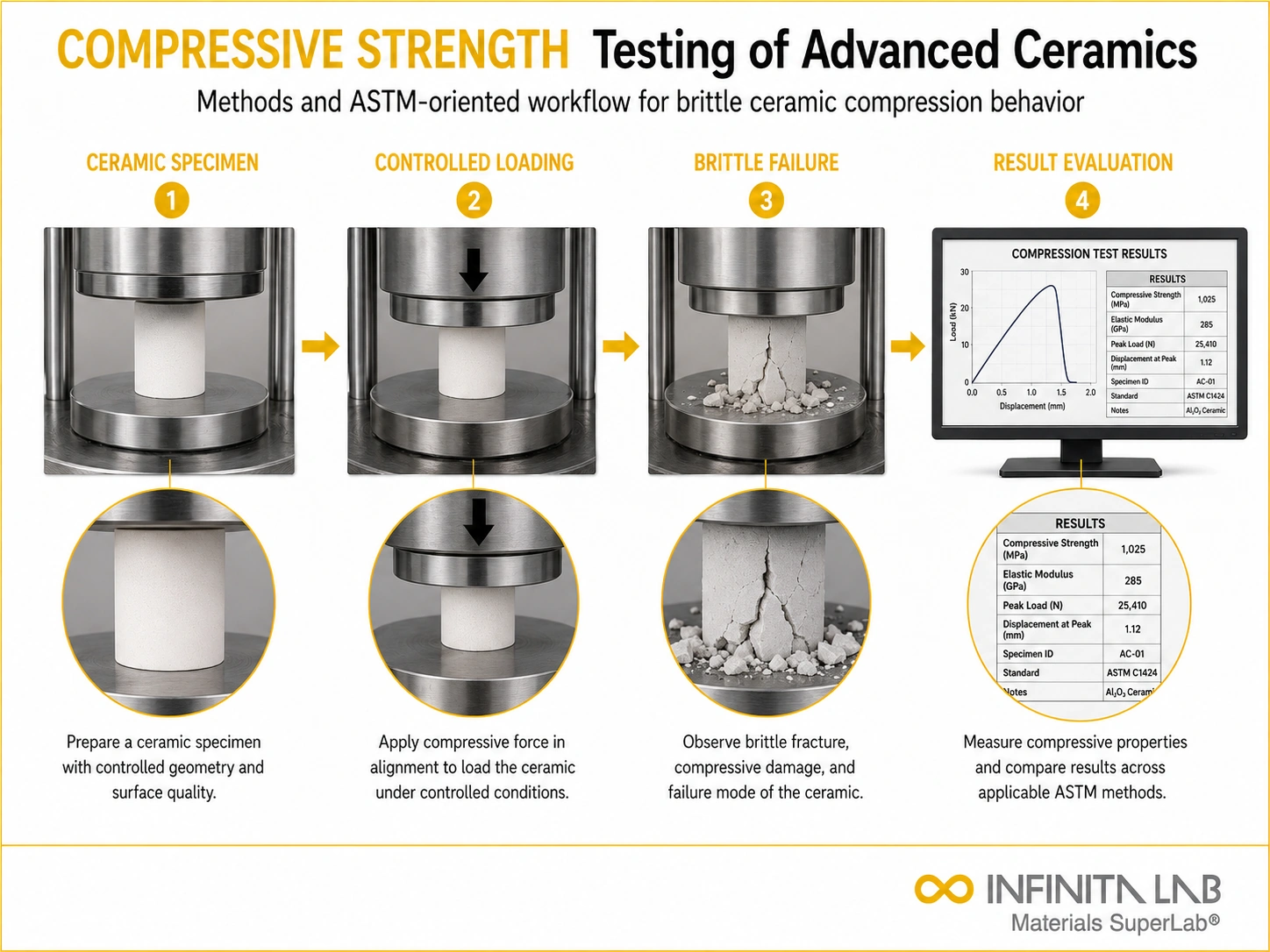

Test Procedure
Cylindrical specimens (typically 6–12 mm diameter, 12–24 mm length) are machined to ASTM C1424 requirements and loaded between hardened steel or tungsten carbide platens in a universal testing machine at a constant stress rate of 1 MPa/s. Fracture load is recorded, and compressive strength is calculated as force divided by cross-sectional area.
Multiple specimens (minimum 10–30) are tested to characterise the strength distribution for Weibull analysis.
Advanced Ceramic Compressive Strength Values
Typical ambient temperature compressive strengths of advanced ceramics range from approximately 1500 MPa for alumina to over 3000 MPa for boron carbide — far exceeding the compressive strength of metals. However, ceramics are much weaker in tension and have very low fracture toughness, making compressive loading the preferred stress state for ceramic structural applications.
Industrial Applications
In ballistic armour, ceramic tiles exploit high compressive strength to shatter and decelerate projectiles. In cutting tool inserts, compressive loading during metal cutting is resisted by the ceramic’s high compressive strength. In biomedical implants, ceramic femoral heads in total hip replacements are loaded primarily in compression during gait. In semiconductor processing, ceramic susceptors and chucks withstand compressive clamping forces in wafer processing equipment.
Conclusion
Compressive strength testing of advanced ceramics is essential for understanding their ability to withstand high compressive loads without catastrophic failure. Due to their brittle nature and flaw-sensitive behaviour, accurate testing and statistical analysis are critical for reliable design. By following standards such as ASTM C1424 and ISO 17565, engineers can generate reproducible data that supports safe and efficient use of ceramics in high-performance applications where compressive loading dominates.
Why Choose Infinita Lab for Advanced Ceramic Compressive Strength Testing?
Infinita Lab provides ASTM C1424-compliant compressive strength testing for advanced ceramics through our nationwide accredited materials testing laboratory network. Our ceramic testing specialists ensure precise specimen preparation, calibrated loading systems, and Weibull statistical analysis of results.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
Why do ceramics fail suddenly under compression? Ceramics are brittle materials, and failure occurs due to crack initiation and rapid propagation from inherent flaws like pores or inclusions.
What is the role of specimen preparation in testing? Precise machining, flatness, and parallelism are critical to ensure uniform stress distribution and avoid premature failure.
Why is Weibull analysis used? Ceramic strength varies due to random flaw distribution, so Weibull statistics help characterise reliability and predict failure probability.
How does friction affect compressive strength results? Friction at the loading platens can artificially increase measured strength by constraining lateral deformation.
How strong are advanced ceramics in compression? They typically range from ~1500 MPa (alumina) to over 3000 MPa (boron carbide), much higher than most metals.
