Battery & Fuel Cell Membrane Analysis: Characterization Methods & Testing

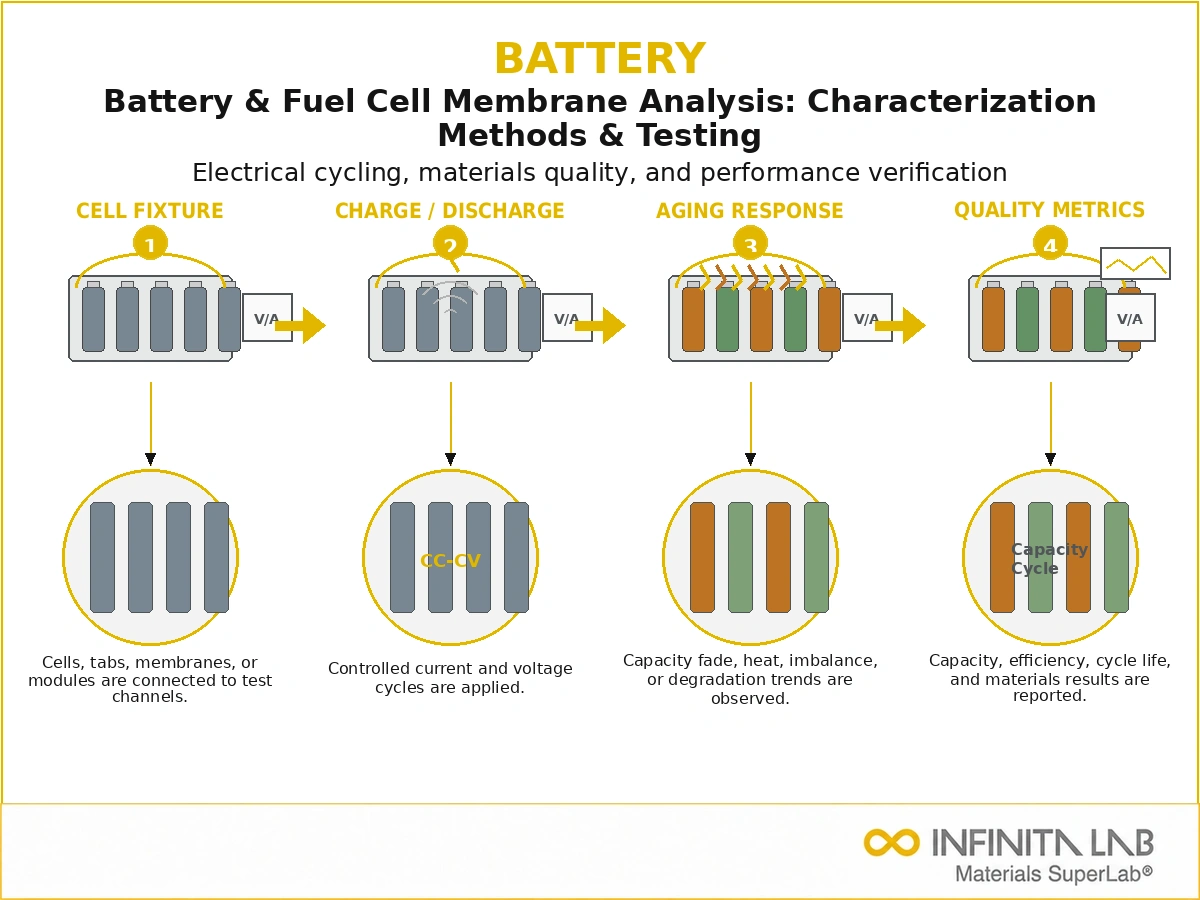

The Critical Role of Membranes in Batteries and Fuel Cells
Membranes are the functional heart of two of the most important energy storage and conversion technologies — lithium-ion batteries and proton exchange membrane (PEM) fuel cells. In lithium-ion batteries, the separator membrane physically isolates the anode from the cathode while enabling Li⁺ ion transport — its failure causes catastrophic internal short circuits and thermal runaway. In PEM fuel cells, the Nafion or hydrocarbon ionomer membrane conducts protons from anode to cathode while blocking electron flow and gas crossover — its degradation directly limits fuel cell lifetime. Comprehensive membrane analysis is essential in the fuel cell, battery, EV, and energy storage industries for materials development, quality control, and failure investigation.
Battery Separator Membranes
Types and Materials
Most commercial lithium-ion battery separators are polyolefin microporous films — polyethene (PE), polypropylene (PP), or trilayer PE/PP/PE — produced by dry or wet process. Thickness ranges from 9–25 µm; porosity 35–50%; pore size 0.03–0.1 µm. Ceramic-coated separators (Al₂O₃, SiO₂, BaTiO₃ on polyolefin substrate) improve thermal stability and wettability for high-energy-density applications.
Key Separator Test Methods
- Thickness and porosity (ASTM D374, mercury porosimetry): Critical for energy density and ionic resistance
- Gurley number (ASTM D726): Air flow resistance — proxy for ionic resistance; higher Gurley = higher cell impedance
- Tensile strength (ASTM D882): MD and TD tensile properties — must withstand winding and calendering without tearing
- Thermal shrinkage (ASTM D1204): Percent dimensional change at 90°C and 130°C — excessive shrinkage causes internal shorts during thermal abuse
- Shutdown temperature: Temperature at which pores close (PE melting ~135°C), blocking ion transport — critical safety mechanism
- Puncture resistance: Force required to penetrate separator with a pin — resistance to dendrite-induced shorts
PEM Fuel Cell Membranes
Nafion and Ionomer Structure
Nafion (DuPont) is a perfluorosulfonic acid (PFSA) ionomer — a PTFE backbone with pendant sulfonic acid (-SO₃H) side chains. Proton conductivity arises from hydrated sulfonic acid clusters forming connected aqueous channels. Equivalent weight (EW — grams of dry polymer per mole of SO₃H), water uptake, and proton conductivity are the primary Nafion characterisation parameters.
Degradation Analysis
Chemical degradation of Nafion occurs by radical attack (hydroxyl and hydroperoxyl radicals from H₂O₂ generated by oxygen reduction side reactions) — unzipping the polymer backbone from carboxylic acid defect sites (main chain scission) or attacking ether linkages (side chain scission). XPS F/C ratio decreases, fluoride emission rate (FER) increases, and EW increases as degradation proceeds. Post-test membrane characterisation by FTIR (SO₃⁻ band intensity), ICP-MS (fluoride/sulfate in effluent water), and EIS (membrane resistance increase) quantifies degradation extent.
For producers of fuel cell membranes and batteries, Infinita Labs provides testing and analysis in support of research and development and quality control. Infinita Labs is in a position to help you track and detect changes in your materials, enabling your success. These analytical techniques include SEM/EDS cross-sectional analysis, elemental mapping of cryo-prepared samples, high-resolution FIB-TEM analysis of nanoparticles and composites, and nano-resolution X-Ray CT for dimensional analysis.
Conclusion
Battery and fuel cell membrane analysis is a set of techniques used to investigate the properties of the membranes used in energy storage devices. By characterising the chemical composition, structure, morphology, mechanical and thermal properties of the membranes, membrane analysis provides valuable insights into the performance and durability of batteries and fuel cells.
Why Choose Infinita Lab for Battery & Fuel Cell Membrane Analysis?
Infinita Lab offers comprehensive Battery & Fuel Cell Membrane Analysis testing services, a Comprehensive lab network, project management, confidentiality, and rapid turnaround. Trust Infinita Lab for your material testing needs, Faster test results, cost savings, and reduced administrative workload.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is battery and fuel cell membrane analysis? It is the evaluation of separator membranes in batteries and ion-exchange membranes in fuel cells to assess their chemical, mechanical, and electrochemical performance, ensuring efficiency, durability, and safety.
Why is membrane analysis important? Membranes control ion transport while preventing electrical short circuits or gas crossover. Poor membrane performance can lead to reduced efficiency, degradation, or system failure.
What properties are tested in membrane analysis? Key properties include thickness, porosity, ionic conductivity, permeability, mechanical strength, thermal stability, and chemical resistance.
Which techniques are used for membrane characterization? Common techniques include SEM for morphology, FTIR for chemical structure, DSC/TGA for thermal properties, impedance spectroscopy for ionic conductivity, and tensile testing for mechanical strength.
How is ionic conductivity measured? Ionic conductivity is typically measured using electrochemical impedance spectroscopy (EIS), which evaluates ion transport efficiency through the membrane.
