ASTM F1140: Internal Pressurization Failure Test for Flexible Packaging
What Is ASTM F1140?
ASTM F1140 is the standard test method for internal pressurisation failure resistance of unrestrained packages. It evaluates the ability of flexible and semi-rigid packaging—primarily pouches, bags, and trays with peelable or heat-sealed closures—to withstand internal pressure buildup without catastrophic seal failure or package rupture.
This test is widely used in the medical device packaging, sterile product packaging, and speciality food packaging industries to validate that packaging seals provide adequate strength and integrity under worst-case distribution conditions.
Why Internal Pressurisation Testing Is Important
Flexible packaging must maintain its seal integrity throughout the distribution cycle, which includes:
- Altitude changes during air freight (pressure differential can exceed 10 kPa)
- Temperature cycling that causes gas expansion inside sealed packages
- Compression loads during stacking
- Rough handling and vibration
For medical device packaging, maintaining sterile barrier integrity is a patient safety requirement. Any seal failure that allows microbial ingress to a sterile device can cause serious patient harm. ASTM F1140 provides a standardised way to confirm that packaging systems exceed the stress levels encountered in distribution.
ASTM F1140 Test Methods
ASTM F1140 includes two primary test methods:

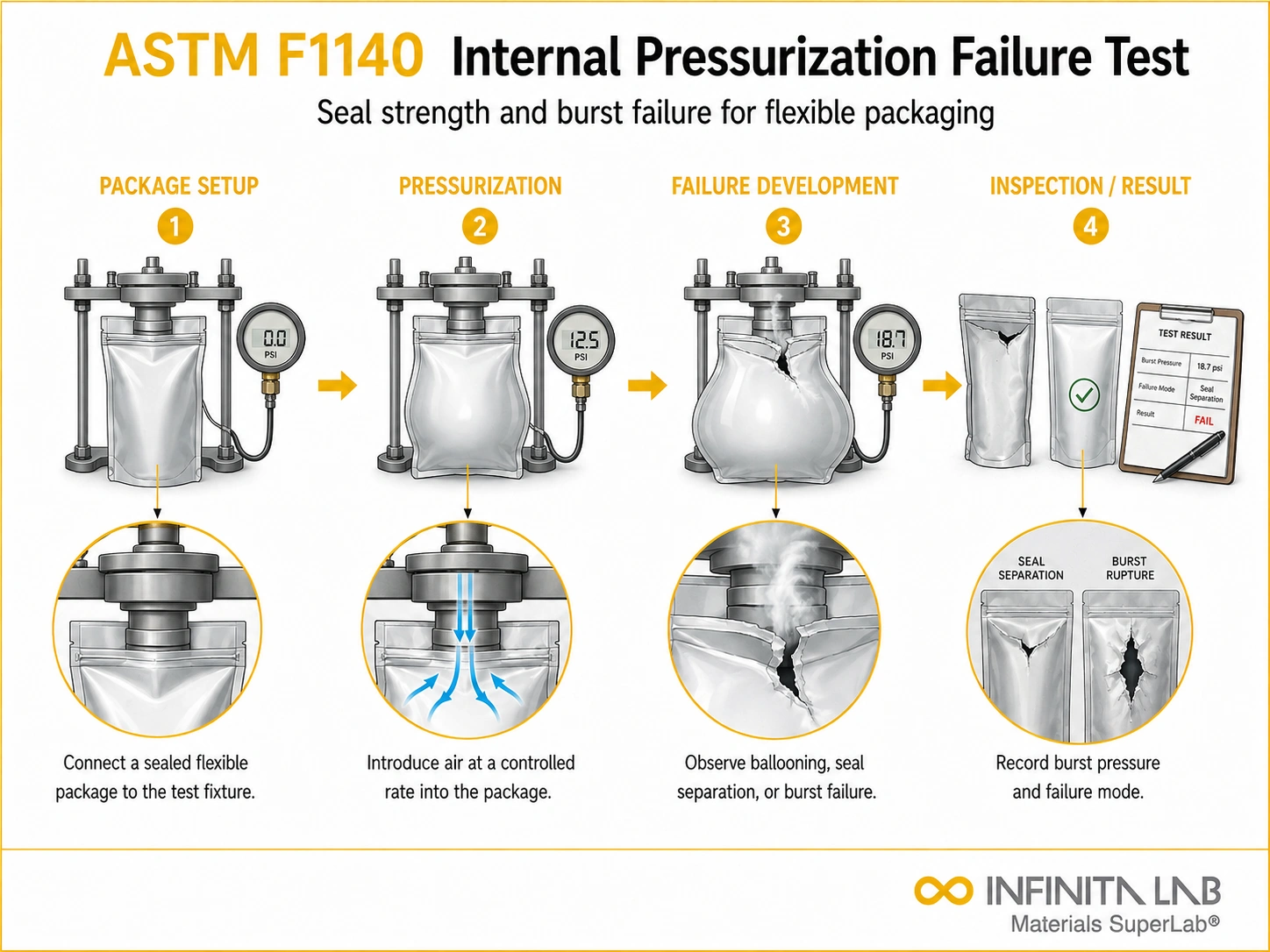

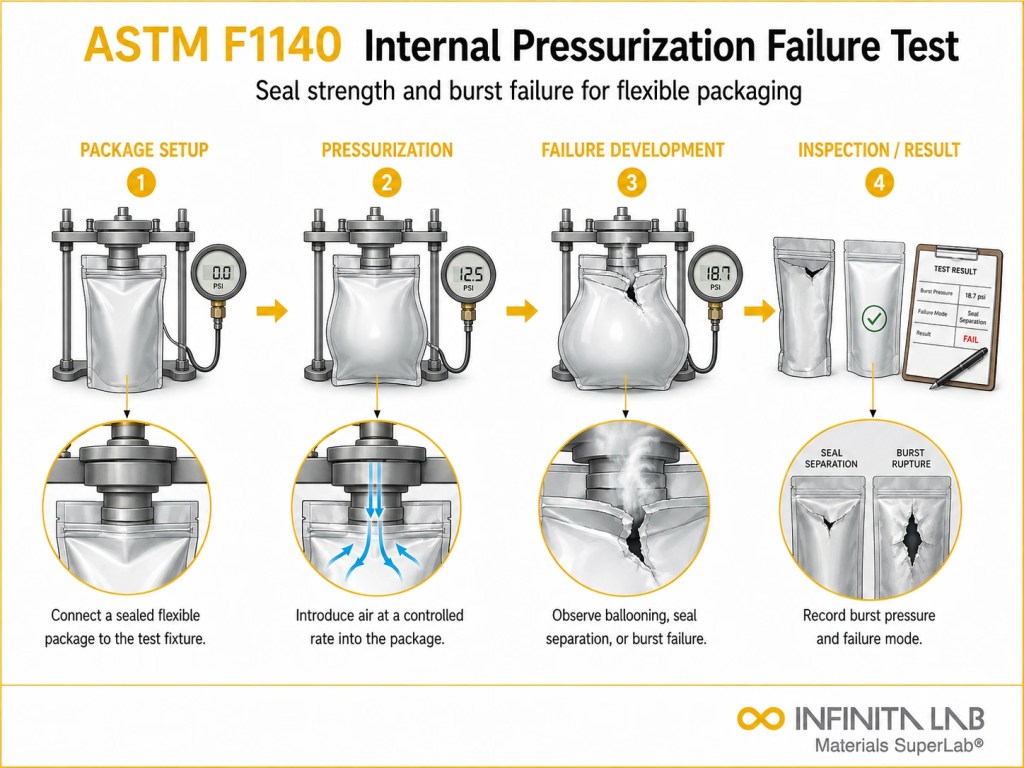

Method A: Constant Rate of Pressurisation (Burst Test)
The package is connected to a pressurised air supply and inflated at a constant, controlled rate (typically 10–1000 mL/min) until failure occurs. The pressure at failure (burst pressure) is recorded.
Output: Peak burst pressure (kPa or psi), mode of failure (seal peel, seal rupture, substrate failure), and location of failure.
Method B: Constant Pressure (Creep or Sustained Pressure Test)
The package is inflated to a specified target pressure and held for a defined period. The test evaluates whether the package maintains integrity under sustained pressure loading.
Output: Pass/fail at the specified pressure and hold time. Used to establish the minimum seal strength specification.
Test Parameters and Controls
- Inflation medium: Dry air or nitrogen
- Pressurisation rate: Specified in applicable product standard or internal validation protocol
- Restraint: Packages are tested unrestrained per F1140; ASTM F2054 covers restrained testing
- Sample conditioning: Typically conditioned at 23°C/50% RH per ASTM D618
Interpreting Failure Modes
The failure mode is as informative as the failure pressure:
- Peelable seal peel failure: Expected for intentionally peelable medical packaging. Peel force and initiation behaviour are evaluated.
- Seal rupture/burst: Indicates seal material or heat seal process limitation.
- Substrate failure: Packaging film failure rather than seal failure. Indicates adequate seal strength but potential material weakness.
- Corner or fold failure: Identifies stress concentration areas for design improvement.
Relationship to Other Package Integrity Tests
ASTM F1140 complements other seal integrity methods:
- ASTM F88: Seal strength by tensile (strip peel) method
- ASTM F2096: Gross leak detection by internal pressurisation with bubble emission
- ASTM F1886: Visual seal channel integrity inspection
- ASTM D4169: Complete distribution simulation cycle
Conclusion
ASTM F1140 is a critical test method for validating the pressure resistance and seal integrity of flexible packaging systems. Simulating real-world stresses such as altitude changes and internal pressure buildup, it helps ensure that packages maintain their integrity without failure. This is especially vital in medical and sterile packaging, where seal failure can compromise safety. Ultimately, ASTM F1140 enables manufacturers to design robust packaging, minimise risk, and ensure product protection throughout the distribution lifecycle.
Why Choose Infinita Lab for ASTM F1140 Package Testing?
Infinita Lab offers comprehensive ASTM F1140 internal pressurisation failure testing and a complete suite of package integrity and seal strength testing services. Our accredited laboratory network supports medical device packaging validation, Design History File (DHF) documentation, and production quality control programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the difference between ASTM F1140 (unrestrained) and ASTM F2054 (restrained) burst testing? F1140 tests packages without a restraining fixture, allowing the package to expand freely during pressurization. F2054 uses a rigid restraining fixture that conforms to the package shape, concentrating stress specifically on the seals rather than the flexible film. F2054 is more sensitive for detecting weak seals and is preferred for medical device package validation.
What burst pressure is typically required for medical device flexible packaging? There is no universal requirement—minimum burst pressure specifications are established through packaging validation per ISO 11607. Typical requirements for pouched medical devices range from 10–50 kPa (1.5–7 psi), depending on package size, film material, and distribution hazards.
How many samples are typically tested in an ASTM F1140 burst test? ISO 11607 and ASTM practice typically specify a minimum of 10 samples per test condition for statistical validity. Validation studies often test 30 or more samples to establish reliable distribution statistics.
Can ASTM F1140 testing be performed on filled, commercial-scale packages? Yes. F1140 can be performed on production-representative filled packages, which is preferred for validation because it reflects actual fill weight, headspace gas volume, and production seal quality.
What environmental conditioning is required before ASTM F1140 testing? ASTM F1140 requires standard conditioning of specimens at 23°C ± 2°C and 50% ± 5% RH for a minimum of 40 hours before testing per ASTM D618 Procedure A. Accelerated aging conditioning per ASTM F1980 may also precede testing for shelf-life validation purposes.
