ASTM D4355: UV Deterioration Testing of Geotextiles
What Is ASTM D4355?
ASTM D4355 — Standard Test Method for Deterioration of Geotextiles by Exposure to Light, Moisture and Heat in a Xenon Arc Type Apparatus — determines the durability of geotextiles when subjected to simulated sunlight, moisture, and heat in an accelerated weathering apparatus. The standard evaluates how exposure to outdoor environmental conditions degrades the mechanical properties of geotextile fabrics, particularly their tensile strength retention.
Geotextiles are permeable polymeric fabrics used in civil engineering applications including road construction, erosion control, drainage, filtration, and reinforcement. Their long-term mechanical performance in outdoor environments — where they are temporarily exposed to UV radiation and moisture before burial — is critical to the structural integrity of the infrastructure they support.
Why Geotextile UV Resistance Testing Matters
Most geotextiles are manufactured from polyolefins — predominantly polypropylene (PP) and polyethylene (PE) — that are susceptible to UV-induced photo-oxidative degradation. Even relatively short periods of unprotected outdoor exposure (weeks to months during construction) can significantly reduce the tensile strength, elongation, and puncture resistance of untreated geotextiles.
ASTM D4355 enables manufacturers and specifiers to:
- Quantify UV-induced strength loss before and after defined exposure periods
- Compare the UV resistance of different geotextile products and UV stabiliser packages
- Verify compliance with project specifications for minimum post-exposure strength retention
- Support material selection for projects with extended pre-burial exposure periods

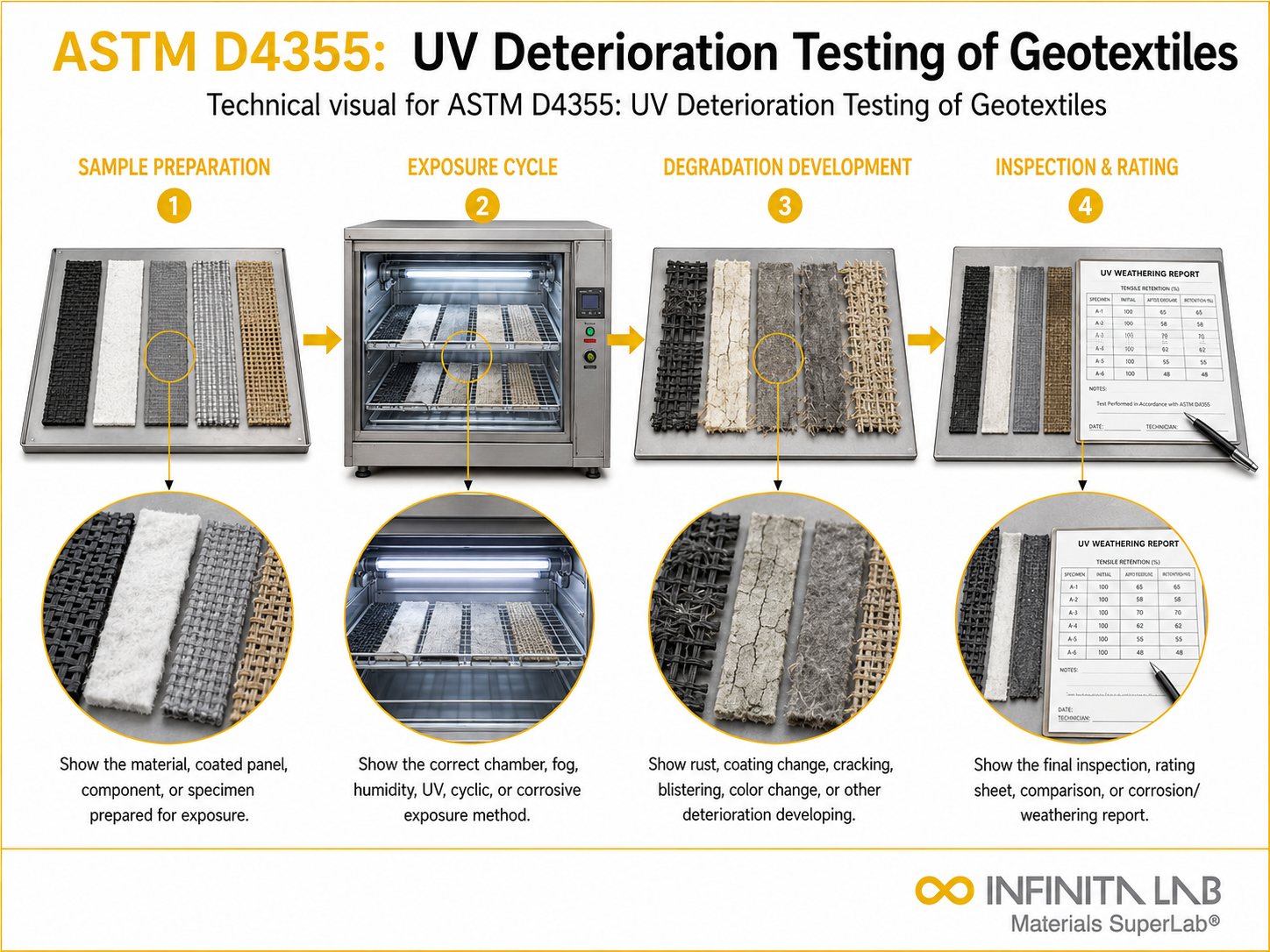

Test Procedure
Specimen Preparation
Rectangular specimens are cut from the geotextile fabric in both the machine direction (MD) and cross-machine direction (CMD). A minimum of five specimens per test condition per direction are required. Pre-exposure tensile properties are measured per ASTM D4595 (wide-width strip tensile test) to establish baseline values.
Xenon Arc Exposure
Specimens are placed in a xenon arc weathering apparatus (per ASTM G155 type) under defined irradiance levels, temperature, and water spray cycling. ASTM D4355 specifies exposure intervals of 150 hours, 300 hours, and 500 hours. At each interval, a set of specimens is removed and evaluated for retained tensile strength and elongation.
Post-Exposure Mechanical Testing
Exposed specimens are tested in tension per ASTM D4595 to measure tensile strength and elongation at break. Results are expressed as percentage of the original (pre-exposure) values — the strength retention percentage.
Typical Acceptance Requirements
Many geotextile product specifications and infrastructure project specifications require a minimum tensile strength retention of 70% after 500 hours of xenon arc exposure per ASTM D4355. Projects with extended pre-installation exposure (e.g., tropical climates, long construction periods) may require higher retention percentages or carbon-black UV-stabilised geotextile grades.
Factors Affecting Geotextile UV Resistance
Polymer type (PP is more UV-susceptible than HDPE), fibre structure (woven versus nonwoven), stabiliser package (carbon black at 2%+ loading provides excellent UV protection versus HALS stabilisers), fabric weight and thickness, and colour (dark colours absorb more UV energy) all influence UV degradation rate and ASTM D4355 results.
Industrial Applications
Road construction and drainage layer geotextiles, erosion control blankets, coastal and riverbank protection fabrics, and landfill liner geotextiles all require UV stability validation. Infrastructure owners including state DOTs, the US Army Corps of Engineers, and international road authorities specify ASTM D4355 testing as a mandatory qualification requirement.
Conclusion
ASTM D4355 is a critical accelerated weathering standard used to assess the durability of geotextiles under simulated outdoor exposure conditions. By subjecting specimens to controlled UV light, moisture, and heat in a xenon arc chamber, the test measures the retention of key mechanical properties such as tensile strength and elongation after defined exposure periods.
This method is widely used in civil engineering, road construction, erosion control, drainage systems, and landfill infrastructure to ensure geotextiles maintain adequate performance before burial or during temporary exposure. The results help verify compliance with project specifications, compare UV stabilisation systems, and support material selection for long-term field reliability.
Why Choose Infinita Lab for ASTM D4355 Geotextile UV Testing?
Infinita Lab provides ASTM D4355 xenon arc weathering and mechanical testing for geotextiles through our nationwide accredited laboratory network. Our textile and geosynthetics testing specialists deliver complete weathering characterisation with rapid turnaround.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What is the primary objective of ASTM D4355 testing ? This standard tests the resistance of geotextiles to ultraviolet light and water. The test measures the retention of strength and elongation after accelerated weathering, which can be used to determine the durability of the material when exposed to sunlight during installation and use.
What are the standard exposure intervals and evaluation criteria for ASTM D4355? Specimens are usually tested after 0, 150, 300, and 500 hours of exposure. Performance is determined by tensile testing, and the results are expressed in terms of percent strength retention compared to unexposed specimens.
How does the Xenon-Arc apparatus simulate real-world UV exposure? The Xenon-Arc tester simulates the entire solar spectrum, including ultraviolet, visible, and infrared rays. Light and water spray cycles alternate to simulate sunlight, rain, and dew, thus creating realistic environmental stress conditions for geotextile materials.
Why is percent elongation measurement as important as tensile strength? Percent elongation is an indication of the flexibility of the material and its resistance to embrittlement. Ultraviolet radiation can affect the ductility of the material before the loss of strength, making elongation an essential factor in determining whether geotextiles can deform without cracking.
What degradation mechanisms are evaluated in ASTM D4355 testing? ASTM D4355 tests the resistance of geotextiles to ultraviolet light and moisture, determining strength and elongation retention to evaluate the resistance of the material to weathering during installation and short-term exposure to the outdoors.
