Artificial Synaptic Memory: Material Science, Chemical Properties & Testing

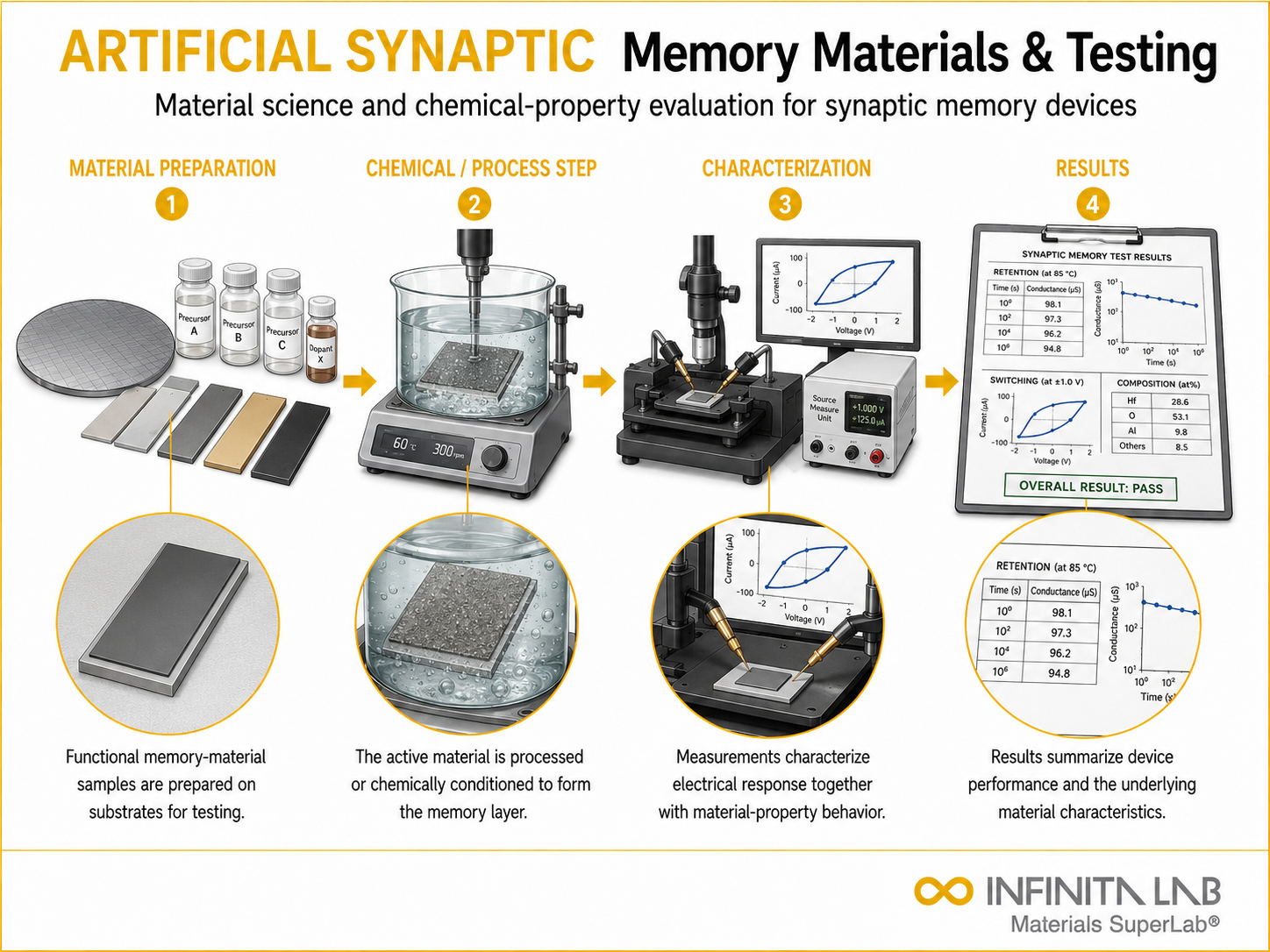

Artificial synaptic memory material testing showing memristive switching behavior characterizationThe Convergence of Neuroscience and Materials Science
Artificial synaptic memory devices — electronic components that mimic the behavior of biological synapses in the human brain — represent one of the most exciting frontiers in neuromorphic computing and advanced materials research. Biological synapses modulate the strength of connections between neurons (synaptic weight) based on activity history, enabling associative learning, pattern recognition, and energy-efficient computation at scales and efficiencies impossible with conventional von Neumann computer architectures. Replicating this plasticity in solid-state electronic devices is the core challenge driving research in memristors, phase-change memory (PCM), ferroelectric tunnel junctions, and organic electrochemical transistors — materials and devices with direct relevance to the semiconductor, AI hardware, and neuromorphic computing industries.
How Biological Synapses Work — and What Materials Must Replicate
In the brain, a synapse releases neurotransmitters that bind to postsynaptic receptors, generating a postsynaptic potential proportional to synapse strength (weight). Long-Term Potentiation (LTP) and Long-Term Depression (LTD) — activity-dependent strengthening and weakening of synaptic connections — are the cellular basis of learning and memory. An artificial synapse must provide:
- Analog conductance states: Multiple, precisely controllable resistance levels representing synaptic weight values
- Spike-Timing Dependent Plasticity (STDP): Weight updates dependent on the relative timing of pre- and post-synaptic spikes
- Non-volatility: Weight retention without power — analogous to long-term memory
- Energy efficiency: Sub-picojoule switching energy — approaching biological synapse energy consumption (~10 fJ per synaptic event)
Key Artificial Synapse Device Technologies
Memristors (Resistive RAM — ReRAM)
Metal-oxide memristors (HfOₓ, TaOₓ, TiO₂) switch between high-resistance and low-resistance states through formation and dissolution of conductive filaments under voltage pulses. Analog switching with multiple intermediate states is achievable by controlling pulse amplitude and duration — enabling synaptic weight encoding. HfOₓ-based memristors are CMOS-compatible and have been demonstrated in neural network inference chips.
Phase-Change Memory (PCM)
PCM materials (Ge₂Sb₂Te₅, GST) switch between amorphous (high-resistance) and crystalline (low-resistance) phases through Joule heating. Partial crystallization via carefully controlled heating pulses creates multiple intermediate conductance states — analogs of synaptic weights. IBM’s PCM-based deep learning chips have demonstrated pattern recognition with multi-level conductance encoding.
Ferroelectric Tunnel Junctions (FTJ)
Nanometer-thick ferroelectric barriers (BaTiO₃, HfZrO) sandwiched between metal electrodes switch polarization under electric fields, modulating tunnel current by 10²–10⁴×. Partial polarization switching creates analog conductance states. Ferroelectric hafnium oxide (Hf₀.₅Zr₀.₅O₂) is CMOS-compatible — enabling integration with standard logic processes.
Organic Electrochemical Transistors (OECTs)
Conducting polymer channels (PEDOT: PSS) modulate conductance via electrochemical doping/dedoping via ion injection from a solid or gel electrolyte gate. OECTs exhibit exceptional analog linearity and biological compatibility — enabling interfaces with neural tissue for in vivo neuromorphic sensing applications.
Materials Characterization for Artificial Synapses
Artificial synapse materials require comprehensive characterization — XPS for interface chemistry and oxidation states, STEM-EDS for filament composition, C-AFM for local conductance mapping, EELS for oxygen-vacancy profiles, and IV-cycling measurements with pulse-train protocols to extract STDP characteristics and endurance data.
Conclusion
Artificial synaptic devices bridge neuroscience and materials engineering, translating biological plasticity into solid-state systems. Memristors, PCM, ferroelectric junctions, and OECTs each offer distinct pathways toward analog, energy-efficient neuromorphic hardware. Rigorous materials characterization remains essential for validating switching mechanisms, ensuring endurance, and accelerating integration into scalable AI hardware platforms.
Why Choose Infinita Lab for Advanced Materials Characterization?
Infinita Lab is a leading provider of advanced materials characterization services — XPS, STEM-EDS, EELS, and electrical testing — for neuromorphic device research and semiconductor materials development across a nationwide accredited lab network.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is a memristor and why is it important for neuromorphic computing? A memristor is a two-terminal passive element whose resistance depends on its current history — analogous to a biological synapse. It enables dense, low-power synaptic arrays that store analog weight states, eliminating the separation between memory and processing units in neural network inference.
What is spike-timing dependent plasticity (STDP) and how is it implemented in artificial synapses? STDP is a biological learning rule where synapse strength increases when the presynaptic neuron fires before the postsynaptic neuron (LTP) and decreases when reversed (LTD). In artificial synapses, coincident voltage pulses from pre- and post-synaptic terminals create waveform overlaps that selectively potentiate or depress device conductance.
What challenges must be overcome for practical neuromorphic computing with artificial synapses? Key challenges include achieving over 100 stable, distinguishable conductance states for weight precision, minimizing cycle-to-cycle and device-to-device variability, reaching write endurance above 10⁹ cycles for online learning, enabling dense array integration with selector devices, and matching digital neural network learning accuracy.
What role do oxygen vacancies play in memristive switching? Oxygen vacancies (V_O²⁺) migrate toward the cathode under positive bias, forming low-resistance conductive filaments encoding the ON state. Negative bias disperses the filament, restoring high resistance. PVD, ALD, and reactive sputtering process conditions control vacancy concentration and mobility, directly determining switching characteristics.
How is XPS used to characterize artificial synapse materials? XPS quantifies metal oxidation states — Hf⁴⁺/Hf⁰, Ta⁵⁺/Ta²⁺, Ti⁴⁺/Ti³⁺ — reflecting oxygen vacancy concentration and filament chemistry in memristive oxides. Depth profiling tracks composition changes from forming and reset cycling. XPS also characterizes ferroelectric HZO stoichiometry and interfacial oxide chemistry governing FTJ tunneling performance.
