Antigenic Proteins in Hevea Natural Rubber: Detection & Testing Methods
Natural Rubber and Latex Allergy
Natural rubber latex (NRL) harvested from Hevea brasiliensis trees is one of the most versatile and widely used elastomeric materials in medical devices, gloves, condoms, adhesives, and industrial products. However, Hevea latex contains multiple antigenic proteins — proteins capable of triggering IgE-mediated allergic responses ranging from contact urticaria and rhinitis to anaphylaxis — in sensitized individuals. Latex allergy affects an estimated 1–6% of the general population and up to 17% of healthcare workers with repeated glove exposure, making protein testing and allergen control critical safety imperatives for the medical device, healthcare, latex products, and automotive industries.
Antigenic Proteins in Hevea Natural Rubber
More than 250 proteins have been identified in Hevea latex, of which at least 13 are recognized allergens designated Hev b 1 through Hev b 13 by the International Union of Immunological Societies (IUIS). The most clinically significant include:
Hev b 1 — Rubber Elongation Factor (REF)
A 14.6 kDa protein associated with rubber particle biosynthesis. The primary allergen for spina bifida patients with latex allergy is due to early and repeated mucosal exposure during surgical procedures.
Hev b 3 — Small Rubber Particle Protein (SRPP)
A 24 kDa protein present on small rubber particles. Co-allergen with Hev b 1; particularly important in patients with neural tube defects and fruit latex syndrome.
Hev b 5 — Acidic Latex Protein
An abundant, highly allergenic protein eluting in the serum fraction. Major allergen for healthcare workers — associated with occupational latex allergy and implicated in surgical latex anaphylaxis reactions.
Hev b 6.02 — Hevein
A 4.7 kDa chitin-binding protein responsible for cross-reactivity between latex and tropical fruits (banana, avocado, kiwi, chestnut) — the fruit-latex syndrome. Hevein homologs in food plants bind IgE antibodies raised against Hev b 6.02.
Hev b 13 — Esterase
A major allergen in occupationally sensitized healthcare workers is present in both soluble latex and on glove surfaces.

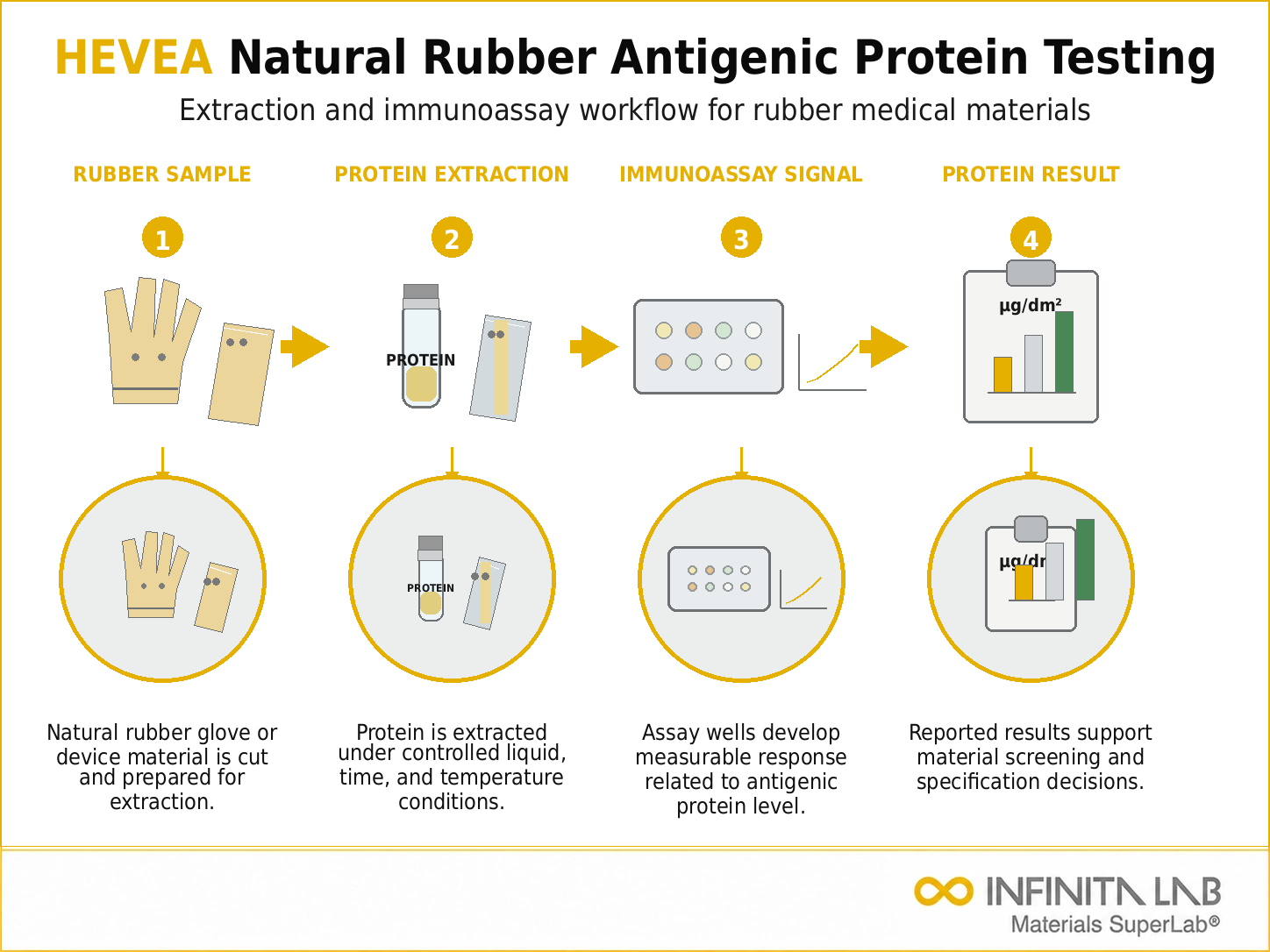

Protein Testing Methods
Total Protein — ASTM D6499 / ISO 12243
Total extractable protein in finished latex articles is quantified by the modified Lowry colorimetric method (ASTM D6499) or Bradford method, measuring all protein species. Results in µg/dm² (per surface area) of the finished product.
Antigenic Protein — ASTM D5712
ASTM D5712 quantifies the antigenic protein fraction using an enzyme-linked immunosorbent assay (ELISA) with a pooled latex-sensitive serum standard. Results correlate better with clinical allergenicity than total protein measurement because they specifically measure IgE-reactive protein species.
Individual Allergen Quantification
Recombinant allergen-specific ELISAs and multiplex immunoassays quantify individual Hev b allergens (Hev b 1, 3, 5, 6.02, 13) separately — enabling precise characterization of the allergen profile of specific latex products.
Regulatory Context
FDA requires latex-containing medical devices to include conspicuous labeling identifying latex content per 21 CFR Part 801.437. EU Medical Device Regulation (MDR 2017/745) requires labeling of latex content and clinical evidence of biocompatibility per ISO 10993 for latex-containing devices.
Conclusion
Natural rubber latex allergy is a significant safety concern driven by antigenic proteins present in Hevea latex, particularly in medical and high-exposure environments. Through standardized testing methods such as ASTM D6499 and ASTM D5712, manufacturers can quantify protein content and allergenicity, enabling safer product design, regulatory compliance, and reduced health risks for sensitive individuals across healthcare and consumer applications.
Why Choose Infinita Lab for Natural Rubber Latex Protein Testing?
Infinita Lab is a trusted USA-based testing laboratory offering ASTM D5712, D6499, and ISO 12243 latex protein testing across an extensive network of accredited facilities, with fast turnaround and comprehensive project management for medical device and latex product qualification.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the difference between total protein and antigenic protein testing for latex? Total protein (ASTM D6499) measures all extractable protein species — a simple, inexpensive screening method. Antigenic protein (ASTM D5712) specifically measures IgE-reactive allergen proteins using a pooled allergic serum standard — more clinically relevant because it quantifies the fraction responsible for allergic reactions rather than all proteins present.
What manufacturing processes reduce latex allergen content? Aqueous leaching during glove manufacturing is the primary allergen reduction step — hot water extraction removes water-soluble serum proteins including Hev b 5 and Hev b 6. Chlorination of finished gloves reduces surface protein by denaturation and removal. Powder-free manufacturing eliminates the airborne allergen exposure pathway associated with powdered gloves.
What is fruit-latex syndrome? Fruit-latex syndrome is IgE cross-reactivity between latex allergens (primarily Hev b 6.02 hevein and Hev b 8 profilin) and structurally homologous proteins in tropical fruits — banana, avocado, kiwi, chestnut, and papaya. Latex-allergic individuals may develop oral allergy symptoms (tingling, itching) or systemic reactions upon consumption of cross-reactive fruits.
Which medical device applications pose the highest latex sensitization risk? Repeated mucosal and internal exposure — surgical gloves (healthcare workers, patients), urinary catheters (spina bifida patients with multiple surgical procedures), and internal irrigation with latex-containing devices — carry the highest sensitization and anaphylaxis risk. Latex-free environments in high-risk patient settings are the standard of care in major medical centers.
What standard governs protein testing of natural rubber latex products? ASTM D5712 (antigenic protein by inhibition ELISA) and ASTM D6499 (total protein by modified Lowry) are the primary ASTM standards. ISO 12243 provides the international equivalent method. Both are referenced in FDA guidance for latex-containing medical devices and in ISO 10993-15 for material characterization of latex articles.
