ASTM D1636: Standard Specification for Allyl Molding Compounds Explained
What Are Allyl Moulding Compounds?
Allyl moulding compounds — primarily diallyl phthalate (DAP) and diallyl isophthalate (DAIP) thermoset resins filled with glass fiber, mineral, or cellulose reinforcements — are transfer- and compression-moulded materials offering exceptional electrical insulation, dimensional stability, chemical resistance, and high-temperature performance. They are used extensively in the electronics, automotive, defense, and optics industries for precision electrical connectors, circuit breakers, switch components, and optical instrument housings where dimensional accuracy and property stability across temperature and humidity extremes are paramount.

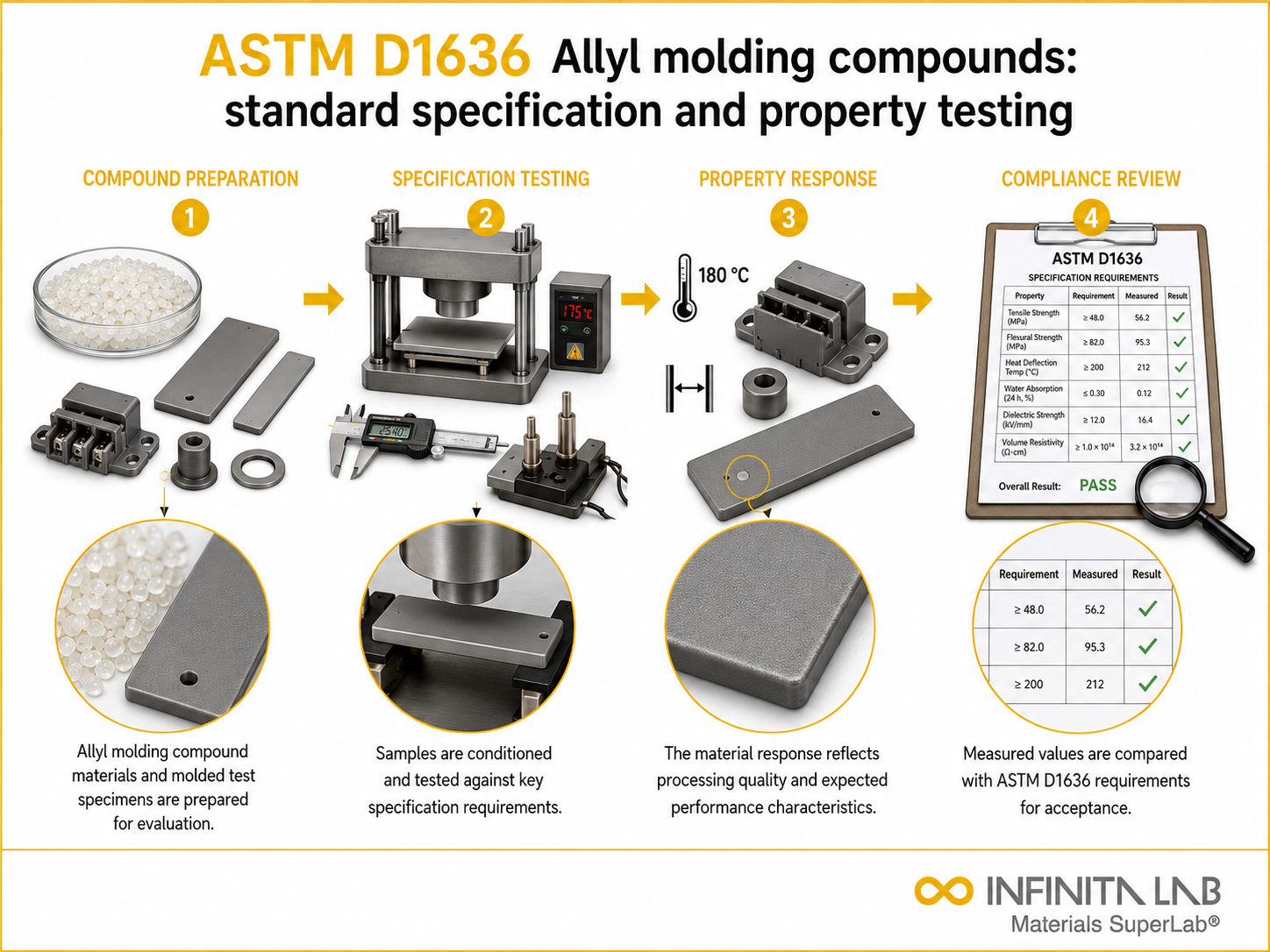

ASTM D1636 — Standard Specification for Allyl Moulding Compounds
ASTM D1636 classifies and defines requirements for allyl (DAP and DAIP) moulding compounds, specifying required properties for different compound types based on filler type and application performance requirements. The standard enables consistent material qualification and procurement for high-reliability electrical and electronic component manufacturing.
Classification System
ASTM D1636 defines compound types by filler system:
- Type 1: Short glass fiber-filled — highest strength, best dimensional stability
- Type 2: Mineral/glass hybrid filled — intermediate properties, excellent flow
- Type 3: Cellulose fiber-filled — lowest cost, moderate electrical properties
- Type 4: Long glass fiber-filled — highest impact strength
Each type has defined requirements for dielectric strength, arc resistance, flexural strength, heat deflection temperature, and dimensional stability after conditioning.
Key Properties and Test Methods
Electrical Properties
- Dielectric Strength (ASTM D149): Voltage gradient (V/mil) required to cause electrical breakdown through the material. DAP compounds achieve 300–400 V/mil — superior to most phenolics and epoxies at elevated temperature and humidity.
- Arc Resistance (ASTM D495): Resistance to surface carbonization and tracking under high-voltage electrical arc. DAP compounds achieve 125–180 seconds — one of the highest arc resistance values of any thermoset.
- Dielectric Constant and Dissipation Factor (ASTM D150): At 1 MHz, DAP compounds exhibit dielectric constant of 3.5–4.5 and dissipation factor of 0.010–0.025 — enabling use in high-frequency electronic applications.
Mechanical Properties
- Flexural Strength and Modulus (ASTM D790): Confirms reinforcement effectiveness and moulding quality
- Tensile Strength (ASTM D638): Characterizes fiber-matrix bonding in glass-filled grades
- Izod Impact (ASTM D256): Long glass fiber-filled Type 4 compounds achieve 10–20 ft-lb/in notched Izod
Thermal Properties
- Heat Deflection Temperature (ASTM D648): DAP compounds maintain dimensional integrity to 150–200°C under load — significantly higher than most thermoplastics
- Flammability (UL 94): V-0 rating is achievable with appropriate formulation
Industry Applications
Defense electronics use DAP connector housings in missile guidance systems, shipboard radar, and avionics because of their radiation resistance and dimensional stability across −65°C to +150°C temperature cycling. Automotive ignition systems employ DAP distributor caps and rotors for heat and arc resistance. Precision optics manufacturers use mineral-filled DAP housings for camera and instrument components requiring minimal moisture-induced dimensional change.
Conclusion
ASTM D1636 provides a comprehensive framework for evaluating the properties and performance of allyl moulding compounds used in electrical and industrial applications. By defining material classifications, testing requirements, and quality criteria, it ensures consistency, reliability, and compliance with industry standards. This standard supports manufacturers in producing high-performance materials with dependable mechanical and electrical properties.
Why Choose Infinita Lab for Allyl Moulding Compound Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From ASTM D1636 electrical and mechanical testing to flammability and thermal characterization of thermoset compounds, we connect you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is ASTM D1636 and its purpose? ASTM D1636 is a standard specification that defines requirements for allyl moulding compounds. It ensures consistent material quality, performance, and classification for use in electrical, industrial, and high-performance applications.
What properties are evaluated in ASTM D1636 testing? Properties such as mechanical strength, electrical insulation, heat resistance, dimensional stability, and moisture resistance are evaluated. These characteristics ensure the material performs reliably in demanding environments.
Why is ASTM D1636 important for manufacturers? It provides clear guidelines for material performance and quality. Following the standard helps manufacturers ensure consistency, meet customer expectations, and comply with industry requirements for critical applications.
How does ASTM D1636 support quality control? The standard outlines testing methods and acceptance criteria, allowing manufacturers to verify material properties. This ensures consistent product quality and reduces the risk of defects or performance failures.
How does ASTM D1636 ensure material reliability? By defining strict testing procedures and performance limits, the standard ensures that materials consistently meet required specifications, leading to reliable and predictable performance in real-world applications.
