Advanced Lighting Controls Testing: Standards, Safety & Performance
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhat Is Advanced Lighting Controls Testing?

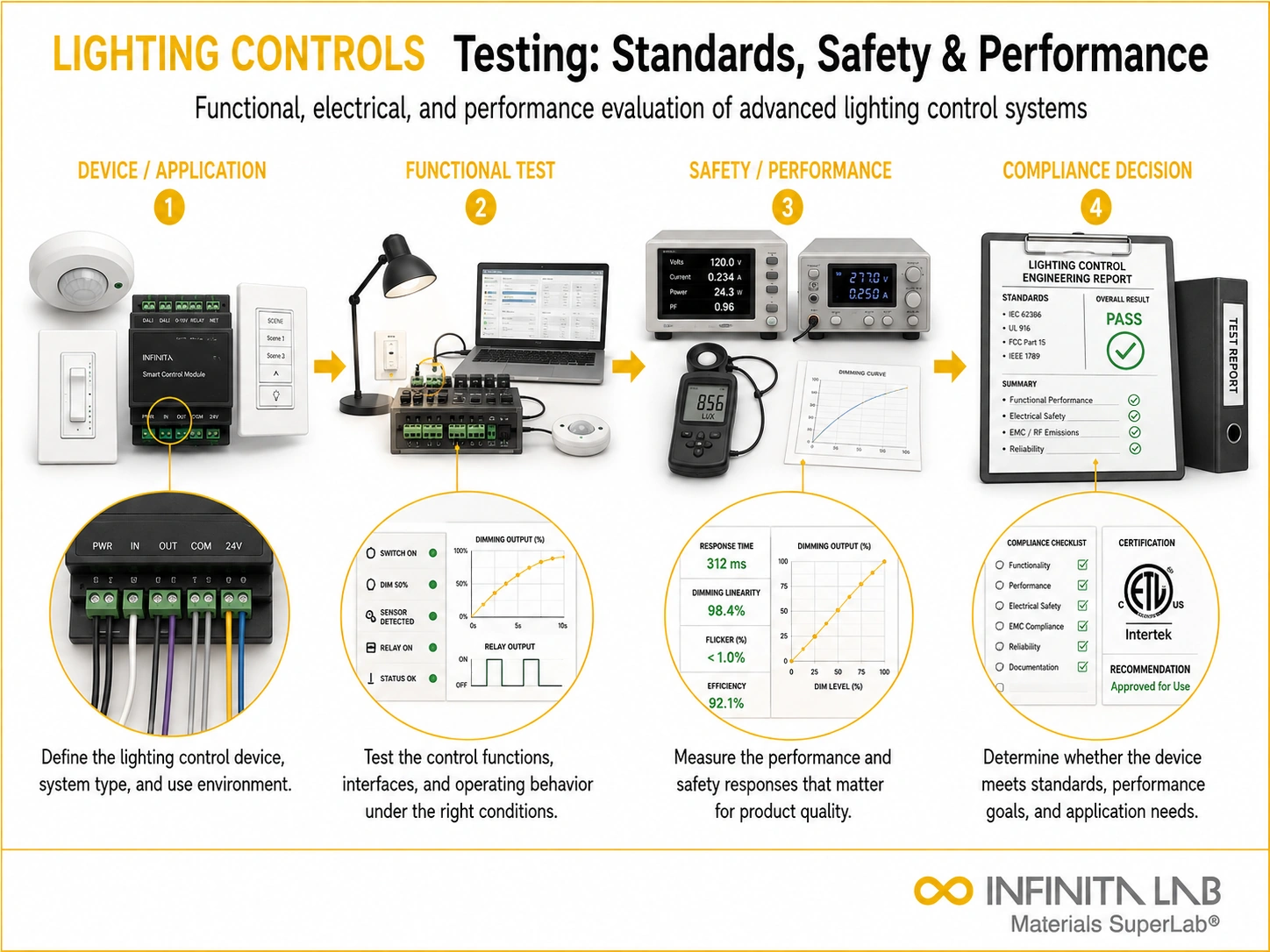

Advanced lighting controls testing evaluates the performance, safety, energy efficiency, interoperability, and compliance of intelligent lighting control systems — including dimmers, occupancy sensors, daylight harvesting controllers, networked LED drivers, and smart building lighting systems. As the lighting, smart buildings, electronics, and energy industries transition from simple on/off switching to sophisticated IoT-connected, tunable, and demand-responsive systems, rigorous testing has become essential to ensure reliable, safe, and energy-compliant product performance.
Key Testing Categories
Photometric and Electrical Performance Testing
Photometric testing measures luminous flux (lumens), luminous efficacy (lm/W), chromaticity coordinates (CIE 1931 x,y), correlated color temperature (CCT), color rendering index (CRI/Ra), and R9 value using integrating spheres and goniometers, in accordance with the IES LM-79 and LM-80 procedures. Electrical measurements characterize input power, power factor, total harmonic distortion (THD), and inrush current per IEC 61000-3-2.
Dimming Performance and Compatibility Testing
Dimming testing evaluates the control range (minimum dimming level, typically 1–10%), the smoothness of the dimming curve (absence of flicker, steps, and dropout), compatibility with phase-cut dimmers (leading-edge/trailing-edge), and the 0–10V analog control interface performance. IEEE 1789-2015 recommends modulation depth and frequency limits to prevent stroboscopic effects and flicker-induced physiological harm.
Networked and Wireless Protocol Testing
Smart lighting systems communicating via DALI (IEC 62386), Zigbee (IEEE 802.15.4), Bluetooth Mesh (Bluetooth SIG MeshProfile), Wi-Fi (IEEE 802.11), and Z-Wave require protocol conformance testing and interoperability verification. DALI certification testing per IEC 62386-101, Part 209, verifies the implementation of command set addressing and scene recall functions.
Occupancy and Daylight Sensor Verification
Passive infrared (PIR) and ultrasonic occupancy sensor testing characterizes detection zone coverage, time-to-off delay accuracy, sensitivity settings, and false-trigger immunity per ANSI/ASHRAE 90.1 and California Title 24 requirements. Daylight sensor linearity, calibration stability, and closed-loop control accuracy are verified against target illuminance setpoints.
Safety and EMC Testing
LED drivers and lighting control systems require safety testing per IEC 61347-1/2, UL 8750 (LED equipment for use in lighting products), and UL 1310 (Class 2 power units). EMC testing per CISPR 15 and IEC 61000-4 series ensures that lighting controls do not emit excessive conducted or radiated interference and maintain immunity to external electromagnetic disturbances.
Energy Efficiency Standards
ASHRAE 90.1, California Title 24, and the EU Ecodesign Regulation (EU 2019/2020) mandate minimum energy-efficiency requirements and lighting-control functionality — including occupancy sensing, daylight harvesting, and demand-response capability — for commercial and residential lighting installations. Products must be tested and certified to demonstrate compliance before installation in regulated jurisdictions.
Conclusion
Advanced lighting controls testing is essential for ensuring the performance, safety, energy efficiency, and interoperability of modern intelligent lighting systems. By evaluating photometric output, dimming behavior, network communication, sensor accuracy, and compliance with global standards, manufacturers can deliver reliable and efficient solutions. This testing ultimately supports smarter buildings, reduces energy consumption, and ensures seamless operation in connected lighting environments.
Why Choose Infinita Lab for Lighting Controls Testing?
Infinita Lab offers comprehensive advanced lighting controls testing services across a nationwide lab network. Trust Infinita Lab for your material and product testing needs — faster test results, cost savings, and reduced administrative workload.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the DALI protocol and why is it important for lighting controls testing? DALI (Digital Addressable Lighting Interface, IEC 62386) is a two-way digital control protocol enabling individual luminaire addressing, scene programming, and fault reporting over a simple two-wire bus. DALI certification testing verifies that devices correctly implement command sets and address assignment, ensuring interoperability across multi-manufacturer systems.
What is flicker, and how is it tested in lighting controls? Flicker is a rapid, repeated variation in light output that can cause visual discomfort, headaches, and in severe cases, photosensitive epilepsy. IEEE 1789-2015 and IEC TR 61547-1 define measurement methods for percent flicker, flicker index, and stroboscopic visibility measure (SVM). Testing uses calibrated photodetectors and FFT analysis of the light output waveform.
What is the difference between LM-79 and LM-80 testing? IES LM-79 measures total luminous flux, efficacy, and electrical characteristics of a complete LED luminaire. IES LM-80 measures lumen depreciation of LED packages, arrays, or modules over 6,000+ hours at multiple temperatures — providing the source data for TM-21 lifetime projections used in Energy Star and DesignLights Consortium (DLC) qualification.
What safety certifications are required for LED drivers sold in the US? LED drivers for commercial and industrial use typically require UL 8750 (LED equipment safety), UL 1310 (Class 2 power units), or UL 60950-1 listing. FCC Part 15 EMC compliance is required for all electronic devices. Energy Star and DLC certification require LM-79/LM-80 test data in addition to the safety listing.
How is demand response capability tested in lighting controls? Demand response testing verifies that a lighting control system responds correctly to utility signals (OpenADR 2.0, BACnet, MODBUS) to reduce lighting power by defined percentages within specified response times. Test protocols simulate demand response events and measure actual power reduction, response latency, and recovery behavior.
