Acid Digestion & Constituent Content Analysis for Composite Materials
What Is Constituent Content Analysis?
Constituent content analysis quantifies the relative proportions of reinforcing fiber, matrix resin, and void space in a composite material. These three constituents — fiber volume fraction (Vf), resin volume fraction (Vm), and void content (Vv) — directly control the mechanical, thermal, and physical properties of the cured laminate. For aerospace, automotive, sports equipment, and marine industries relying on carbon fiber, glass fiber, and aramid-reinforced polymer composites, constituent content verification is a fundamental quality assurance requirement.
Why Constituent Content Matters
Mechanical properties of fiber-reinforced composites scale primarily with fiber volume fraction. A rule-of-mixtures model shows that tensile modulus and strength in the fiber direction are approximately linear functions of Vf. A Vf deviation of even 3–5% from design can reduce in-plane stiffness, tensile strength, and fatigue life by equivalent fractions — unacceptable margins in structural aerospace applications. Void content above 1–2% drastically reduces interlaminar shear strength (ILSS) and fatigue resistance, compromising damage tolerance.
Acid Digestion Method (ASTM D3171 Procedure A)
Principle
Acid digestion selectively dissolves the polymer matrix, leaving the reinforcing fibers intact. After dissolution, the fibers are filtered, dried, and weighed. Fiber weight fraction and volume fraction are calculated from the initial composite mass, fiber residue mass, and known or measured constituent densities.
Applicable Matrix and Fiber Systems
- Acid digestion (H₂SO₄/H₂O₂ or HNO₃): Suitable for epoxy, polyester, vinyl ester, and phenolic matrices with glass, carbon, or aramid fiber reinforcement
- Burn-off (ASTM D3171 Procedure B): Oven burnout at 565°C removes polymer matrix from glass fiber composites; not suitable for carbon fiber composites (carbon fibers oxidize)
- Solvent dissolution: Used for thermoplastic matrix composites (PEEK, PPS, nylon) where acid digestion may damage fibers

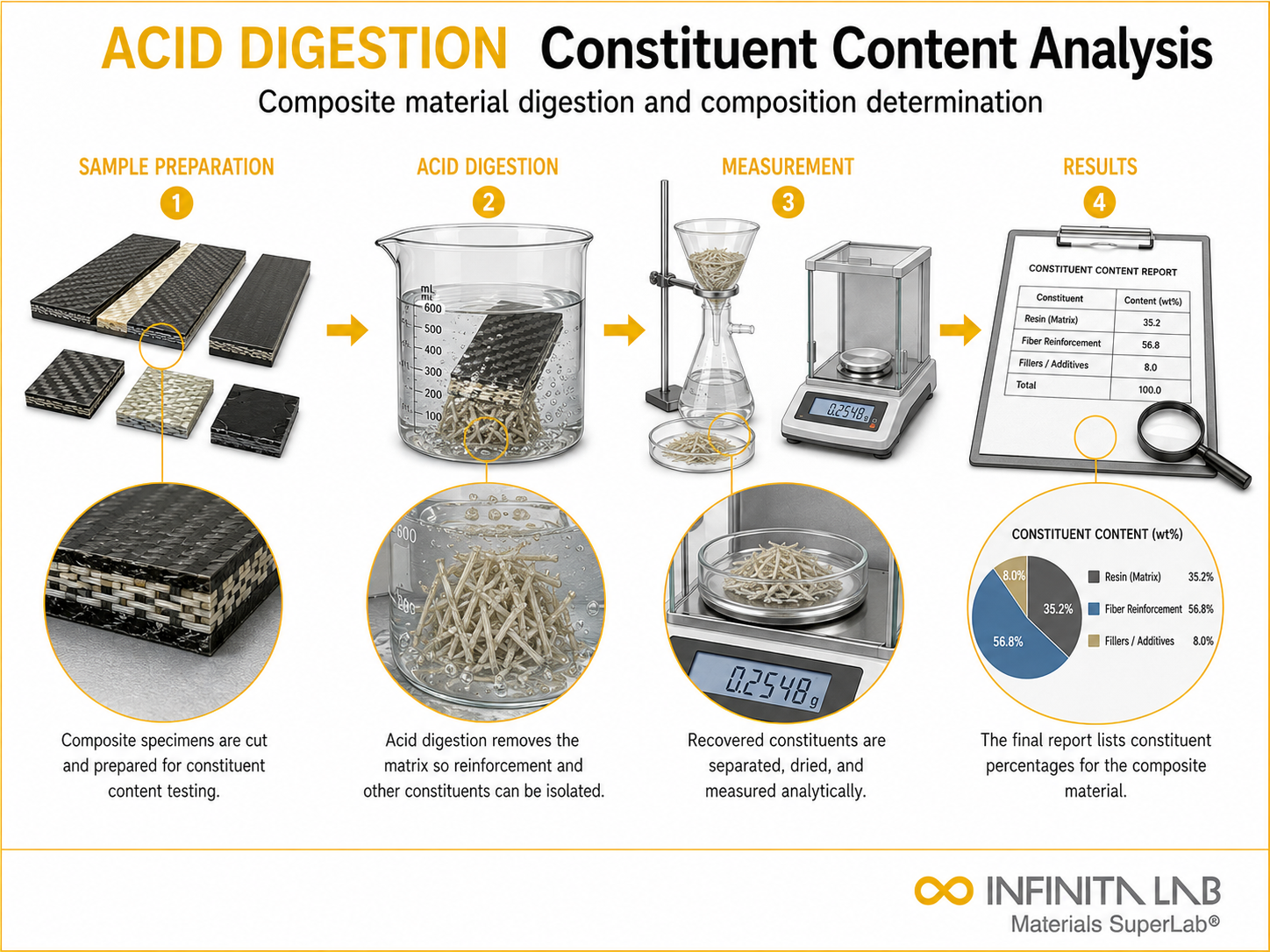

Test Procedure
A precisely weighed composite specimen (typically 2–5 g) is placed in a flask with concentrated sulfuric acid, heated to 250–300°C to char the resin, then treated with hydrogen peroxide to complete oxidation of carbonaceous residues. The fiber residue is filtered through a tared crucible, washed, dried at 110°C, and weighed. Calculations per ASTM D3171 yield fiber weight fraction (Wf), fiber volume fraction (Vf), and matrix volume fraction (Vm). Void content is calculated as Vv = 1 − Vf − Vm when the theoretical composite density is known.
Complementary Analysis Methods
Micrographic Analysis (ASTM D2734 / ASTM E1270)
Cross-sectional optical micrography measures void content by image analysis of polished specimen cross-sections. It provides spatial distribution of voids — critical for identifying process-related void banding or ply interface porosity invisible to bulk acid digestion.
Ultrasonic C-Scan
Non-destructive C-scan imaging detects regions of elevated porosity by reduced back-wall echo amplitude, enabling 100% part screening before destructive constituent-content verification on witness panels.
Conclusion
Acid digestion combined with constituent content analysis is a critical technique for accurately determining the elemental composition of complex materials. By effectively breaking down samples into measurable forms, it ensures precise, reliable, and reproducible results across various industries. This method supports quality control, regulatory compliance, and material characterization, making it an essential tool for modern analytical laboratories.
Why Choose Infinita Lab for Acid Digestion and Constituent Content Analysis?
Infinita Lab is a trusted USA-based testing laboratory offering acid digestion and constituent content analysis across an extensive network of accredited facilities. Our experts deliver rapid, documented results for welding qualification, material certification, and failure investigation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the typical fiber volume fraction for aerospace-grade carbon fiber composites? Aerospace CFRP laminates are typically designed with a fiber volume fraction of 55–65%. Values below 50% indicate excess resin (reduced stiffness and strength); values above 65% may indicate resin starvation and elevated void content from insufficient matrix to wet all fibers.
Why is void content critical in composite structures? Voids reduce the resin-dominated properties of composites — interlaminar shear strength, compression strength, and fatigue life — by acting as stress concentrators and crack initiation sites. A rule of thumb is that each 1% void content reduces ILSS by approximately 7%. Aerospace specifications typically require Vv ≤ 1–2%.
What is the difference between ASTM D3171 Procedure A (acid digestion) and Procedure B (burn-off)? Procedure A (matrix digestion by acid) is applicable to carbon fiber composites since carbon fibers are not attacked by the acids used. Procedure B (resin burnout at 565°C) is used only for glass fiber composites since carbon fibers oxidize at burnout temperatures.
How are density measurements used in constituent content calculations? Fiber, matrix, and composite densities (measured by Archimedes method per ASTM D792 or helium pycnometry per ASTM D2734) are used to convert weight fractions to volume fractions and to calculate theoretical composite density (ρc = 1/(Wf/ρf + Wm/ρm)) for void content determination.
What are the typical acceptance criteria for void content in aerospace composites? Most aerospace prime contractor specifications (Boeing BMS, Airbus AIMS, Lockheed Martin LMA) specify a maximum void content of 1.5–2.0% for primary structural laminates and 3% for secondary structure. Voids are verified by both micrographic analysis and ultrasonic inspection per engineering drawing call-outs.
