What Is ASTM A348 AC Magnetic Properties Epstein Frame?
The test method for determining the alternating-current magnetic properties of soft magnetic materials by the wattmeter-ammeter-voltmeter method on a 25-cm Epstein frame is specified in ASTM A348. This test measures the magnetic properties of materials when they are exposed to alternating magnetic fields over the range of 100 Hz to 10 000 Hz.
The wattmeter-ammeter-voltmeter method is used to test electrical steels and other soft magnetic materials used in transformers, inductors, motors, and high-frequency electromagnetic devices. This method helps engineers study the magnetic properties of materials by exposing them to varying frequency conditions.
Applications and Benefits of ASTM A348 AC Magnetic Properties Epstein Frame Testing
Scope
The ASTM A348 test evaluates the alternating-current magnetic properties of magnetic materials in sheet or strip form. This is done by measuring the electrical parameters under a controlled environment of an Epstein frame. This test is performed to measure magnetic losses and flux density at frequencies above the power frequency.
ASTM A348 evaluates:
● Alternating current magnetic properties of soft magnetic materials
● Core losses at frequencies between 100 Hz and 10 000 Hz
● Magnetic flux density behavior under AC excitation
● Frequency-dependent magnetic performance
● Suitability of materials for high-frequency magnetic applications
Applications
● Electrical steels used in high-frequency transformers
● Magnetic laminations for motors and generators
● Inductors and electromagnetic components
● Power electronics and switching devices
● Magnetic materials used in electronic systems
● Research and development of magnetic alloys
Benefits
● Provides standardized measurement of AC magnetic properties
● Supports evaluation of magnetic materials at higher frequencies
● Helps determine energy losses in electromagnetic components
● Assists engineers in selecting efficient magnetic materials
● Enables comparison of magnetic performance across materials
ASTM A348 Test Parameters and Requirements

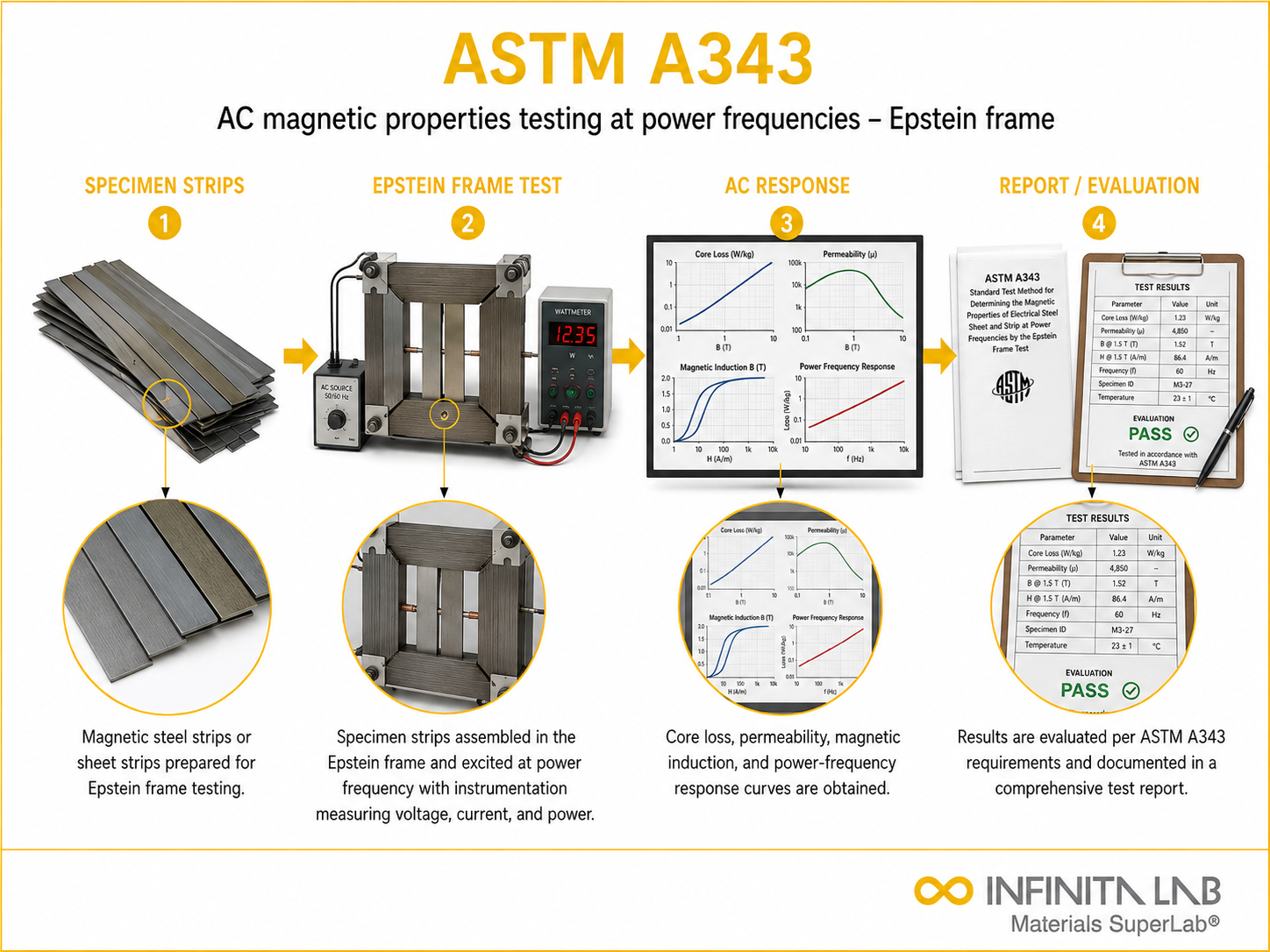

Sample Preparation
Sheet or strip specimens are cut and assembled into the Epstein frame according to specified dimensions.
1Magnetic Excitation
An alternating magnetic field is applied to the specimen through the Epstein frame system.
2Electrical Measurement
Electrical parameters such as voltage, current, and power are measured using appropriate instruments.
3Data Recording & Evaluation
Magnetic properties including core loss and flux density are calculated from recorded measurements.
4ASTM A348 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Electrical steels and soft magnetic materials |
| Test Frequency Range | 100 Hz to 10 000 Hz |
| Test Apparatus | 25-cm Epstein test frame |
| Measurement Method | Wattmeter-ammeter-voltmeter technique |
| Specimen Form | Sheet or strip laminations |
| Measured Outputs | Core loss and magnetic flux density |
● 25-cm Epstein test frame
● Wattmeter for power measurement
● Ammeter for current measurement
● Voltmeter for voltage measurement
● Alternating current power supply
● Data acquisition and monitoring system
Equipment and Instrumentation Used for ASTM A348 Testing
What You Receive: Test Report, Data, and Certification
● Core loss measurement results
● Magnetic flux density values
● Electrical measurement data
● Test condition summary
● ASTM compliance report
ASTM A348 AC Magnetic Properties Epstein Frame FAQs
ASTM A343 measures the alternating-current magnetic properties of soft magnetic materials at power frequencies. It uses a wattmeter, ammeter, and voltmeter method with a 25-centimeter Epstein frame to assess magnetic performance.
ASTM A343 helps measure core loss and magnetic behavior of electrical steels used in transformers, motors, and generators. It ensures that materials deliver efficient magnetic performance under alternating current conditions at standard power frequencies.
ASTM A343 evaluates magnetic properties such as core loss, magnetic flux density, magnetizing force, and permeability. It provides important data for materials used in electrical machines and power distribution equipment.
ASTM A343 is often used for electrical steel sheets, transformer laminations, and soft magnetic alloys found in power equipment. It is important to evaluate alternating-current magnetic performance closely.
ASTM A343 tests magnetic properties at specific power frequencies in a controlled lab setting. It may not fully reflect how materials behave at different frequencies, temperatures, or mechanical stresses that occur during use.
