ASTM E2245 Residual Strain Testing of Reflecting Films by Optical Interferometry
ASTM E2245 test method determines the residual strain of the films in microelectromechanical systems by a non-contact optical interferometric microscope that can form topographical 3-D data sets. This optical interferometric microscope does not measure the residual strain of fixed-fixed beams that touch the underlying layers.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview

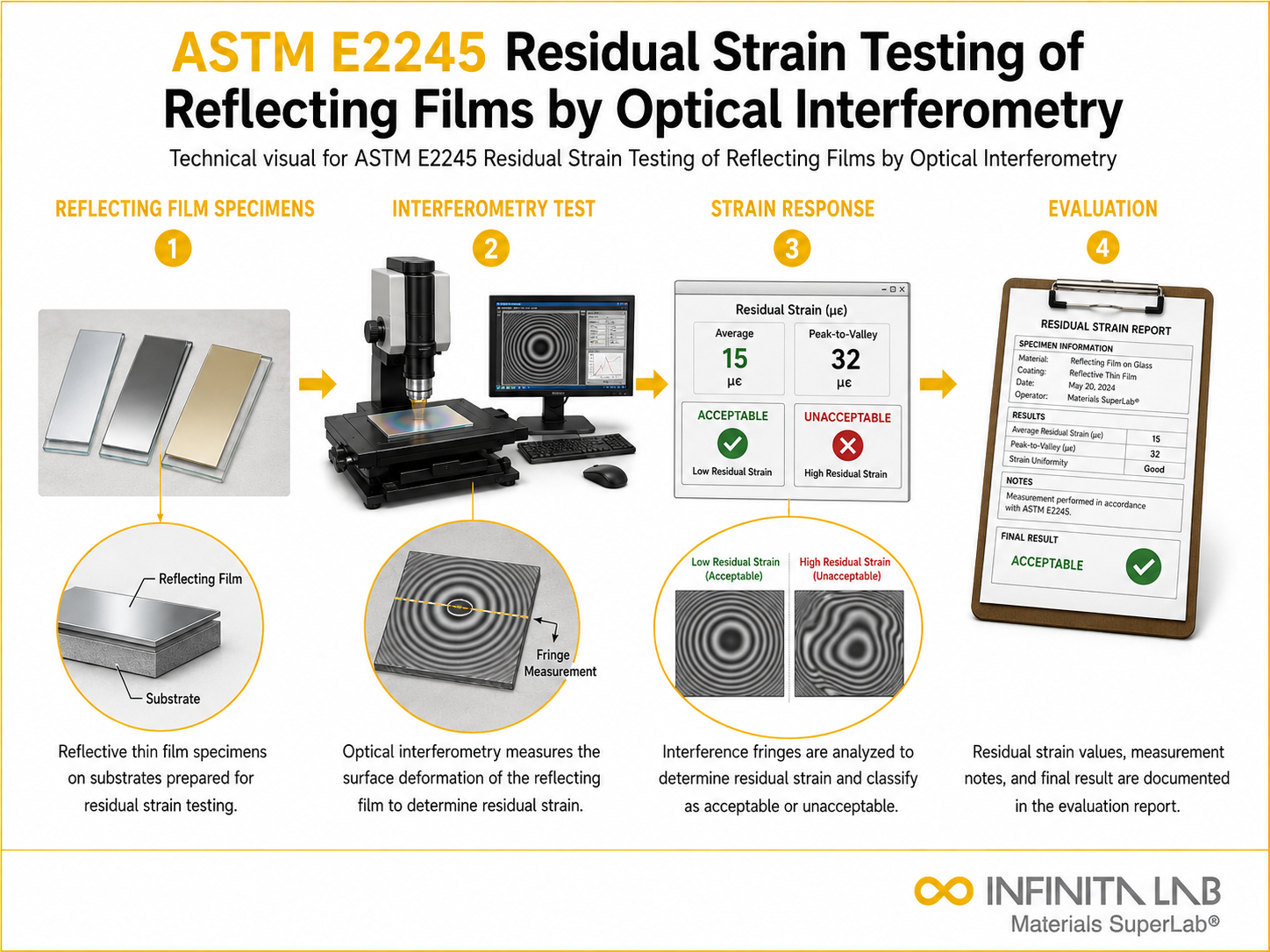

ASTM E2245, developed by ASTM International, describes a test method for measuring residual strain in reflective thin films using an optical interferometer. The technique analyzes surface deformation patterns produced by interference of light waves to determine the strain present in deposited films.
This method is commonly used for thin film coatings, semiconductor materials, and microelectronic devices, where internal stresses may affect performance and reliability. By measuring residual strain accurately, manufacturers can evaluate film quality, adhesion, and structural stability.
Scope, Applications, and Benefits
Scope
ASTM E2245 focuses on determining residual strain in reflective thin films and coatings using optical interferometry. The test helps evaluate stresses that develop during film deposition or processing.
The scope includes:
Measurement of residual strain in reflective films
Evaluation of thin film coatings and layers
Analysis of surface deformation patterns
Characterization of microelectronic and optical materials
Quality assessment of deposited thin films
Applications
Semiconductor thin film analysis
Microelectronics and MEMS devices
Optical coatings and reflective films
Materials research and thin film development
Quality control in coating processes
Benefits
Provides highly accurate strain measurements
Non-contact optical measurement method
Suitable for thin and delicate films
Helps detect internal stresses and deformation
Improves film reliability and performance
Test Process
Sample Preparation
The reflective thin film sample is cleaned and mounted on the interferometer stage for measurement.
1Optical Interferometry Setup
A coherent light source is directed onto the film surface to produce interference patterns.
2Fringe Pattern Observation
The interference fringes formed due to surface deformation are recorded using optical detectors.
3Strain Calculation
The fringe pattern data is analyzed to calculate residual strain present in the film.
4Technical Specifications
| Parameter | Details |
|---|---|
| Test Method | Optical interferometry |
| Measurement Parameter | Residual strain in thin films |
| Applicable Materials | Reflective thin films and coatings |
| Measurement Type | Non-contact optical analysis |
| Optical Source | Coherent light source (laser) |
| Resolution | High sensitivity for micro-scale strain |
| Output Data | Interference fringe patterns and strain values |
Instrumentation Used for Testing
Optical Interferometer
Laser Light Source
Optical Microscope or Imaging System
Sample Mounting Stage
Data Analysis Software
Results and Deliverables
Residual strain measurement report
Interference fringe pattern images
Thin film deformation analysis
Quantitative strain calculation
Detailed testing and interpretation report
Frequently Asked Questions
ASTM E2245 is a standard test method used to measure residual strain in reflective thin films using optical interferometry. It evaluates stress and deformation in coatings that may affect the performance and reliability of thin film materials.
This method is primarily used for reflective thin films, coatings, and deposited layers used in semiconductors, optical devices, microelectronics, and advanced material applications where residual stress may influence structural performance.
Residual strain in thin films can cause cracking, delamination, or distortion in materials. Measuring strain helps manufacturers evaluate film stability, ensure product reliability, and optimize coating processes for better performance.
Industries such as semiconductor manufacturing, microelectronics, optics, nanotechnology, and materials research commonly use ASTM E2245 to evaluate thin film stresses and ensure coating quality.
Yes, the method is widely used for semiconductor thin films and microelectronic coatings where residual stress must be controlled to maintain device performance and long-term reliability.
