What Is ASTM C978 Glass Matrix Photoelastic Residual Stress?
ASTM C978-04 (2025), officially titled the Standard Test Method for Photo elastic Determination of Residual Stress in a Transparent Glass Matrix Using a Polarizing Microscope and Optical Retardation Compensation Procedures, sets out a photo elastic procedure for quantifying residual stress trapped inside a piece of transparent glass. Stressed glass is birefringent. That’s the whole trick behind it. Polarized light passing through a stressed region splits into two components traveling at slightly different speeds, and the resulting optical retardation is proportional to the stress present, scaled by the glass’s stress-optic coefficient. C978 doesn’t rely on broad fringe counting across an entire part. Instead, it uses a polarizing microscope fitted with null or retardation compensation optics to measure that retardation directly, at the exact point of interest.
This standard is written specifically around transparent glass substrates and three common sources of stress: cord (compositional striae within the glass itself), fired-on vitreous enamel decoration, and applied color labels (ACL). Enamel and ACL materials fuse onto glass at elevated temperatures, then cool with it. Any mismatch between their thermal expansion behavior and that of the base glass leaves measurable residual stress behind. That’s exactly what this method is built to detect and quantify. Opaque glass is explicitly excluded, since the technique depends on light transmission through the sample. There’s also a practical limitation worth flagging: when ion exchange occurs between glasses of differing composition, the stress-optic coefficient can become uncertain, which narrows the method’s reliable application. First approved in 2004 and reapproved most recently in 2025, C978 remains an active ASTM standard maintained under Committee C14 on Glass and Glass Products. It’s valued for the simplicity, reproducibility, and precision it offers compared with physical or performance-based stress testing.
Applications and Benefits of ASTM C978 Glass Matrix Photoelastic Residual Stress Testing
Scope
ASTM C978 covers procedures for determining residual stress distribution in transparent glass and glass-matrix materials using photoelastic analysis under polarized light conditions.
- This test method covers determining residual stress in a transparent glass matrix, using a polarizing microscope equipped with null or retardation compensation optics.
- It applies specifically to stress conditions arising from cord (compositional striae present within the glass substrate itself).
- Compatibility between a glass substrate and any fired-on vitreous enamel decoration applied to its surface falls under this scope as well.
- The method extends further, to assessing applied color labels (ACL) by measuring the stress they introduce into the underlying glass.
- Transparent glass substrates only. Opaque glass systems aren’t covered, since the technique relies on transmitted polarized light.
- Measurement depends on a known or independently determinable stress-optic coefficient for the glass composition being examined.
- One caution worth noting: ion exchange between glasses of differing composition can introduce uncertainty into the stress-optic coefficient, limiting the method’s validity in such cases.
- Results come out as the magnitude and spatial distribution of residual stress across the region examined.
- Think of the method as an alternative to physical-property or performance-based testing: a more direct optical route to the same information.
- The current edition, C978-04(2025), reflects the standard’s original 2004 technical content, carried forward through successive administrative reapprovals.
Applications
- Checking cord-related stress in glass containers, tableware, and other commercially produced glassware.
- Verifying thermal expansion compatibility between fired-on enamel decoration and the glass bodies it’s applied to.
- Assessing applied color label (ACL) formulations for stress compatibility before committing them to full production runs.
- Process control during the annealing and decorating stages of glass manufacturing often relies on this method.
- Investigating field or in-service failures of decorated glass, to determine whether residual stress played a role.
- New glass, enamel, or label formulations get evaluated this way during product development.
- Comparing lots or suppliers of enamel or ACL materials for consistency in stress behavior.
Benefits
- Provides a direct, non-destructive read on stress hidden inside otherwise clear glass.
- Simpler, in most cases, than physical-property or mechanical test alternatives.
- Delivers reproducible results when applied consistently to similar glass and decoration systems.
- Pinpoints localized stress rather than just an average or bulk value.
- Helps catch enamel or ACL incompatibility early, before it surfaces as cracking or delamination in the field.
- Sample sizes stay modest, since testing can be performed directly on representative glass sections.

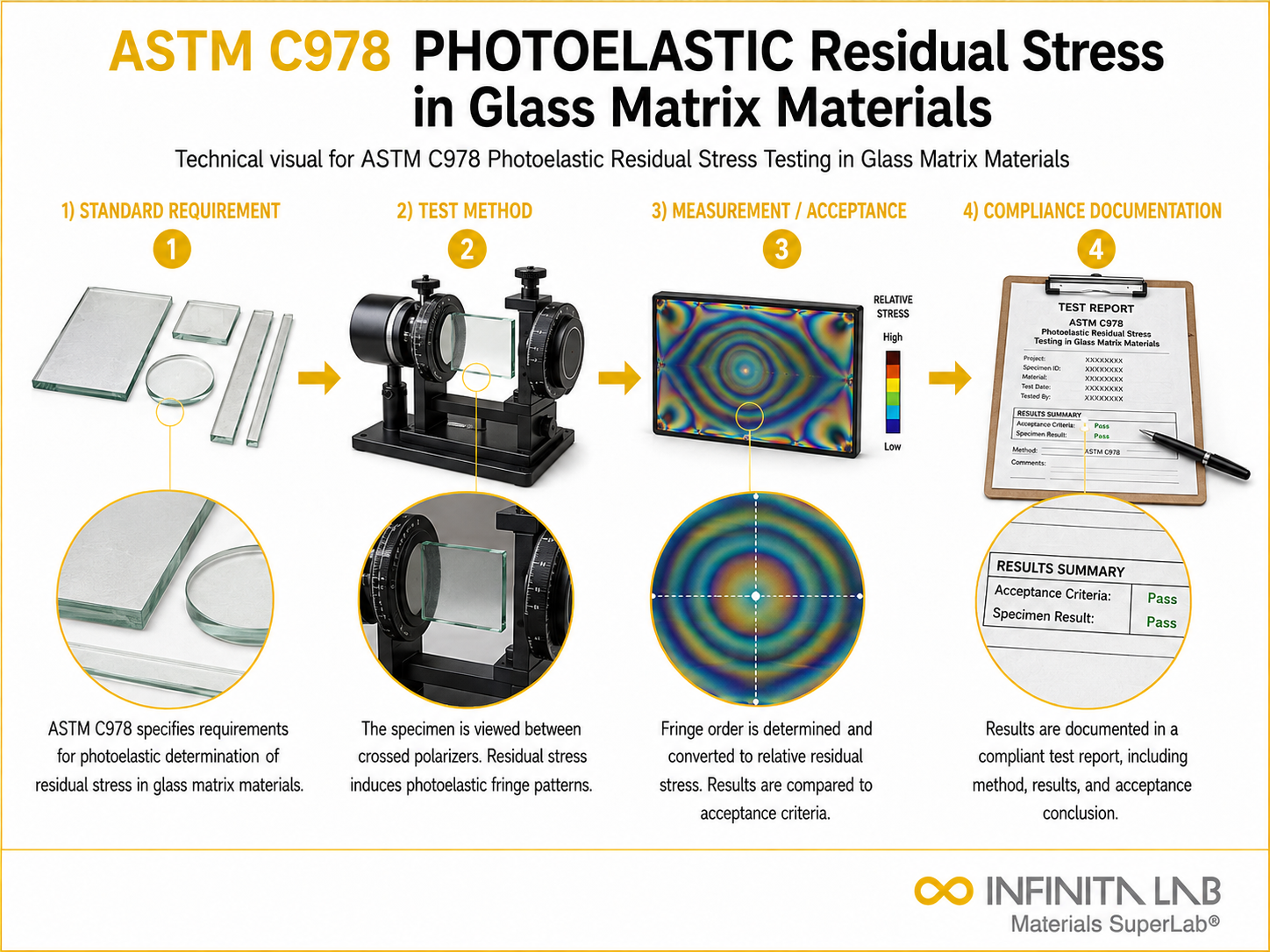

Our ASTM C978 Testing Procedure
Sample Preparation
Transparent glass specimen is cleaned and prepared to ensure proper light transmission during analysis.
1Polarized Light Setup
The sample is placed in a polariscope to expose it to polarized light for stress visualization.
2Fringe Observation
Stress-induced birefringence produces fringe patterns that indicate stress distribution within the material.
3Stress Interpretation
Fringe patterns are analyzed to estimate residual stress magnitude and distribution across the sample.
4ASTM C978 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Material Type | Transparent glass and glass-matrix materials |
| Test Principle | Photoelasticity based on birefringence under polarized light |
| Measurement Type | Qualitative and semi-quantitative stress analysis |
| Output | Fringe pattern indicating stress distribution |
| Surface Condition | Clean and optically transparent specimen |
| Environment | Controlled laboratory lighting conditions |
- Polarizing Microscope – Forms the core of the test setup, transmitting polarized light through the glass sample and letting the operator view the resulting birefringence directly.
- Retardation Compensator – Provides the null or compensation reading used to quantify optical retardation at a specific point in the glass.
- Polarizer and Analyzer Elements – Control and cross the plane of polarized light, so stress-induced birefringence shows up as a change in light transmission.
- Light Source – Supplies stable, properly filtered illumination. Consistent polarized readings across repeated measurements depend on it.
- Sample Stage/Holder – Positions and orients the glass specimen precisely, so the region of interest aligns with the optical path.
- Calibration Reference Standards – Used to verify compensator accuracy and confirm the stress-optic coefficient applied in calculations.
- Imaging/Documentation System – Captures the birefringence pattern and retardation readings for the final test report.
Equipment and Instrumentation Used for ASTM C978 Testing
What You Receive: Test Report, Data, and Certification
- A quantified residual stress value, or range of values, for the glass region examined.
- Documentation of the optical retardation readings taken at each measurement point.
- An assessment of thermal expansion compatibility between the glass and any enamel or ACL decoration tested.
- Cord-related stress zones are identified within the glass substrate, where present.
- A written test report summarizing methodology, readings, and interpretation against the ASTM C978 procedure.
- Recommendations on formulation or process adjustments, when stress levels suggest a compatibility concern.
ASTM C978 Glass Matrix Photoelastic Residual Stress FAQs
ASTM C978 is used to determine residual stress in transparent glass materials using photoelastic techniques. It helps identify internal stress patterns that may affect strength, durability, and performance, enabling manufacturers to control quality and reduce the risk of failure.
Residual stresses are internal stresses locked into a material during manufacturing processes like cooling or forming. These stresses can weaken the material, cause distortion, or lead to cracking if not properly controlled or relieved.
Fringe patterns represent variations in stress within the material. The number, spacing, and orientation of fringes provide information about the magnitude and distribution of residual stresses in the glass sample.
Residual stress can lead to unexpected failure, reduced strength, or distortion. Analyzing these stresses helps improve manufacturing processes and ensures the reliability and safety of glass components in various applications.
Factors include cooling rate, temperature gradients, material composition, and manufacturing processes. Controlling these factors helps minimize residual stress and improve product quality.
A polariscope passes polarized light through the glass and measures optical retardation caused by residual stress. The retardation is evaluated to assess the glass’s annealing or tempering condition.
ASTM C770 determines the stress-optical coefficient of glass, which is used to calculate glass stress through photoelastic analysis. Controlled mechanical loading is applied while optical retardation is measured using polarized light.
